Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

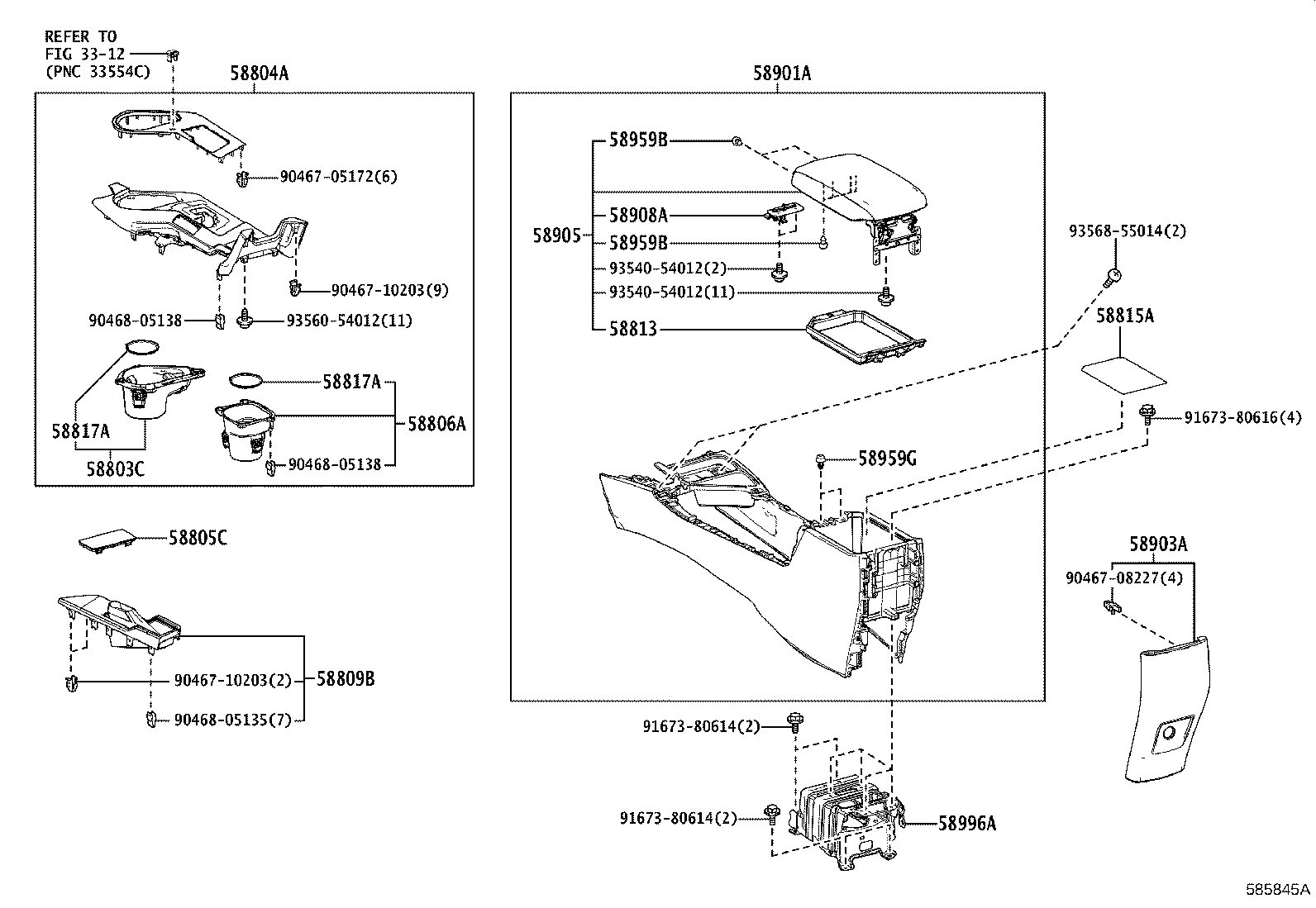

Exploded illustration 585845A 58803C — BOX SUB-ASSY, CONSOLE CUP HOLDER (4 parts) 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (10 parts) 58805C — PANEL SUB-ASSY, CONSOLE, UPPER REAR (6 parts) 58806A — POCKET SUB-ASSY, CONSOLE BOX (4 parts) 58809B — COVER SUB-ASSY, PARKING BRAKE HOLE (9 parts) 58815A — CARPET, CONSOLE BOX (2 parts) 58817A — INSERT, CONSOLE BOX, FRONT NO.2 (1 parts) 58817A — INSERT, CONSOLE BOX, FRONT NO.2 (1 parts) 58901A — BOX SUB-ASSY, CONSOLE, REAR (7 parts) 58903A — PANEL SUB-ASSY, CONSOLE REAR END (6 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (7 parts) 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (5 parts) 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (5 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (3 parts) 58813 — BOX, CONSOLE, UPPER (2 parts) 58959G — CUSHION, CONSOLE COMPARTMENT DOOR (1 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (2 parts) 9046705172 — not listed in this catalogue 9046708227 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046805135 — not listed in this catalogue 9046805138 — not listed in this catalogue 9046805138 — not listed in this catalogue 9167380614 — not listed in this catalogue 9167380614 — not listed in this catalogue 9167380616 — not listed in this catalogue 9354054012 — not listed in this catalogue 9354054012 — not listed in this catalogue 9356054012 — not listed in this catalogue 9356855014 — not listed in this catalogue 3312 — not listed in this catalogue
585845A · 17 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
58803C — Box Sub-assy, Console Cup Holder
58803-42010-C0 note Box Sub-assy, Console Cup Holder
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58803-42010-C0 note Box Sub-assy, Console Cup Holder
2015-10 → 2018-10 ended
ASA4# LE —
58803-42010-C0 note Box Sub-assy, Console Cup Holder
2016-08 → 2018-10 ended
AVA44 SE —
58803-42010-C0 note Box Sub-assy, Console Cup Holder
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58804A — Panel Sub-assy, Console, Upper
58804-42050-C0 note Panel Sub-assy, Console, Upper
2012-12 → 2015-10 ended
ASA4# LE —
58804-42060-C0 note Panel Sub-assy, Console, Upper
2012-12 → 2015-10 ended
ASA4# LIMD —
58804-42060-C0 note Panel Sub-assy, Console, Upper
2012-12 → 2015-10 ended
ASA4# XLE —
58804-42170-B2 note Panel Sub-assy, Console, Upper
2015-10 → 2018-10 ended
ASA4# LE —
58804-42170-B2 note Panel Sub-assy, Console, Upper
2016-08 → 2018-10 ended
AVA44 XLE —
58804-42180-B1 note Panel Sub-assy, Console, Upper
2015-10 → 2017-08 ended
AVA44 XLE CND —
58804-42180-B1 note Panel Sub-assy, Console, Upper
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
58804-42190-B1 note Panel Sub-assy, Console, Upper
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
58804-42190-B1 note Panel Sub-assy, Console, Upper
2017-08 → 2018-10 ended
AVA44 XLE CND —
58804-42210-B1 note Panel Sub-assy, Console, Upper
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
58805C — Panel Sub-assy, Console, Upper Rear
58805-42050-C0 note Panel Sub-assy, Console, Upper Rear
2012-12 → 2015-10 ended
ASA4# LIMD —
58805-42050-C0 note Panel Sub-assy, Console, Upper Rear
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58805-42070-C0 note Panel Sub-assy, Console, Upper Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58805-42070-C0 note Panel Sub-assy, Console, Upper Rear
2016-08 → 2018-10 ended
AVA44 SE —
58805-42070-C0 note Panel Sub-assy, Console, Upper Rear
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58805-42070-C0 note Panel Sub-assy, Console, Upper Rear
2015-10 → 2018-10 ended
ASA4# LE —
58806A — Pocket Sub-assy, Console Box
58806-42010-C0 note Pocket Sub-assy, Console Box
2015-10 → 2018-10 ended
ASA4# LE —
58806-42010-C0 note Pocket Sub-assy, Console Box
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58806-42010-C0 note Pocket Sub-assy, Console Box
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58806-42010-C0 note Pocket Sub-assy, Console Box
2016-08 → 2018-10 ended
AVA44 SE —
58809B — Cover Sub-assy, Parking Brake Hole
58809-42010-C1 note Cover Sub-assy, Parking Brake Hole
2012-12 → 2015-02 ended
ASA4# LIMD —
58809-42010-C1 note Cover Sub-assy, Parking Brake Hole
2012-12 → 2015-02 ended
ASA4# LE,XLE —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-03 → 2015-10 ended
ASA4# LIMD —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-03 → 2015-10 ended
ASA4# LE —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-03 → 2015-10 ended
ASA4# XLE —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-10 → 2018-10 ended
ASA4# LE —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
58809-42011-C1 note Cover Sub-assy, Parking Brake Hole
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
58813 — Box, Console, Upper
58813-42030-C0 note Box, Console, Upper
2016-08 → 2018-10 ended
AVA44 SE —
58813-42030-C0 note Box, Console, Upper
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58815A — Carpet, Console Box
58815-42030 Carpet, Console Box
2012-12 → 2015-10 ended
ASA4# —
58815-42030 Carpet, Console Box
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58817A — Insert, Console Box, Front NO.2
58817-42010 Insert, Console Box, Front NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58901A — Box Sub-assy, Console, Rear
58901-42090-C0 note Box Sub-assy, Console, Rear
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58901-42100-C0 note Box Sub-assy, Console, Rear
2012-12 → 2015-06 ended
ASA4# LIMD —
58901-42101-C0 note Box Sub-assy, Console, Rear
2015-07 → 2015-10 ended
ASA4# LIMD —
58901-42230-C0 note Box Sub-assy, Console, Rear
2015-10 → 2018-10 ended
ASA4# LE —
58901-42230-C0 note Box Sub-assy, Console, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58901-42260-C0 note Box Sub-assy, Console, Rear
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58901-42260-C0 note Box Sub-assy, Console, Rear
2016-08 → 2018-10 ended
AVA44 SE —
58903A — Panel Sub-assy, Console Rear End
58903-42010-C0 note Panel Sub-assy, Console Rear End
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58903-42020-C0 note Panel Sub-assy, Console Rear End
2012-12 → 2015-10 ended
ASA4# LIMD —
58903-42030-C0 note Panel Sub-assy, Console Rear End
2015-10 → 2018-10 ended
ASA4# LE —
58903-42030-C0 note Panel Sub-assy, Console Rear End
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58903-42040-C0 note Panel Sub-assy, Console Rear End
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58903-42040-C0 note Panel Sub-assy, Console Rear End
2016-08 → 2018-10 ended
AVA44 SE —
58905 — Door Sub-assy, Console Compartment
58905-42040-C0 note Door Sub-assy, Console Compartment
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58905-42050-C0 note Door Sub-assy, Console Compartment
2012-12 → 2015-06 ended
ASA4# LIMD —
58905-42051-C0 note Door Sub-assy, Console Compartment
2015-07 → 2015-10 ended
ASA4# LIMD —
58905-42070-C0 note Door Sub-assy, Console Compartment
2015-10 → 2018-10 ended
ASA4# LE —
58905-42070-C0 note Door Sub-assy, Console Compartment
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58905-42090-C0 note Door Sub-assy, Console Compartment
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58905-42090-C0 note Door Sub-assy, Console Compartment
2016-08 → 2018-10 ended
AVA44 SE —
58908A — Lock Sub-assy, Console Compartment Door
58908-12080 Lock Sub-assy, Console Compartment Door
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58908-42010 Lock Sub-assy, Console Compartment Door
2012-12 → 2015-10 ended
ASA4# LIMD —
58908-42020 Lock Sub-assy, Console Compartment Door
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58959B — Cushion, Console Compartment Door
58959-35010 Cushion, Console Compartment Door
2014-09 → 2015-10 ended
ASA4# LIMD —
58959-42020 Cushion, Console Compartment Door
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58959-60060 Cushion, Console Compartment Door
2012-12 → 2014-08 ended
ASA4# LIMD —
58959-35010 Cushion, Console Compartment Door
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
58959-42020 Cushion, Console Compartment Door
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
58959G — Cushion, Console Compartment Door
58959-35010 Cushion, Console Compartment Door
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58996A — Bracket, Console Box Mounting, NO.2
58996-42040 Bracket, Console Box Mounting, NO.2
2012-12 → 2015-10 ended
ASA4# —
58996-42060 Bracket, Console Box Mounting, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
