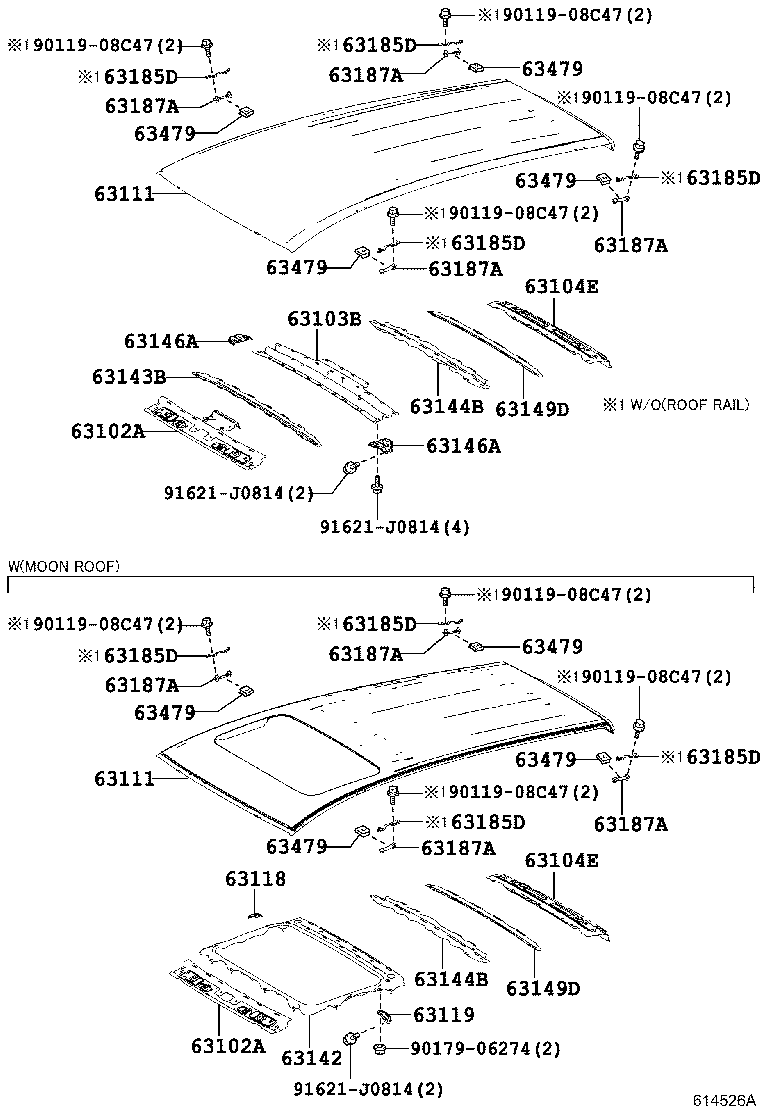

Exploded illustration 614526A 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (7 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (7 parts) 63103B — REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER (5 parts) 63104E — REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR (2 parts) 63104E — REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR (2 parts) 63111 — PANEL, ROOF (7 parts) 63111 — PANEL, ROOF (7 parts) 63118 — SUPPORT, ROOF PANEL, RH (2 parts) 63119 — SUPPORT, ROOF PANEL, LH (2 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (2 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (5 parts) 63144B — REINFORCEMENT, ROOF PANEL, NO.4 (2 parts) 63144B — REINFORCEMENT, ROOF PANEL, NO.4 (2 parts) 63146A — BRACKET, ROOF PANEL REINFORCEMENT, NO.1 (5 parts) 63146A — BRACKET, ROOF PANEL REINFORCEMENT, NO.1 (5 parts) 63149D — REINFORCEMENT, ROOF PANEL, NO.8 (2 parts) 63149D — REINFORCEMENT, ROOF PANEL, NO.8 (2 parts) 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 63185D — BRACKET, ROOF RACK, FRONT (2 parts) 63187A — BRACKET, ROOF RACK, REAR (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 9011908C47 — not listed in this catalogue 9017906274 — not listed in this catalogue 91621J0814 — not listed in this catalogue 91621J0814 — not listed in this catalogue 91621J0814 — not listed in this catalogue
614526A · 41 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-42903 note Panel Sub-assy, Windshield Header
2012-12 → 2015-10 ended
ASA42 LIMD —
63102-42903 Panel Sub-assy, Windshield Header
2012-12 → 2015-10 ended
ASA4# LE —
63102-42904 Panel Sub-assy, Windshield Header
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
63102-42905 Panel Sub-assy, Windshield Header
2015-10 → 2018-10 ended
ASA4# LE —
63102-42905 note Panel Sub-assy, Windshield Header
2015-10 → 2018-10 ended
ASA42 LIMD —
63102-42905 note Panel Sub-assy, Windshield Header
2016-08 → 2018-10 ended
AVA44 XLE —
63102-42906 Panel Sub-assy, Windshield Header
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
63103B — Reinforcement Sub-assy, Roof Panel, Center
63103-42030 Reinforcement Sub-assy, Roof Panel, Center
2012-12 → 2015-10 ended
ASA4# LE —
63103-42030 note Reinforcement Sub-assy, Roof Panel, Center
2012-12 → 2015-10 ended
ASA42 LIMD —
63103-42030 Reinforcement Sub-assy, Roof Panel, Center
2015-10 → 2018-10 ended
ASA4# LE —
63103-42030 note Reinforcement Sub-assy, Roof Panel, Center
2015-10 → 2018-10 ended
ASA42 LIMD —
63103-42030 note Reinforcement Sub-assy, Roof Panel, Center
2016-08 → 2018-10 ended
AVA44 XLE —
63104E — Reinforcement Sub-assy, Roof Panel, Rear
63104-42020 Reinforcement Sub-assy, Roof Panel, Rear
2012-12 → 2015-10 ended
ASA4# —
63104-42020 Reinforcement Sub-assy, Roof Panel, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63111 — Panel, Roof
63111-42230 Panel, Roof
2012-12 → 2015-10 ended
ASA4# LE —
63111-42230 note Panel, Roof
2012-12 → 2015-10 ended
ASA42 LIMD —
63111-42240 Panel, Roof
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
63111-42231 Panel, Roof
2015-10 → 2018-10 ended
ASA4# LE —
63111-42231 note Panel, Roof
2015-10 → 2018-10 ended
ASA42 LIMD —
63111-42231 note Panel, Roof
2016-08 → 2018-10 ended
AVA44 XLE —
63111-42241 Panel, Roof
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
63118 — Support, Roof Panel, RH
63118-42070 Support, Roof Panel, RH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
63118-42070 Support, Roof Panel, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
63119 — Support, Roof Panel, LH
63118-42070 Support, Roof Panel, LH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
63118-42070 Support, Roof Panel, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
63142 — Reinforcement, Roof Panel, NO.2
63142-42050 Reinforcement, Roof Panel, NO.2
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
63142-42050 Reinforcement, Roof Panel, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
63143B — Reinforcement, Roof Panel, NO.3
63143-42060 Reinforcement, Roof Panel, NO.3
2012-12 → 2015-10 ended
ASA4# LE —
63143-42060 note Reinforcement, Roof Panel, NO.3
2012-12 → 2015-10 ended
ASA42 LIMD —
63143-42060 Reinforcement, Roof Panel, NO.3
2015-10 → 2018-10 ended
ASA4# LE —
63143-42060 note Reinforcement, Roof Panel, NO.3
2015-10 → 2018-10 ended
ASA42 LIMD —
63143-42060 note Reinforcement, Roof Panel, NO.3
2016-08 → 2018-10 ended
AVA44 XLE —
63144B — Reinforcement, Roof Panel, NO.4
63144-42041 Reinforcement, Roof Panel, NO.4
2012-12 → 2015-10 ended
ASA4# —
63144-42041 Reinforcement, Roof Panel, NO.4
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63146A — Bracket, Roof Panel Reinforcement, NO.1
63146-42020 note Bracket, Roof Panel Reinforcement, NO.1
2012-12 → 2015-10 ended
ASA42 LIMD —
63146-42020 Bracket, Roof Panel Reinforcement, NO.1
2012-12 → 2015-10 ended
ASA4# LE —
63146-42020 Bracket, Roof Panel Reinforcement, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
63146-42020 note Bracket, Roof Panel Reinforcement, NO.1
2015-10 → 2018-10 ended
ASA42 LIMD —
63146-42020 note Bracket, Roof Panel Reinforcement, NO.1
2016-08 → 2018-10 ended
AVA44 XLE —
63149D — Reinforcement, Roof Panel, NO.8
63149-42070 Reinforcement, Roof Panel, NO.8
2012-12 → 2015-10 ended
ASA4# —
63149-42070 Reinforcement, Roof Panel, NO.8
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63185D — Bracket, Roof Rack, Front
63185-42020 Bracket, Roof Rack, Front
2012-12 → 2015-10 ended
ASA4# —
63185-42020 Bracket, Roof Rack, Front
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63187A — Bracket, Roof Rack, Rear
63187-42010 Bracket, Roof Rack, Rear
2012-12 → 2015-10 ended
ASA4# —
63187-42010 Bracket, Roof Rack, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63479 — Retainer, Roof Inner Rack
63479-42010 Retainer, Roof Inner Rack
2012-12 → 2015-10 ended
ASA4# —
63479-42010 Retainer, Roof Inner Rack
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
