Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

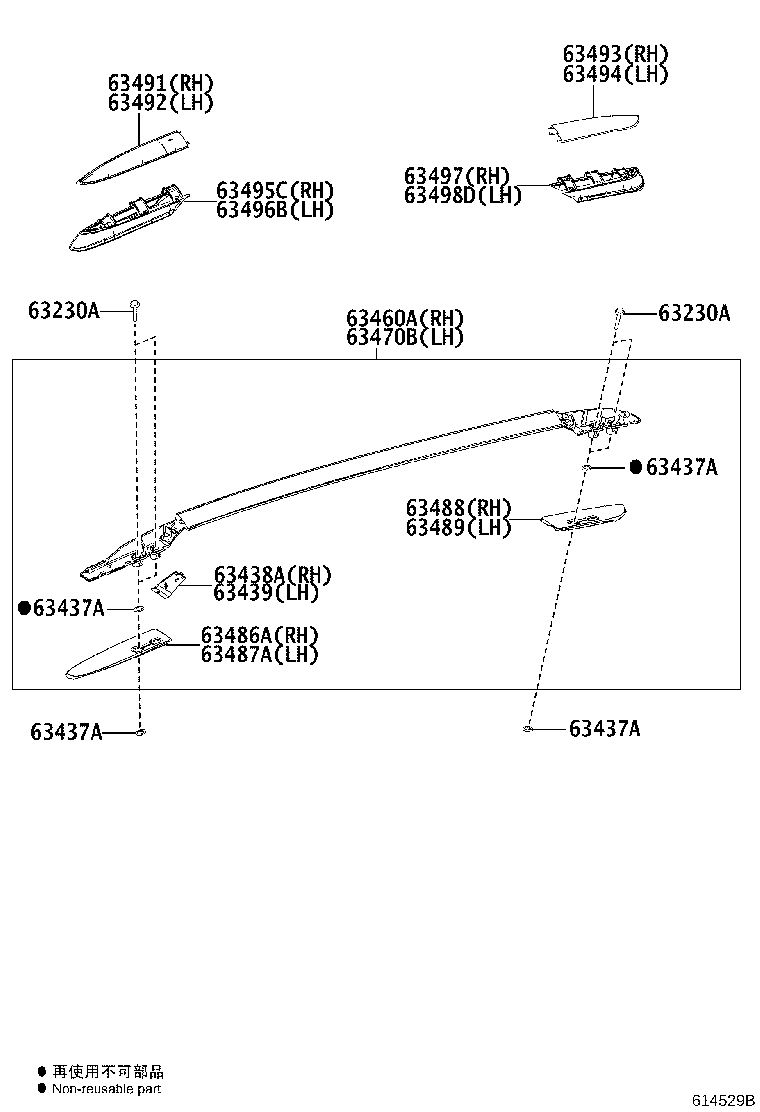

Exploded illustration 614529B 63460A — RACK ASSY, ROOF, RH (5 parts) 63470B — RACK ASSY, ROOF, LH (5 parts) 63230A — BOLT ASSY, REMOVABLE ROOF (2 parts) 63230A — BOLT ASSY, REMOVABLE ROOF (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (2 parts) 63438A — COVER, ROOF RACK END, NO.1 (2 parts) 63439 — COVER, ROOF RACK END, NO.2 (2 parts) 63486A — CUSHION, ROOF RACK LEG, FRONT RH (2 parts) 63487A — CUSHION, ROOF RACK LEG, FRONT LH (2 parts) 63488 — CUSHION, ROOF RACK LEG, REAR RH (2 parts) 63489 — CUSHION, ROOF RACK LEG, REAR LH (2 parts) 63491 — COVER, ROOF RACK LEG, FRONT RH (5 parts) 63492 — COVER, ROOF RACK LEG, FRONT LH (5 parts) 63493 — COVER, ROOF RACK LEG, REAR RH (5 parts) 63494 — COVER, ROOF RACK LEG, REAR LH (5 parts) 63495C — COVER, ROOF RACK LOWER, FRONT RH (2 parts) 63496B — COVER, ROOF RACK LOWER, FRONT LH (2 parts) 63497 — COVER, ROOF RACK LOWER, REAR RH (2 parts) 63498D — COVER, ROOF RACK LOWER, REAR LH (2 parts)
614529B · 22 callouts Full size ↗
54 parts on this figure
Part number Description Fitment Price
63230A — Bolt Assy, Removable Roof
63230-42010 note Bolt Assy, Removable Roof
2012-12 → 2015-10 ended
ASA4# —
63230-42010 note Bolt Assy, Removable Roof
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63437A — Seal, Roof Carrier, NO.2
63437-42010 note Seal, Roof Carrier, NO.2
2012-12 → 2015-10 ended
ASA4# —
63437-42010 note Seal, Roof Carrier, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63438A — Cover, Roof Rack End, NO.1
63438-42020 note Cover, Roof Rack End, NO.1
2012-12 → 2015-10 ended
ASA4# —
63438-42020 note Cover, Roof Rack End, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63439 — Cover, Roof Rack End, NO.2
63439-42020 note Cover, Roof Rack End, NO.2
2012-12 → 2015-10 ended
ASA4# —
63439-42020 note Cover, Roof Rack End, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63460A — Rack Assy, Roof, RH
63460-42050 note Rack Assy, Roof, RH
2012-12 → 2015-10 ended
ASA4# —
63460-42050 note Rack Assy, Roof, RH
2015-10 → 2016-09 ended
ASA4#,AVA44 —
63460-42050-B0 note Rack Assy, Roof, RH
2016-09 → 2018-10 ended
AVA44 LIMD USA —
63460-42050-B0 note Rack Assy, Roof, RH
2016-09 → 2018-10 ended
AVA44 CND —
63460-42050-B0 note Rack Assy, Roof, RH
2016-09 → 2018-10 ended
ASA4#;AVA44 (SE,XLE) USA —
63470B — Rack Assy, Roof, LH
63470-42050 note Rack Assy, Roof, LH
2012-12 → 2015-10 ended
ASA4# —
63470-42050 note Rack Assy, Roof, LH
2015-10 → 2016-09 ended
ASA4#,AVA44 —
63470-42050-B0 note Rack Assy, Roof, LH
2016-09 → 2018-10 ended
AVA44 LIMD USA —
63470-42050-B0 note Rack Assy, Roof, LH
2016-09 → 2018-10 ended
ASA4#;AVA44 (SE,XLE) USA —
63470-42050-B0 note Rack Assy, Roof, LH
2016-09 → 2018-10 ended
AVA44 CND —
63486A — Cushion, Roof Rack Leg, Front RH
63486-42040 note Cushion, Roof Rack Leg, Front RH
2012-12 → 2015-10 ended
ASA4# —
63486-42040 note Cushion, Roof Rack Leg, Front RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63487A — Cushion, Roof Rack Leg, Front LH
63487-42040 note Cushion, Roof Rack Leg, Front LH
2012-12 → 2015-10 ended
ASA4# —
63487-42040 note Cushion, Roof Rack Leg, Front LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63488 — Cushion, Roof Rack Leg, Rear RH
63488-42040 note Cushion, Roof Rack Leg, Rear RH
2012-12 → 2015-10 ended
ASA4# —
63488-42040 note Cushion, Roof Rack Leg, Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63489 — Cushion, Roof Rack Leg, Rear LH
63489-42040 note Cushion, Roof Rack Leg, Rear LH
2012-12 → 2015-10 ended
ASA4# —
63489-42040 note Cushion, Roof Rack Leg, Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63491 — Cover, Roof Rack Leg, Front RH
63491-42040 note Cover, Roof Rack Leg, Front RH
2012-12 → 2015-10 ended
ASA4# —
63491-42040 note Cover, Roof Rack Leg, Front RH
2015-10 → 2016-09 ended
ASA4#,AVA44 —
63491-42040-B0 note Cover, Roof Rack Leg, Front RH
2016-09 → 2018-10 ended
AVA44 CND —
63491-42040-B0 note Cover, Roof Rack Leg, Front RH
2016-09 → 2018-10 ended
ASA4#;AVA44 (SE,XLE) USA —
63491-42040-B0 note Cover, Roof Rack Leg, Front RH
2016-09 → 2018-10 ended
AVA44 LIMD USA —
63492 — Cover, Roof Rack Leg, Front LH
63492-42040 note Cover, Roof Rack Leg, Front LH
2012-12 → 2015-10 ended
ASA4# —
63492-42040 note Cover, Roof Rack Leg, Front LH
2015-10 → 2016-09 ended
ASA4#,AVA44 —
63492-42040-B0 note Cover, Roof Rack Leg, Front LH
2016-09 → 2018-10 ended
AVA44 LIMD USA —
63492-42040-B0 note Cover, Roof Rack Leg, Front LH
2016-09 → 2018-10 ended
AVA44 CND —
63492-42040-B0 note Cover, Roof Rack Leg, Front LH
2016-09 → 2018-10 ended
ASA4#;AVA44 (SE,XLE) USA —
63493 — Cover, Roof Rack Leg, Rear RH
63493-42050 note Cover, Roof Rack Leg, Rear RH
2012-12 → 2015-10 ended
ASA4# —
63493-42050 note Cover, Roof Rack Leg, Rear RH
2015-10 → 2016-09 ended
ASA4#,AVA44 —
63493-42050-B0 note Cover, Roof Rack Leg, Rear RH
2016-09 → 2018-10 ended
AVA44 LIMD USA —
63493-42050-B0 note Cover, Roof Rack Leg, Rear RH
2016-09 → 2018-10 ended
AVA44 CND —
63493-42050-B0 note Cover, Roof Rack Leg, Rear RH
2016-09 → 2018-10 ended
ASA4#;AVA44 (SE,XLE) USA —
63494 — Cover, Roof Rack Leg, Rear LH
63494-42050 note Cover, Roof Rack Leg, Rear LH
2012-12 → 2015-10 ended
ASA4# —
63494-42050 note Cover, Roof Rack Leg, Rear LH
2015-10 → 2016-09 ended
ASA4#,AVA44 —
63494-42050-B0 note Cover, Roof Rack Leg, Rear LH
2016-09 → 2018-10 ended
AVA44 LIMD USA —
63494-42050-B0 note Cover, Roof Rack Leg, Rear LH
2016-09 → 2018-10 ended
AVA44 CND —
63494-42050-B0 note Cover, Roof Rack Leg, Rear LH
2016-09 → 2018-10 ended
ASA4#;AVA44 (SE,XLE) USA —
63495C — Cover, Roof Rack Lower, Front RH
63495-42040 note Cover, Roof Rack Lower, Front RH
2012-12 → 2015-10 ended
ASA4# —
63495-42040 note Cover, Roof Rack Lower, Front RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63496B — Cover, Roof Rack Lower, Front LH
63496-42040 note Cover, Roof Rack Lower, Front LH
2012-12 → 2015-10 ended
ASA4# —
63496-42040 note Cover, Roof Rack Lower, Front LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63497 — Cover, Roof Rack Lower, Rear RH
63497-42010 note Cover, Roof Rack Lower, Rear RH
2012-12 → 2015-10 ended
ASA4# —
63497-42010 note Cover, Roof Rack Lower, Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
63498D — Cover, Roof Rack Lower, Rear LH
63498-42020 note Cover, Roof Rack Lower, Rear LH
2012-12 → 2015-10 ended
ASA4# —
63498-42020 note Cover, Roof Rack Lower, Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
