Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

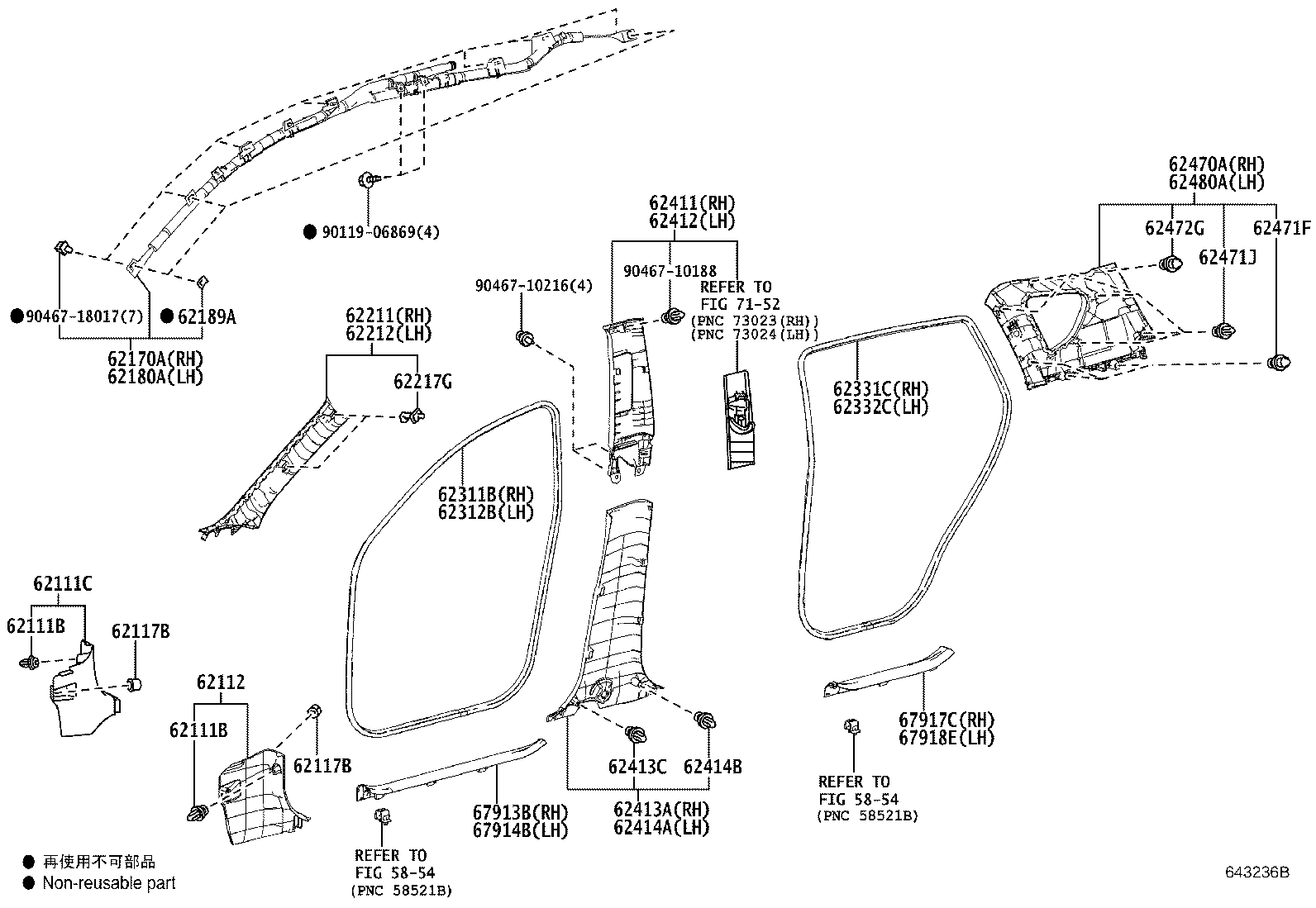

Exploded illustration 643236B 9046710188 — not listed in this catalogue 9046710216 — not listed in this catalogue 62189A — SPACER, CURTAIN SHIELD AIRBAG CLIP (2 parts) 62170A — AIRBAG ASSY, CURTAIN SHIELD, RH (2 parts) 62180A — AIRBAG ASSY, CURTAIN SHIELD, LH (2 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (2 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (2 parts) 62331C — WEATHERSTRIP, REAR DOOR OPENING TRIM, RH (3 parts) 62332C — WEATHERSTRIP, REAR DOOR OPENING TRIM, LH (2 parts) 9046718017 — not listed in this catalogue 62411 — GARNISH, CENTER PILLAR, RH (6 parts) 62412 — GARNISH, CENTER PILLAR, LH (6 parts) 62111B — CLIP(FOR COWL SIDE TRIM) (2 parts) 62112 — BOARD, COWL SIDE TRIM, LH (9 parts) 62111B — CLIP(FOR COWL SIDE TRIM) (2 parts) 62111C — BOARD, COWL SIDE TRIM, RH (8 parts) 62117B — CLIP, NO.1(FOR COWL SIDE TRIM) (2 parts) 62117B — CLIP, NO.1(FOR COWL SIDE TRIM) (2 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (6 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (6 parts) 62414B — CLIP (FOR CENTER LOWER GARNISH) (2 parts) 62413C — CLIP (FOR CENTER LOWER GARNISH) (2 parts) 67913B — PLATE, FRONT DOOR SCUFF, RH (6 parts) 67914B — PLATE, FRONT DOOR SCUFF, LH (6 parts) 67917C — PLATE, REAR DOOR SCUFF, RH (8 parts) 67918E — PLATE, REAR DOOR SCUFF, LH (8 parts) 62217G — CLIP, FRONT PILLAR GARNISH (2 parts) 62211 — GARNISH, FRONT PILLAR, RH (13 parts) 62212 — GARNISH, FRONT PILLAR, LH (13 parts) 9011906869 — not listed in this catalogue 62470A — GARNISH ASSY, ROOF SIDE, INNER RH (13 parts) 62480A — GARNISH ASSY, ROOF SIDE, INNER LH (13 parts) 62472G — CLIP (FOR ROOF SIDE GARNISH) (2 parts) 62471F — CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) (3 parts) 62471J — CLIP (FOR ROOF SIDE GARNISH) (2 parts) 7152 — not listed in this catalogue 5854 — not listed in this catalogue 5854 — not listed in this catalogue
643236B · 31 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
153 parts on this figure
Part number Description Fitment Price
62111B — Clip(FOR COWL SIDE TRIM)
90467-10161 Clip(FOR COWL SIDE TRIM)
2012-12 → 2015-10 ended
ASA4# —
90467-10161 Clip(FOR COWL SIDE TRIM)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62111C — Board, Cowl Side Trim, RH
62111-42060-C0 note Board, Cowl Side Trim, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
62111-42060-C0 note Board, Cowl Side Trim, RH
2012-12 → 2014-10 ended
ASA4# LE —
62111-42060-C0 note Board, Cowl Side Trim, RH
2014-10 → 2015-10 ended
ASA4# LE —
62111-42060-C0 note Board, Cowl Side Trim, RH
2012-12 → 2015-10 ended
ASA4# XLE —
62111-42060-C0 note Board, Cowl Side Trim, RH
2015-10 → 2018-10 ended
ASA4# LE —
62111-42060-C0 note Board, Cowl Side Trim, RH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
62111-42060-C0 note Board, Cowl Side Trim, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62111-42060-C0 note Board, Cowl Side Trim, RH
2016-08 → 2018-10 ended
AVA44 SE —
62112 — Board, Cowl Side Trim, LH
62112-42060-C0 note Board, Cowl Side Trim, LH
2012-12 → 2014-10 ended
ASA4# LIMD —
62112-42060-C0 note Board, Cowl Side Trim, LH
2012-12 → 2014-10 ended
ASA4# LE,XLE —
62112-42061-C0 note Board, Cowl Side Trim, LH
2014-10 → 2015-10 ended
ASA4# LIMD —
62112-42061-C0 note Board, Cowl Side Trim, LH
2014-10 → 2015-10 ended
ASA4# LE —
62112-42061-C0 note Board, Cowl Side Trim, LH
2014-10 → 2015-10 ended
ASA4# XLE —
62112-42061-C0 note Board, Cowl Side Trim, LH
2015-10 → 2018-10 ended
ASA4# LE —
62112-42061-C0 note Board, Cowl Side Trim, LH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
62112-42061-C0 note Board, Cowl Side Trim, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62112-42061-C0 note Board, Cowl Side Trim, LH
2016-08 → 2018-10 ended
AVA44 SE —
62117B — Clip, NO.1(FOR COWL SIDE TRIM)
90467-06155 Clip, NO.1(FOR COWL SIDE TRIM)
2012-12 → 2015-10 ended
ASA4# —
90467-06155 Clip, NO.1(FOR COWL SIDE TRIM)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62170A — Airbag Assy, Curtain Shield, RH
62170-42060 Airbag Assy, Curtain Shield, RH
2012-12 → 2015-10 ended
ASA4# —
62170-42060 Airbag Assy, Curtain Shield, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62180A — Airbag Assy, Curtain Shield, LH
62180-42060 Airbag Assy, Curtain Shield, LH
2012-12 → 2015-10 ended
ASA4# —
62180-42060 Airbag Assy, Curtain Shield, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62189A — Spacer, Curtain Shield Airbag Clip
62189-42010 Spacer, Curtain Shield Airbag Clip
2012-12 → 2015-10 ended
ASA4# —
62189-42010 Spacer, Curtain Shield Airbag Clip
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62211 — Garnish, Front Pillar, RH
62210-42050-B0 note Garnish, Front Pillar, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62210-42050-B0 note Garnish, Front Pillar, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
62210-42050-B0 note Garnish, Front Pillar, RH
2015-10 → 2016-06 ended
ASA4# LE —
62210-42050-B0 note Garnish, Front Pillar, RH
2015-10 → 2016-06 ended
ASA4#,AVA44 XLE —
62210-42050-B0 note Garnish, Front Pillar, RH
2015-10 → 2016-06 ended
ASA4#,AVA44 LIMD —
62210-42051-B0 note Garnish, Front Pillar, RH
2016-07 → 2018-10 ended
ASA4#,AVA44 LIMD —
62210-42051-B0 note Garnish, Front Pillar, RH
2016-07 → 2018-10 ended
ASA4#,AVA44 XLE —
62210-42051-B0 note Garnish, Front Pillar, RH
2016-07 → 2018-10 ended
ASA4# LE —
62210-42080-B0 note Garnish, Front Pillar, RH
2016-08 → 2016-10 ended
ASA4# SE —
62210-42080-C0 note Garnish, Front Pillar, RH
2016-10 → 2018-10 ended
ASA4# SE —
62210-42080-C0 note Garnish, Front Pillar, RH
2016-08 → 2016-10 ended
ASA4# SE —
62210-42080-C0 note Garnish, Front Pillar, RH
2015-10 → 2018-10 ended
AVA44 SE —
62210-42080-C0 note Garnish, Front Pillar, RH
2015-10 → 2016-08 ended
ASA4# SE —
62212 — Garnish, Front Pillar, LH
62220-42050-B0 note Garnish, Front Pillar, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
62220-42050-B0 note Garnish, Front Pillar, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62220-42050-B0 note Garnish, Front Pillar, LH
2015-10 → 2016-06 ended
ASA4# LE —
62220-42050-B0 note Garnish, Front Pillar, LH
2015-10 → 2016-06 ended
ASA4#,AVA44 XLE —
62220-42050-B0 note Garnish, Front Pillar, LH
2015-10 → 2016-06 ended
ASA4#,AVA44 LIMD —
62220-42051-B0 note Garnish, Front Pillar, LH
2016-07 → 2018-10 ended
ASA4#,AVA44 LIMD —
62220-42051-B0 note Garnish, Front Pillar, LH
2016-07 → 2018-10 ended
ASA4# LE —
62220-42051-B0 note Garnish, Front Pillar, LH
2016-07 → 2018-10 ended
ASA4#,AVA44 XLE —
62220-42080-B0 note Garnish, Front Pillar, LH
2016-08 → 2016-10 ended
ASA4# SE —
62220-42080-C0 note Garnish, Front Pillar, LH
2015-10 → 2018-10 ended
AVA44 SE —
62220-42080-C0 note Garnish, Front Pillar, LH
2016-10 → 2018-10 ended
ASA4# SE —
62220-42080-C0 note Garnish, Front Pillar, LH
2016-08 → 2016-10 ended
ASA4# SE —
62220-42080-C0 note Garnish, Front Pillar, LH
2015-10 → 2016-08 ended
ASA4# SE —
62217G — Clip, Front Pillar Garnish
62217-52120 Clip, Front Pillar Garnish
2012-12 → 2015-10 ended
ASA4# —
62217-52120 Clip, Front Pillar Garnish
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-42080 Weatherstrip, Front Door Opening Trim, RH
2012-12 → 2015-10 ended
ASA4# —
62311-42100 Weatherstrip, Front Door Opening Trim, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-42080 Weatherstrip, Front Door Opening Trim, LH
2012-12 → 2015-10 ended
ASA4# —
62312-42100 Weatherstrip, Front Door Opening Trim, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62331C — Weatherstrip, Rear Door Opening Trim, RH
62331-42050 Weatherstrip, Rear Door Opening Trim, RH
2012-12 → 2015-10 ended
ASA4# —
62331-42080 Weatherstrip, Rear Door Opening Trim, RH
2015-10 → 2018-10 ended
ASA4# —
62331-42090 Weatherstrip, Rear Door Opening Trim, RH
2015-10 → 2018-10 ended
AVA44 —
62332C — Weatherstrip, Rear Door Opening Trim, LH
62332-42050 Weatherstrip, Rear Door Opening Trim, LH
2012-12 → 2015-10 ended
ASA4# —
62332-42080 Weatherstrip, Rear Door Opening Trim, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62411 — Garnish, Center Pillar, RH
62410-42070-B0 note Garnish, Center Pillar, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
62410-42070-B0 note Garnish, Center Pillar, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62410-42070-B0 note Garnish, Center Pillar, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62410-42070-B0 note Garnish, Center Pillar, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
62410-42070-B0 note Garnish, Center Pillar, RH
2015-10 → 2018-10 ended
ASA4# LE —
62410-42090-C1 note Garnish, Center Pillar, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
62412 — Garnish, Center Pillar, LH
62420-42070-B0 note Garnish, Center Pillar, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
62420-42070-B0 note Garnish, Center Pillar, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62420-42070-B0 note Garnish, Center Pillar, LH
2015-10 → 2018-10 ended
ASA4# LE —
62420-42070-B0 note Garnish, Center Pillar, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62420-42070-B0 note Garnish, Center Pillar, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
62420-42090-C1 note Garnish, Center Pillar, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
62413A — Garnish, Center Pillar, Lower RH
62413-42060-C0 note Garnish, Center Pillar, Lower RH
2012-12 → 2015-10 ended
ASA4# LIMD —
62413-42060-C0 note Garnish, Center Pillar, Lower RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62413-42060-C0 note Garnish, Center Pillar, Lower RH
2015-10 → 2018-10 ended
ASA4# LE —
62413-42060-C0 note Garnish, Center Pillar, Lower RH
2016-08 → 2018-10 ended
AVA44 SE —
62413-42060-C0 note Garnish, Center Pillar, Lower RH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
62413-42060-C0 note Garnish, Center Pillar, Lower RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62413C — Clip (FOR CENTER LOWER GARNISH)
90467-10161 Clip (FOR CENTER LOWER GARNISH)
2012-12 → 2015-10 ended
ASA4# —
90467-10161 Clip (FOR CENTER LOWER GARNISH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62414A — Garnish, Center Pillar, Lower LH
62414-42060-C0 note Garnish, Center Pillar, Lower LH
2012-12 → 2015-10 ended
ASA4# LIMD —
62414-42060-C0 note Garnish, Center Pillar, Lower LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62414-42060-C0 note Garnish, Center Pillar, Lower LH
2015-10 → 2018-10 ended
ASA4# LE —
62414-42060-C0 note Garnish, Center Pillar, Lower LH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
62414-42060-C0 note Garnish, Center Pillar, Lower LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62414-42060-C0 note Garnish, Center Pillar, Lower LH
2016-08 → 2018-10 ended
AVA44 SE —
62414B — Clip (FOR CENTER LOWER GARNISH)
90467-10167 Clip (FOR CENTER LOWER GARNISH)
2012-12 → 2015-10 ended
ASA4# —
90467-10167 Clip (FOR CENTER LOWER GARNISH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62470A — Garnish Assy, Roof Side, Inner RH
62470-42130-B0 note Garnish Assy, Roof Side, Inner RH
2012-12 → 2015-10 ended
ASA4# LIMD —
62470-42130-B0 note Garnish Assy, Roof Side, Inner RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62470-42130-B0 note Garnish Assy, Roof Side, Inner RH
2015-10 → 2016-05 ended
ASA4# LE —
62470-42130-B0 note Garnish Assy, Roof Side, Inner RH
2015-10 → 2016-05 ended
ASA4#,AVA44 XLE —
62470-42130-B0 note Garnish Assy, Roof Side, Inner RH
2015-10 → 2016-05 ended
ASA4#,AVA44 LIMD —
62470-42131-B0 note Garnish Assy, Roof Side, Inner RH
2016-06 → 2018-10 ended
ASA4#,AVA44 LIMD —
62470-42131-B0 note Garnish Assy, Roof Side, Inner RH
2016-06 → 2018-10 ended
ASA4#,AVA44 XLE —
62470-42131-B0 note Garnish Assy, Roof Side, Inner RH
2016-06 → 2018-10 ended
ASA4# LE —
62470-42150-B0 note Garnish Assy, Roof Side, Inner RH
2016-08 → 2016-10 ended
ASA4# SE —
62470-42150-C1 note Garnish Assy, Roof Side, Inner RH
2015-10 → 2018-10 ended
AVA44 SE —
62470-42150-C1 note Garnish Assy, Roof Side, Inner RH
2016-08 → 2016-10 ended
ASA4# SE —
62470-42150-C1 note Garnish Assy, Roof Side, Inner RH
2015-10 → 2016-08 ended
ASA4# SE —
62470-42150-C1 note Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-10 ended
ASA4# SE —
62471F — Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-09236 Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2012-12 → 2014-03 ended
ASA4# —
90467-09240 Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2014-04 → 2015-10 ended
ASA4# —
90467-09240 Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62471J — Clip (FOR ROOF SIDE GARNISH)
90467-10161 Clip (FOR ROOF SIDE GARNISH)
2012-12 → 2015-10 ended
ASA4# —
90467-10161 Clip (FOR ROOF SIDE GARNISH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62472G — Clip (FOR ROOF SIDE GARNISH)
90467-10167 Clip (FOR ROOF SIDE GARNISH)
2012-12 → 2015-10 ended
ASA4# —
90467-10167 Clip (FOR ROOF SIDE GARNISH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
62480A — Garnish Assy, Roof Side, Inner LH
62480-42130-B0 note Garnish Assy, Roof Side, Inner LH
2012-12 → 2015-10 ended
ASA4# LIMD —
62480-42130-B0 note Garnish Assy, Roof Side, Inner LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
62480-42130-B0 note Garnish Assy, Roof Side, Inner LH
2015-10 → 2016-05 ended
ASA4#,AVA44 LIMD —
62480-42130-B0 note Garnish Assy, Roof Side, Inner LH
2015-10 → 2016-05 ended
ASA4#,AVA44 XLE —
62480-42130-B0 note Garnish Assy, Roof Side, Inner LH
2015-10 → 2016-05 ended
ASA4# LE —
62480-42131-B0 note Garnish Assy, Roof Side, Inner LH
2016-06 → 2018-10 ended
ASA4#,AVA44 LIMD —
62480-42131-B0 note Garnish Assy, Roof Side, Inner LH
2016-06 → 2018-10 ended
ASA4# LE —
62480-42131-B0 note Garnish Assy, Roof Side, Inner LH
2016-06 → 2018-10 ended
ASA4#,AVA44 XLE —
62480-42160-B0 note Garnish Assy, Roof Side, Inner LH
2016-08 → 2016-10 ended
ASA4# SE —
62480-42160-C1 note Garnish Assy, Roof Side, Inner LH
2015-10 → 2016-08 ended
ASA4# SE —
62480-42160-C1 note Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-10 ended
ASA4# SE —
62480-42160-C1 note Garnish Assy, Roof Side, Inner LH
2015-10 → 2018-10 ended
AVA44 SE —
62480-42160-C1 note Garnish Assy, Roof Side, Inner LH
2016-08 → 2016-10 ended
ASA4# SE —
67913B — Plate, Front Door Scuff, RH
67913-42110-C0 note Plate, Front Door Scuff, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
67913-42110-C0 note Plate, Front Door Scuff, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
67913-42110-C0 note Plate, Front Door Scuff, RH
2015-10 → 2018-10 ended
ASA4# LE —
67913-42110-C0 note Plate, Front Door Scuff, RH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
67913-42110-C0 note Plate, Front Door Scuff, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
67913-42110-C0 note Plate, Front Door Scuff, RH
2016-08 → 2018-10 ended
AVA44 SE —
67914B — Plate, Front Door Scuff, LH
67914-42110-C0 note Plate, Front Door Scuff, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
67914-42110-C0 note Plate, Front Door Scuff, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
67914-42110-C0 note Plate, Front Door Scuff, LH
2016-08 → 2018-10 ended
AVA44 SE —
67914-42110-C0 note Plate, Front Door Scuff, LH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
67914-42110-C0 note Plate, Front Door Scuff, LH
2015-10 → 2018-10 ended
ASA4# LE —
67914-42110-C0 note Plate, Front Door Scuff, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
67917C — Plate, Rear Door Scuff, RH
67917-42070-C0 note Plate, Rear Door Scuff, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
67917-42070-C0 note Plate, Rear Door Scuff, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
67917-42070-C0 note Plate, Rear Door Scuff, RH
2015-10 → 2018-10 ended
ASA4# LE —
67917-42070-C0 note Plate, Rear Door Scuff, RH
2015-10 → 2018-10 ended
ASA4# XLE —
67917-42070-C0 note Plate, Rear Door Scuff, RH
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
67917-42090-C0 note Plate, Rear Door Scuff, RH
2016-08 → 2018-10 ended
AVA44 SE —
67917-42090-C0 note Plate, Rear Door Scuff, RH
2015-10 → 2018-10 ended
AVA44 XLE —
67917-42090-C0 note Plate, Rear Door Scuff, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
67918E — Plate, Rear Door Scuff, LH
67918-42070-C0 note Plate, Rear Door Scuff, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
67918-42070-C0 note Plate, Rear Door Scuff, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
67918-42070-C0 note Plate, Rear Door Scuff, LH
2015-10 → 2018-10 ended
ASA4# LE —
67918-42070-C0 note Plate, Rear Door Scuff, LH
2015-10 → 2018-10 ended
ASA4# XLE —
67918-42070-C0 note Plate, Rear Door Scuff, LH
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
67918-42090-C0 note Plate, Rear Door Scuff, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
67918-42090-C0 note Plate, Rear Door Scuff, LH
2015-10 → 2018-10 ended
AVA44 XLE —
67918-42090-C0 note Plate, Rear Door Scuff, LH
2016-08 → 2018-10 ended
AVA44 SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
