Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

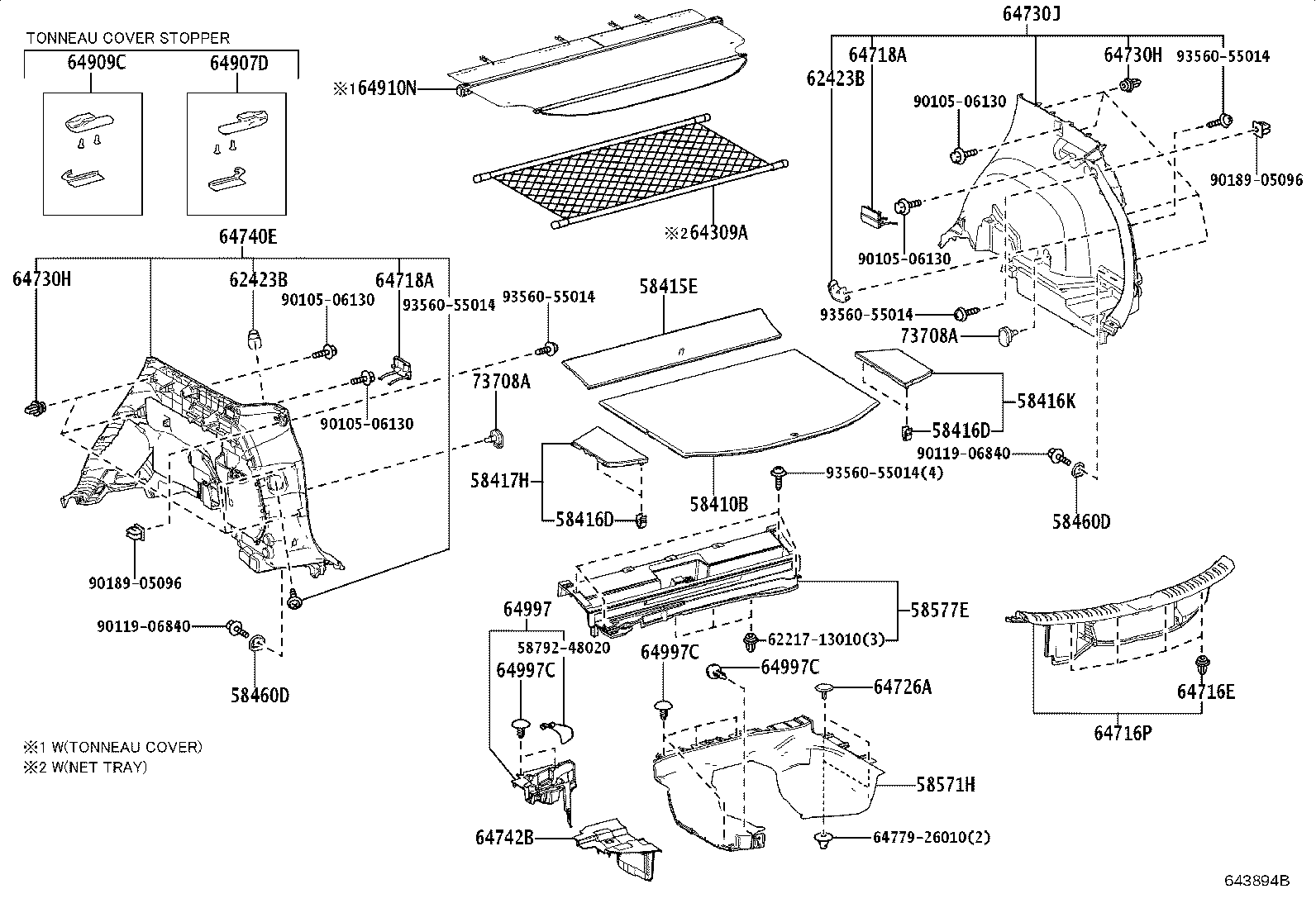

Exploded illustration 643894B 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 9011906840 — not listed in this catalogue 58410B — BOARD ASSY, DECK (16 parts) 64742B — BASE, DECK TRIM SIDE COVER, LH (2 parts) 64997 — BOX, DECK FLOOR, LH (6 parts) 58416D — CLIP, REAR FLOOR BOARD (4 parts) 58416K — BOARD, REAR FLOOR, NO.2 (11 parts) 73708A — BRACKET SET, TETHER ANCHOR (4 parts) 73708A — BRACKET SET, TETHER ANCHOR (4 parts) 64716P — COVER, DECK TRIM, REAR (22 parts) 64740E — PANEL ASSY, DECK TRIM SIDE, LH (24 parts) 58416D — CLIP, REAR FLOOR BOARD (4 parts) 58417H — BOARD, REAR FLOOR, NO.3 (11 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58415E — BOARD, REAR FLOOR, NO.1 (8 parts) 58571H — CARPET, REAR FLOOR (1 parts) 64997C — CLIP(FOR DECK FLOOR BOX) (6 parts) 64997C — CLIP(FOR DECK FLOOR BOX) (6 parts) 64997C — CLIP(FOR DECK FLOOR BOX) (6 parts) 64726A — CLIP, LUGGAGE TRIM, REAR (1 parts) 58577E — PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1 (23 parts) 64910N — COVER ASSY, TONNEAU (20 parts) 64309A — POCKET SUB-ASSY, PACKAGE TRAY TRIM (8 parts) 9356055014 — not listed in this catalogue 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (2 parts) 62423B — HOOK, SIDE WINDOW GARNISH (8 parts) 64718A — COVER, DECK TRIM SERVICE HOLE (4 parts) 9018905096 — not listed in this catalogue 9356055014 — not listed in this catalogue 9010506130 — not listed in this catalogue 9010506130 — not listed in this catalogue 9010506130 — not listed in this catalogue 9356055014 — not listed in this catalogue 5879248020 — not listed in this catalogue 9018905096 — not listed in this catalogue 64718A — COVER, DECK TRIM SERVICE HOLE (4 parts) 64730J — PANEL ASSY, DECK TRIM SIDE, RH (43 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (2 parts) 9356055014 — not listed in this catalogue 6221713010 — not listed in this catalogue 6477926010 — not listed in this catalogue 9356055014 — not listed in this catalogue 62423B — HOOK, SIDE WINDOW GARNISH (8 parts) 9010506130 — not listed in this catalogue 9011906840 — not listed in this catalogue 64907D — STOPPER SUB-ASSY, TONNEAU COVER, RH (4 parts) 64909C — STOPPER SUB-ASSY, TONNEAU COVER, LH (4 parts) 64716E — CLIP(FOR DECK TRIM REAR COVER) (2 parts)
643894B · 32 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
236 parts on this figure
Part number Description Fitment Price
58410B — Board Assy, Deck
58410-42050-C2 note Board Assy, Deck
2012-12 → 2015-10 ended
ASA4# LIMD —
58410-42050-C2 note Board Assy, Deck
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58410-42060-C2 note Board Assy, Deck
2012-12 → 2013-03 ended
ASA4# LE,XLE —
58410-42060-C2 note Board Assy, Deck
2012-12 → 2013-03 ended
ASA4# LIMD —
58410-42070-C0 note Board Assy, Deck
2013-04 → 2015-10 ended
ASA4# LE —
58410-42070-C0 note Board Assy, Deck
2013-04 → 2015-10 ended
ASA4# XLE —
58410-42070-C0 note Board Assy, Deck
2013-04 → 2015-10 ended
ASA4# LIMD —
58410-42050-C2 note Board Assy, Deck
2015-10 → 2018-10 ended
ASA4# LE —
58410-42050-C2 note Board Assy, Deck
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58410-42050-C2 note Board Assy, Deck
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58410-42050-C2 note Board Assy, Deck
2016-08 → 2018-10 ended
AVA44 SE —
58410-42100-C0 note Board Assy, Deck
2015-10 → 2016-08 ended
ASA44 SE —
58410-42100-C0 note Board Assy, Deck
2015-10 → 2018-10 ended
ASA4# LE —
58410-42100-C0 note Board Assy, Deck
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
58410-42100-C0 note Board Assy, Deck
2015-10 → 2018-10 ended
ASA42 LIMD,SE;ASA44,AVA44 LIMD USA —
58410-42100-C0 note Board Assy, Deck
2016-08 → 2018-10 ended
AVA44 SE USA —
58415E — Board, Rear Floor, NO.1
58415-42040-C2 note Board, Rear Floor, NO.1
2012-12 → 2015-10 ended
ASA4# LIMD —
58415-42040-C2 note Board, Rear Floor, NO.1
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58415-42040-C2 note Board, Rear Floor, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
58415-42040-C2 note Board, Rear Floor, NO.1
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
58415-42040-C2 note Board, Rear Floor, NO.1
2015-10 → 2018-10 ended
ASA4# XLE —
58415-42050-C0 note Board, Rear Floor, NO.1
2015-10 → 2018-10 ended
AVA44 LIMD —
58415-42050-C0 note Board, Rear Floor, NO.1
2015-10 → 2018-10 ended
AVA44 XLE —
58415-42050-C0 note Board, Rear Floor, NO.1
2016-08 → 2018-10 ended
AVA44 SE —
58416D — Clip, Rear Floor Board
90467-10201 Clip, Rear Floor Board
2012-12 → 2015-10 ended
ASA4# —
90467-10201 note Clip, Rear Floor Board
2015-10 → 2016-08 ended
ASA44 SE —
90467-10201 Clip, Rear Floor Board
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90467-10201 note Clip, Rear Floor Board
2015-10 → 2018-10 ended
ASA42,AVA44 USA;ASA44 LE,LIMD,XLE —
58416K — Board, Rear Floor, NO.2
58416-42050-C0 note Board, Rear Floor, NO.2
2012-12 → 2015-10 ended
ASA4# LIMD —
58416-42050-C0 note Board, Rear Floor, NO.2
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58416-42050-C0 note Board, Rear Floor, NO.2
2015-10 → 2018-10 ended
ASA4# LE —
58416-42050-C0 note Board, Rear Floor, NO.2
2016-08 → 2018-10 ended
AVA44 SE —
58416-42050-C0 note Board, Rear Floor, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58416-42050-C0 note Board, Rear Floor, NO.2
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58416-42060-C0 note Board, Rear Floor, NO.2
2015-10 → 2018-10 ended
ASA4# LE —
58416-42060-C0 note Board, Rear Floor, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
58416-42060-C0 note Board, Rear Floor, NO.2
2015-10 → 2018-10 ended
ASA42 LIMD,SE;ASA44,AVA44 LIMD USA —
58416-42060-C0 note Board, Rear Floor, NO.2
2015-10 → 2016-08 ended
ASA44 SE —
58416-42060-C0 note Board, Rear Floor, NO.2
2016-08 → 2018-10 ended
AVA44 SE USA —
58417H — Board, Rear Floor, NO.3
58417-42050-C0 note Board, Rear Floor, NO.3
2012-12 → 2015-10 ended
ASA4# LIMD —
58417-42050-C0 note Board, Rear Floor, NO.3
2012-12 → 2015-10 ended
ASA4# LE,XLE —
58417-42050-C0 note Board, Rear Floor, NO.3
2015-10 → 2018-10 ended
ASA4# LE —
58417-42050-C0 note Board, Rear Floor, NO.3
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58417-42050-C0 note Board, Rear Floor, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58417-42050-C0 note Board, Rear Floor, NO.3
2016-08 → 2018-10 ended
AVA44 SE —
58417-42060-C0 note Board, Rear Floor, NO.3
2015-10 → 2018-10 ended
ASA4# LE —
58417-42060-C0 note Board, Rear Floor, NO.3
2016-08 → 2018-10 ended
AVA44 SE USA —
58417-42060-C0 note Board, Rear Floor, NO.3
2015-10 → 2018-10 ended
ASA42 LIMD,SE;ASA44,AVA44 LIMD USA —
58417-42060-C0 note Board, Rear Floor, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
58417-42060-C0 note Board, Rear Floor, NO.3
2015-10 → 2016-08 ended
ASA44 SE —
58460D — Striker Assy, Luggage Hold Belt
58460-33020 Striker Assy, Luggage Hold Belt
2012-12 → 2015-10 ended
ASA4# —
58460-33020 Striker Assy, Luggage Hold Belt
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58571H — Carpet, Rear Floor
58571-42130 Carpet, Rear Floor
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58577E — Plate, Rear Floor Mat Support Side, NO.1
58577-42040-C0 note Plate, Rear Floor Mat Support Side, NO.1
2012-12 → 2014-10 ended
ASA4# LIMD —
58577-42040-C0 note Plate, Rear Floor Mat Support Side, NO.1
2012-12 → 2014-10 ended
ASA4# LE,XLE —
58577-42041-C0 note Plate, Rear Floor Mat Support Side, NO.1
2014-11 → 2015-10 ended
ASA4# XLE —
58577-42041-C0 note Plate, Rear Floor Mat Support Side, NO.1
2014-11 → 2015-10 ended
ASA4# LE —
58577-42041-C0 note Plate, Rear Floor Mat Support Side, NO.1
2014-11 → 2015-10 ended
ASA4# LIMD —
58577-42050-C0 note Plate, Rear Floor Mat Support Side, NO.1
2012-12 → 2013-03 ended
ASA4# LE,XLE —
58577-42050-C0 note Plate, Rear Floor Mat Support Side, NO.1
2012-12 → 2013-03 ended
ASA4# LIMD —
58577-42060-C0 note Plate, Rear Floor Mat Support Side, NO.1
2013-04 → 2014-10 ended
ASA4# XLE —
58577-42060-C0 note Plate, Rear Floor Mat Support Side, NO.1
2013-04 → 2014-10 ended
ASA4# LIMD —
58577-42060-C0 note Plate, Rear Floor Mat Support Side, NO.1
2013-04 → 2014-10 ended
ASA4# LE —
58577-42061-C0 note Plate, Rear Floor Mat Support Side, NO.1
2014-11 → 2015-10 ended
ASA4# LIMD —
58577-42061-C0 note Plate, Rear Floor Mat Support Side, NO.1
2014-11 → 2015-10 ended
ASA4# LE —
58577-42061-C0 note Plate, Rear Floor Mat Support Side, NO.1
2014-11 → 2015-10 ended
ASA4# XLE —
58577-42041-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
58577-42041-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
ASA4# XLE —
58577-42041-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
58577-42120-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2016-08 ended
ASA44 SE —
58577-42120-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
ASA44 LIMD;ASA42 LIMD,SE —
58577-42120-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
ASA4# XLE —
58577-42120-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
58577-42130-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
AVA44 XLE —
58577-42130-C0 note Plate, Rear Floor Mat Support Side, NO.1
2016-08 → 2018-10 ended
AVA44 SE —
58577-42130-C0 note Plate, Rear Floor Mat Support Side, NO.1
2015-10 → 2018-10 ended
AVA44 LIMD —
62423B — Hook, Side Window Garnish
62423-42010-C0 note Hook, Side Window Garnish
2012-12 → 2014-11 ended
ASA4# LE —
62423-42010-C0 note Hook, Side Window Garnish
2012-12 → 2015-10 ended
ASA4# LIMD —
62423-42010-C0 note Hook, Side Window Garnish
2012-12 → 2015-10 ended
ASA4# XLE —
62423-42010-C0 note Hook, Side Window Garnish
2014-11 → 2015-10 ended
ASA4# LE —
62423-42010-C0 note Hook, Side Window Garnish
2015-10 → 2018-10 ended
ASA4# LE —
62423-42010-C0 note Hook, Side Window Garnish
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
62423-42010-C0 note Hook, Side Window Garnish
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
62423-42010-C0 note Hook, Side Window Garnish
2016-08 → 2018-10 ended
AVA44 SE —
64309A — Pocket Sub-assy, Package Tray Trim
64309-0R040-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4# LE —
64309-0R040-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
64309-0R040-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
64309-0R040-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
64309-42031-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4# LE —
64309-42031-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4#,AVA44 SE USA —
64309-42031-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
64309-42031-B0 note Pocket Sub-assy, Package Tray Trim
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
64716E — Clip(FOR DECK TRIM REAR COVER)
90467-10161 Clip(FOR DECK TRIM REAR COVER)
2012-12 → 2015-10 ended
ASA4# —
90467-10161 Clip(FOR DECK TRIM REAR COVER)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64716P — Cover, Deck Trim, Rear
58387-42060-C0 note Cover, Deck Trim, Rear
2012-12 → 2015-04 ended
ASA4# LIMD —
58387-42060-C0 note Cover, Deck Trim, Rear
2012-12 → 2015-04 ended
ASA4# LE,XLE —
58387-42061-C0 note Cover, Deck Trim, Rear
2015-05 → 2015-10 ended
ASA4# LIMD —
58387-42061-C0 note Cover, Deck Trim, Rear
2015-05 → 2015-10 ended
ASA4# LE —
58387-42061-C0 note Cover, Deck Trim, Rear
2015-05 → 2015-10 ended
ASA4# XLE —
64716-42020-C0 note Cover, Deck Trim, Rear
2012-12 → 2013-03 ended
ASA4# LIMD —
64716-42020-C0 note Cover, Deck Trim, Rear
2012-12 → 2013-03 ended
ASA4# LE,XLE —
64716-42030-C0 note Cover, Deck Trim, Rear
2013-04 → 2015-04 ended
ASA4# LIMD —
64716-42030-C0 note Cover, Deck Trim, Rear
2013-04 → 2015-04 ended
ASA4# LE —
64716-42030-C0 note Cover, Deck Trim, Rear
2013-04 → 2015-04 ended
ASA4# XLE —
64716-42031-C0 note Cover, Deck Trim, Rear
2015-05 → 2015-10 ended
ASA4# LIMD —
64716-42031-C0 note Cover, Deck Trim, Rear
2015-05 → 2015-10 ended
ASA4# XLE —
64716-42031-C0 note Cover, Deck Trim, Rear
2015-05 → 2015-10 ended
ASA4# LE —
58387-42120-C0 note Cover, Deck Trim, Rear
2015-10 → 2018-10 ended
ASA4# LE —
58387-42120-C0 note Cover, Deck Trim, Rear
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
58387-42120-C0 note Cover, Deck Trim, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
58387-42120-C0 note Cover, Deck Trim, Rear
2016-08 → 2018-10 ended
AVA44 SE —
64716-42020-C0 note Cover, Deck Trim, Rear
2015-10 → 2016-08 ended
ASA44 SE —
64716-42020-C0 note Cover, Deck Trim, Rear
2015-10 → 2018-10 ended
ASA4# LE —
64716-42020-C0 note Cover, Deck Trim, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
64716-42020-C0 note Cover, Deck Trim, Rear
2015-10 → 2018-10 ended
ASA42 LIMD,SE;ASA44,AVA44 LIMD USA —
64716-42020-C0 note Cover, Deck Trim, Rear
2016-08 → 2018-10 ended
AVA44 SE USA —
64718A — Cover, Deck Trim Service Hole
64718-42020-C0 note Cover, Deck Trim Service Hole
2016-08 → 2018-10 ended
AVA44 SE —
64718-42020-C0 note Cover, Deck Trim Service Hole
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
64718-42020-C0 note Cover, Deck Trim Service Hole
2015-10 → 2018-10 ended
ASA4# LE —
64718-42020-C0 note Cover, Deck Trim Service Hole
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
64726A — Clip, Luggage Trim, Rear
64726-26010-C1 note Clip, Luggage Trim, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64730H — Clip(FOR DECK TRIM SIDE PANEL)
90467-10161 Clip(FOR DECK TRIM SIDE PANEL)
2012-12 → 2015-10 ended
ASA4# —
90467-10161 Clip(FOR DECK TRIM SIDE PANEL)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64730J — Panel Assy, Deck Trim Side, RH
64730-42091-C0 note Panel Assy, Deck Trim Side, RH
2012-12 → 2014-10 ended
ASA4# LIMD —
64730-42091-C0 note Panel Assy, Deck Trim Side, RH
2012-12 → 2014-10 ended
ASA4# LE,XLE —
64730-42092-C0 note Panel Assy, Deck Trim Side, RH
2014-11 → 2015-10 ended
ASA4# LIMD —
64730-42092-C0 note Panel Assy, Deck Trim Side, RH
2014-11 → 2015-10 ended
ASA4# LE —
64730-42092-C0 note Panel Assy, Deck Trim Side, RH
2014-11 → 2015-10 ended
ASA4# XLE —
64730-42100-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LE —
64730-42100-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# XLE —
64730-42100-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LIMD,SE —
64730-42100-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
ASA4# LIMD,SE —
64730-42100-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
ASA4# XLE —
64730-42100-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
ASA4# LE —
64730-42110-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
ASA4# LIMD,SE —
64730-42110-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
ASA4# LIMD,SE —
64730-42110-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LIMD,SE —
64730-42110-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LIMD,SE —
64730-42120-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 LIMD —
64730-42120-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 XLE —
64730-42120-C0 note Panel Assy, Deck Trim Side, RH
2016-08 → 2017-05 ended
AVA44 SE —
64730-42120-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 SE —
64730-42120-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
AVA44 XLE —
64730-42120-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
AVA44 LIMD —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 LIMD —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 SE —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 LIMD USA —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2017-08 → 2018-10 ended
AVA44 SE USA —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
AVA44 LIMD USA —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2016-08 → 2017-05 ended
AVA44 SE —
64730-42130-C0 note Panel Assy, Deck Trim Side, RH
2015-10 → 2017-05 ended
AVA44 LIMD —
64730-42160-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LIMD —
64730-42160-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LE —
64730-42160-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# XLE —
64730-42160-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# SE —
64730-42170-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LIMD —
64730-42170-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# SE —
64730-42170-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# LIMD —
64730-42170-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
ASA4# SE —
64730-42180-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 LIMD —
64730-42180-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 XLE —
64730-42180-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 SE —
64730-42190-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 LIMD —
64730-42190-C0 note Panel Assy, Deck Trim Side, RH
2017-08 → 2018-10 ended
AVA44 SE USA —
64730-42190-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 LIMD USA —
64730-42190-C0 note Panel Assy, Deck Trim Side, RH
2017-05 → 2018-10 ended
AVA44 SE —
64740E — Panel Assy, Deck Trim Side, LH
64740-42071-C0 note Panel Assy, Deck Trim Side, LH
2012-12 → 2014-10 ended
ASA4# LIMD —
64740-42071-C0 note Panel Assy, Deck Trim Side, LH
2012-12 → 2014-10 ended
ASA4# LE,XLE —
64740-42072-C0 note Panel Assy, Deck Trim Side, LH
2014-11 → 2015-10 ended
ASA4# LIMD —
64740-42072-C0 note Panel Assy, Deck Trim Side, LH
2014-11 → 2015-10 ended
ASA4# LE —
64740-42072-C0 note Panel Assy, Deck Trim Side, LH
2014-11 → 2015-10 ended
ASA4# XLE —
64740-42100-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# LIMD,SE —
64740-42100-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# XLE —
64740-42100-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# LE —
64740-42100-C0 note Panel Assy, Deck Trim Side, LH
2015-10 → 2017-05 ended
ASA4# LIMD,SE —
64740-42100-C0 note Panel Assy, Deck Trim Side, LH
2015-10 → 2017-05 ended
ASA4# XLE —
64740-42100-C0 note Panel Assy, Deck Trim Side, LH
2015-10 → 2017-05 ended
ASA4# LE —
64740-42110-C0 note Panel Assy, Deck Trim Side, LH
2015-10 → 2017-05 ended
AVA44 XLE —
64740-42110-C0 note Panel Assy, Deck Trim Side, LH
2015-10 → 2017-05 ended
AVA44 LIMD —
64740-42110-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
AVA44 SE —
64740-42110-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
AVA44 XLE —
64740-42110-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
AVA44 LIMD —
64740-42110-C0 note Panel Assy, Deck Trim Side, LH
2016-08 → 2017-05 ended
AVA44 SE —
64740-42200-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# LIMD —
64740-42200-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# LE —
64740-42200-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# XLE —
64740-42200-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
ASA4# SE —
64740-42210-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
AVA44 LIMD —
64740-42210-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
AVA44 XLE —
64740-42210-C0 note Panel Assy, Deck Trim Side, LH
2017-05 → 2018-10 ended
AVA44 SE —
64742B — Base, Deck Trim Side Cover, LH
64742-42020 Base, Deck Trim Side Cover, LH
2015-10 → 2018-10 ended
AVA44 —
64742-42030 note Base, Deck Trim Side Cover, LH
2015-10 → 2018-10 ended
AVA44 USA —
64907D — Stopper Sub-assy, Tonneau Cover, RH
64907-0R010 note Stopper Sub-assy, Tonneau Cover, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64907-0R010 note Stopper Sub-assy, Tonneau Cover, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64907-42010 note Stopper Sub-assy, Tonneau Cover, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 USA —
64907-42010 note Stopper Sub-assy, Tonneau Cover, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 USA —
64909C — Stopper Sub-assy, Tonneau Cover, LH
64909-0R010 note Stopper Sub-assy, Tonneau Cover, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64909-0R010 note Stopper Sub-assy, Tonneau Cover, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64909-42010 note Stopper Sub-assy, Tonneau Cover, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 USA —
64909-42010 note Stopper Sub-assy, Tonneau Cover, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 USA —
64910N — Cover Assy, Tonneau
64910-0R030-C0 note Cover Assy, Tonneau
2012-12 → 2015-10 ended
ASA4# LIMD —
64910-0R030-C0 note Cover Assy, Tonneau
2012-12 → 2015-10 ended
ASA4# LE,XLE —
64910-42040-C0 note Cover Assy, Tonneau
2012-12 → 2015-10 ended
ASA4# LIMD —
64910-42040-C0 note Cover Assy, Tonneau
2012-12 → 2015-10 ended
ASA4# LE,XLE —
64910-0R030-C0 note Cover Assy, Tonneau
2016-08 → 2018-10 ended
AVA44 SE —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4# LE —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4# LE —
64910-0R030-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
64910-42040-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4# LE —
64910-42040-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
64910-42040-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
64910-42040-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4# LE —
64910-42040-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
64910-42040-C0 note Cover Assy, Tonneau
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE USA —
64910-42040-C0 note Cover Assy, Tonneau
2016-08 → 2018-10 ended
AVA44 SE USA —
64910-42040-C0 note Cover Assy, Tonneau
2016-08 → 2018-10 ended
AVA44 SE USA —
64997 — Box, Deck Floor, LH
64997-42010 Box, Deck Floor, LH
2012-12 → 2015-10 ended
ASA4# —
64997-42050 Box, Deck Floor, LH
2015-10 → 2018-10 ended
ASA4# —
64997-42060 Box, Deck Floor, LH
2015-10 → 2018-10 ended
AVA44 —
64997-42070 note Box, Deck Floor, LH
2015-10 → 2018-10 ended
AVA44 USA —
64997-42080 note Box, Deck Floor, LH
2015-10 → 2016-08 ended
ASA44 SE —
64997-42080 note Box, Deck Floor, LH
2015-10 → 2018-10 ended
ASA42;ASA44 LE,LIMD,XLE —
64997C — Clip(FOR DECK FLOOR BOX)
90467-05164-B2 note Clip(FOR DECK FLOOR BOX)
2012-12 → 2014-08 ended
ASA4# —
90467-05164-C0 note Clip(FOR DECK FLOOR BOX)
2014-08 → 2015-10 ended
ASA4# —
90467-05164-C0 note Clip(FOR DECK FLOOR BOX)
2015-10 → 2016-10 ended
ASA4#,AVA44 —
90467-05164-C0 note Clip(FOR DECK FLOOR BOX)
2015-10 → 2016-10 ended
AVA44 USA —
90467-05164-C7 note Clip(FOR DECK FLOOR BOX)
2016-10 → 2018-10 ended
ASA4#,AVA44 —
90467-05164-C7 note Clip(FOR DECK FLOOR BOX)
2016-10 → 2018-10 ended
AVA44 USA —
73708A — Bracket Set, Tether Anchor
73708-42060-C0 note Bracket Set, Tether Anchor
2015-10 → 2018-10 ended
ASA4# LE —
73708-42060-C0 note Bracket Set, Tether Anchor
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
73708-42060-C0 note Bracket Set, Tether Anchor
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73708-42060-C0 note Bracket Set, Tether Anchor
2016-08 → 2018-10 ended
AVA44 SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
