Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

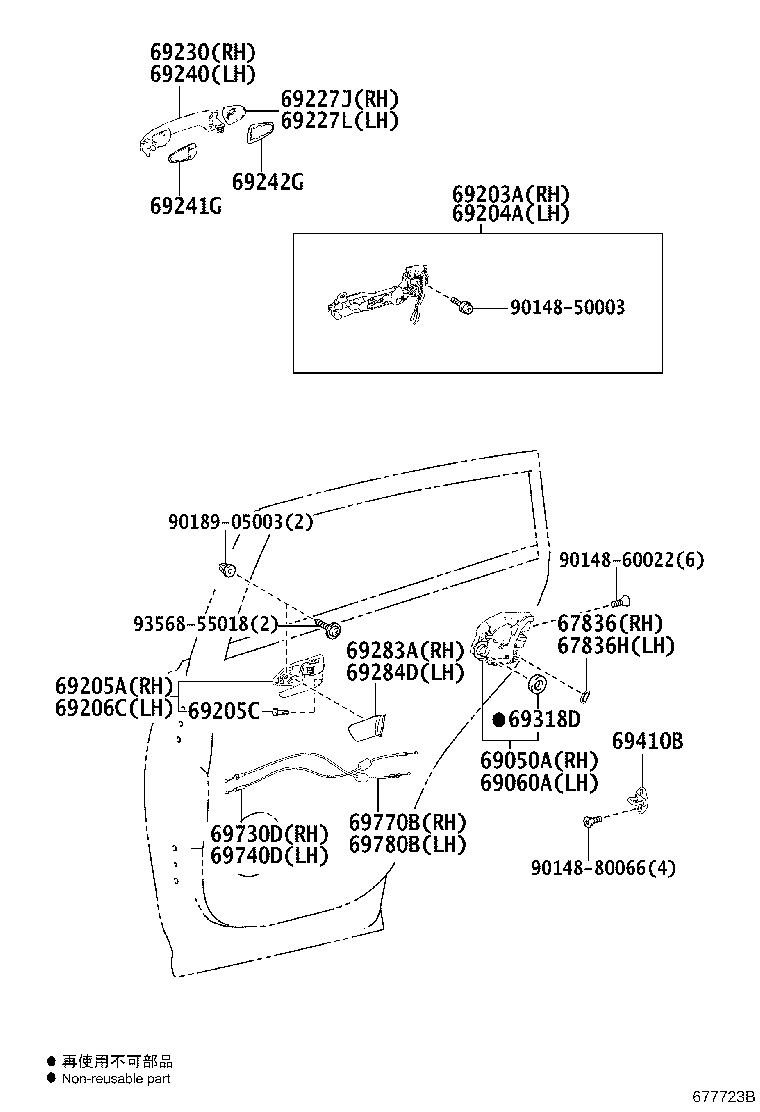

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67836 — Cover, Rear Door Lock Child Protection, RH | ||||
| 67836-14010 |
Cover, Rear Door Lock Child Protection, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 67836-14010 |
Cover, Rear Door Lock Child Protection, RH
2015-10 → 2017-01
ended
|
ASA4#,AVA44 | — | |
| 67836-60010 |
Cover, Rear Door Lock Child Protection, RH
2017-02 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 67836H — Cover, Rear Door Lock Child Protection, LH | ||||
| 67836-14010 |
Cover, Rear Door Lock Child Protection, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 67836-14010 |
Cover, Rear Door Lock Child Protection, LH
2015-10 → 2017-01
ended
|
ASA4#,AVA44 | — | |
| 67836-60010 |
Cover, Rear Door Lock Child Protection, LH
2017-02 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69050A — Lock Assy, Rear Door W/Motor, RH | ||||
| 69050-33120 note |
Lock Assy, Rear Door W/Motor, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69050-33120 note |
Lock Assy, Rear Door W/Motor, RH
2013-11 → 2015-10
ended
|
ASA42 LIMD | — | |
| 69050-42021 |
Lock Assy, Rear Door W/Motor, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69050-33120 note |
Lock Assy, Rear Door W/Motor, RH
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
| 69050-33120 note |
Lock Assy, Rear Door W/Motor, RH
2015-10 → 2018-10
ended
|
ASA4# XLE | — | |
| 69050-33120 note |
Lock Assy, Rear Door W/Motor, RH
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 69050-33120 |
Lock Assy, Rear Door W/Motor, RH
2015-10 → 2018-10
ended
|
AVA44;ASA4# LIMD | — | |
| 69050-42021 |
Lock Assy, Rear Door W/Motor, RH
2015-10 → 2018-10
ended
|
ASA4# LE,SE,XLE | — | |
| 69060A — Lock Assy, Rear Door W/Motor, LH | ||||
| 69060-33120 note |
Lock Assy, Rear Door W/Motor, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69060-33120 note |
Lock Assy, Rear Door W/Motor, LH
2013-11 → 2015-10
ended
|
ASA42 LIMD | — | |
| 69060-42021 |
Lock Assy, Rear Door W/Motor, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69060-33120 |
Lock Assy, Rear Door W/Motor, LH
2015-10 → 2018-10
ended
|
AVA44;ASA4# LIMD | — | |
| 69060-33120 note |
Lock Assy, Rear Door W/Motor, LH
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 69060-33120 note |
Lock Assy, Rear Door W/Motor, LH
2015-10 → 2018-10
ended
|
ASA4# XLE | — | |
| 69060-33120 note |
Lock Assy, Rear Door W/Motor, LH
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
| 69060-42021 |
Lock Assy, Rear Door W/Motor, LH
2015-10 → 2018-10
ended
|
ASA4# LE,SE,XLE | — | |
| 69203A — Frame Sub-assy, Rear Door Outside Handle, RH | ||||
| 69203-42070 |
Frame Sub-assy, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69203-42070 |
Frame Sub-assy, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69204A — Frame Sub-assy, Rear Door Outside Handle, LH | ||||
| 69204-42070 |
Frame Sub-assy, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69204-42070 |
Frame Sub-assy, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69205A — Handle Sub-assy, Rear Door Inside, RH | ||||
| 69205-33111-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69205-33111-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2013-11 → 2015-10
ended
|
ASA4# XLE | — | |
| 69205-33120-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2012-12 → 2013-11
ended
|
ASA4# XLE | — | |
| 69205-33120-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 69205-33111-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD;ASA4# LIMD,SE | — | |
| 69205-33111-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 69205-33111-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2016-08 → 2018-10
ended
|
AVA44 SE | — | |
| 69205-33120-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 69205-33120-C0 note |
Handle Sub-assy, Rear Door Inside, RH
2016-08 → 2018-10
ended
|
AVA44 XLE | — | |
| 69205C — Cushion(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
Cushion(FOR REAR DOOR INSIDE HANDLE)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90541-04027 |
Cushion(FOR REAR DOOR INSIDE HANDLE)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69206C — Handle Sub-assy, Rear Door Inside, LH | ||||
| 69206-33121-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69206-33121-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2013-11 → 2015-10
ended
|
ASA4# XLE | — | |
| 69206-33130-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2012-12 → 2013-11
ended
|
ASA4# XLE | — | |
| 69206-33130-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 69206-33121-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2016-08 → 2018-10
ended
|
AVA44 SE | — | |
| 69206-33121-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD;ASA4# LIMD,SE | — | |
| 69206-33121-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 69206-33130-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 69206-33130-C0 note |
Handle Sub-assy, Rear Door Inside, LH
2016-08 → 2018-10
ended
|
AVA44 XLE | — | |
| 69227J — Cover, Rear Door Outside Handle, RH | ||||
| 69227-42080-A0 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-A1 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-B0 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-B1 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-C1 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-D0 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-E0 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-E1 note |
Cover, Rear Door Outside Handle, RH
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-E2 note |
Cover, Rear Door Outside Handle, RH
2014-10 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-G0 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 69227-42080-J0 note |
Cover, Rear Door Outside Handle, RH
2012-12 → 2014-10
ended
|
ASA4# | — | |
| 69227-42080-A0 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-A1 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-B0 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;ASA4# LE,SE,XLE | — | |
| 69227-42080-B1 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-B3 note |
Cover, Rear Door Outside Handle, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-C1 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-C3 note |
Cover, Rear Door Outside Handle, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-D0 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2017-08
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-D1 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-D2 note |
Cover, Rear Door Outside Handle, RH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-E0 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-E1 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-E2 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-J2 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42110 note |
Cover, Rear Door Outside Handle, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 69227L — Cover, Rear Door Outside Handle, LH | ||||
| 69227-42080-A0 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-A1 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-B0 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-B1 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-C1 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-D0 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-E0 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-E1 note |
Cover, Rear Door Outside Handle, LH
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-E2 note |
Cover, Rear Door Outside Handle, LH
2014-10 → 2015-10
ended
|
ASA4# | — | |
| 69227-42080-G0 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 69227-42080-J0 note |
Cover, Rear Door Outside Handle, LH
2012-12 → 2014-10
ended
|
ASA4# | — | |
| 69227-42080-A0 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-A1 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-B0 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;ASA4# LE,SE,XLE | — | |
| 69227-42080-B1 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-B3 note |
Cover, Rear Door Outside Handle, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-C1 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-C3 note |
Cover, Rear Door Outside Handle, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-D0 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2017-08
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-D1 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-D2 note |
Cover, Rear Door Outside Handle, LH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-E0 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-E1 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69227-42080-E2 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42080-J2 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69227-42110 note |
Cover, Rear Door Outside Handle, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 69230 — Handle Assy, Rear Door Outside, RH | ||||
| 69211-42040-A0 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-A1 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-B0 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-B1 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-C1 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-D0 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-E0 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-E1 note |
Handle Assy, Rear Door Outside, RH
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-E2 note |
Handle Assy, Rear Door Outside, RH
2014-10 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-G0 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 69211-42040-J0 note |
Handle Assy, Rear Door Outside, RH
2012-12 → 2014-10
ended
|
ASA4# | — | |
| 69211-42040-A0 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-A1 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-B0 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;ASA4# LE,SE,XLE | — | |
| 69211-42040-B1 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-B3 note |
Handle Assy, Rear Door Outside, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-C1 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-C3 note |
Handle Assy, Rear Door Outside, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-D0 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2017-08
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-D1 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-D2 note |
Handle Assy, Rear Door Outside, RH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-E0 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-E1 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-E2 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-J2 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42060 note |
Handle Assy, Rear Door Outside, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 69240 — Handle Assy, Rear Door Outside, LH | ||||
| 69211-42040-A0 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-A1 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-B0 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-B1 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-C1 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-D0 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-E0 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-E1 note |
Handle Assy, Rear Door Outside, LH
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-E2 note |
Handle Assy, Rear Door Outside, LH
2014-10 → 2015-10
ended
|
ASA4# | — | |
| 69211-42040-G0 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 69211-42040-J0 note |
Handle Assy, Rear Door Outside, LH
2012-12 → 2014-10
ended
|
ASA4# | — | |
| 69211-42040-A0 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-A1 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-B0 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;ASA4# LE,SE,XLE | — | |
| 69211-42040-B1 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-B3 note |
Handle Assy, Rear Door Outside, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-C1 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-C3 note |
Handle Assy, Rear Door Outside, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-D0 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2017-08
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-D1 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-D2 note |
Handle Assy, Rear Door Outside, LH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-E0 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-E1 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
AVA44 XLE;AVA44 SE USA;ASA4# +1 | — | |
| 69211-42040-E2 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42040-J2 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69211-42060 note |
Handle Assy, Rear Door Outside, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 69241G — Pad, Rear Door Outside Handle, Front | ||||
| 69241-42040 |
Pad, Rear Door Outside Handle, Front
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69241-42040 |
Pad, Rear Door Outside Handle, Front
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69242G — Pad, Rear Door Outside Handle, Rear | ||||
| 69242-30100 |
Pad, Rear Door Outside Handle, Rear
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69242-30100 |
Pad, Rear Door Outside Handle, Rear
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69283A — Plug, Rear Door Inside Handle Bezel, RH | ||||
| 69283-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, RH
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 69283-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69283-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, RH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 69283-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD;ASA4# LIMD,SE | — | |
| 69283-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 69283-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, RH
2016-08 → 2018-10
ended
|
AVA44 SE | — | |
| 69284D — Plug, Rear Door Inside Handle Bezel, LH | ||||
| 69284-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69284-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, LH
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 69284-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, LH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 69284-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD;ASA4# LIMD,SE | — | |
| 69284-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 69284-47010-C0 note |
Plug, Rear Door Inside Handle Bezel, LH
2016-08 → 2018-10
ended
|
AVA44 SE | — | |
| 69318D — Seal, Door Lock Wiring Harness | ||||
| 69318-51010 |
Seal, Door Lock Wiring Harness
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69318-51010 |
Seal, Door Lock Wiring Harness
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69410B — Plate Assy, Rear Door Lock Striker | ||||
| 69410-20110 |
Plate Assy, Rear Door Lock Striker
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69410-20110 |
Plate Assy, Rear Door Lock Striker
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69730D — Cable Assy, Rear Door Lock Remote Control, RH | ||||
| 69730-42040 |
Cable Assy, Rear Door Lock Remote Control, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69730-42040 |
Cable Assy, Rear Door Lock Remote Control, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69740D — Cable Assy, Rear Door Lock Remote Control LH | ||||
| 69730-42040 |
Cable Assy, Rear Door Lock Remote Control LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69730-42040 |
Cable Assy, Rear Door Lock Remote Control LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69770B — Cable Assy, Rear Door Inside Locking, RH | ||||
| 69770-42090 |
Cable Assy, Rear Door Inside Locking, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69770-42090 |
Cable Assy, Rear Door Inside Locking, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 69780B — Cable Assy, Rear Door Inside Locking, LH | ||||
| 69770-42090 |
Cable Assy, Rear Door Inside Locking, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69770-42090 |
Cable Assy, Rear Door Inside Locking, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
