Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

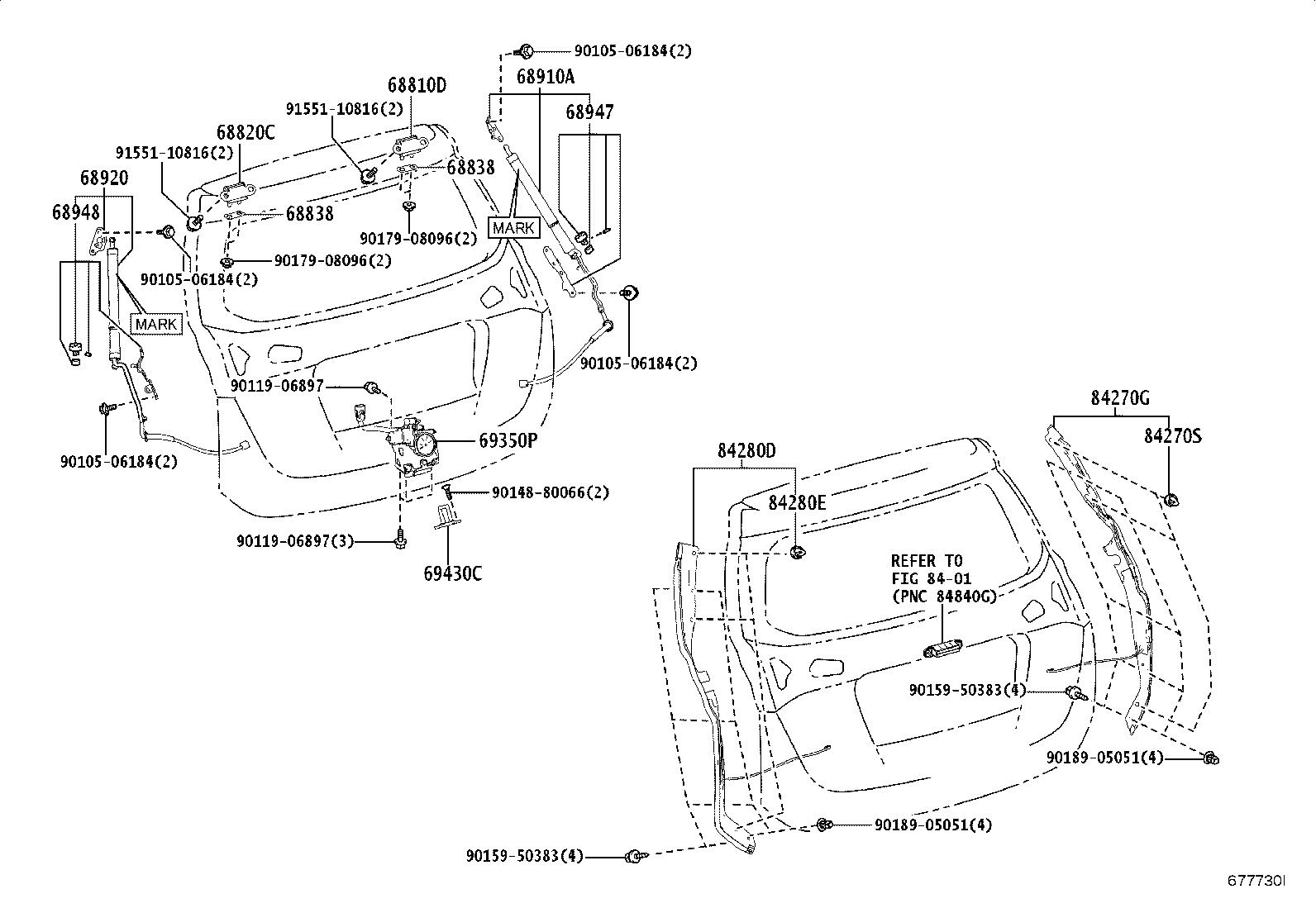

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68810D — Hinge Assy, Back Door, RH | ||||
| 68810-42070 |
Hinge Assy, Back Door, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 68810-42070 |
Hinge Assy, Back Door, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 68820C — Hinge Assy, Back Door, LH | ||||
| 68810-42070 |
Hinge Assy, Back Door, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 68810-42070 |
Hinge Assy, Back Door, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 68838 — Pad, Back Door Hinge, NO.1 | ||||
| 68838-42010 note |
Pad, Back Door Hinge, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 68838-42020 note |
Pad, Back Door Hinge, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 68838-42030 note |
Pad, Back Door Hinge, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 68838-42010 note |
Pad, Back Door Hinge, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 68838-42020 note |
Pad, Back Door Hinge, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 68838-42030 note |
Pad, Back Door Hinge, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 68910A — Unit Assy Set, Power Back Door, RH | ||||
| 68910-49015 |
Unit Assy Set, Power Back Door, RH
2012-12 → 2013-06
ended
|
ASA4# LIMD | — | |
| 68910-49017 |
Unit Assy Set, Power Back Door, RH
2013-06 → 2013-08
ended
|
ASA4# LIMD | — | |
| 68910-49035 |
Unit Assy Set, Power Back Door, RH
2013-08 → 2013-09
ended
|
ASA4# LIMD | — | |
| 68910-49036 |
Unit Assy Set, Power Back Door, RH
2013-09 → 2013-12
ended
|
ASA4# LIMD | — | |
| 68910-49038 |
Unit Assy Set, Power Back Door, RH
2013-12 → 2014-07
ended
|
ASA4# LIMD | — | |
| 68910-49055 |
Unit Assy Set, Power Back Door, RH
2014-07 → 2015-10
ended
|
ASA4# LIMD | — | |
| 68910-49055 note |
Unit Assy Set, Power Back Door, RH
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 68910-49065 note |
Unit Assy Set, Power Back Door, RH
2015-10 → 2017-03
ended
|
ASA4#,AVA44 LIMD | — | |
| 68910-49065 note |
Unit Assy Set, Power Back Door, RH
2016-08 → 2017-03
ended
|
ASA4#,AVA44 SE | — | |
| 68910-49065 note |
Unit Assy Set, Power Back Door, RH
2015-10 → 2017-03
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68910-49065 note |
Unit Assy Set, Power Back Door, RH
2015-10 → 2017-03
ended
|
ASA42 LIMD | — | |
| 68910-49069 note |
Unit Assy Set, Power Back Door, RH
2017-03 → 2017-12
ended
|
ASA4#,AVA44 LIMD | — | |
| 68910-49069 note |
Unit Assy Set, Power Back Door, RH
2017-03 → 2017-12
ended
|
ASA42 LIMD | — | |
| 68910-49069 note |
Unit Assy Set, Power Back Door, RH
2017-03 → 2017-12
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68910-49069 note |
Unit Assy Set, Power Back Door, RH
2017-03 → 2017-12
ended
|
ASA4#,AVA44 SE | — | |
| 68910-49079 note |
Unit Assy Set, Power Back Door, RH
2017-12 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 68910-49079 note |
Unit Assy Set, Power Back Door, RH
2017-12 → 2018-10
ended
|
ASA42 LIMD | — | |
| 68910-49079 note |
Unit Assy Set, Power Back Door, RH
2017-12 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68910-49079 note |
Unit Assy Set, Power Back Door, RH
2017-12 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 68920 — Unit Assy Set, Power Back Door, LH | ||||
| 68920-49015 |
Unit Assy Set, Power Back Door, LH
2012-12 → 2013-06
ended
|
ASA4# LIMD | — | |
| 68920-49017 |
Unit Assy Set, Power Back Door, LH
2013-06 → 2013-08
ended
|
ASA4# LIMD | — | |
| 68920-49035 |
Unit Assy Set, Power Back Door, LH
2013-08 → 2013-09
ended
|
ASA4# LIMD | — | |
| 68920-49036 |
Unit Assy Set, Power Back Door, LH
2013-09 → 2013-12
ended
|
ASA4# LIMD | — | |
| 68920-49038 |
Unit Assy Set, Power Back Door, LH
2013-12 → 2014-07
ended
|
ASA4# LIMD | — | |
| 68920-49055 |
Unit Assy Set, Power Back Door, LH
2014-07 → 2015-10
ended
|
ASA4# LIMD | — | |
| 68920-49055 note |
Unit Assy Set, Power Back Door, LH
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 68920-49065 note |
Unit Assy Set, Power Back Door, LH
2015-10 → 2017-03
ended
|
ASA4#,AVA44 LIMD | — | |
| 68920-49065 note |
Unit Assy Set, Power Back Door, LH
2015-10 → 2017-03
ended
|
ASA42 LIMD | — | |
| 68920-49065 note |
Unit Assy Set, Power Back Door, LH
2015-10 → 2017-03
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68920-49065 note |
Unit Assy Set, Power Back Door, LH
2016-08 → 2017-03
ended
|
ASA4#,AVA44 SE | — | |
| 68920-49069 note |
Unit Assy Set, Power Back Door, LH
2017-03 → 2017-12
ended
|
ASA4#,AVA44 LIMD | — | |
| 68920-49069 note |
Unit Assy Set, Power Back Door, LH
2017-03 → 2017-12
ended
|
ASA42 LIMD | — | |
| 68920-49069 note |
Unit Assy Set, Power Back Door, LH
2017-03 → 2017-12
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68920-49069 note |
Unit Assy Set, Power Back Door, LH
2017-03 → 2017-12
ended
|
ASA4#,AVA44 SE | — | |
| 68920-49079 note |
Unit Assy Set, Power Back Door, LH
2017-12 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 68920-49079 note |
Unit Assy Set, Power Back Door, LH
2017-12 → 2018-10
ended
|
ASA42 LIMD | — | |
| 68920-49079 note |
Unit Assy Set, Power Back Door, LH
2017-12 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68920-49079 note |
Unit Assy Set, Power Back Door, LH
2017-12 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 68947 — Bracket, Back Door Damper Stay, Lower RH | ||||
| 68903-42010 |
Bracket, Back Door Damper Stay, Lower RH
2012-12 → 2013-06
ended
|
ASA4# LIMD | — | |
| 68903-42011 |
Bracket, Back Door Damper Stay, Lower RH
2013-07 → 2013-08
ended
|
ASA4# LIMD | — | |
| 68903-42012 |
Bracket, Back Door Damper Stay, Lower RH
2013-09 → 2013-12
ended
|
ASA4# LIMD | — | |
| 68903-42013 |
Bracket, Back Door Damper Stay, Lower RH
2013-12 → 2014-06
ended
|
ASA4# LIMD | — | |
| 68903-42014 |
Bracket, Back Door Damper Stay, Lower RH
2014-07 → 2015-10
ended
|
ASA4# LIMD | — | |
| 68903-42014 note |
Bracket, Back Door Damper Stay, Lower RH
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 68947-42020 |
Bracket, Back Door Damper Stay, Lower RH
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 68947-42020 note |
Bracket, Back Door Damper Stay, Lower RH
2013-11 → 2015-10
ended
|
ASA42 LIMD | — | |
| 68903-42014 |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-01
ended
|
ASA4#,AVA44 LIMD | — | |
| 68903-42014 note |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-01
ended
|
ASA42 LIMD | — | |
| 68903-42014 note |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-01
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68903-42014 note |
Bracket, Back Door Damper Stay, Lower RH
2016-08 → 2018-01
ended
|
ASA4#,AVA44 SE | — | |
| 68903-42015 note |
Bracket, Back Door Damper Stay, Lower RH
2018-01 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 68903-42015 note |
Bracket, Back Door Damper Stay, Lower RH
2018-01 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68903-42015 note |
Bracket, Back Door Damper Stay, Lower RH
2018-01 → 2018-10
ended
|
ASA42 LIMD | — | |
| 68903-42015 |
Bracket, Back Door Damper Stay, Lower RH
2018-01 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 68947-42020 note |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68947-42020 note |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 68947-42020 note |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-10
ended
|
ASA4# SE;AVA44 SE,XLE | — | |
| 68947-42020 |
Bracket, Back Door Damper Stay, Lower RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 68948 — Bracket, Back Door Damper Stay, Lower LH | ||||
| 68904-42010 |
Bracket, Back Door Damper Stay, Lower LH
2012-12 → 2013-06
ended
|
ASA4# LIMD | — | |
| 68904-42011 |
Bracket, Back Door Damper Stay, Lower LH
2013-07 → 2013-08
ended
|
ASA4# LIMD | — | |
| 68904-42012 |
Bracket, Back Door Damper Stay, Lower LH
2013-09 → 2013-12
ended
|
ASA4# LIMD | — | |
| 68904-42013 |
Bracket, Back Door Damper Stay, Lower LH
2013-12 → 2014-06
ended
|
ASA4# LIMD | — | |
| 68904-42014 |
Bracket, Back Door Damper Stay, Lower LH
2014-07 → 2015-10
ended
|
ASA4# LIMD | — | |
| 68904-42014 note |
Bracket, Back Door Damper Stay, Lower LH
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 68948-42020 |
Bracket, Back Door Damper Stay, Lower LH
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 68948-42020 note |
Bracket, Back Door Damper Stay, Lower LH
2013-11 → 2015-10
ended
|
ASA42 LIMD | — | |
| 68904-42014 |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-01
ended
|
ASA4#,AVA44 LIMD | — | |
| 68904-42014 note |
Bracket, Back Door Damper Stay, Lower LH
2016-08 → 2018-01
ended
|
ASA4#,AVA44 SE | — | |
| 68904-42014 note |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-01
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68904-42014 note |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-01
ended
|
ASA42 LIMD | — | |
| 68904-42015 note |
Bracket, Back Door Damper Stay, Lower LH
2018-01 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 68904-42015 note |
Bracket, Back Door Damper Stay, Lower LH
2018-01 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68904-42015 note |
Bracket, Back Door Damper Stay, Lower LH
2018-01 → 2018-10
ended
|
ASA42 LIMD | — | |
| 68904-42015 |
Bracket, Back Door Damper Stay, Lower LH
2018-01 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 68948-42020 note |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 68948-42020 note |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-10
ended
|
ASA4# SE;AVA44 SE,XLE | — | |
| 68948-42020 note |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 68948-42020 |
Bracket, Back Door Damper Stay, Lower LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch | ||||
| 69350-28151 |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 69350-28151 note |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2013-11 → 2015-10
ended
|
ASA42 LIMD | — | |
| 69350-28160 |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 69350-28160 note |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 69350-42060 |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 69350-42060 note |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 69350-42060 note |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 69350-42070 note |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 69350-42070 |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,SE,XLE | — | |
| 69430C — Striker Assy, Back Door Lock | ||||
| 69430-48030 |
Striker Assy, Back Door Lock
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 69430-48030 |
Striker Assy, Back Door Lock
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84270G — Sensor Assy, Power Back Door, RH | ||||
| 84270-42010 |
Sensor Assy, Power Back Door, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84270-42010 note |
Sensor Assy, Power Back Door, RH
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 84270-42010 |
Sensor Assy, Power Back Door, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 84270-42010 note |
Sensor Assy, Power Back Door, RH
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 84270-42010 note |
Sensor Assy, Power Back Door, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 84270-42010 note |
Sensor Assy, Power Back Door, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 84270S — Clip(POWER BACK DOOR SENSOR, RH) | ||||
| 61617-42040 |
Clip(POWER BACK DOOR SENSOR, RH)
2014-04 → 2015-10
ended
|
ASA4# LIMD | — | |
| 61617-42040 note |
Clip(POWER BACK DOOR SENSOR, RH)
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 90467-10213-C0 note |
Clip(POWER BACK DOOR SENSOR, RH)
2012-12 → 2014-03
ended
|
ASA4# LIMD | — | |
| 61617-42040 note |
Clip(POWER BACK DOOR SENSOR, RH)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 61617-42040 note |
Clip(POWER BACK DOOR SENSOR, RH)
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 61617-42040 note |
Clip(POWER BACK DOOR SENSOR, RH)
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 61617-42040 |
Clip(POWER BACK DOOR SENSOR, RH)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 84280D — Sensor Assy, Power Back Door, LH | ||||
| 84280-42010 |
Sensor Assy, Power Back Door, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84280-42010 note |
Sensor Assy, Power Back Door, LH
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 84280-42010 |
Sensor Assy, Power Back Door, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 84280-42010 note |
Sensor Assy, Power Back Door, LH
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 84280-42010 note |
Sensor Assy, Power Back Door, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 84280-42010 note |
Sensor Assy, Power Back Door, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 84280E — Clip (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 61617-42040 |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2014-04 → 2015-10
ended
|
ASA4# LIMD | — | |
| 61617-42040 note |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 90467-10213-C0 note |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2012-12 → 2014-03
ended
|
ASA4# LIMD | — | |
| 61617-42040 |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 61617-42040 note |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 61617-42040 note |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 61617-42040 note |
Clip (FOR POWER BACK DOOR SENSOR, LH)
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
