Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 678929D 62785F — SPACER, BACK DOOR GLASS (2 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (2 parts) 64819 — SPACER, BACK WINDOW GLASS, NO.2 (2 parts) 64885C — CHANNEL, BACK DOOR GLASS, RH (2 parts) 64886B — CHANNEL, BACK DOOR GLASS, LH (2 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (22 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67837L — SEAL, DOOR DUST PROOF (1 parts) 76826A — RETAINER, BACK DOOR GARNISH, NO.1 (2 parts) 76828A — RETAINER, BACK DOOR GARNISH, NO.3 (1 parts) 76826A — RETAINER, BACK DOOR GARNISH, NO.1 (2 parts) 67881A — WEATHERSTRIP, BACK DOOR (2 parts) 68131 — GLASS, BACK DOOR (6 parts) 75129C — CUSHION, REAR LICENCE PLATE (2 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (2 parts) 75574B — MOULDING, BACK WINDOW, OUTSIDE LH (2 parts) 75575D — MOULDING, BACK WINDOW, LOWER (2 parts) 9011906915 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 76821 — PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER (1 parts) 76812 — GARNISH, BACK DOOR, OUTSIDE LOWER (1 parts) 76822A — PROTECTOR, BACK DOOR GARNISH MOULDING, LWR (1 parts) 76822A — PROTECTOR, BACK DOOR GARNISH MOULDING, LWR (1 parts) 76822A — PROTECTOR, BACK DOOR GARNISH MOULDING, LWR (1 parts) 9046709206 — not listed in this catalogue 9011906830 — not listed in this catalogue 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (44 parts) 9017906359 — not listed in this catalogue 7551 — not listed in this catalogue 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 9046709206 — not listed in this catalogue 76818 — PAD, BACK DOOR OUTSIDE GARNISH (1 parts)

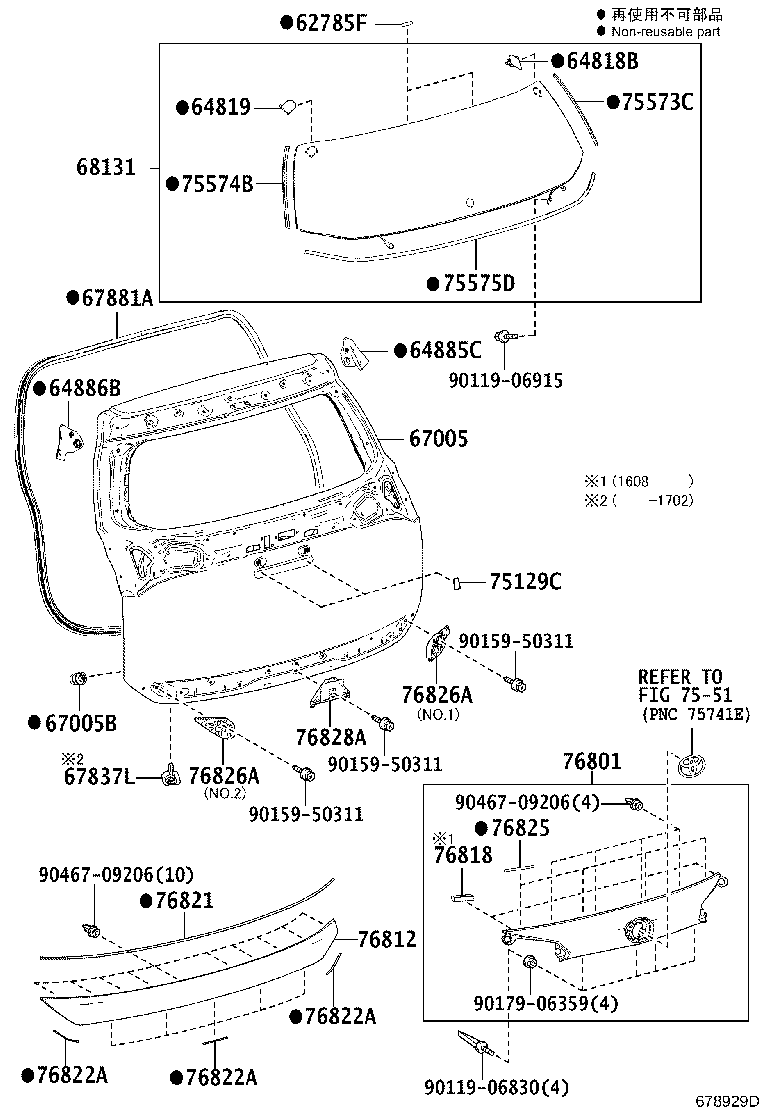

678929D · 25 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
62785F — Spacer, Back Door Glass
62785-16030 Spacer, Back Door Glass
2012-12 → 2015-10 ended
ASA4# —
62785-16030 Spacer, Back Door Glass
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64818B — Spacer, Back Door Glass, NO.1
64818-42040 Spacer, Back Door Glass, NO.1
2012-12 → 2015-10 ended
ASA4# —
64818-42040 Spacer, Back Door Glass, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64819 — Spacer, Back Window Glass, NO.2
64819-42040 Spacer, Back Window Glass, NO.2
2012-12 → 2015-10 ended
ASA4# —
64819-42040 Spacer, Back Window Glass, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64885C — Channel, Back Door Glass, RH
64885-42010 Channel, Back Door Glass, RH
2012-12 → 2015-10 ended
ASA4# —
64885-42010 Channel, Back Door Glass, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64886B — Channel, Back Door Glass, LH
64886-42010 Channel, Back Door Glass, LH
2012-12 → 2015-10 ended
ASA4# —
64886-42010 Channel, Back Door Glass, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
67005 — Panel Sub-assy, Back Door
67005-42510 note Panel Sub-assy, Back Door
2012-12 → 2015-05 ended
ASA4# LE,XLE —
67005-42511 note Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA4# LE,XLE —
67005-42520 note Panel Sub-assy, Back Door
2012-12 → 2015-05 ended
ASA4# LIMD —
67005-42520 note Panel Sub-assy, Back Door
2014-10 → 2015-05 ended
ASA4# XLE —
67005-42520 note Panel Sub-assy, Back Door
2013-11 → 2015-05 ended
ASA44 LIMD —
67005-42520 note Panel Sub-assy, Back Door
2012-12 → 2014-10 ended
ASA44 LIMD —
67005-42521 note Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA4# LIMD —
67005-42521 note Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA44 LIMD —
67005-42521 note Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA4# XLE —
67005-42530 note Panel Sub-assy, Back Door
2013-11 → 2015-05 ended
ASA42 LIMD —
67005-42530 Panel Sub-assy, Back Door
2012-12 → 2015-05 ended
ASA4# LE,XLE —
67005-42531 note Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA42 LIMD —
67005-42531 Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA4# LE,XLE —
67005-42540 Panel Sub-assy, Back Door
2012-12 → 2015-05 ended
ASA4# LIMD —
67005-42540 note Panel Sub-assy, Back Door
2014-10 → 2015-05 ended
ASA4# XLE —
67005-42541 Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA4# LIMD —
67005-42541 note Panel Sub-assy, Back Door
2015-05 → 2015-10 ended
ASA4# XLE —
67005-42610 Panel Sub-assy, Back Door
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
67005-42610 note Panel Sub-assy, Back Door
2015-10 → 2018-10 ended
ASA4#,AVA44 SE,XLE —
67005-42610 note Panel Sub-assy, Back Door
2016-08 → 2018-10 ended
ASA4#,AVA44 SE —
67005-42630 Panel Sub-assy, Back Door
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,SE,XLE —
67005-42630 note Panel Sub-assy, Back Door
2015-10 → 2018-10 ended
ASA42 LIMD —
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09142 Cushion(FOR BACK DOOR PANEL)
2012-12 → 2015-10 ended
ASA4# —
90541-09142 Cushion(FOR BACK DOOR PANEL)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
67837L — Seal, Door Dust Proof
67837-52040 Seal, Door Dust Proof
2015-10 → 2017-02 ended
ASA4#,AVA44 —
67881A — Weatherstrip, Back Door
67881-42060 Weatherstrip, Back Door
2012-12 → 2015-10 ended
ASA4# —
67881-42060 Weatherstrip, Back Door
2015-10 → 2018-10 ended
ASA4#,AVA44 —
68131 — Glass, Back Door
68105-42150 note Glass, Back Door
2012-12 → 2015-10 ended
ASA4# LE —
68105-42150 note Glass, Back Door
2012-12 → 2015-10 ended
ASA4# LIMD —
68105-42160 note Glass, Back Door
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
68105-42160 note Glass, Back Door
2012-12 → 2015-10 ended
ASA4# LE —
68105-42150 note Glass, Back Door
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
68105-42160 Glass, Back Door
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75129C — Cushion, Rear Licence Plate
75129-30010 Cushion, Rear Licence Plate
2012-12 → 2015-10 ended
ASA4# —
75129-30010 Cushion, Rear Licence Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75573C — Moulding, Back Window, Outside
75573-42050 Moulding, Back Window, Outside
2012-12 → 2015-10 ended
ASA4# —
75573-42050 Moulding, Back Window, Outside
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75574B — Moulding, Back Window, Outside LH
75574-42010 Moulding, Back Window, Outside LH
2012-12 → 2015-10 ended
ASA4# —
75574-42010 Moulding, Back Window, Outside LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75575D — Moulding, Back Window, Lower
75575-42030 Moulding, Back Window, Lower
2012-12 → 2015-10 ended
ASA4# —
75575-42030 Moulding, Back Window, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76801 — Garnish Sub-assy, Back Door, Outside
76801-42220-A0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-A1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-B0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-B1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-C1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-D0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-E0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42220-E1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA4# —
76801-42220-E2 note Garnish Sub-assy, Back Door, Outside
2014-10 → 2015-10 ended
ASA4# —
76801-42220-G0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2013-11 ended
ASA4# —
76801-42220-J0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA4# —
76801-42230-A0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-A0 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-A0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-A1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-A1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-A1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-B0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-B0 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-B0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-B1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-B1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-B1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-C1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-C1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-C1 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-D0 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-D0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-D0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-E0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-E0 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-E0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2015-10 ended
ASA4# —
76801-42230-E1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA44 LIMD —
76801-42230-E1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2014-10 ended
ASA44 LIMD —
76801-42230-E1 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2015-10 ended
ASA4# —
76801-42230-E2 note Garnish Sub-assy, Back Door, Outside
2014-10 → 2015-10 ended
ASA44 LIMD —
76801-42230-E2 note Garnish Sub-assy, Back Door, Outside
2014-10 → 2015-10 ended
ASA4# —
76801-42230-G0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2013-11 ended
ASA4# —
76801-42230-G0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2013-11 ended
ASA44 LIMD —
76801-42230-J0 note Garnish Sub-assy, Back Door, Outside
2013-11 → 2014-10 ended
ASA44 LIMD —
76801-42230-J0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA44 LIMD —
76801-42230-J0 note Garnish Sub-assy, Back Door, Outside
2012-12 → 2014-10 ended
ASA4# —
76801-42901 note Garnish Sub-assy, Back Door, Outside
2015-10 → 2016-08 ended
ASA4#,AVA44 —
76801-42903 note Garnish Sub-assy, Back Door, Outside
2016-08 → 2018-10 ended
ASA4#,AVA44 —
76812 — Garnish, Back Door, Outside Lower
76812-42900 Garnish, Back Door, Outside Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76818 — Pad, Back Door Outside Garnish
76818-42030 Pad, Back Door Outside Garnish
2016-08 → 2018-10 ended
ASA4#,AVA44 —
76821 — Protector, Back Door Garnish Moulding, Upper
76821-42030 Protector, Back Door Garnish Moulding, Upper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76822A — Protector, Back Door Garnish Moulding, Lwr
76822-42050 Protector, Back Door Garnish Moulding, Lwr
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76825 — Protector, Back Door Outside Garnish
76825-42020 Protector, Back Door Outside Garnish
2012-12 → 2015-10 ended
ASA4# —
76825-42020 Protector, Back Door Outside Garnish
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76826A — Retainer, Back Door Garnish, NO.1
76826-42130 note Retainer, Back Door Garnish, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76827-42030 note Retainer, Back Door Garnish, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
76828A — Retainer, Back Door Garnish, NO.3
76828-42010 Retainer, Back Door Garnish, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
