Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

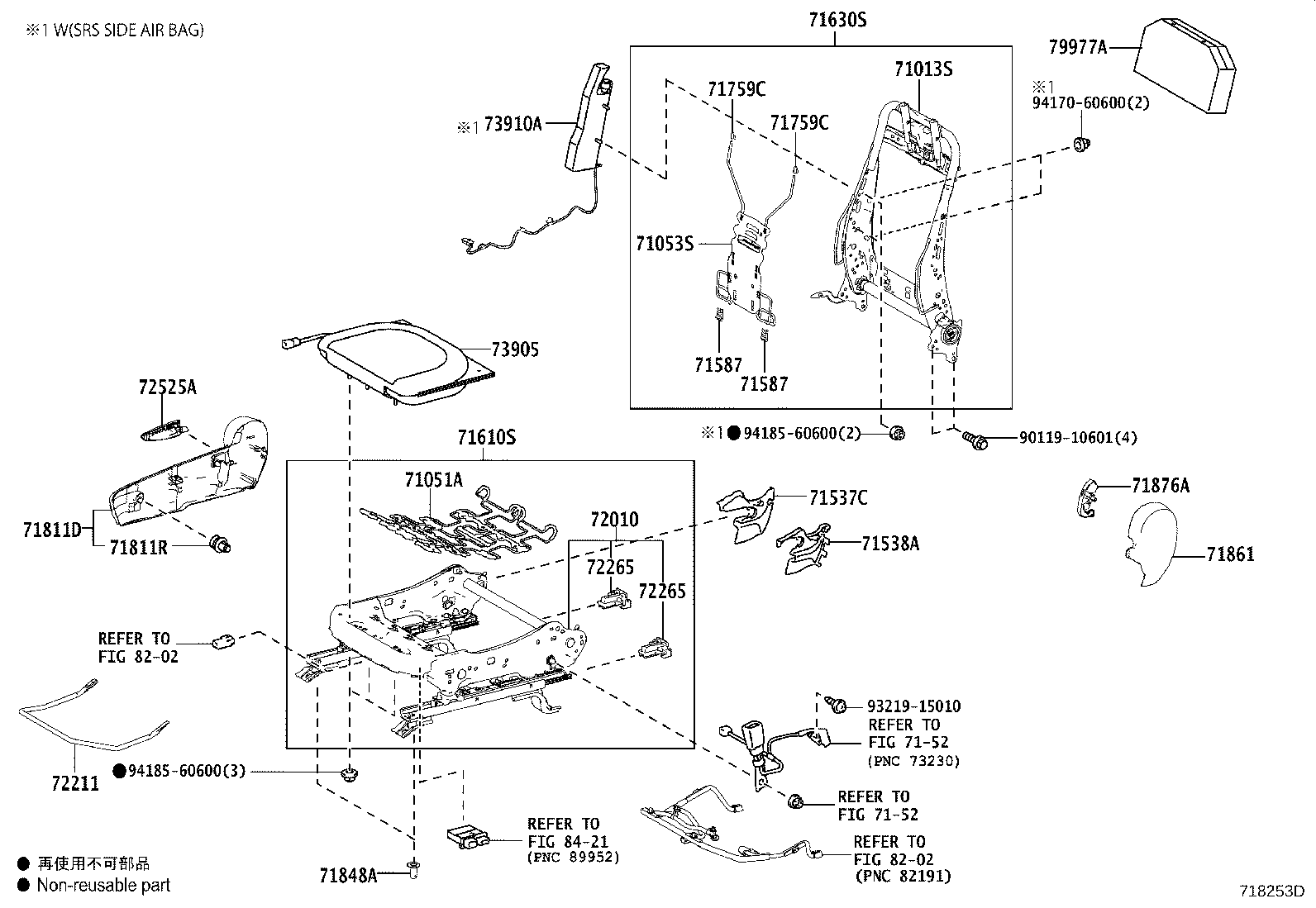

Exploded illustration 718253D 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (3 parts) 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (3 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (6 parts) 9011910601 — not listed in this catalogue 71610S — SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (3 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (3 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (2 parts) 9417060600 — not listed in this catalogue 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (10 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (10 parts) 71811R — CLIP, FRONT SEAT CUSHION SHIELD, RH (2 parts) 71537C — PROTECTOR, FRONT SEAT CUSHION EDGE, RH (10 parts) 72211 — HANDLE, SEAT TRACK ADJUSTING (2 parts) 71848A — CAP, SEAT ADJUSTER COVER, RH (3 parts) 71538A — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) (10 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (4 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (4 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (4 parts) 79977A — FELT, SEATBACK (2 parts) 9418560600 — not listed in this catalogue 73905 — AIRBAG SUB-ASSY, FRONT SEAT, RH (2 parts) 9321915010 — not listed in this catalogue 8421 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (11 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (2 parts)
718253D · 24 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-42040 Frame Sub-assy, Front Seatback, RH
2012-12 → 2014-10 ended
ASA4# —
71013-42060 Frame Sub-assy, Front Seatback, RH
2014-10 → 2015-10 ended
ASA4# —
71013-42060 Frame Sub-assy, Front Seatback, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47060 Spring Sub-assy, Front Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# —
71051-47060 Spring Sub-assy, Front Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71053S — Spring Sub-assy, Front Seatback, RH
71053-52050 Spring Sub-assy, Front Seatback, RH
2012-12 → 2015-10 ended
ASA4# —
71053-52050 Spring Sub-assy, Front Seatback, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71537C — Protector, Front Seat Cushion Edge, RH
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2012-12 → 2014-10 ended
ASA4# LE —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2012-12 → 2015-10 ended
ASA4# XLE —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2014-10 → 2015-10 ended
ASA4# LE —
71537-42020 Protector, Front Seat Cushion Edge, RH
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2016-12 → 2018-10 ended
ASA4#,AVA44 SE —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2015-10 → 2018-10 ended
ASA4# LE —
71537-42020-C0 note Protector, Front Seat Cushion Edge, RH
2015-10 → 2016-08 ended
ASA4# SE —
71538A — Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2012-12 → 2014-10 ended
ASA4# LE —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2012-12 → 2015-10 ended
ASA4# LIMD —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2012-12 → 2015-10 ended
ASA4# XLE —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2014-10 → 2015-10 ended
ASA4# LE —
71538-42020 Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-12 → 2018-10 ended
ASA4#,AVA44 SE —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-10 → 2018-10 ended
ASA4# LE —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-10 → 2016-08 ended
ASA4# SE —
71538-42020-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71587 — Protector, Front Seatback Edge
71587-52030 Protector, Front Seatback Edge
2012-12 → 2015-10 ended
ASA4# —
71587-52030 Protector, Front Seatback Edge
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71610S — Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71610-42060 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# —
71610-42061 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# —
71610-42061 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-42080 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# —
71630-42100 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# —
71630-42100 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71759C — Hook, Front Seatback, NO.1
71759-47010 Hook, Front Seatback, NO.1
2012-12 → 2013-07 ended
ASA4# —
71759-47011 Hook, Front Seatback, NO.1
2013-08 → 2015-10 ended
ASA4# —
71759-47011 Hook, Front Seatback, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71811D — Shield, Front Seat Cushion, RH
71811-42130-C0 note Shield, Front Seat Cushion, RH
2012-12 → 2014-10 ended
ASA4# LE —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# XLE —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2014-10 → 2015-10 ended
ASA4# LE —
71811-42130 Shield, Front Seat Cushion, RH
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2015-10 → 2016-08 ended
ASA4# SE —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# LE —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71811-42130-C0 note Shield, Front Seat Cushion, RH
2016-12 → 2018-10 ended
ASA4#,AVA44 SE —
71811R — Clip, Front Seat Cushion Shield, RH
71769-47020 Clip, Front Seat Cushion Shield, RH
2012-12 → 2015-10 ended
ASA4# —
71769-47020 Clip, Front Seat Cushion Shield, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71848A — Cap, Seat Adjuster Cover, RH
71848-48050 Cap, Seat Adjuster Cover, RH
2015-05 → 2015-10 ended
ASA4# —
71848-76010 Cap, Seat Adjuster Cover, RH
2012-12 → 2015-04 ended
ASA4# —
71848-48050 Cap, Seat Adjuster Cover, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2014-10 → 2015-10 ended
ASA4# LIMD —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2014-10 → 2015-10 ended
ASA4# LE —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2014-10 → 2015-10 ended
ASA4# XLE —
71861-42130-C0 note Shield, Front Seat Cushion, Inner RH
2012-12 → 2014-10 ended
ASA4# LIMD —
71861-42130-C0 note Shield, Front Seat Cushion, Inner RH
2012-12 → 2014-10 ended
ASA4# LE,XLE —
71861-42090 Shield, Front Seat Cushion, Inner RH
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2016-12 → 2018-10 ended
ASA4#,AVA44 SE —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2015-10 → 2018-10 ended
ASA4# LE —
71861-42090-C0 note Shield, Front Seat Cushion, Inner RH
2015-10 → 2016-08 ended
ASA4# SE —
71876A — Cover, Reclining Adjuster Inside, LH
71876-52150-C0 note Cover, Reclining Adjuster Inside, LH
2012-12 → 2014-10 ended
ASA4# LIMD —
71876-52150-C0 note Cover, Reclining Adjuster Inside, LH
2012-12 → 2014-10 ended
ASA4# LE,XLE —
72010 — Adjuster Assy, Front Seat, RH
72010-42220 Adjuster Assy, Front Seat, RH
2012-12 → 2013-04 ended
ASA4# —
72010-42221 Adjuster Assy, Front Seat, RH
2013-04 → 2014-10 ended
ASA4# —
72010-42222 Adjuster Assy, Front Seat, RH
2014-10 → 2015-10 ended
ASA4# —
72010-42222 Adjuster Assy, Front Seat, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
72211 — Handle, Seat Track Adjusting
72211-47020 Handle, Seat Track Adjusting
2012-12 → 2015-10 ended
ASA4# —
72211-47020 Handle, Seat Track Adjusting
2015-10 → 2018-10 ended
ASA4#,AVA44 —
72265 — Cover, Seat Track Upper Rail, RH
72265-42010 Cover, Seat Track Upper Rail, RH
2012-12 → 2014-10 ended
ASA4# LIMD —
72265-42010 note Cover, Seat Track Upper Rail, RH
2014-10 → 2015-10 ended
ASA4# LIMD —
72265-42010 Cover, Seat Track Upper Rail, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72265-42010 Cover, Seat Track Upper Rail, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
72525A — Handle, Reclining Adjuster Release, RH
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2012-12 → 2014-10 ended
ASA4# LE —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2012-12 → 2015-10 ended
ASA4# XLE —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2014-10 → 2015-10 ended
ASA4# LE —
72525-52050 Handle, Reclining Adjuster Release, RH
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2016-12 → 2018-10 ended
ASA4#,AVA44 SE —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2018-10 ended
ASA4# LE —
72525-52050-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2016-08 ended
ASA4# SE —
73905 — Airbag Sub-assy, Front Seat, RH
73905-42010 Airbag Sub-assy, Front Seat, RH
2012-12 → 2015-10 ended
ASA4# —
73905-42010 Airbag Sub-assy, Front Seat, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73910A — Airbag Assy, Front Seat, RH
73910-42050 Airbag Assy, Front Seat, RH
2012-12 → 2015-10 ended
ASA4# —
73910-42060 note Airbag Assy, Front Seat, RH
2012-12 → 2014-10 ended
ASA42 LIMD —
73910-42060 note Airbag Assy, Front Seat, RH
2012-12 → 2015-10 ended
ASA44 LIMD —
73910-42060 note Airbag Assy, Front Seat, RH
2014-10 → 2015-10 ended
ASA42 LIMD —
73910-42050 Airbag Assy, Front Seat, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73910-42060 note Airbag Assy, Front Seat, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
79977A — Felt, Seatback
79977-52120 Felt, Seatback
2012-12 → 2015-10 ended
ASA4# —
79977-52120 Felt, Seatback
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
