Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

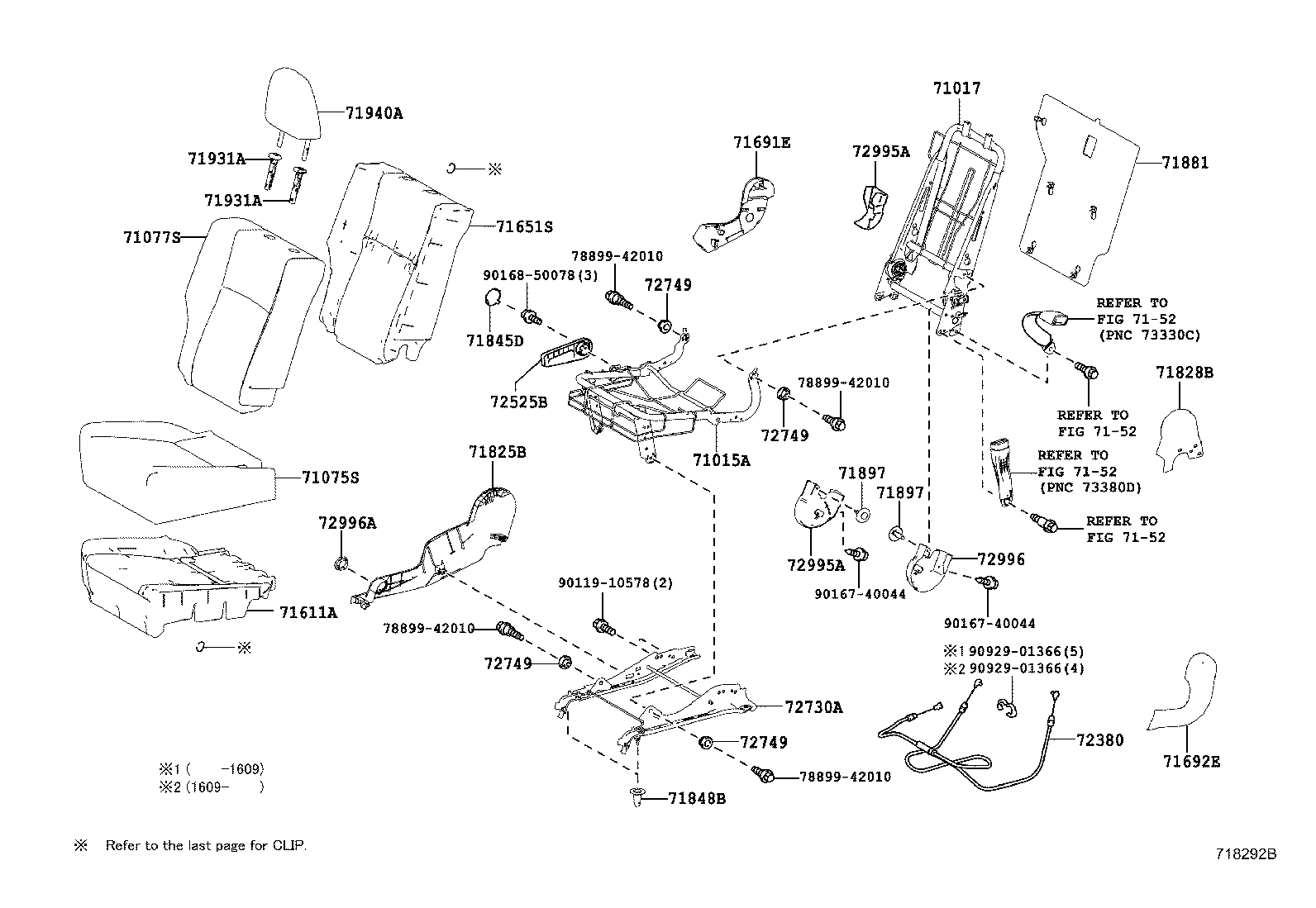

Exploded illustration 718292B 7152 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (44 parts) 71931A — SUPPORT, REAR SEAT HEADREST (34 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (2 parts) 72749 — SPACER, REAR SEAT RECLINING (2 parts) 71825B — MOULDING, REAR SEAT CUSHION, RH (10 parts) 71828B — MOULDING, REAR SEAT CUSHION, REAR RH (10 parts) 72995A — COVER, REAR SEAT (9 parts) 71897 — HOOK, SEAT COVER SIDE (7 parts) 71897 — HOOK, SEAT COVER SIDE (7 parts) 72996 — COVER, REAR SEATBACK, RH (12 parts) 72749 — SPACER, REAR SEAT RECLINING (2 parts) 72380 — CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 (2 parts) 72996A — COVER, REAR SEATBACK (9 parts) 71845D — CAP, REAR SEAT COVER, RH (8 parts) 72525B — HANDLE, RECLINING ADJUSTER RELEASE, RH (8 parts) 71611A — PAD, REAR SEAT CUSHION, RH (2 parts) 71075S — COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) (32 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (60 parts) 72749 — SPACER, REAR SEAT RECLINING (2 parts) 71015A — FRAME SUB-ASSY, REAR SEAT CUSHION, RH (2 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (5 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (7 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (7 parts) 72995A — COVER, REAR SEAT (9 parts) 72749 — SPACER, REAR SEAT RECLINING (2 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (7 parts) 71881 — BOARD, REAR SEATBACK, RH (2 parts) 71848B — CAP, SEAT ADJUSTER COVER, RH (3 parts) 71931A — SUPPORT, REAR SEAT HEADREST (34 parts) 7889942010 — not listed in this catalogue 7889942010 — not listed in this catalogue 7889942010 — not listed in this catalogue 7889942010 — not listed in this catalogue 9092901366 — not listed in this catalogue 9011910578 — not listed in this catalogue 9016850078 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9092901366 — not listed in this catalogue
718292B · 29 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
284 parts on this figure
Part number Description Fitment Price
71015A — Frame Sub-assy, Rear Seat Cushion, RH
71650-42030 Frame Sub-assy, Rear Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# —
71650-42030 Frame Sub-assy, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# —
71017 — Frame Sub-assy, Rear Seatback, RH
71017-42150 Frame Sub-assy, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# —
71017-42150 Frame Sub-assy, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# —
71017-42170 Frame Sub-assy, Rear Seatback, RH
2015-10 → 2016-12 ended
AVA44 —
71017-42210 Frame Sub-assy, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# —
71017-42220 Frame Sub-assy, Rear Seatback, RH
2016-12 → 2017-08 ended
AVA44 —
71017-42220 note Frame Sub-assy, Rear Seatback, RH
2017-08 → 2017-09 ended
AVA44 LIMD USA —
71017-42221 Frame Sub-assy, Rear Seatback, RH
2017-08 → 2018-10 ended
AVA44 —
71075S — Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075-42490-A3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2013-11 ended
ASA4# LE —
71075-42490-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# LE —
71075-42490-C5 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2013-11 → 2014-10 ended
ASA4# LE —
71075-42491-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71075-42491-C5 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71075-42500-A3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71075-42500-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71075-42500-C6 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71075-42500-C7 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71075-42501-A4 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71075-42501-B3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71075-42501-C8 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71075-42501-C9 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71075-42520-A2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71075-42520-A2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71075-42520-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71075-42520-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71075-42520-C5 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71075-42520-C5 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71075-42521-A3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71075-42521-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71075-42521-C7 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71075-42491-C9 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# LE —
71075-42730-A2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# XLE —
71075-42730-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# XLE —
71075-42730-C5 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# XLE —
71075-42800-A3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# LIMD —
71075-42800-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# LIMD —
71075-42800-C3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# LIMD —
71075-42800-C4 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# SE —
71075-42800-C5 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# SE —
71075-42800-E2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4# LIMD —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-42490-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2013-11 ended
ASA4# LE —
71077-42490-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# LE —
71077-42490-C4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2013-11 → 2014-10 ended
ASA4# LE —
71077-42491-C5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71077-42491-C6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71077-42500-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71077-42500-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71077-42500-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71077-42500-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71077-42500-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71077-42500-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71077-42501-24 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71077-42501-25 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71077-42501-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71077-42510-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42510-21 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42510-22 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42510-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42511-27 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42511-28 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42511-29 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42511-40 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42491-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LE —
71077-42660-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LE —
71077-42670-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71077-42670-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71077-42670-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71077-42680-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42680-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42680-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42680-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# SE —
71077-42680-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# SE —
71077-42680-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42690-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71077-42690-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71077-42690-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71077-42700-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71077-42700-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71077-42700-C7 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71077-42760-A1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71077-42760-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71077-42760-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71077-42780-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71077-42780-A1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42780-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42780-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42780-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71077-42780-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42860-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42860-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42860-C7 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42860-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# SE —
71077-42860-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# SE —
71077-42860-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42880-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71077-42880-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71077-42880-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71077-42880-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71077-42880-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71077-42880-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71611A — Pad, Rear Seat Cushion, RH
71611-42100 Pad, Rear Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# —
71611-42100 Pad, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-42120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# —
71651-42120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# —
71651-42140 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 —
71651-42160 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# —
71651-42170 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 —
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2012-12 → 2015-10 ended
ASA4# LIMD —
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2015-10 → 2016-12 ended
ASA4# SE —
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2015-10 → 2018-10 ended
ASA4# LIMD —
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2015-10 → 2018-10 ended
ASA4# XLE —
71691-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2016-12 → 2018-10 ended
ASA4# SE —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2012-12 → 2015-10 ended
ASA4# LIMD —
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2015-10 → 2016-12 ended
ASA4# SE —
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2015-10 → 2018-10 ended
ASA4# LIMD —
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2015-10 → 2018-10 ended
ASA4# LE —
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2015-10 → 2018-10 ended
ASA4# XLE —
71692-42030-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2016-12 → 2018-10 ended
ASA4# SE —
71825B — Moulding, Rear Seat Cushion, RH
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2016-12 ended
ASA4# SE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# LIMD —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# LE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# XLE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2016-12 → 2018-10 ended
ASA4# SE —
71825-78010-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
AVA44 XLE —
71825-78010-C0 note Moulding, Rear Seat Cushion, RH
2016-08 → 2018-10 ended
AVA44 SE —
71825-78010-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
71828B — Moulding, Rear Seat Cushion, Rear RH
71828-42030-C0 note Moulding, Rear Seat Cushion, Rear RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71828-42030-C0 note Moulding, Rear Seat Cushion, Rear RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2016-12 ended
ASA4# SE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
ASA4# LIMD —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
ASA4# LE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
ASA4# XLE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2016-12 → 2018-10 ended
ASA4# SE —
71828-78010-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
AVA44 LIMD —
71828-78010-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
AVA44 XLE —
71828-78010-C0 note Moulding, Rear Seat Cushion, Rear RH
2016-08 → 2018-10 ended
AVA44 SE —
71845D — Cap, Rear Seat Cover, RH
71845-48010-C0 note Cap, Rear Seat Cover, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71845-48010-C0 note Cap, Rear Seat Cover, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71845-48010 Cap, Rear Seat Cover, RH
2016-08 → 2016-12 ended
ASA4# SE —
71845-48010-C0 note Cap, Rear Seat Cover, RH
2015-10 → 2016-08 ended
ASA4# SE —
71845-48010-C0 note Cap, Rear Seat Cover, RH
2015-10 → 2018-10 ended
ASA4# LIMD —
71845-48010-C0 note Cap, Rear Seat Cover, RH
2015-10 → 2018-10 ended
ASA4# LE —
71845-48010-C0 note Cap, Rear Seat Cover, RH
2015-10 → 2018-10 ended
ASA4# XLE —
71845-48010-C0 note Cap, Rear Seat Cover, RH
2016-12 → 2018-10 ended
ASA4# SE —
71848B — Cap, Seat Adjuster Cover, RH
71848-42010 Cap, Seat Adjuster Cover, RH
2012-12 → 2015-10 ended
ASA4# —
71848-42010 Cap, Seat Adjuster Cover, RH
2015-10 → 2018-10 ended
ASA4# —
71848-78010 Cap, Seat Adjuster Cover, RH
2015-10 → 2018-10 ended
AVA44 —
71881 — Board, Rear Seatback, RH
71881-42010 Board, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# —
71881-42010 Board, Rear Seatback, RH
2015-10 → 2018-10 ended
ASA4# —
71897 — Hook, Seat Cover Side
71897-42010-C0 note Hook, Seat Cover Side
2012-12 → 2015-10 ended
ASA4# LIMD —
71897-42010-C0 note Hook, Seat Cover Side
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71897-42010-C0 note Hook, Seat Cover Side
2015-10 → 2018-10 ended
ASA4# LIMD —
71897-42010-C0 note Hook, Seat Cover Side
2016-12 → 2018-10 ended
ASA4# SE —
71897-42010-C0 note Hook, Seat Cover Side
2015-10 → 2018-10 ended
ASA4# XLE —
71897-42010-C0 note Hook, Seat Cover Side
2015-10 → 2018-10 ended
ASA4# LE —
71897-42010-C0 note Hook, Seat Cover Side
2015-10 → 2016-12 ended
ASA4# SE —
71931A — Support, Rear Seat Headrest
71930-47020-02 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA4# LE —
71930-47020-02 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA44 LIMD —
71930-47020-02 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA42 LIMD —
71930-47020-A0 note Support, Rear Seat Headrest
2013-09 → 2013-11 ended
ASA4# LE —
71930-47020-A0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
71930-47020-A0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71931-47020-A0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71931-47020-A0 note Support, Rear Seat Headrest
2013-09 → 2015-10 ended
ASA4# LIMD,XLE —
71931-47020-A0 note Support, Rear Seat Headrest
2012-12 → 2013-11 ended
ASA4# LE —
71931-47020-A0 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA4# LIMD,XLE —
71931-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD —
71931-47020-C0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71931-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# LE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# SE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2016-08 → 2017-10 ended
AVA44 SE —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4# LE —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# SE —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# LE —
71931-47020-C0 note Support, Rear Seat Headrest
2016-08 → 2017-10 ended
AVA44 SE —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4# LE —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940A — Headrest Assy, Rear Seat
71940-42100-A1 note Headrest Assy, Rear Seat
2012-12 → 2013-11 ended
ASA4# LE —
71940-42100-B1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LE —
71940-42100-C0 note Headrest Assy, Rear Seat
2013-11 → 2014-10 ended
ASA4# LE —
71940-42101-B1 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LE —
71940-42101-C0 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LE —
71940-42110-A1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA42 LIMD —
71940-42110-A1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# XLE —
71940-42110-B1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# XLE —
71940-42110-B1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA42 LIMD —
71940-42110-C0 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# XLE —
71940-42110-C0 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA42 LIMD —
71940-42111-A2 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# XLE —
71940-42111-B2 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# XLE —
71940-42111-C1 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# XLE —
71940-42120-A2 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-A3 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42120-B2 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-B3 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42120-C4 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-C5 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-C6 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42120-C7 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42101-C1 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# LE —
71940-42120-42 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-43 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-44 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42120-45 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-46 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-E2 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42190-C6 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42190-C7 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42190-C8 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# XLE —
71940-42190-C8 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
AVA44 XLE —
71940-42220-26 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-27 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-28 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42220-29 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-40 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-E2 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42230-C1 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# LE —
71940-42250-C6 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42250-C7 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42250-C8 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# XLE —
71940-42250-C8 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
AVA44 XLE —
72380 — Cable Assy, Seat Adjuster Control, NO.2
72380-42070 Cable Assy, Seat Adjuster Control, NO.2
2012-12 → 2015-10 ended
ASA4# —
72380-42070 Cable Assy, Seat Adjuster Control, NO.2
2015-10 → 2018-10 ended
ASA4# —
72525B — Handle, Reclining Adjuster Release, RH
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72525-48030 Handle, Reclining Adjuster Release, RH
2016-08 → 2016-12 ended
ASA4# SE —
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2016-12 → 2018-10 ended
ASA4# SE —
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2018-10 ended
ASA4# XLE —
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2018-10 ended
ASA4# LE —
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2016-08 ended
ASA4# SE —
72525-48030-C0 note Handle, Reclining Adjuster Release, RH
2015-10 → 2018-10 ended
ASA4# LIMD —
72730A — Adjuster Assy, Rear Seat Reclining, RH
71308-42010 Adjuster Assy, Rear Seat Reclining, RH
2012-12 → 2015-10 ended
ASA4# —
71308-42010 Adjuster Assy, Rear Seat Reclining, RH
2015-10 → 2018-10 ended
ASA4# —
72749 — Spacer, Rear Seat Reclining
72749-42010 Spacer, Rear Seat Reclining
2012-12 → 2015-10 ended
ASA4# —
72749-42010 Spacer, Rear Seat Reclining
2015-10 → 2018-10 ended
ASA4# —
72995A — Cover, Rear Seat
72995-42100-C0 note Cover, Rear Seat
2012-12 → 2015-10 ended
ASA4# LIMD —
72995-42100-C0 note Cover, Rear Seat
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72995-42100-C0 note Cover, Rear Seat
2015-10 → 2016-12 ended
ASA4# LIMD,SE —
72995-42100-C0 note Cover, Rear Seat
2015-10 → 2016-12 ended
ASA4# XLE —
72995-42100-C0 note Cover, Rear Seat
2015-10 → 2016-12 ended
ASA4# LE —
72995-42120-C0 note Cover, Rear Seat
2016-12 → 2018-10 ended
ASA4# LIMD —
72995-42120-C0 note Cover, Rear Seat
2016-12 → 2018-10 ended
ASA4# LE —
72995-42120-C0 note Cover, Rear Seat
2016-12 → 2018-10 ended
ASA4# XLE —
72995-42120-C0 note Cover, Rear Seat
2016-12 → 2018-10 ended
ASA4# SE —
72996 — Cover, Rear Seatback, RH
72996-42020-C0 note Cover, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
72996-42020-C0 note Cover, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72996-42020-C0 note Cover, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# LIMD,SE —
72996-42020-C0 note Cover, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# XLE —
72996-42020-C0 note Cover, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# LE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# LIMD —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# LE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# XLE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# SE —
72996-48080-C0 note Cover, Rear Seatback, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
72996-48080-C0 note Cover, Rear Seatback, RH
2015-10 → 2018-10 ended
AVA44 XLE —
72996-48080-C0 note Cover, Rear Seatback, RH
2016-08 → 2018-10 ended
AVA44 SE —
72996A — Cover, Rear Seatback
72996-50100-C0 note Cover, Rear Seatback
2012-12 → 2015-10 ended
ASA4# LIMD —
72996-50100-C0 note Cover, Rear Seatback
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72996-50100-C0 note Cover, Rear Seatback
2015-10 → 2016-10 ended
ASA4# LE —
72996-50100-C0 note Cover, Rear Seatback
2015-10 → 2016-10 ended
ASA4# XLE —
72996-50100-C0 note Cover, Rear Seatback
2015-10 → 2016-10 ended
ASA4# LIMD,SE —
72996-50100-C1 note Cover, Rear Seatback
2016-10 → 2018-10 ended
ASA4# LIMD —
72996-50100-C1 note Cover, Rear Seatback
2016-10 → 2018-10 ended
ASA4# LE —
72996-50100-C1 note Cover, Rear Seatback
2016-10 → 2018-10 ended
ASA4# XLE —
72996-50100-C1 note Cover, Rear Seatback
2016-10 → 2018-10 ended
ASA4# SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
