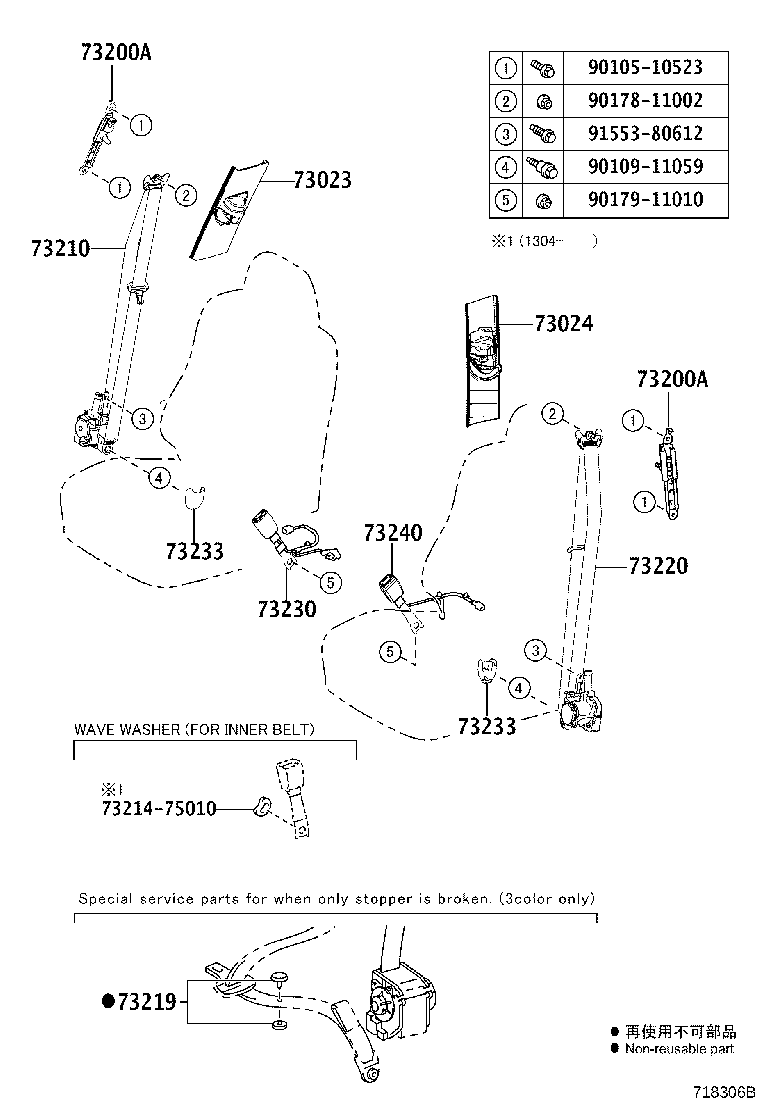

Exploded illustration 718306B 9010911059 — not listed in this catalogue 73233 — COVER, LAP BELT OUTER ANCHOR (10 parts) 73233 — COVER, LAP BELT OUTER ANCHOR (10 parts) 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (3 parts) 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (3 parts) 73023 — PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH (8 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (25 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (20 parts) 73024 — PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH (8 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (9 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (8 parts) 9017811002 — not listed in this catalogue 9155380612 — not listed in this catalogue 9017911010 — not listed in this catalogue 9010510523 — not listed in this catalogue 73219 — STOPPER, TONGUE PLATE (9 parts) 7321475010 — not listed in this catalogue
718306B · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
73023 — Plate Sub-assy, Front Shoulder Belt Anchor, RH
73023-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
73023-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
73023-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2015-10 → 2018-10 ended
ASA4# SE —
73023-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2015-10 → 2018-10 ended
ASA4# LE —
73023-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
73023-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73023-33030-C0 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2015-10 → 2018-10 ended
ASA4# SE —
73023-33030-C0 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2016-08 → 2018-10 ended
AVA44 SE —
73024 — Plate Sub-assy, Front Shoulder Belt Anchor, LH
73024-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
73024-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
73024-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2015-10 → 2018-10 ended
ASA4# LE —
73024-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2015-10 → 2018-10 ended
ASA4# SE —
73024-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73024-33030-B1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
73024-33030-C0 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2015-10 → 2018-10 ended
ASA4# SE —
73024-33030-C0 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2016-08 → 2018-10 ended
AVA44 SE —
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-12070 Adjuster Assy, Front Shoulder Belt Anchor
2015-08 → 2015-10 ended
ASA4# —
73200-53010 Adjuster Assy, Front Shoulder Belt Anchor
2012-12 → 2015-08 ended
ASA4# —
73200-12070 Adjuster Assy, Front Shoulder Belt Anchor
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73210 — Belt Assy, Front Seat Outer, RH
73210-42250-C0 note Belt Assy, Front Seat Outer, RH
2012-12 → 2013-04 ended
ASA42 LIMD —
73210-42250-C0 note Belt Assy, Front Seat Outer, RH
2012-12 → 2013-04 ended
ASA44 LIMD —
73210-42251-C0 note Belt Assy, Front Seat Outer, RH
2013-05 → 2015-10 ended
ASA4# LIMD —
73210-42400-C0 note Belt Assy, Front Seat Outer, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
73210-42400-C0 note Belt Assy, Front Seat Outer, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
73210-42252-C0 note Belt Assy, Front Seat Outer, RH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
73210-42401-C0 note Belt Assy, Front Seat Outer, RH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD —
73210-42401-C0 note Belt Assy, Front Seat Outer, RH
2015-10 → 2016-08 ended
ASA4#,AVA44 XLE —
73210-42401-C0 note Belt Assy, Front Seat Outer, RH
2015-10 → 2016-08 ended
ASA4# LE —
73210-42401-C1 note Belt Assy, Front Seat Outer, RH
2015-10 → 2016-08 ended
ASA4# SE —
73210-42420-C0 note Belt Assy, Front Seat Outer, RH
2016-08 → 2018-01 ended
ASA4# LE —
73210-42420-C0 note Belt Assy, Front Seat Outer, RH
2016-08 → 2018-01 ended
ASA4#,AVA44 XLE —
73210-42420-C0 note Belt Assy, Front Seat Outer, RH
2016-08 → 2018-01 ended
ASA4#,AVA44 LIMD —
73210-42420-C1 note Belt Assy, Front Seat Outer, RH
2016-08 → 2018-01 ended
ASA4#,AVA44 SE —
73210-42420-C2 note Belt Assy, Front Seat Outer, RH
2018-01 → 2018-02 ended
ASA4# LE —
73210-42420-C2 note Belt Assy, Front Seat Outer, RH
2018-01 → 2018-02 ended
ASA4#,AVA44 XLE —
73210-42420-C2 note Belt Assy, Front Seat Outer, RH
2018-01 → 2018-02 ended
ASA4#,AVA44 LIMD —
73210-42420-C2 note Belt Assy, Front Seat Outer, RH
2018-01 → 2018-02 ended
ASA4#,AVA44 SE —
73210-42430-C0 note Belt Assy, Front Seat Outer, RH
2016-08 → 2018-01 ended
ASA4#,AVA44 LIMD USA —
73210-42430-C1 note Belt Assy, Front Seat Outer, RH
2018-01 → 2018-02 ended
ASA4#,AVA44 LIMD USA —
73210-42450-C0 note Belt Assy, Front Seat Outer, RH
2018-02 → 2018-10 ended
ASA4# LE —
73210-42450-C0 note Belt Assy, Front Seat Outer, RH
2018-02 → 2018-10 ended
ASA4#,AVA44 SE —
73210-42450-C0 note Belt Assy, Front Seat Outer, RH
2018-02 → 2018-10 ended
ASA4#,AVA44 LIMD —
73210-42450-C0 note Belt Assy, Front Seat Outer, RH
2018-02 → 2018-10 ended
ASA4#,AVA44 XLE —
73210-42460-C0 note Belt Assy, Front Seat Outer, RH
2018-02 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
73219 — Stopper, Tongue Plate
73219-02010 note Stopper, Tongue Plate
2012-12 → 2015-10 ended
ASA4# —
73219-02020 note Stopper, Tongue Plate
2012-12 → 2015-10 ended
ASA4# —
73219-02030 note Stopper, Tongue Plate
2012-12 → 2015-10 ended
ASA4# —
73219-02010 note Stopper, Tongue Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73219-02020 note Stopper, Tongue Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73219-02030 note Stopper, Tongue Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73219-33010 note Stopper, Tongue Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
73219-33020 note Stopper, Tongue Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
73219-33030 note Stopper, Tongue Plate
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
73220 — Belt Assy, Front Seat Outer, LH
73220-42310-C0 note Belt Assy, Front Seat Outer, LH
2012-12 → 2013-04 ended
ASA4# LIMD —
73220-42310-C0 note Belt Assy, Front Seat Outer, LH
2012-12 → 2013-04 ended
ASA4# LE,XLE —
73220-42311-C0 note Belt Assy, Front Seat Outer, LH
2013-05 → 2015-10 ended
ASA4# LIMD —
73220-42311-C0 note Belt Assy, Front Seat Outer, LH
2013-05 → 2015-10 ended
ASA4# LE,XLE —
73220-42312-C0 note Belt Assy, Front Seat Outer, LH
2015-10 → 2016-08 ended
ASA4# LE —
73220-42312-C0 note Belt Assy, Front Seat Outer, LH
2015-10 → 2016-08 ended
ASA4#,AVA44 XLE —
73220-42312-C0 note Belt Assy, Front Seat Outer, LH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD —
73220-42312-C1 note Belt Assy, Front Seat Outer, LH
2015-10 → 2016-08 ended
ASA4# SE —
73220-42320-C0 note Belt Assy, Front Seat Outer, LH
2016-08 → 2018-01 ended
ASA4# LE —
73220-42320-C0 note Belt Assy, Front Seat Outer, LH
2016-08 → 2018-01 ended
ASA4#,AVA44 XLE —
73220-42320-C0 note Belt Assy, Front Seat Outer, LH
2016-08 → 2018-01 ended
ASA4#,AVA44 LIMD —
73220-42320-C1 note Belt Assy, Front Seat Outer, LH
2016-08 → 2018-01 ended
ASA4#,AVA44 SE —
73220-42320-C2 note Belt Assy, Front Seat Outer, LH
2018-01 → 2018-03 ended
ASA4# LE —
73220-42320-C2 note Belt Assy, Front Seat Outer, LH
2018-01 → 2018-03 ended
ASA4#,AVA44 XLE —
73220-42320-C2 note Belt Assy, Front Seat Outer, LH
2018-01 → 2018-03 ended
ASA4#,AVA44 LIMD —
73220-42320-C2 note Belt Assy, Front Seat Outer, LH
2018-01 → 2018-03 ended
ASA4#,AVA44 SE —
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2018-03 → 2018-10 ended
ASA4# LE —
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2018-03 → 2018-10 ended
ASA4#,AVA44 XLE —
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2018-03 → 2018-10 ended
ASA4#,AVA44 LIMD —
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2018-03 → 2018-10 ended
ASA4#,AVA44 SE —
73230 — Belt Assy, Front Seat Inner, RH
73230-42190-C0 note Belt Assy, Front Seat Inner, RH
2012-12 → 2014-10 ended
ASA4# LIMD —
73230-42190-C0 note Belt Assy, Front Seat Inner, RH
2012-12 → 2014-10 ended
ASA4# LE,XLE —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2014-10 → 2015-10 ended
ASA4# LIMD —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2014-10 → 2015-10 ended
ASA4# XLE —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2014-10 → 2015-10 ended
ASA4# LE —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2015-10 → 2018-10 ended
ASA4# LE —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
73230-42191-C0 note Belt Assy, Front Seat Inner, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
73233 — Cover, Lap Belt Outer Anchor
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2012-12 → 2015-10 ended
ASA4# LIMD —
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2012-12 → 2015-10 ended
ASA4# LE,XLE —
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2015-10 → 2016-10 ended
ASA4# LE —
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2015-10 → 2016-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2015-10 → 2016-10 ended
ASA4#,AVA44 XLE —
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2016-08 → 2016-10 ended
AVA44 SE —
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-10 ended
ASA4# LE —
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-10 ended
ASA4#,AVA44 SE —
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73240 — Belt Assy, Front Seat Inner, LH
73230-42090-C0 note Belt Assy, Front Seat Inner, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
73230-42090-C0 note Belt Assy, Front Seat Inner, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
73230-42200-C0 note Belt Assy, Front Seat Inner, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
73230-42090-C0 note Belt Assy, Front Seat Inner, LH
2015-10 → 2018-10 ended
ASA4# LE —
73230-42090-C0 note Belt Assy, Front Seat Inner, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73230-42200-C0 note Belt Assy, Front Seat Inner, LH
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
73230-42200-C0 note Belt Assy, Front Seat Inner, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73230-42200-C0 note Belt Assy, Front Seat Inner, LH
2016-08 → 2018-10 ended
AVA44 SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
