Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

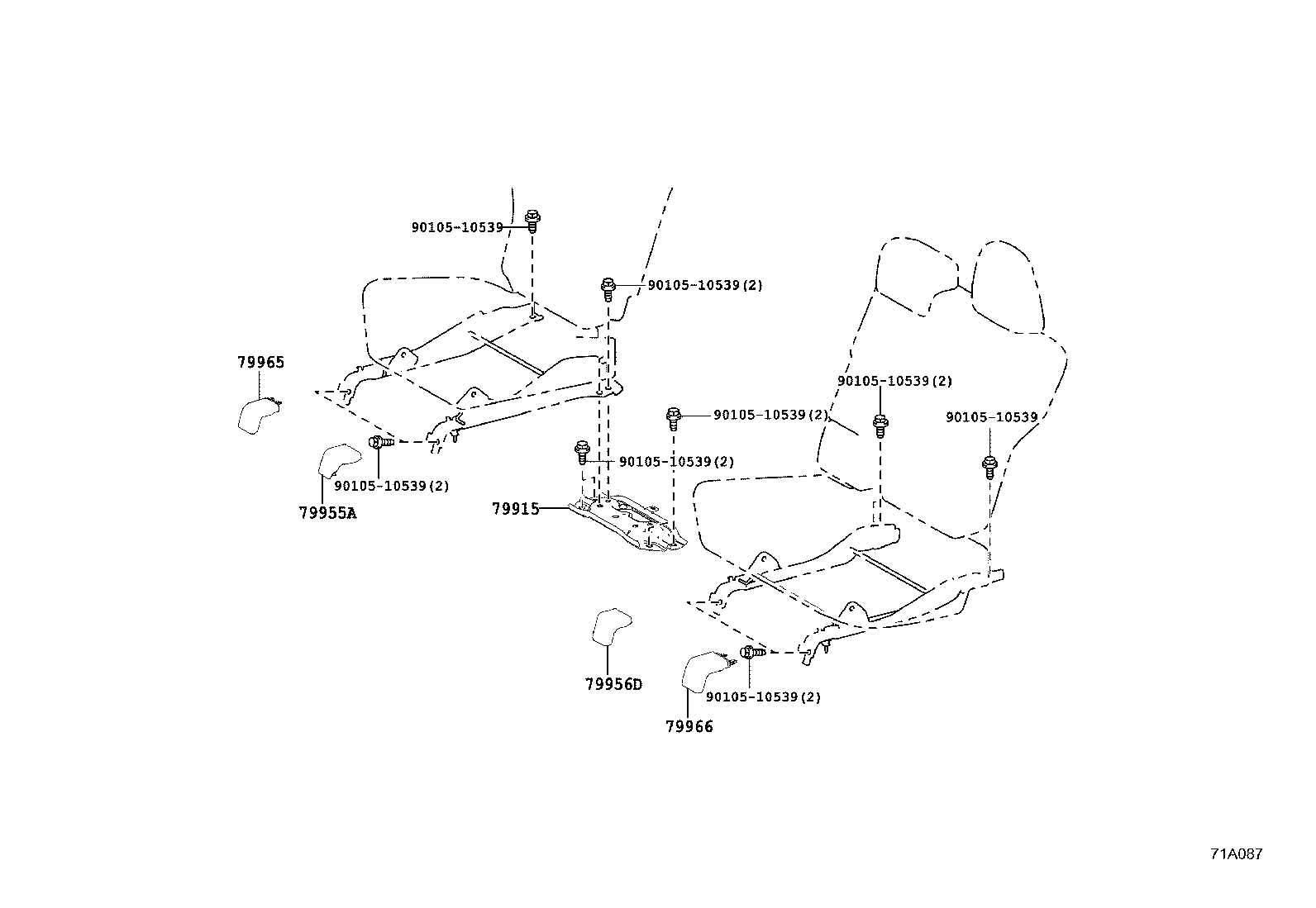

Exploded illustration 71A087 79965 — COVER, REAR SEAT LEG SIDE, NO.2 (5 parts) 79955A — COVER, REAR SEAT FRONT BRACKET, RH (5 parts) 79956D — COVER, REAR SEAT FRONT BRACKET, LH (5 parts) 79966 — COVER, REAR SEAT LEG SIDE, NO.3 (5 parts) 79915 — BRACKET, SEAT LEG (2 parts) 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue
71A087 · 5 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
79915 — Bracket, Seat Leg
79915-42010 Bracket, Seat Leg
2012-12 → 2015-10 ended
ASA4# —
79915-42010 Bracket, Seat Leg
2015-10 → 2018-10 ended
ASA4# —
79955A — Cover, Rear Seat Front Bracket, RH
79955-42010-C0 note Cover, Rear Seat Front Bracket, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
79955-42010-C0 note Cover, Rear Seat Front Bracket, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
79955-42010-C0 note Cover, Rear Seat Front Bracket, RH
2015-10 → 2018-10 ended
ASA4# LE —
79955-42010-C0 note Cover, Rear Seat Front Bracket, RH
2015-10 → 2018-10 ended
ASA4# XLE —
79955-42010-C0 note Cover, Rear Seat Front Bracket, RH
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
79956D — Cover, Rear Seat Front Bracket, LH
79956-42020-C0 note Cover, Rear Seat Front Bracket, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
79956-42020-C0 note Cover, Rear Seat Front Bracket, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
79956-42020-C0 note Cover, Rear Seat Front Bracket, LH
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
79956-42020-C0 note Cover, Rear Seat Front Bracket, LH
2015-10 → 2018-10 ended
ASA4# XLE —
79956-42020-C0 note Cover, Rear Seat Front Bracket, LH
2015-10 → 2018-10 ended
ASA4# LE —
79965 — Cover, Rear Seat Leg Side, NO.2
79965-42040-C0 note Cover, Rear Seat Leg Side, NO.2
2012-12 → 2015-10 ended
ASA4# LIMD —
79965-42040-C0 note Cover, Rear Seat Leg Side, NO.2
2012-12 → 2015-10 ended
ASA4# LE,XLE —
79965-42040-C0 note Cover, Rear Seat Leg Side, NO.2
2015-10 → 2018-10 ended
ASA4# LE —
79965-42040-C0 note Cover, Rear Seat Leg Side, NO.2
2015-10 → 2018-10 ended
ASA4# XLE —
79965-42040-C0 note Cover, Rear Seat Leg Side, NO.2
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
79966 — Cover, Rear Seat Leg Side, NO.3
79966-42060-C0 note Cover, Rear Seat Leg Side, NO.3
2012-12 → 2015-10 ended
ASA4# LIMD —
79966-42060-C0 note Cover, Rear Seat Leg Side, NO.3
2012-12 → 2015-10 ended
ASA4# LE,XLE —
79966-42060-C0 note Cover, Rear Seat Leg Side, NO.3
2015-10 → 2018-10 ended
ASA4# LE —
79966-42060-C0 note Cover, Rear Seat Leg Side, NO.3
2015-10 → 2018-10 ended
ASA4# XLE —
79966-42060-C0 note Cover, Rear Seat Leg Side, NO.3
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
