Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

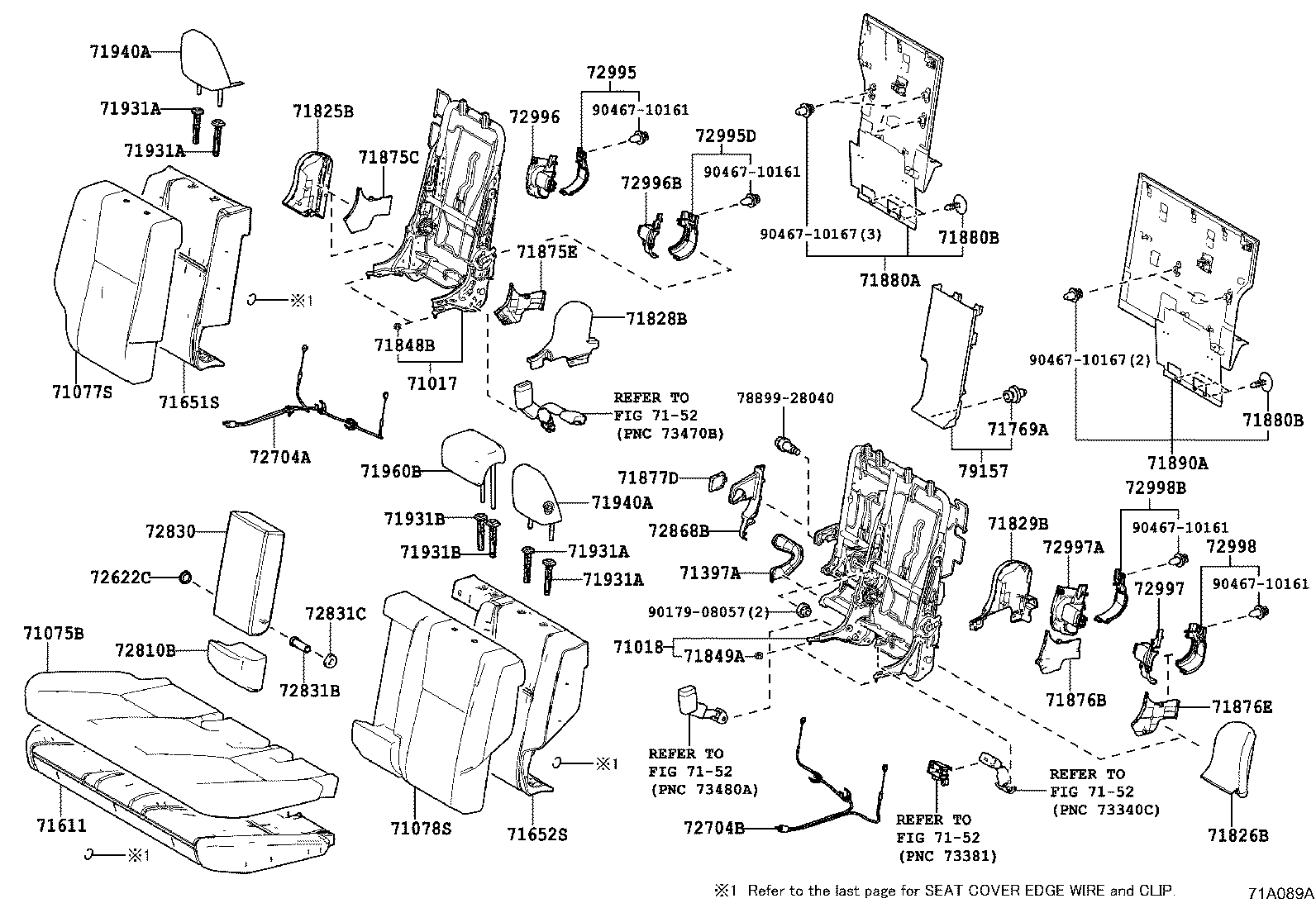

Exploded illustration 71A089A 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (7 parts) 71875E — COVER, RECLINING ADJUSTER INSIDE, RH (3 parts) 72995 — COVER, REAR SEAT CUSHION, RH (3 parts) 71876E — COVER, RECLINING ADJUSTER INSIDE, LH (3 parts) 72995D — COVER, REAR SEAT CUSHION, INNER RH (3 parts) 72996 — COVER, REAR SEATBACK, RH (12 parts) 72998 — COVER, REAR SEAT CUSHION, LH (3 parts) 72998B — COVER, REAR SEAT CUSHION, LH (3 parts) 72996B — COVER, REAR SEATBACK, INNER RH (3 parts) 72997 — COVER, REAR SEATBACK, LH (12 parts) 72997A — COVER, REAR SEATBACK, INNER LH (3 parts) 72868B — COVER, CENTER ARMREST HINGE (3 parts) 71877D — COVER, REAR SEAT ARMREST HOLE (3 parts) 71880A — CARPET ASSY, REAR SEATBACK BOARD, RH (11 parts) 71890A — CARPET ASSY, REAR SEATBACK BOARD, LH (11 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (2 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (2 parts) 71876B — COVER, RECLINING ADJUSTER INSIDE, LH (3 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (5 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (60 parts) 71931A — SUPPORT, REAR SEAT HEADREST (34 parts) 71931A — SUPPORT, REAR SEAT HEADREST (34 parts) 71940A — HEADREST ASSY, REAR SEAT (44 parts) 71931A — SUPPORT, REAR SEAT HEADREST (34 parts) 71931A — SUPPORT, REAR SEAT HEADREST (34 parts) 71940A — HEADREST ASSY, REAR SEAT (44 parts) 71397A — COVER, CENTER SEAT HINGE (3 parts) 71825B — MOULDING, REAR SEAT CUSHION, RH (10 parts) 71828B — MOULDING, REAR SEAT CUSHION, REAR RH (10 parts) 71826B — MOULDING, REAR SEAT CUSHION, LH (10 parts) 71829B — MOULDING, REAR SEAT CUSHION, REAR LH (10 parts) 71769A — CLIP, REAR SEATBACK BOARD (2 parts) 79157 — COVER, NO.1 SEATBACK (3 parts) 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (3 parts) 71849A — CAP, SEAT ADJUSTER COVER, LH (1 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (60 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (5 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (7 parts) 71848B — CAP, SEAT ADJUSTER COVER, RH (3 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (30 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (30 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (27 parts) 72622C — BUSH, REAR SEATBACK PROTECTOR SHAFT (1 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (1 parts) 72704B — CABLE, REAR SEAT RECLINING CONTROL, NO.2 (1 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (18 parts) 72810B — ARMREST ASSY, NO.1 SEAT (3 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (27 parts) 72831B — PLATE, REAR SEAT CENTER ARMREST, NO.1 (2 parts) 72831C — PLATE, REAR SEAT CENTER ARMREST, NO.2 (3 parts) 71611 — PAD, REAR SEAT CUSHION (2 parts) 7152 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 9046710161 — not listed in this catalogue 9046710167 — not listed in this catalogue 9046710167 — not listed in this catalogue 7889928040 — not listed in this catalogue 9017908057 — not listed in this catalogue 9046710161 — not listed in this catalogue 9046710161 — not listed in this catalogue 9046710161 — not listed in this catalogue
71A089A · 51 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
473 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-42150 Frame Sub-assy, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# —
71017-42150 Frame Sub-assy, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# —
71017-42170 Frame Sub-assy, Rear Seatback, RH
2015-10 → 2016-12 ended
AVA44 —
71017-42210 Frame Sub-assy, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# —
71017-42220 Frame Sub-assy, Rear Seatback, RH
2016-12 → 2017-08 ended
AVA44 —
71017-42220 note Frame Sub-assy, Rear Seatback, RH
2017-08 → 2017-09 ended
AVA44 LIMD USA —
71017-42221 Frame Sub-assy, Rear Seatback, RH
2017-08 → 2018-10 ended
AVA44 —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-42170 Frame Sub-assy, Rear Seatback, LH
2012-12 → 2015-10 ended
ASA4# —
71018-42170 Frame Sub-assy, Rear Seatback, LH
2015-10 → 2016-12 ended
ASA4# —
71018-42190 Frame Sub-assy, Rear Seatback, LH
2015-10 → 2016-12 ended
AVA44 —
71018-42230 Frame Sub-assy, Rear Seatback, LH
2016-12 → 2018-10 ended
ASA4# —
71018-42250 Frame Sub-assy, Rear Seatback, LH
2016-12 → 2017-08 ended
AVA44 —
71018-42250 note Frame Sub-assy, Rear Seatback, LH
2017-08 → 2017-09 ended
AVA44 LIMD USA —
71018-42251 Frame Sub-assy, Rear Seatback, LH
2017-08 → 2018-10 ended
AVA44 —
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-42600-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71075-42600-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71075-42600-C2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71075-42610-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71075-42610-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71075-42610-C2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71075-42610-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71075-42610-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71075-42610-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71075-42680-20 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71075-42680-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71075-42680-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71075-42690-22 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71075-42690-23 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71075-42690-24 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71075-42690-25 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71075-42690-26 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71075-42690-E1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-42490-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2013-11 ended
ASA4# LE —
71077-42490-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# LE —
71077-42490-C4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2013-11 → 2014-10 ended
ASA4# LE —
71077-42491-C5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71077-42491-C6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71077-42500-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71077-42500-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71077-42500-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71077-42500-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71077-42500-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71077-42500-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71077-42501-24 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71077-42501-25 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71077-42501-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71077-42510-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42510-21 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42510-22 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42510-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71077-42511-27 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42511-28 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42511-29 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42511-40 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71077-42491-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LE —
71077-42660-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LE —
71077-42670-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71077-42670-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71077-42670-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71077-42680-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42680-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42680-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42680-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# SE —
71077-42680-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# SE —
71077-42680-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71077-42690-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71077-42690-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71077-42690-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71077-42700-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71077-42700-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71077-42700-C7 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71077-42760-A1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71077-42760-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71077-42760-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71077-42780-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71077-42780-A1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42780-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42780-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42780-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71077-42780-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71077-42860-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42860-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42860-C7 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42860-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# SE —
71077-42860-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# SE —
71077-42860-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71077-42880-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71077-42880-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71077-42880-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71077-42880-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71077-42880-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71077-42880-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-42500-C2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2013-11 ended
ASA4# LE —
71078-42500-C3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# LE —
71078-42500-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-11 → 2014-10 ended
ASA4# LE —
71078-42501-C7 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71078-42501-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LE —
71078-42510-20 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71078-42510-20 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71078-42510-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71078-42510-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71078-42510-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA4# XLE —
71078-42510-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71078-42511-24 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71078-42511-25 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71078-42511-26 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# XLE —
71078-42520-21 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71078-42520-22 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71078-42520-23 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71078-42520-24 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-09 ended
ASA4# LIMD —
71078-42521-29 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71078-42521-40 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71078-42521-41 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71078-42521-42 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA4# LIMD —
71078-42501-20 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LE —
71078-42720-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71078-42720-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71078-42720-C7 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# XLE —
71078-42790-A1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71078-42790-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71078-42790-C3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 XLE —
71078-42810-20 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71078-42810-A1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71078-42810-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71078-42810-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71078-42810-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2016-12 ended
AVA44 SE —
71078-42810-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 LIMD —
71078-42890-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71078-42890-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71078-42890-C7 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71078-42890-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# SE —
71078-42890-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# SE —
71078-42890-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# LIMD —
71078-42A10-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LE —
71078-42A20-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71078-42A20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71078-42A20-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# XLE —
71078-42A30-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71078-42A30-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71078-42A30-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71078-42A30-C1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# SE —
71078-42A30-C2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# SE —
71078-42A30-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# LIMD —
71078-42A40-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71078-42A40-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71078-42A40-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 XLE —
71078-42A50-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71078-42A50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71078-42A50-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71078-42A50-C1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71078-42A50-C2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 SE —
71078-42A50-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 LIMD —
71397A — Cover, Center Seat Hinge
71397-48040-C0 note Cover, Center Seat Hinge
2015-10 → 2018-10 ended
AVA44 LIMD —
71397-48040-C0 note Cover, Center Seat Hinge
2015-10 → 2018-10 ended
AVA44 XLE —
71397-48040-C0 note Cover, Center Seat Hinge
2016-08 → 2018-10 ended
AVA44 SE —
71611 — Pad, Rear Seat Cushion
71503-42010 Pad, Rear Seat Cushion
2015-10 → 2016-12 ended
AVA44 —
71503-42030 Pad, Rear Seat Cushion
2016-12 → 2018-10 ended
AVA44 —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-42120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# —
71651-42120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# —
71651-42140 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 —
71651-42160 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# —
71651-42170 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-42120 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# —
71652-42120 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
ASA4# —
71652-42140 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-12 ended
AVA44 —
71652-42160 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
ASA4# —
71652-42170 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-12 → 2018-10 ended
AVA44 —
71769A — Clip, Rear Seatback Board
71769-47020 Clip, Rear Seatback Board
2015-10 → 2018-10 ended
AVA44 LIMD,XLE —
71769-47020 Clip, Rear Seatback Board
2016-12 → 2018-10 ended
AVA44 SE —
71825B — Moulding, Rear Seat Cushion, RH
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2016-12 → 2018-10 ended
ASA4# SE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# XLE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# LIMD —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
ASA4# LE —
71825-42020-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2016-12 ended
ASA4# SE —
71825-78010-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
AVA44 XLE —
71825-78010-C0 note Moulding, Rear Seat Cushion, RH
2016-08 → 2018-10 ended
AVA44 SE —
71825-78010-C0 note Moulding, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
71826B — Moulding, Rear Seat Cushion, LH
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2015-10 → 2016-12 ended
ASA4# SE —
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4# LIMD —
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4# LE —
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4# XLE —
71826-42020-C0 note Moulding, Rear Seat Cushion, LH
2016-12 → 2018-10 ended
ASA4# SE —
71826-78010-C0 note Moulding, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
71826-78010-C0 note Moulding, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
AVA44 XLE —
71826-78010-C0 note Moulding, Rear Seat Cushion, LH
2016-08 → 2018-10 ended
AVA44 SE —
71828B — Moulding, Rear Seat Cushion, Rear RH
71828-42030-C0 note Moulding, Rear Seat Cushion, Rear RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71828-42030-C0 note Moulding, Rear Seat Cushion, Rear RH
2012-12 → 2015-10 ended
ASA4# LIMD —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2016-12 ended
ASA4# SE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2016-12 → 2018-10 ended
ASA4# SE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
ASA4# XLE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
ASA4# LE —
71828-42040-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
ASA4# LIMD —
71828-78010-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
AVA44 LIMD —
71828-78010-C0 note Moulding, Rear Seat Cushion, Rear RH
2015-10 → 2018-10 ended
AVA44 XLE —
71828-78010-C0 note Moulding, Rear Seat Cushion, Rear RH
2016-08 → 2018-10 ended
AVA44 SE —
71829B — Moulding, Rear Seat Cushion, Rear LH
71829-42030-C0 note Moulding, Rear Seat Cushion, Rear LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71829-42030-C0 note Moulding, Rear Seat Cushion, Rear LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71829-42040-C0 note Moulding, Rear Seat Cushion, Rear LH
2015-10 → 2016-12 ended
ASA4# SE —
71829-42040-C0 note Moulding, Rear Seat Cushion, Rear LH
2015-10 → 2018-10 ended
ASA4# LIMD —
71829-42040-C0 note Moulding, Rear Seat Cushion, Rear LH
2015-10 → 2018-10 ended
ASA4# LE —
71829-42040-C0 note Moulding, Rear Seat Cushion, Rear LH
2015-10 → 2018-10 ended
ASA4# XLE —
71829-42040-C0 note Moulding, Rear Seat Cushion, Rear LH
2016-12 → 2018-10 ended
ASA4# SE —
71829-78010-C0 note Moulding, Rear Seat Cushion, Rear LH
2015-10 → 2018-10 ended
AVA44 LIMD —
71829-78010-C0 note Moulding, Rear Seat Cushion, Rear LH
2015-10 → 2018-10 ended
AVA44 XLE —
71829-78010-C0 note Moulding, Rear Seat Cushion, Rear LH
2016-08 → 2018-10 ended
AVA44 SE —
71848B — Cap, Seat Adjuster Cover, RH
71848-42010 Cap, Seat Adjuster Cover, RH
2012-12 → 2015-10 ended
ASA4# —
71848-42010 Cap, Seat Adjuster Cover, RH
2015-10 → 2018-10 ended
ASA4# —
71848-78010 Cap, Seat Adjuster Cover, RH
2015-10 → 2018-10 ended
AVA44 —
71849A — Cap, Seat Adjuster Cover, LH
71848-78010 Cap, Seat Adjuster Cover, LH
2015-10 → 2018-10 ended
AVA44 —
71875C — Cover, Reclining Adjuster Inside, RH
71875-78020-C0 note Cover, Reclining Adjuster Inside, RH
2016-08 → 2018-10 ended
AVA44 SE —
71875-78020-C0 note Cover, Reclining Adjuster Inside, RH
2015-10 → 2018-10 ended
AVA44 XLE —
71875-78020-C0 note Cover, Reclining Adjuster Inside, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
71875E — Cover, Reclining Adjuster Inside, RH
71875-78010-C0 note Cover, Reclining Adjuster Inside, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
71875-78010-C0 note Cover, Reclining Adjuster Inside, RH
2015-10 → 2018-10 ended
AVA44 XLE —
71875-78010-C0 note Cover, Reclining Adjuster Inside, RH
2016-08 → 2018-10 ended
AVA44 SE —
71876B — Cover, Reclining Adjuster Inside, LH
71876-78010-C0 note Cover, Reclining Adjuster Inside, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
71876-78010-C0 note Cover, Reclining Adjuster Inside, LH
2015-10 → 2018-10 ended
AVA44 XLE —
71876-78010-C0 note Cover, Reclining Adjuster Inside, LH
2016-08 → 2018-10 ended
AVA44 SE —
71876E — Cover, Reclining Adjuster Inside, LH
71876-78020-C0 note Cover, Reclining Adjuster Inside, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
71876-78020-C0 note Cover, Reclining Adjuster Inside, LH
2016-08 → 2018-10 ended
AVA44 SE —
71876-78020-C0 note Cover, Reclining Adjuster Inside, LH
2015-10 → 2018-10 ended
AVA44 XLE —
71877D — Cover, Rear Seat Armrest Hole
71877-48010-C0 note Cover, Rear Seat Armrest Hole
2015-10 → 2018-10 ended
AVA44 LIMD —
71877-48010-C0 note Cover, Rear Seat Armrest Hole
2015-10 → 2018-10 ended
AVA44 XLE —
71877-48010-C0 note Cover, Rear Seat Armrest Hole
2016-08 → 2018-10 ended
AVA44 SE —
71880A — Carpet Assy, Rear Seatback Board, RH
71880-42030-C0 note Carpet Assy, Rear Seatback Board, RH
2015-10 → 2016-12 ended
AVA44 LIMD —
71880-42030-C0 note Carpet Assy, Rear Seatback Board, RH
2015-10 → 2016-12 ended
AVA44 XLE —
71880-42030-C0 note Carpet Assy, Rear Seatback Board, RH
2016-08 → 2016-12 ended
AVA44 SE —
71880-42031-C0 note Carpet Assy, Rear Seatback Board, RH
2016-12 → 2017-08 ended
AVA44 LIMD —
71880-42031-C0 note Carpet Assy, Rear Seatback Board, RH
2016-12 → 2017-08 ended
AVA44 XLE —
71880-42031-C0 note Carpet Assy, Rear Seatback Board, RH
2016-12 → 2017-08 ended
AVA44 SE —
71880-42031-C0 note Carpet Assy, Rear Seatback Board, RH
2016-12 → 2017-09 ended
AVA44 LIMD USA —
71880-42032-C0 note Carpet Assy, Rear Seatback Board, RH
2017-09 → 2018-10 ended
AVA44 LIMD USA —
71880-42032-C0 note Carpet Assy, Rear Seatback Board, RH
2017-08 → 2018-10 ended
AVA44 XLE —
71880-42032-C0 note Carpet Assy, Rear Seatback Board, RH
2017-08 → 2018-10 ended
AVA44 LIMD —
71880-42032-C0 note Carpet Assy, Rear Seatback Board, RH
2017-08 → 2018-10 ended
AVA44 SE —
71880B — Clip(FOR REAR SEATBACK CARPET)
90467-08186-C0 note Clip(FOR REAR SEATBACK CARPET)
2015-10 → 2016-10 ended
AVA44 —
90467-08186-C3 note Clip(FOR REAR SEATBACK CARPET)
2016-10 → 2018-10 ended
AVA44 —
71890A — Carpet Assy, Rear Seatback Board, LH
71890-42040-C0 note Carpet Assy, Rear Seatback Board, LH
2015-10 → 2016-12 ended
AVA44 LIMD —
71890-42040-C0 note Carpet Assy, Rear Seatback Board, LH
2015-10 → 2016-12 ended
AVA44 XLE —
71890-42040-C0 note Carpet Assy, Rear Seatback Board, LH
2016-08 → 2016-12 ended
AVA44 SE —
71890-42041-C0 note Carpet Assy, Rear Seatback Board, LH
2016-12 → 2017-08 ended
AVA44 LIMD —
71890-42041-C0 note Carpet Assy, Rear Seatback Board, LH
2016-12 → 2017-08 ended
AVA44 XLE —
71890-42041-C0 note Carpet Assy, Rear Seatback Board, LH
2016-12 → 2017-08 ended
AVA44 SE —
71890-42041-C0 note Carpet Assy, Rear Seatback Board, LH
2016-12 → 2017-09 ended
AVA44 LIMD USA —
71890-42042-C0 note Carpet Assy, Rear Seatback Board, LH
2017-08 → 2018-10 ended
AVA44 LIMD —
71890-42042-C0 note Carpet Assy, Rear Seatback Board, LH
2017-08 → 2018-10 ended
AVA44 XLE —
71890-42042-C0 note Carpet Assy, Rear Seatback Board, LH
2017-08 → 2018-10 ended
AVA44 SE —
71890-42042-C0 note Carpet Assy, Rear Seatback Board, LH
2017-09 → 2018-10 ended
AVA44 LIMD USA —
71931A — Support, Rear Seat Headrest
71930-47020-02 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA42 LIMD —
71930-47020-02 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA44 LIMD —
71930-47020-02 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA4# LE —
71930-47020-A0 note Support, Rear Seat Headrest
2013-09 → 2013-11 ended
ASA4# LE —
71930-47020-A0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
71930-47020-A0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71930-47020-C0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71931-47020-A0 note Support, Rear Seat Headrest
2012-12 → 2013-09 ended
ASA4# LIMD,XLE —
71931-47020-A0 note Support, Rear Seat Headrest
2012-12 → 2013-11 ended
ASA4# LE —
71931-47020-A0 note Support, Rear Seat Headrest
2013-09 → 2015-10 ended
ASA4# LIMD,XLE —
71931-47020-A0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71931-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD —
71931-47020-C0 note Support, Rear Seat Headrest
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71931-47020-C0 note Support, Rear Seat Headrest
2014-10 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
71930-47020-C0 note Support, Rear Seat Headrest
2016-08 → 2017-10 ended
AVA44 SE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# SE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
71930-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# LE —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71930-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4# LE —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# LE —
71931-47020-C0 note Support, Rear Seat Headrest
2016-08 → 2017-10 ended
AVA44 SE —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
71931-47020-C0 note Support, Rear Seat Headrest
2015-10 → 2017-10 ended
ASA4# SE —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4# LE —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71931-47020-C4 note Support, Rear Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
71931B — Support Assy, Rear NO.1 Seat Headrest
71930-47020-02 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2013-09 ended
ASA4# LE —
71930-47020-02 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2013-09 ended
ASA42 LIMD —
71930-47020-02 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2013-09 ended
ASA44 LIMD —
71930-47020-A0 note Support Assy, Rear NO.1 Seat Headrest
2013-09 → 2013-11 ended
ASA4# LE —
71930-47020-A0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71931-47020-A0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2013-09 ended
ASA4# LIMD,XLE —
71931-47020-A0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2013-11 ended
ASA4# LE —
71931-47020-A0 note Support Assy, Rear NO.1 Seat Headrest
2013-09 → 2015-10 ended
ASA4# LIMD,XLE —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2015-10 ended
ASA4# LIMD —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4# LE —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2016-08 → 2017-10 ended
AVA44 SE —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
71930-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4# SE —
71930-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
71930-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71930-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71930-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4# LE —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4# LE —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2016-08 → 2017-10 ended
AVA44 SE —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
71931-47020-C0 note Support Assy, Rear NO.1 Seat Headrest
2015-10 → 2017-10 ended
ASA4# SE —
71931-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4# LE —
71931-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71931-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71931-47020-C4 note Support Assy, Rear NO.1 Seat Headrest
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940A — Headrest Assy, Rear Seat
71940-42100-A1 note Headrest Assy, Rear Seat
2012-12 → 2013-11 ended
ASA4# LE —
71940-42100-B1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LE —
71940-42100-C0 note Headrest Assy, Rear Seat
2013-11 → 2014-10 ended
ASA4# LE —
71940-42101-B1 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LE —
71940-42101-C0 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LE —
71940-42110-A1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# XLE —
71940-42110-A1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA42 LIMD —
71940-42110-B1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA42 LIMD —
71940-42110-B1 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# XLE —
71940-42110-C0 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# XLE —
71940-42110-C0 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA42 LIMD —
71940-42111-A2 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# XLE —
71940-42111-B2 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# XLE —
71940-42111-C1 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# XLE —
71940-42120-A2 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-A3 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42120-B2 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-B3 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42120-C4 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-C5 note Headrest Assy, Rear Seat
2012-12 → 2014-10 ended
ASA4# LIMD —
71940-42120-C6 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42120-C7 note Headrest Assy, Rear Seat
2014-10 → 2015-10 ended
ASA4# LIMD —
71940-42101-C1 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# LE —
71940-42120-42 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-43 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-44 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42120-45 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-46 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42120-E2 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42190-C6 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42190-C7 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42190-C8 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# XLE —
71940-42190-C8 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
AVA44 XLE —
71940-42220-26 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-27 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-28 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42220-29 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-40 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71940-42220-E2 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71940-42230-C1 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# LE —
71940-42250-C6 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42250-C7 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71940-42250-C8 note Headrest Assy, Rear Seat
2015-10 → 2018-10 ended
ASA4# XLE —
71940-42250-C8 note Headrest Assy, Rear Seat
2016-08 → 2018-10 ended
AVA44 XLE —
71960B — Headrest Assy, Rear Seat, Center
71960-42100-A5 note Headrest Assy, Rear Seat, Center
2012-12 → 2013-11 ended
ASA4# LE —
71960-42100-B5 note Headrest Assy, Rear Seat, Center
2012-12 → 2015-10 ended
ASA4# LE —
71960-42100-C2 note Headrest Assy, Rear Seat, Center
2013-11 → 2015-10 ended
ASA4# LE —
71960-42110-A0 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# XLE —
71960-42110-A0 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA42 LIMD —
71960-42110-B0 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# XLE —
71960-42110-B0 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA42 LIMD —
71960-42110-C3 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# XLE —
71960-42110-C3 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA42 LIMD —
71960-42111-A2 note Headrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# XLE —
71960-42111-B2 note Headrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# XLE —
71960-42111-C4 note Headrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# XLE —
71960-42130-A4 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-09 ended
ASA4# LIMD —
71960-42130-B3 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-09 ended
ASA4# LIMD —
71960-42130-C4 note Headrest Assy, Rear Seat, Center
2012-12 → 2014-09 ended
ASA4# LIMD —
71960-42131-A5 note Headrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LIMD —
71960-42131-B4 note Headrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LIMD —
71960-42131-C5 note Headrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LIMD —
71960-42090-C5 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# XLE —
71960-42100-C4 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# LE —
71960-42131-C6 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# LIMD —
71960-42131-C6 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# SE —
71960-42131-C7 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# SE —
71960-42150-C4 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
AVA44 XLE —
71960-42160-C2 note Headrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
AVA44 LIMD —
71960-42160-C2 note Headrest Assy, Rear Seat, Center
2016-08 → 2018-10 ended
AVA44 SE —
71960-42160-C3 note Headrest Assy, Rear Seat, Center
2016-08 → 2018-10 ended
AVA44 SE —
72622C — Bush, Rear Seatback Protector Shaft
72622-48010 Bush, Rear Seatback Protector Shaft
2015-10 → 2018-10 ended
AVA44 —
72704A — Cable, Rear Seat Reclining Control
72704-48110 Cable, Rear Seat Reclining Control
2015-10 → 2018-10 ended
AVA44 —
72704B — Cable, Rear Seat Reclining Control, NO.2
72704-48130 Cable, Rear Seat Reclining Control, NO.2
2015-10 → 2018-10 ended
AVA44 —
72810B — Armrest Assy, NO.1 Seat
72810-42010-C2 note Armrest Assy, NO.1 Seat
2015-10 → 2018-10 ended
AVA44 XLE —
72810-42020-C1 note Armrest Assy, NO.1 Seat
2015-10 → 2018-10 ended
AVA44 LIMD —
72810-42020-C1 note Armrest Assy, NO.1 Seat
2016-08 → 2018-10 ended
AVA44 SE —
72830 — Armrest Assy, Rear Seat, Center
72830-42090-A3 note Armrest Assy, Rear Seat, Center
2012-12 → 2013-11 ended
ASA4# LE —
72830-42090-B3 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# LE —
72830-42090-B4 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LE —
72830-42090-C1 note Armrest Assy, Rear Seat, Center
2013-11 → 2014-10 ended
ASA4# LE —
72830-42090-C2 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LE —
72830-42110-A1 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-09 ended
ASA4# LIMD —
72830-42110-B1 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-09 ended
ASA4# LIMD —
72830-42110-C0 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-09 ended
ASA4# LIMD —
72830-42111-A2 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LIMD —
72830-42111-B2 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LIMD —
72830-42111-C1 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# LIMD —
72830-42120-A1 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# XLE —
72830-42120-A1 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA42 LIMD —
72830-42120-A2 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# XLE —
72830-42120-B1 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA42 LIMD —
72830-42120-B1 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# XLE —
72830-42120-B2 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# XLE —
72830-42120-C0 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA42 LIMD —
72830-42120-C0 note Armrest Assy, Rear Seat, Center
2012-12 → 2014-10 ended
ASA4# XLE —
72830-42120-C1 note Armrest Assy, Rear Seat, Center
2014-10 → 2015-10 ended
ASA4# XLE —
72830-42090-C1 note Armrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# LE —
72830-42130-C2 note Armrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# XLE —
72830-42140-C5 note Armrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
AVA44 XLE —
72830-42150-C2 note Armrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
AVA44 LIMD —
72830-42150-C2 note Armrest Assy, Rear Seat, Center
2016-08 → 2018-10 ended
AVA44 SE —
72830-42170-C1 note Armrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# LIMD —
72830-42170-C1 note Armrest Assy, Rear Seat, Center
2015-10 → 2018-10 ended
ASA4# SE —
72831B — Plate, Rear Seat Center Armrest, NO.1
72831-47010 Plate, Rear Seat Center Armrest, NO.1
2012-12 → 2015-10 ended
ASA4# —
72831-47010 Plate, Rear Seat Center Armrest, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
72831C — Plate, Rear Seat Center Armrest, NO.2
72831-42020 Plate, Rear Seat Center Armrest, NO.2
2012-12 → 2013-02 ended
ASA4# —
72831-52010 Plate, Rear Seat Center Armrest, NO.2
2013-03 → 2015-10 ended
ASA4# —
72831-52010 Plate, Rear Seat Center Armrest, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
72868B — Cover, Center Armrest Hinge
72868-48020-C0 note Cover, Center Armrest Hinge
2015-10 → 2018-10 ended
AVA44 LIMD —
72868-48020-C0 note Cover, Center Armrest Hinge
2015-10 → 2018-10 ended
AVA44 XLE —
72868-48020-C0 note Cover, Center Armrest Hinge
2016-08 → 2018-10 ended
AVA44 SE —
72995 — Cover, Rear Seat Cushion, RH
72996-48100-C0 note Cover, Rear Seat Cushion, RH
2016-08 → 2018-10 ended
AVA44 SE —
72996-48100-C0 note Cover, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
AVA44 XLE —
72996-48100-C0 note Cover, Rear Seat Cushion, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
72995D — Cover, Rear Seat Cushion, Inner RH
72997-48070-C0 note Cover, Rear Seat Cushion, Inner RH
2015-10 → 2018-10 ended
AVA44 LIMD —
72997-48070-C0 note Cover, Rear Seat Cushion, Inner RH
2015-10 → 2018-10 ended
AVA44 XLE —
72997-48070-C0 note Cover, Rear Seat Cushion, Inner RH
2016-08 → 2018-10 ended
AVA44 SE —
72996 — Cover, Rear Seatback, RH
72996-42020-C0 note Cover, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
72996-42020-C0 note Cover, Rear Seatback, RH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72996-42020-C0 note Cover, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# LE —
72996-42020-C0 note Cover, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# XLE —
72996-42020-C0 note Cover, Rear Seatback, RH
2015-10 → 2016-12 ended
ASA4# LIMD,SE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# SE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# XLE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# LE —
72996-42040-C0 note Cover, Rear Seatback, RH
2016-12 → 2018-10 ended
ASA4# LIMD —
72996-48080-C0 note Cover, Rear Seatback, RH
2016-08 → 2018-10 ended
AVA44 SE —
72996-48080-C0 note Cover, Rear Seatback, RH
2015-10 → 2018-10 ended
AVA44 XLE —
72996-48080-C0 note Cover, Rear Seatback, RH
2015-10 → 2018-10 ended
AVA44 LIMD —
72996B — Cover, Rear Seatback, Inner RH
72997-48050-C0 note Cover, Rear Seatback, Inner RH
2015-10 → 2018-10 ended
AVA44 LIMD —
72997-48050-C0 note Cover, Rear Seatback, Inner RH
2015-10 → 2018-10 ended
AVA44 XLE —
72997-48050-C0 note Cover, Rear Seatback, Inner RH
2016-08 → 2018-10 ended
AVA44 SE —
72997 — Cover, Rear Seatback, LH
72995-42100-C0 note Cover, Rear Seatback, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
72995-42100-C0 note Cover, Rear Seatback, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72995-42100-C0 note Cover, Rear Seatback, LH
2015-10 → 2016-12 ended
ASA4# LE —
72995-42100-C0 note Cover, Rear Seatback, LH
2015-10 → 2016-12 ended
ASA4# XLE —
72995-42100-C0 note Cover, Rear Seatback, LH
2015-10 → 2016-12 ended
ASA4# LIMD,SE —
72995-42120-C0 note Cover, Rear Seatback, LH
2016-12 → 2018-10 ended
ASA4# LIMD —
72995-42120-C0 note Cover, Rear Seatback, LH
2016-12 → 2018-10 ended
ASA4# SE —
72995-42120-C0 note Cover, Rear Seatback, LH
2016-12 → 2018-10 ended
ASA4# XLE —
72995-42120-C0 note Cover, Rear Seatback, LH
2016-12 → 2018-10 ended
ASA4# LE —
72997-48050-C0 note Cover, Rear Seatback, LH
2016-08 → 2018-10 ended
AVA44 SE —
72997-48050-C0 note Cover, Rear Seatback, LH
2015-10 → 2018-10 ended
AVA44 XLE —
72997-48050-C0 note Cover, Rear Seatback, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
72997A — Cover, Rear Seatback, Inner LH
72996-48080-C0 note Cover, Rear Seatback, Inner LH
2015-10 → 2018-10 ended
AVA44 LIMD —
72996-48080-C0 note Cover, Rear Seatback, Inner LH
2015-10 → 2018-10 ended
AVA44 XLE —
72996-48080-C0 note Cover, Rear Seatback, Inner LH
2016-08 → 2018-10 ended
AVA44 SE —
72998 — Cover, Rear Seat Cushion, LH
72997-48070-C0 note Cover, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
72997-48070-C0 note Cover, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
AVA44 XLE —
72997-48070-C0 note Cover, Rear Seat Cushion, LH
2016-08 → 2018-10 ended
AVA44 SE —
72998B — Cover, Rear Seat Cushion, LH
72996-48100-C0 note Cover, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
AVA44 LIMD —
72996-48100-C0 note Cover, Rear Seat Cushion, LH
2015-10 → 2018-10 ended
AVA44 XLE —
72996-48100-C0 note Cover, Rear Seat Cushion, LH
2016-08 → 2018-10 ended
AVA44 SE —
79157 — Cover, NO.1 Seatback
79157-48060-C0 note Cover, NO.1 Seatback
2015-10 → 2018-10 ended
AVA44 LIMD —
79157-48060-C0 note Cover, NO.1 Seatback
2015-10 → 2018-10 ended
AVA44 XLE —
79157-48060-C0 note Cover, NO.1 Seatback
2016-08 → 2018-10 ended
AVA44 SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
