Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

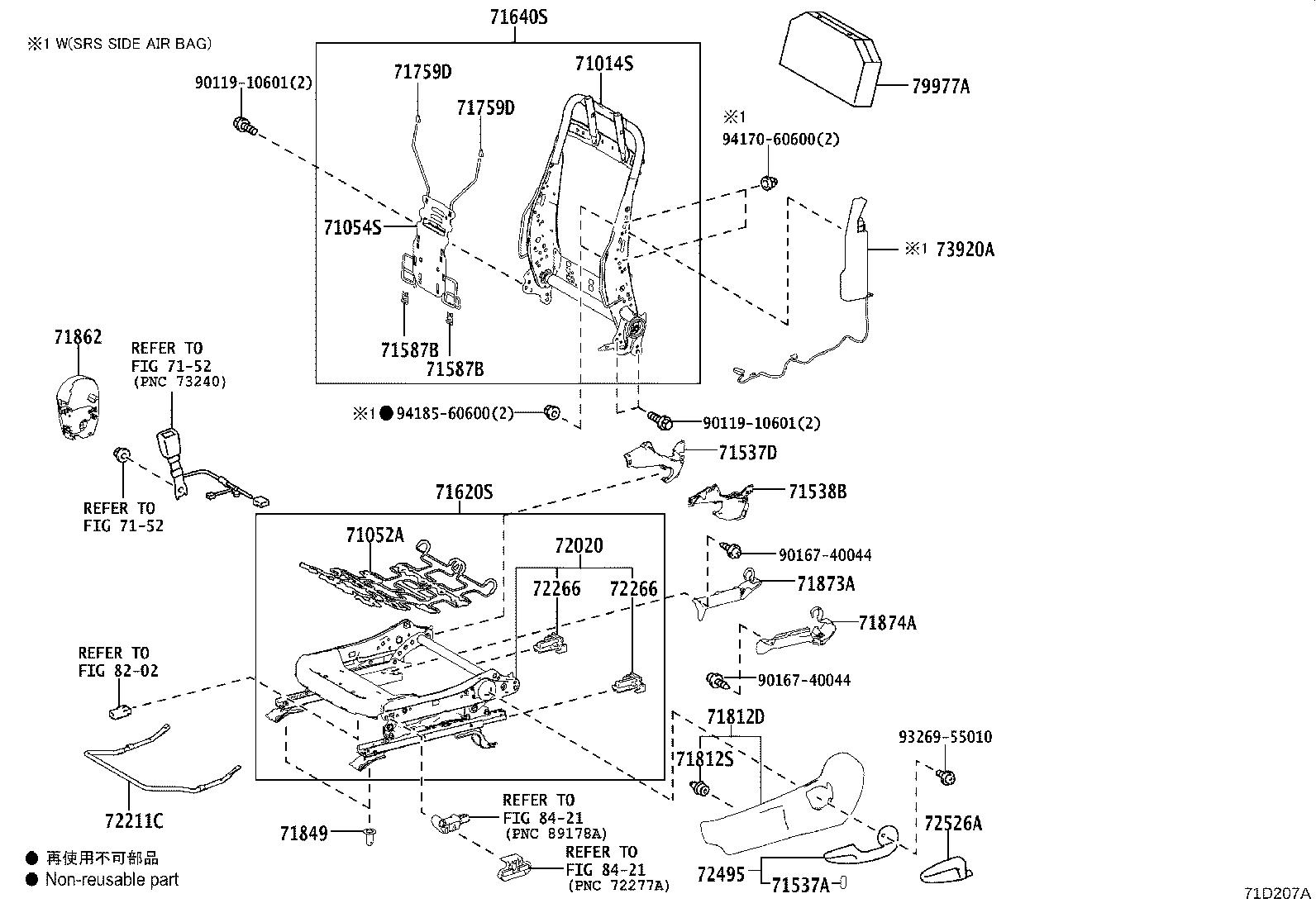

Exploded illustration 71D207A 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (3 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (5 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (5 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (3 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (3 parts) 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (3 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (6 parts) 9011910601 — not listed in this catalogue 9417060600 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (8 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (10 parts) 9016740044 — not listed in this catalogue 9326955010 — not listed in this catalogue 9016740044 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (11 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (10 parts) 71812S — CLIP, FRONT SEAT CUSHION SHIELD, LH (6 parts) 71537D — PROTECTOR, FRONT SEAT CUSHION EDGE, LH (9 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (3 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (4 parts) 72495 — HANDLE, VERTICAL ADJUSTING, LH (4 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (3 parts) 71538B — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) (8 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (6 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (6 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (3 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (11 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (8 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (4 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (4 parts) 8202 — not listed in this catalogue 79977A — FELT, SEATBACK (2 parts) 8421 — not listed in this catalogue 8421 — not listed in this catalogue
71D207A · 26 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
136 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-42060 Frame Sub-assy, Front Seatback, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71014-42070 note Frame Sub-assy, Front Seatback, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
71014-42070 Frame Sub-assy, Front Seatback, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71014-42030 Frame Sub-assy, Front Seatback, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71014-42030 note Frame Sub-assy, Front Seatback, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71014-42060 note Frame Sub-assy, Front Seatback, LH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD —
71014-42070 Frame Sub-assy, Front Seatback, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71014-42120 Frame Sub-assy, Front Seatback, LH
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD —
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-47060 Spring Sub-assy, Front Seat Cushion, LH
2012-12 → 2015-10 ended
ASA4# —
71051-47060 note Spring Sub-assy, Front Seat Cushion, LH
2014-10 → 2015-10 ended
ASA4# LIMD —
71051-47060 Spring Sub-assy, Front Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71054S — Spring Sub-assy, Front Seatback, LH
71053-52050 note Spring Sub-assy, Front Seatback, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
71053-52050 Spring Sub-assy, Front Seatback, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71053-52050 Spring Sub-assy, Front Seatback, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71537A — Protector, Front Seat Cushion
71537-47040 note Protector, Front Seat Cushion
2012-12 → 2014-10 ended
ASA42 LIMD —
71537-47040 Protector, Front Seat Cushion
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71537-47040 Protector, Front Seat Cushion
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71537D — Protector, Front Seat Cushion Edge, LH
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71537-42010 Protector, Front Seat Cushion Edge, LH
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2015-10 → 2016-08 ended
ASA4# SE —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2015-10 → 2018-10 ended
ASA4# LE —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2016-12 → 2018-10 ended
ASA4# SE —
71537-42010-C0 note Protector, Front Seat Cushion Edge, LH
2016-12 → 2018-10 ended
AVA44 SE —
71538B — Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2012-12 → 2015-10 ended
ASA4# LIMD —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2015-10 → 2016-08 ended
ASA4# SE —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2015-10 → 2018-10 ended
ASA4# LE —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2016-08 → 2018-10 ended
ASA4# SE —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2016-08 → 2018-10 ended
AVA44 SE —
71587B — Protector, Front Seatback Edge
71587-52030 Protector, Front Seatback Edge
2012-12 → 2015-10 ended
ASA4# —
71587-52030 note Protector, Front Seatback Edge
2014-10 → 2015-10 ended
ASA4# LIMD —
71587-52030 note Protector, Front Seatback Edge
2015-10 → 2016-08 ended
ASA4# LIMD —
71587-52030 Protector, Front Seatback Edge
2015-10 → 2018-10 ended
AVA44;ASA4# LE,SE,XLE —
71587-52030 Protector, Front Seatback Edge
2016-08 → 2018-10 ended
ASA4# LIMD —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71620-42040 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# LIMD —
71620-42050 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71620-42050 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71620-42040 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD —
71620-42050 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71620-42060 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71620-42060 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71620-42100 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71640-42080 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# LIMD —
71640-42090 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2014-10 ended
ASA42 LIMD —
71640-42090 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71640-42100 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2014-10 → 2015-10 ended
ASA42 LIMD —
71640-42100 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-12 → 2015-10 ended
ASA44 LIMD —
71640-42090 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71640-42150 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
71640-42150 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71640-42160 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD —
71640-42180 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD —
71759D — Hook, Front Seatback, NO.2
71759-47010 Hook, Front Seatback, NO.2
2012-12 → 2013-07 ended
ASA4# —
71759-47011 Hook, Front Seatback, NO.2
2013-08 → 2015-10 ended
ASA4# —
71759-47011 Hook, Front Seatback, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71812D — Shield, Front Seat Cushion, LH
71812-42120-C0 note Shield, Front Seat Cushion, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
71812-42120-C0 note Shield, Front Seat Cushion, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71812-42180-C0 note Shield, Front Seat Cushion, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71812-42120-C0 note Shield, Front Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4# LE —
71812-42120-C0 note Shield, Front Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71812-42180-C0 note Shield, Front Seat Cushion, LH
2016-08 → 2018-10 ended
AVA44 SE —
71812-42180-C0 note Shield, Front Seat Cushion, LH
2016-08 → 2018-10 ended
ASA4# SE —
71812-42180-C0 note Shield, Front Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71812-42180-C0 note Shield, Front Seat Cushion, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71812-42180-C0 note Shield, Front Seat Cushion, LH
2015-10 → 2016-08 ended
ASA4# SE —
71812S — Clip, Front Seat Cushion Shield, LH
71769-47020 note Clip, Front Seat Cushion Shield, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
71769-47020 Clip, Front Seat Cushion Shield, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71769-47020 note Clip, Front Seat Cushion Shield, LH
2012-12 → 2015-10 ended
ASA44 LIMD —
71769-47020 Clip, Front Seat Cushion Shield, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71769-47020 note Clip, Front Seat Cushion Shield, LH
2014-10 → 2015-10 ended
ASA42 LIMD —
71769-47020 Clip, Front Seat Cushion Shield, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71849 — Cap, Seat Adjuster Cover, LH
71848-48050 Cap, Seat Adjuster Cover, LH
2015-05 → 2015-10 ended
ASA4# —
71848-76010 Cap, Seat Adjuster Cover, LH
2012-12 → 2015-04 ended
ASA4# —
71848-48050 Cap, Seat Adjuster Cover, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-42070-C0 note Shield, Front Seat Cushion, Inner LH
2012-12 → 2014-10 ended
ASA42 LIMD —
71862-42070-C0 note Shield, Front Seat Cushion, Inner LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71862-42110-C0 note Shield, Front Seat Cushion, Inner LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71862-42070-C0 note Shield, Front Seat Cushion, Inner LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71862-42070-C0 note Shield, Front Seat Cushion, Inner LH
2015-10 → 2018-10 ended
ASA4# LE —
71862-42110 Shield, Front Seat Cushion, Inner LH
2016-08 → 2016-12 ended
ASA4#,AVA44 SE —
71862-42110-C0 note Shield, Front Seat Cushion, Inner LH
2015-10 → 2016-08 ended
ASA4# SE —
71862-42110-C0 note Shield, Front Seat Cushion, Inner LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
71862-42110-C0 note Shield, Front Seat Cushion, Inner LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71862-42110-C0 note Shield, Front Seat Cushion, Inner LH
2016-12 → 2018-10 ended
ASA4# SE —
71862-42110-C0 note Shield, Front Seat Cushion, Inner LH
2016-12 → 2018-10 ended
AVA44 SE —
71873A — Shield, Front Seat Cushion, Lower
71873-47040 note Shield, Front Seat Cushion, Lower
2012-12 → 2014-10 ended
ASA42 LIMD —
71873-47040 Shield, Front Seat Cushion, Lower
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71873-60030 Shield, Front Seat Cushion, Lower
2012-12 → 2015-10 ended
ASA4# LIMD —
71873-47040 Shield, Front Seat Cushion, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71873-60030 Shield, Front Seat Cushion, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
71873-60030 note Shield, Front Seat Cushion, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71874A — Shield, Front Seat Cushion, Lower LH
71874-47040 note Shield, Front Seat Cushion, Lower LH
2012-12 → 2014-10 ended
ASA42 LIMD —
71874-47040 Shield, Front Seat Cushion, Lower LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
71874-60110 Shield, Front Seat Cushion, Lower LH
2012-12 → 2015-10 ended
ASA4# LIMD —
71874-47040 Shield, Front Seat Cushion, Lower LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
71874-60110 note Shield, Front Seat Cushion, Lower LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
71874-60110 Shield, Front Seat Cushion, Lower LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
72020 — Adjuster Assy, Front Seat, LH
72020-42240 Adjuster Assy, Front Seat, LH
2012-12 → 2013-04 ended
ASA4# LIMD —
72020-42241 Adjuster Assy, Front Seat, LH
2013-04 → 2015-10 ended
ASA4# LIMD —
72020-42250 Adjuster Assy, Front Seat, LH
2012-12 → 2013-04 ended
ASA4# LE,XLE —
72020-42250 note Adjuster Assy, Front Seat, LH
2012-12 → 2013-04 ended
ASA42 LIMD —
72020-42251 note Adjuster Assy, Front Seat, LH
2013-04 → 2014-10 ended
ASA42 LIMD —
72020-42251 Adjuster Assy, Front Seat, LH
2013-04 → 2015-10 ended
ASA4# LE,XLE —
72020-42241 Adjuster Assy, Front Seat, LH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD —
72020-42251 Adjuster Assy, Front Seat, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
72020-42261 Adjuster Assy, Front Seat, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
72020-42261 note Adjuster Assy, Front Seat, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
72020-42300 Adjuster Assy, Front Seat, LH
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD —
72211C — Handle, Seat Track Adjusting
72211-47020 note Handle, Seat Track Adjusting
2012-12 → 2014-10 ended
ASA42 LIMD —
72211-47020 Handle, Seat Track Adjusting
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72211-47020 Handle, Seat Track Adjusting
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
72266 — Cover, Seat Track Upper Rail, LH
72265-42010 Cover, Seat Track Upper Rail, LH
2014-10 → 2015-10 ended
ASA4# LIMD —
72265-42010 note Cover, Seat Track Upper Rail, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
72265-42010 Cover, Seat Track Upper Rail, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72265-42010 Cover, Seat Track Upper Rail, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
72495 — Handle, Vertical Adjusting, LH
72495-42020-C0 note Handle, Vertical Adjusting, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
72495-42020-C0 note Handle, Vertical Adjusting, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72495-42020-C0 note Handle, Vertical Adjusting, LH
2015-10 → 2018-10 ended
ASA4# LE —
72495-42020-C0 note Handle, Vertical Adjusting, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
72526A — Handle, Reclining Adjuster Release, LH
72526-47010-C0 note Handle, Reclining Adjuster Release, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
72526-47010-C0 note Handle, Reclining Adjuster Release, LH
2012-12 → 2015-10 ended
ASA4# LE,XLE —
72526-47010-C0 note Handle, Reclining Adjuster Release, LH
2015-10 → 2018-10 ended
ASA4# LE —
72526-47010-C0 note Handle, Reclining Adjuster Release, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
73920A — Airbag Assy, Front Seat, LH
73920-42050 Airbag Assy, Front Seat, LH
2012-12 → 2015-10 ended
ASA4# —
73920-42060 note Airbag Assy, Front Seat, LH
2012-12 → 2014-10 ended
ASA42 LIMD —
73920-42060 note Airbag Assy, Front Seat, LH
2012-12 → 2015-10 ended
ASA44 LIMD —
73920-42060 note Airbag Assy, Front Seat, LH
2014-10 → 2015-10 ended
ASA42 LIMD —
73920-42050 Airbag Assy, Front Seat, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73920-42060 note Airbag Assy, Front Seat, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
79977A — Felt, Seatback
79977-52120 Felt, Seatback
2012-12 → 2015-10 ended
ASA4# —
79977-52120 Felt, Seatback
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
