Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

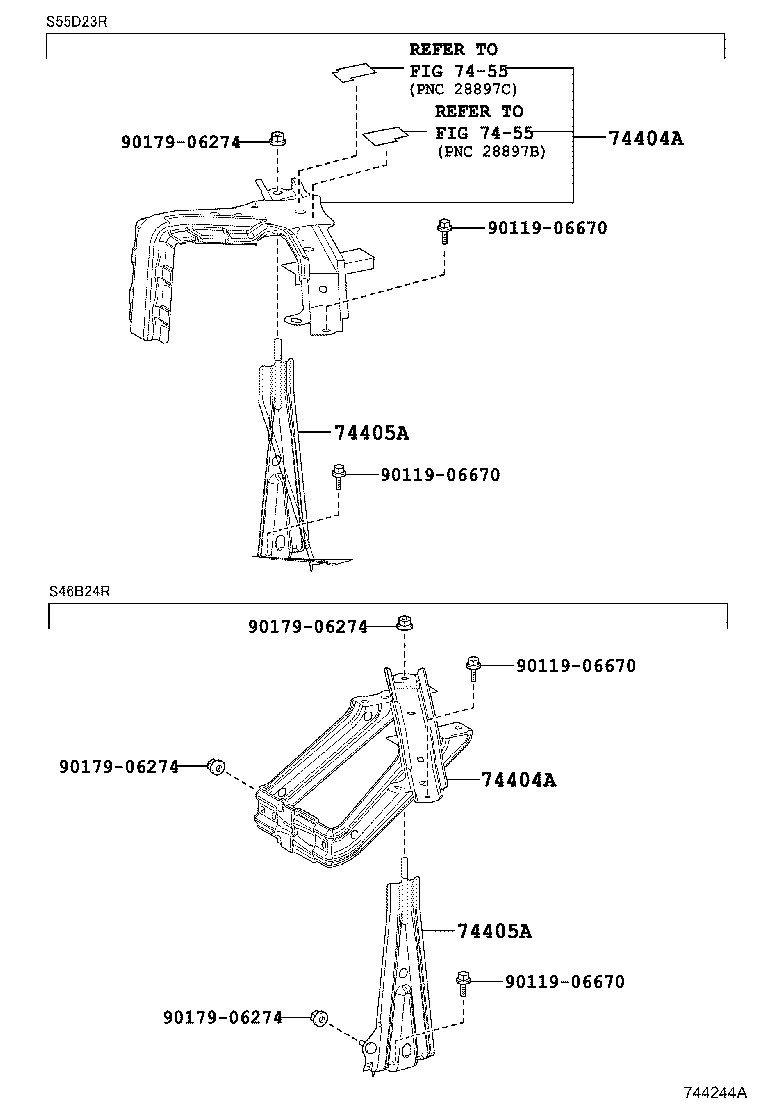

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-42190 |
Clamp Sub-assy, Battery
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 74404-42190 |
Clamp Sub-assy, Battery
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 74404-42240 note |
Clamp Sub-assy, Battery
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 74404-42240 note |
Clamp Sub-assy, Battery
2015-10 → 2018-10
ended
|
AVA44 LIMD,SE | — | |
| 74404-42240 note |
Clamp Sub-assy, Battery
2015-10 → 2018-10
ended
|
AVA44 USA | — | |
| 74404-42240 note |
Clamp Sub-assy, Battery
2015-10 → 2018-10
ended
|
AVA44 LIMD USA | — | |
| 74404-42240 note |
Clamp Sub-assy, Battery
2017-08 → 2018-10
ended
|
AVA44 SE USA | — | |
| 74404-42250 |
Clamp Sub-assy, Battery
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 74405A — Carrier Sub-assy, Battery, Upper RH | ||||
| 74405-42010 |
Carrier Sub-assy, Battery, Upper RH
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 74405-48050 note |
Carrier Sub-assy, Battery, Upper RH
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 74405-48050 note |
Carrier Sub-assy, Battery, Upper RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,SE | — | |
| 74405-48050 note |
Carrier Sub-assy, Battery, Upper RH
2015-10 → 2018-10
ended
|
AVA44 USA | — | |
| 74405-48050 note |
Carrier Sub-assy, Battery, Upper RH
2015-10 → 2018-10
ended
|
AVA44 LIMD USA | — | |
| 74405-48050 note |
Carrier Sub-assy, Battery, Upper RH
2017-08 → 2018-10
ended
|
AVA44 SE USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
