Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

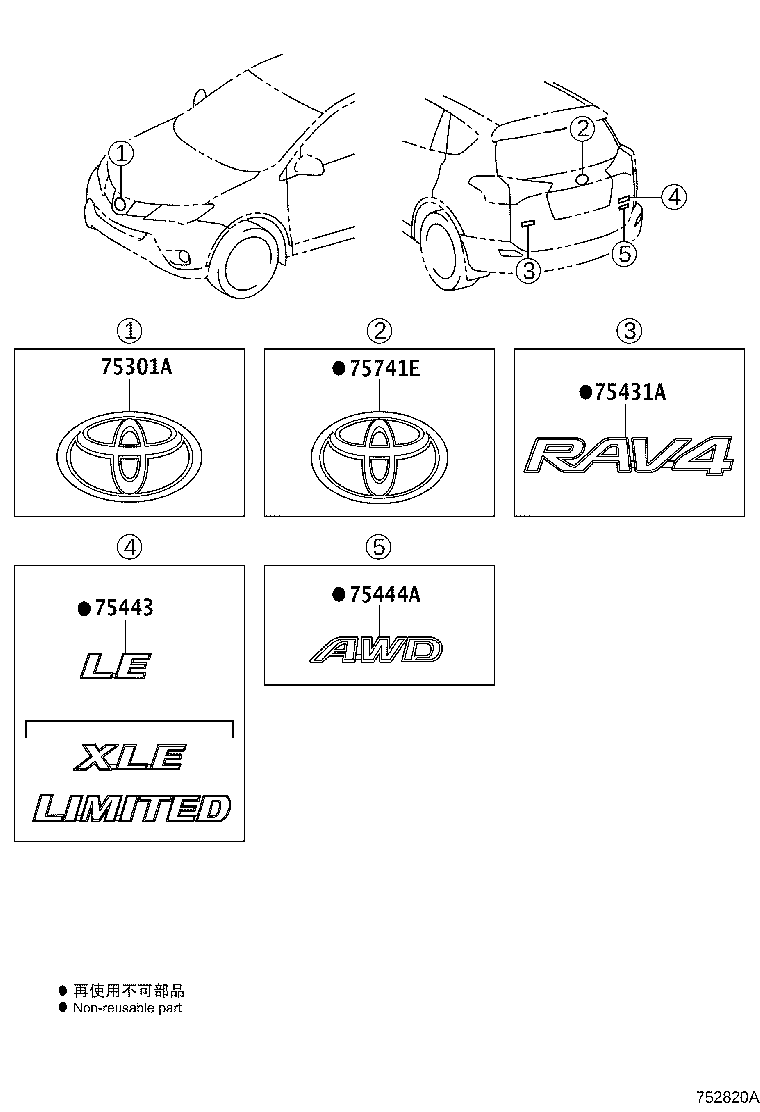

Exploded illustration 752820A 75301A — EMBLEM SUB-ASSY, FRONT BUMPER (27 parts) 75431A — EMBLEM, BACK DOOR, NO.1 (2 parts) 75741E — EMBLEM, SYMBOL (3 parts) 75443 — PLATE, BACK DOOR NAME, NO.3 (8 parts) 75444A — PLATE, BACK DOOR NAME, NO.4 (3 parts)
752820A · 5 callouts Full size ↗
43 parts on this figure
Part number Description Fitment Price
75301A — Emblem Sub-assy, Front Bumper
75301-12400 Emblem Sub-assy, Front Bumper
2012-12 → 2015-10 ended
ASA4# —
53141-33130 Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
ASA4# —
53141-33140 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 SE CND —
53141-33140 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 LIMD CND —
53141-33140 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
53141-33140 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 CND —
53141-33140 Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 USA —
53141-33140 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 SE CND —
53141-42020 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# —
53141-42020 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# LIMD,SE —
53141-42020 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# LIMD,SE,XLE —
53141-42020 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
53141-42020 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
53141-42020 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
53141-47030 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
AVA44 LIMD —
53141-47030 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
AVA44 —
53141-47030 note Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
AVA44 —
75301-42050 Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
ASA4# —
75301-42051 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
ASA4# LIMD —
75301-42051 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
ASA4# LIMD,SE,XLE —
75301-42051 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
ASA4# —
75301-42080 Emblem Sub-assy, Front Bumper
2015-10 → 2016-08 ended
AVA44 —
75301-42081 Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 CND —
75301-42081 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 (LIMD,XLE) USA —
75301-42081 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 XLE USA —
75301-42081 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 SE USA —
75301-42081 note Emblem Sub-assy, Front Bumper
2016-08 → 2018-10 ended
AVA44 LIMD USA —
75431A — Emblem, Back Door, NO.1
75431-42090 note Emblem, Back Door, NO.1
2012-12 → 2015-10 ended
ASA4# —
75431-42150 note Emblem, Back Door, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75443 — Plate, Back Door Name, NO.3
75443-42010 note Plate, Back Door Name, NO.3
2012-12 → 2015-10 ended
ASA4# LE —
75443-42020 note Plate, Back Door Name, NO.3
2012-12 → 2015-10 ended
ASA4# XLE —
75443-42030 note Plate, Back Door Name, NO.3
2012-12 → 2015-10 ended
ASA4# LIMD —
75443-42040 note Plate, Back Door Name, NO.3
2015-10 → 2018-10 ended
ASA4# LE —
75443-42050 note Plate, Back Door Name, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
75443-42050 note Plate, Back Door Name, NO.3
2015-10 → 2018-10 ended
AVA44 XLE —
75443-42060 note Plate, Back Door Name, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
75443-42070 note Plate, Back Door Name, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
75444A — Plate, Back Door Name, NO.4
75444-42060 note Plate, Back Door Name, NO.4
2012-12 → 2015-10 ended
ASA44 —
75444-42110 note Plate, Back Door Name, NO.4
2015-10 → 2018-10 ended
AVA44 LIMD USA —
75444-42140 note Plate, Back Door Name, NO.4
2015-10 → 2018-10 ended
ASA44 —
75741E — Emblem, Symbol
90975-02071 Emblem, Symbol
2012-12 → 2015-10 ended
ASA4# —
75403-42020 Emblem, Symbol
2015-10 → 2018-10 ended
ASA4# —
75403-42030 Emblem, Symbol
2015-10 → 2018-10 ended
AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
