Exploded illustration 754227A 60117 — COVER SUB-ASSY, FRONT PILLAR, UPR RH (2 parts) 60118 — COVER SUB-ASSY, FRONT PILLAR, UPR LH (2 parts) 75075 — MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH (2 parts) 75076 — MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH (2 parts) 75533E — MOULDING, WINDSHIELD, OUTSIDE (2 parts) 75551E — MOULDING, ROOF DRIP SIDE FINISH, RH (2 parts) 75552E — MOULDING, ROOF DRIP SIDE FINISH, LH (2 parts) 75553A — MOULDING, ROOF DRIP SIDE FINISH, REAR RH (2 parts) 75554A — MOULDING, ROOF DRIP SIDE FINISH, REAR LH (2 parts) 75557C — MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH (4 parts) 75558C — MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH (4 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75596 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH (2 parts) 75597 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH (2 parts) 75596 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH (2 parts) 75597 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH (2 parts) 75710 — MOULDING ASSY, FRONT DOOR BELT, RH (2 parts) 75720 — MOULDING ASSY, FRONT DOOR BELT, LH (2 parts) 75730 — MOULDING ASSY, REAR DOOR BELT, RH (2 parts) 75740 — MOULDING ASSY, REAR DOOR BELT, LH (2 parts) 75755C — MOULDING, FRONT DOOR WINDOW FRAME, REAR RH (2 parts) 75756C — MOULDING, FRONT DOOR WINDOW FRAME, REAR LH (2 parts) 75792 — CLIP, DOOR WINDOW FRAME MOULDING (2 parts) 9046709206 — not listed in this catalogue

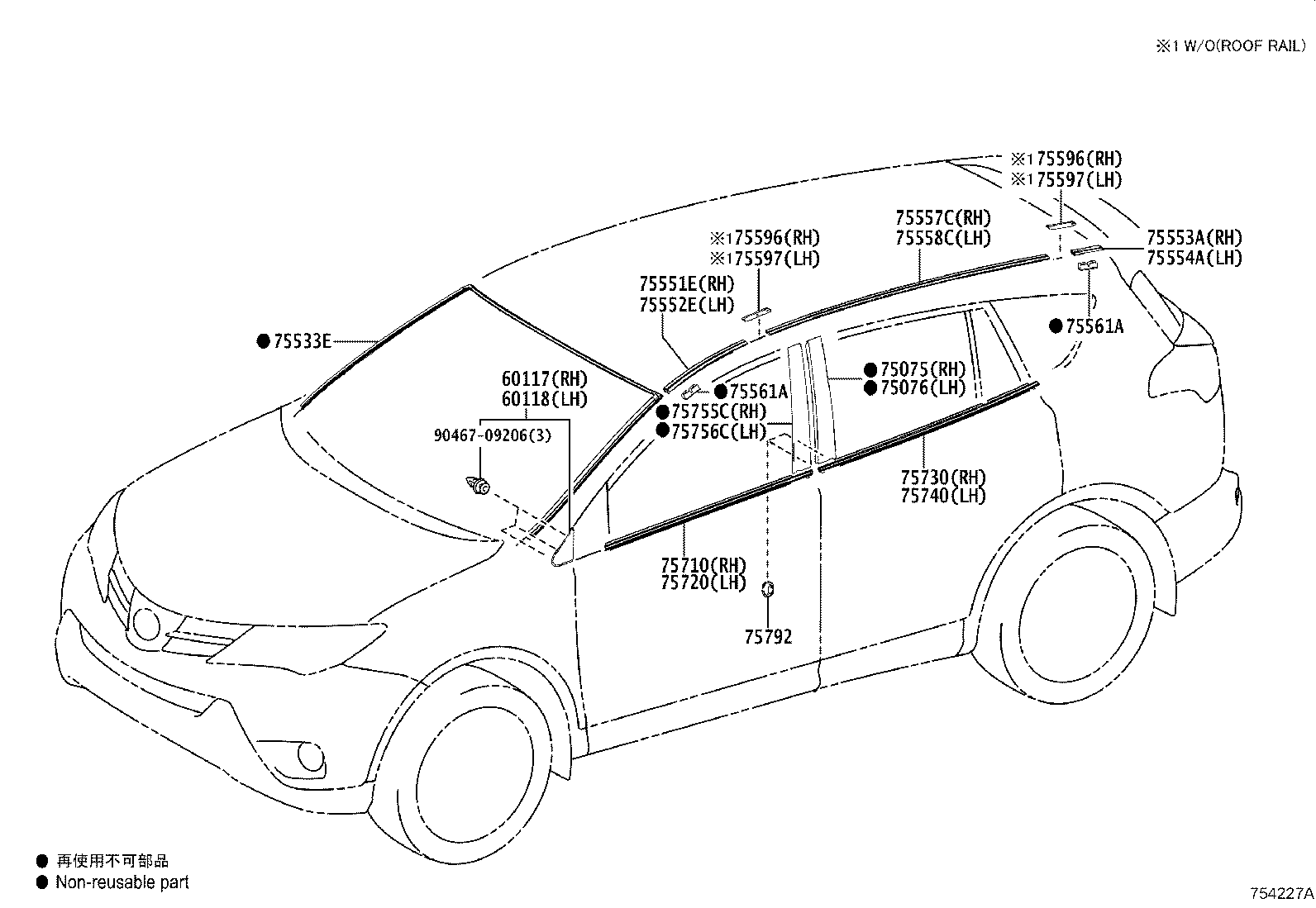

754227A · 24 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
60117 — Cover Sub-assy, Front Pillar, Upr RH
60117-42020 Cover Sub-assy, Front Pillar, Upr RH
2012-12 → 2015-10 ended
ASA4# —
60117-42020 Cover Sub-assy, Front Pillar, Upr RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
60118 — Cover Sub-assy, Front Pillar, Upr LH
60118-42020 Cover Sub-assy, Front Pillar, Upr LH
2012-12 → 2015-10 ended
ASA4# —
60118-42020 Cover Sub-assy, Front Pillar, Upr LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75075 — Moulding Sub-assy, Rear Door, Outside RH
75075-42080 Moulding Sub-assy, Rear Door, Outside RH
2012-12 → 2015-10 ended
ASA4# —
75075-42080 Moulding Sub-assy, Rear Door, Outside RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75076 — Moulding Sub-assy, Rear Door, Outside LH
75076-42080 Moulding Sub-assy, Rear Door, Outside LH
2012-12 → 2015-10 ended
ASA4# —
75076-42080 Moulding Sub-assy, Rear Door, Outside LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75533E — Moulding, Windshield, Outside
75533-42060 Moulding, Windshield, Outside
2012-12 → 2015-10 ended
ASA4# —
75533-42060 Moulding, Windshield, Outside
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75551E — Moulding, Roof Drip Side Finish, RH
75551-42040 Moulding, Roof Drip Side Finish, RH
2012-12 → 2015-10 ended
ASA4# —
75551-42040 Moulding, Roof Drip Side Finish, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75552E — Moulding, Roof Drip Side Finish, LH
75552-42040 Moulding, Roof Drip Side Finish, LH
2012-12 → 2015-10 ended
ASA4# —
75552-42040 Moulding, Roof Drip Side Finish, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75553A — Moulding, Roof Drip Side Finish, Rear RH
75553-42030 Moulding, Roof Drip Side Finish, Rear RH
2012-12 → 2015-10 ended
ASA4# —
75553-42030 Moulding, Roof Drip Side Finish, Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75554A — Moulding, Roof Drip Side Finish, Rear LH
75554-42030 Moulding, Roof Drip Side Finish, Rear LH
2012-12 → 2015-10 ended
ASA4# —
75554-42030 Moulding, Roof Drip Side Finish, Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75557C — Moulding, Roof Drip Side Finish, Center NO.2 RH
75557-42050 Moulding, Roof Drip Side Finish, Center NO.2 RH
2012-12 → 2014-10 ended
ASA4# —
75557-42060 Moulding, Roof Drip Side Finish, Center NO.2 RH
2014-11 → 2015-10 ended
ASA4# —
75557-42060 Moulding, Roof Drip Side Finish, Center NO.2 RH
2015-10 → 2017-03 ended
ASA4#,AVA44 —
75557-42061 Moulding, Roof Drip Side Finish, Center NO.2 RH
2017-04 → 2018-10 ended
ASA4#,AVA44 —
75558C — Moulding, Roof Drip Side Finish, Center NO.2 LH
75557-42050 Moulding, Roof Drip Side Finish, Center NO.2 LH
2012-12 → 2014-10 ended
ASA4# —
75557-42060 Moulding, Roof Drip Side Finish, Center NO.2 LH
2014-11 → 2015-10 ended
ASA4# —
75557-42060 Moulding, Roof Drip Side Finish, Center NO.2 LH
2015-10 → 2017-03 ended
ASA4#,AVA44 —
75557-42061 Moulding, Roof Drip Side Finish, Center NO.2 LH
2017-04 → 2018-10 ended
ASA4#,AVA44 —
75561A — Clip, Roof Drip Side Finish Moulding
75561-52020 Clip, Roof Drip Side Finish Moulding
2012-12 → 2015-10 ended
ASA4# —
75561-52020 Clip, Roof Drip Side Finish Moulding
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75596 — Cover, Roof Drip Side Finish Moulding Joint, RH
75596-35030 Cover, Roof Drip Side Finish Moulding Joint, RH
2012-12 → 2015-10 ended
ASA4# —
75596-35030 Cover, Roof Drip Side Finish Moulding Joint, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75597 — Cover, Roof Drip Side Finish Moulding Joint, LH
75596-35030 Cover, Roof Drip Side Finish Moulding Joint, LH
2012-12 → 2015-10 ended
ASA4# —
75596-35030 Cover, Roof Drip Side Finish Moulding Joint, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75710 — Moulding Assy, Front Door Belt, RH
75710-42040 Moulding Assy, Front Door Belt, RH
2012-12 → 2015-10 ended
ASA4# —
75710-42040 Moulding Assy, Front Door Belt, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75720 — Moulding Assy, Front Door Belt, LH
75720-42040 Moulding Assy, Front Door Belt, LH
2012-12 → 2015-10 ended
ASA4# —
75720-42040 Moulding Assy, Front Door Belt, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75730 — Moulding Assy, Rear Door Belt, RH
75730-42040 Moulding Assy, Rear Door Belt, RH
2012-12 → 2015-10 ended
ASA4# —
75730-42040 Moulding Assy, Rear Door Belt, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75740 — Moulding Assy, Rear Door Belt, LH
75740-42040 Moulding Assy, Rear Door Belt, LH
2012-12 → 2015-10 ended
ASA4# —
75740-42040 Moulding Assy, Rear Door Belt, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75755C — Moulding, Front Door Window Frame, Rear RH
75755-42010 Moulding, Front Door Window Frame, Rear RH
2012-12 → 2015-10 ended
ASA4# —
75755-42010 Moulding, Front Door Window Frame, Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75756C — Moulding, Front Door Window Frame, Rear LH
75756-42010 Moulding, Front Door Window Frame, Rear LH
2012-12 → 2015-10 ended
ASA4# —
75756-42010 Moulding, Front Door Window Frame, Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75792 — Clip, Door Window Frame Moulding
75792-47010 Clip, Door Window Frame Moulding
2012-12 → 2015-10 ended
ASA4# —
75792-47010 Clip, Door Window Frame Moulding
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
