Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

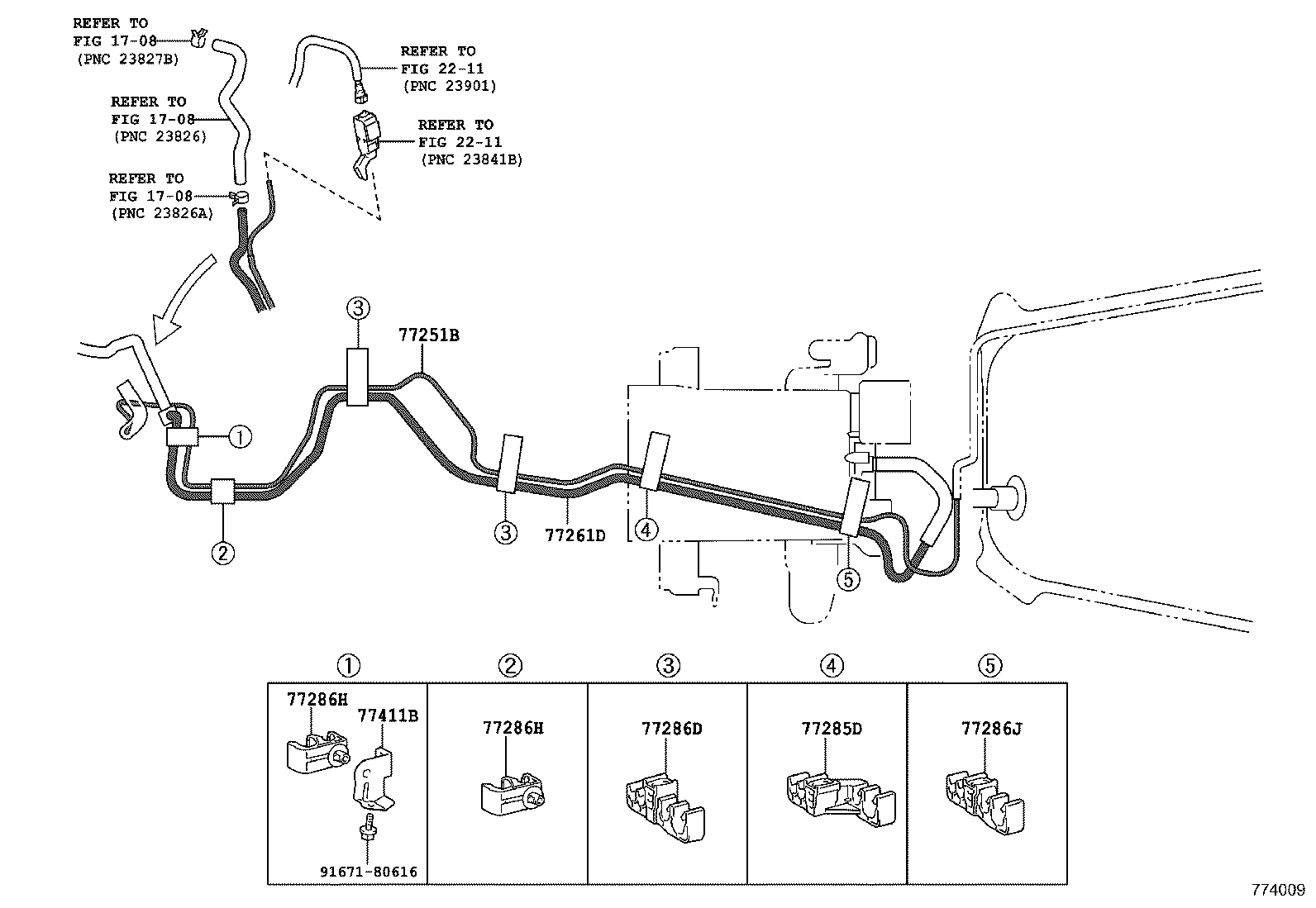

Exploded illustration 774009 77251B — TUBE, FUEL MAIN (3 parts) 77261D — TUBE, FUEL TANK TO CANISTER (3 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (3 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (3 parts) 77286J — CLAMP, FUEL TUBE, NO.4 (1 parts) 77286H — CLAMP, FUEL TUBE, NO.3 (3 parts) 77286H — CLAMP, FUEL TUBE, NO.3 (3 parts) 1708 — not listed in this catalogue 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (1 parts) 9167180616 — not listed in this catalogue
774009 · 8 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-42210 Tube, Fuel Main
2012-12 → 2015-10 ended
ASA4# —
77251-48240 Tube, Fuel Main
2015-10 → 2018-10 ended
AVA44 —
77251-78030 Tube, Fuel Main
2015-10 → 2018-10 ended
ASA4# —
77261D — Tube, Fuel Tank TO Canister
77261-42090 Tube, Fuel Tank TO Canister
2012-12 → 2015-10 ended
ASA4# —
77261-42110 Tube, Fuel Tank TO Canister
2015-10 → 2018-10 ended
ASA4# —
77261-78030 Tube, Fuel Tank TO Canister
2015-10 → 2018-10 ended
AVA44 —
77285D — Clamp, Fuel Tube, NO.1
77298-52070 Clamp, Fuel Tube, NO.1
2012-12 → 2015-10 ended
ASA4# —
77298-52070 Clamp, Fuel Tube, NO.1
2015-10 → 2018-10 ended
ASA4# —
77298-78060 Clamp, Fuel Tube, NO.1
2015-10 → 2018-10 ended
AVA44 —
77286D — Clamp, Fuel Tube, NO.2
77298-68010 Clamp, Fuel Tube, NO.2
2012-12 → 2015-10 ended
ASA4# —
77298-68010 Clamp, Fuel Tube, NO.2
2015-10 → 2018-10 ended
ASA4# —
77298-78040 Clamp, Fuel Tube, NO.2
2015-10 → 2018-10 ended
AVA44 —
77286H — Clamp, Fuel Tube, NO.3
77286-42110 Clamp, Fuel Tube, NO.3
2014-01 → 2015-10 ended
ASA4# —
77286-12120 Clamp, Fuel Tube, NO.3
2015-10 → 2018-10 ended
ASA4# —
77286-78040 Clamp, Fuel Tube, NO.3
2015-10 → 2018-10 ended
AVA44 —
77286J — Clamp, Fuel Tube, NO.4
77298-78050 Clamp, Fuel Tube, NO.4
2015-10 → 2018-10 ended
AVA44 —
77411B — Support, Fuel Tube Grommet, NO.1
77411-48080 Support, Fuel Tube Grommet, NO.1
2015-10 → 2018-10 ended
AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
