Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

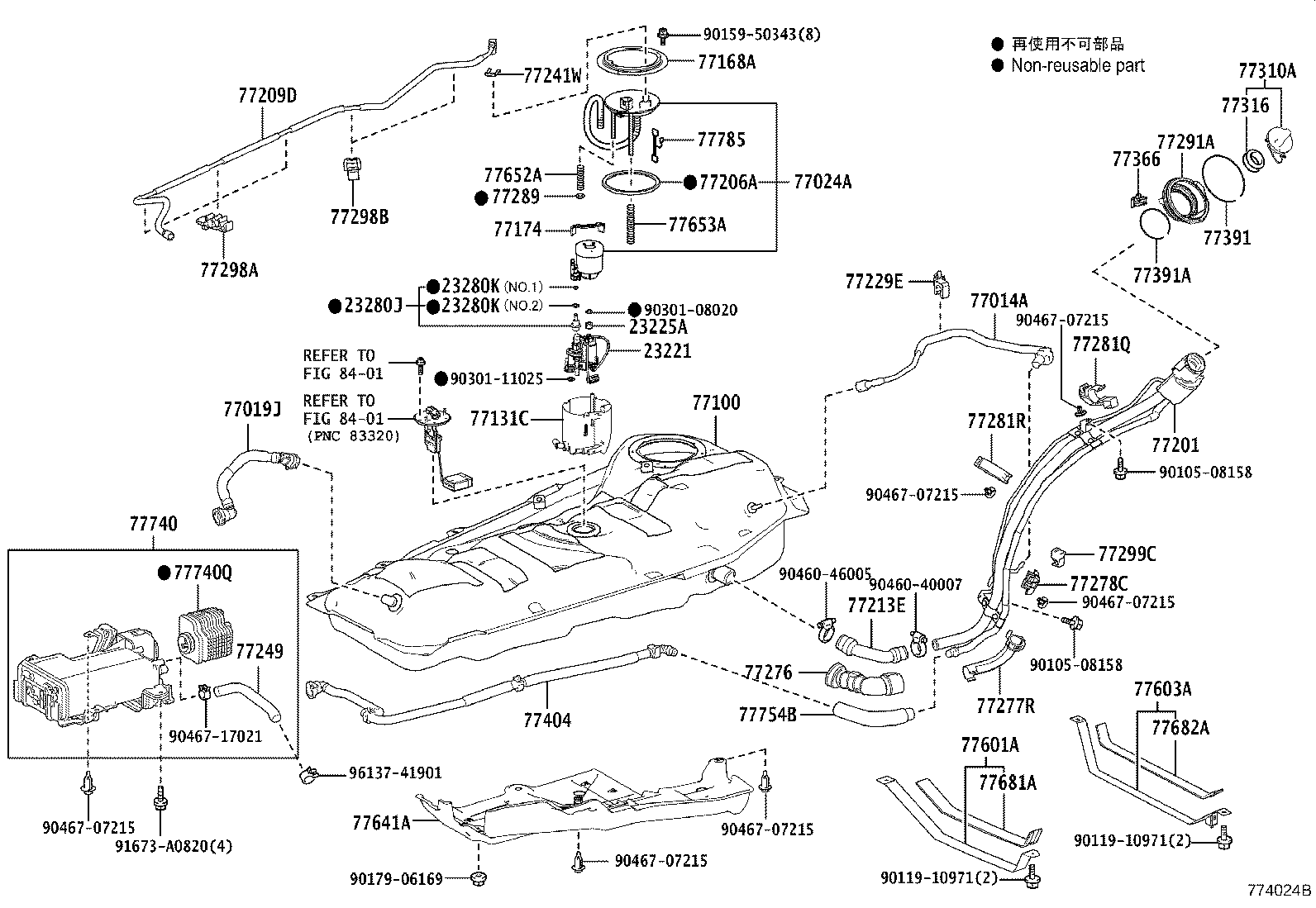

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23221 — Pump, Fuel | ||||
| 23220-31411 |
Pump, Fuel
2012-12 → 2015-10
ended
|
2ARFE ASA42 | — | |
| 23220-36011 |
Pump, Fuel
2012-12 → 2015-10
ended
|
2ARFE ASA44 | — | |
| 23220-31411 |
Pump, Fuel
2015-10 → 2018-10
ended
|
2ARFE ASA42 | — | |
| 23220-36011 |
Pump, Fuel
2015-10 → 2018-10
ended
|
2AR# ASA44,AVA44 | — | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-21020 |
Spacer, Fuel Pump
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 23225-21020 |
Spacer, Fuel Pump
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-21010 |
Regulator Assy, Fuel Pressure
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 77014A — Tube Sub-assy, Fuel Tank Breather, NO.3 | ||||
| 77015-42030 |
Tube Sub-assy, Fuel Tank Breather, NO.3
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77015-42030 |
Tube Sub-assy, Fuel Tank Breather, NO.3
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77015-78010 |
Tube Sub-assy, Fuel Tank Breather, NO.3
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77019J — Tube Sub-assy, Fuel Tank TO Canister | ||||
| 77019-42080 |
Tube Sub-assy, Fuel Tank TO Canister
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77019-42080 |
Tube Sub-assy, Fuel Tank TO Canister
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77019-78010 |
Tube Sub-assy, Fuel Tank TO Canister
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-42070 |
Plate Sub-assy, Fuel Suction
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77024-42070 |
Plate Sub-assy, Fuel Suction
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-42240 |
Tank Assy, Fuel
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77001-42240 |
Tank Assy, Fuel
2015-10 → 2018-08
ended
|
ASA4# | — | |
| 77001-42280 |
Tank Assy, Fuel
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77001-42400 |
Tank Assy, Fuel
2018-09 → 2018-10
ended
|
ASA4# | — | |
| 77131C — Sub-tank, Fuel, NO.1 | ||||
| 77131-52082 |
Sub-tank, Fuel, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77131-52082 |
Sub-tank, Fuel, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77168A — Plate, Fuel Tank Vent Tube Set | ||||
| 77168-52020 |
Plate, Fuel Tank Vent Tube Set
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77168-52020 |
Plate, Fuel Tank Vent Tube Set
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77174 — Support, Fuel Suction, NO.1 | ||||
| 77174-52070 |
Support, Fuel Suction, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77174-52070 |
Support, Fuel Suction, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77201 — Pipe Sub-assy, Fuel Tank Inlet | ||||
| 77201-42190 |
Pipe Sub-assy, Fuel Tank Inlet
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77201-42190 |
Pipe Sub-assy, Fuel Tank Inlet
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77206A — Gasket (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-52010 |
Gasket (FOR FUEL TANK SUCTION TUBE)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77169-52010 |
Gasket (FOR FUEL TANK SUCTION TUBE)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77209D — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-42160 |
Tube Sub-assy, Fuel Tank Main
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77209-42160 |
Tube Sub-assy, Fuel Tank Main
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77209-78030 |
Tube Sub-assy, Fuel Tank Main
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77213E — Hose, Fuel Tank TO Filler Pipe | ||||
| 77213-42120 |
Hose, Fuel Tank TO Filler Pipe
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77213-42120 |
Hose, Fuel Tank TO Filler Pipe
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77229E — Clamp, Breather Tube | ||||
| 77229-48060 |
Clamp, Breather Tube
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-33011 |
Clip, Tube Joint
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77241-33011 |
Clip, Tube Joint
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77249 — Hose, Fuel Emission | ||||
| 77249-0R040 |
Hose, Fuel Emission
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77249-0R040 |
Hose, Fuel Emission
2015-10 → 2016-06
ended
|
ASA4# | — | |
| 77249-42090 |
Hose, Fuel Emission
2016-06 → 2018-10
ended
|
ASA4# | — | |
| 77249-78010 |
Hose, Fuel Emission
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77276 — Protector, Fuel Hose | ||||
| 77276-42040 |
Protector, Fuel Hose
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77276-42040 |
Protector, Fuel Hose
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77278-42040 |
Protector, Fuel Tank Filler Pipe
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77278C — Protector, Fuel Tank Filler Pipe, NO.2 | ||||
| 77278-42020 |
Protector, Fuel Tank Filler Pipe, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77278-42020 |
Protector, Fuel Tank Filler Pipe, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77281Q — Clamp, Fuel Filler, NO.1 | ||||
| 77281-42050 |
Clamp, Fuel Filler, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77281-42050 |
Clamp, Fuel Filler, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77281R — Clamp, Fuel Filler Pipe, NO.2 | ||||
| 77281-42060 |
Clamp, Fuel Filler Pipe, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77281-42060 |
Clamp, Fuel Filler Pipe, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77289 — Holder, Fuel Tank Pipe Setting | ||||
| 77289-52110 |
Holder, Fuel Tank Pipe Setting
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77289-52110 |
Holder, Fuel Tank Pipe Setting
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-42050 |
Shield, Fuel Tank Filler Pipe
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77291-42050 |
Shield, Fuel Tank Filler Pipe
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77298A — Clamp, Fuel Tube, NO.4 | ||||
| 77298-48110 |
Clamp, Fuel Tube, NO.4
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77298B — Clamp, Fuel Tube, NO.4 | ||||
| 77298-48120 |
Clamp, Fuel Tube, NO.4
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77299C — Clamp (FOR FUEL FILLER PIPE) | ||||
| 77299-48020 |
Clamp (FOR FUEL FILLER PIPE)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77299-48020 |
Clamp (FOR FUEL FILLER PIPE)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-53020 |
Cap Assy, Fuel Tank
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 77300-74010 |
Cap Assy, Fuel Tank
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 77300-53020 |
Cap Assy, Fuel Tank
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77391 — Ring, Fuel Inlet Box | ||||
| 77391-30020 |
Ring, Fuel Inlet Box
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77391-30020 |
Ring, Fuel Inlet Box
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77404 — Hose Sub-assy, Fuel Tank Vent | ||||
| 77404-42090 |
Hose Sub-assy, Fuel Tank Vent
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77404-42090 |
Hose Sub-assy, Fuel Tank Vent
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77404-78010 |
Hose Sub-assy, Fuel Tank Vent
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77601A — Band Sub-assy, Fuel Tank, NO.1 | ||||
| 77601-42090 |
Band Sub-assy, Fuel Tank, NO.1
2012-12 → 2014-09
ended
|
ASA4# | — | |
| 77601-42091 |
Band Sub-assy, Fuel Tank, NO.1
2014-10 → 2015-10
ended
|
ASA4# | — | |
| 77601-42091 |
Band Sub-assy, Fuel Tank, NO.1
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77601-78010 |
Band Sub-assy, Fuel Tank, NO.1
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77603A — Band Sub-assy, Fuel Tank, NO.2 | ||||
| 77603-42030 |
Band Sub-assy, Fuel Tank, NO.2
2012-12 → 2014-09
ended
|
ASA4# | — | |
| 77603-42031 |
Band Sub-assy, Fuel Tank, NO.2
2014-10 → 2015-10
ended
|
ASA4# | — | |
| 77602-42040 |
Band Sub-assy, Fuel Tank, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77603-42031 |
Band Sub-assy, Fuel Tank, NO.2
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77641A — Protector, Fuel Tank, NO.1 | ||||
| 77641-42060 |
Protector, Fuel Tank, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77641-42060 |
Protector, Fuel Tank, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77652A — Cushion, Fuel Tank, NO.2 | ||||
| 77652-42020 |
Cushion, Fuel Tank, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77652-42020 |
Cushion, Fuel Tank, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77653A — Cushion, Fuel Tank, NO.3 | ||||
| 77652-42030 |
Cushion, Fuel Tank, NO.3
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77652-42030 |
Cushion, Fuel Tank, NO.3
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77681A — Seat, Fuel Tank Band | ||||
| 77681-42020 |
Seat, Fuel Tank Band
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77681-42020 |
Seat, Fuel Tank Band
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77681-60210 |
Seat, Fuel Tank Band
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77682A — Seat, Fuel Tank Band, NO.2 | ||||
| 77681-42010 |
Seat, Fuel Tank Band, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77681-42010 |
Seat, Fuel Tank Band, NO.2
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77681-78010 |
Seat, Fuel Tank Band, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-0R020 |
Canister Assy, Charcoal
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77740-0R020 |
Canister Assy, Charcoal
2015-10 → 2016-06
ended
|
ASA4# | — | |
| 77740-42110 |
Canister Assy, Charcoal
2016-06 → 2018-10
ended
|
ASA4# | — | |
| 77740-78010 |
Canister Assy, Charcoal
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 77740Q — Leak Detection Pump Sub-assy, Charcoal Canister | ||||
| 90910-AF004 |
Leak Detection Pump Sub-assy, Charcoal Canister
2012-12 → 2015-05
ended
|
ASA4# | — | |
| 90910-AF006 |
Leak Detection Pump Sub-assy, Charcoal Canister
2015-06 → 2015-10
ended
|
ASA4# | — | |
| 90910-14008 |
Leak Detection Pump Sub-assy, Charcoal Canister
2016-06 → 2017-04
ended
|
ASA4# | — | |
| 90910-14008 |
Leak Detection Pump Sub-assy, Charcoal Canister
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 90910-AF006 |
Leak Detection Pump Sub-assy, Charcoal Canister
2015-10 → 2016-06
ended
|
ASA4# | — | |
| 90910-AF006 |
Leak Detection Pump Sub-assy, Charcoal Canister
2017-04 → —
|
ASA4# | — | |
| 77754B — Hose, Charcoal Canister Outlet | ||||
| 77754-42080 |
Hose, Charcoal Canister Outlet
2012-12 → 2013-05
ended
|
ASA4# | — | |
| 77754-42081 |
Hose, Charcoal Canister Outlet
2013-06 → 2015-10
ended
|
ASA4# | — | |
| 77754-42081 |
Hose, Charcoal Canister Outlet
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-42040 |
Harness, Fuel Pump
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77785-42040 |
Harness, Fuel Pump
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
