Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

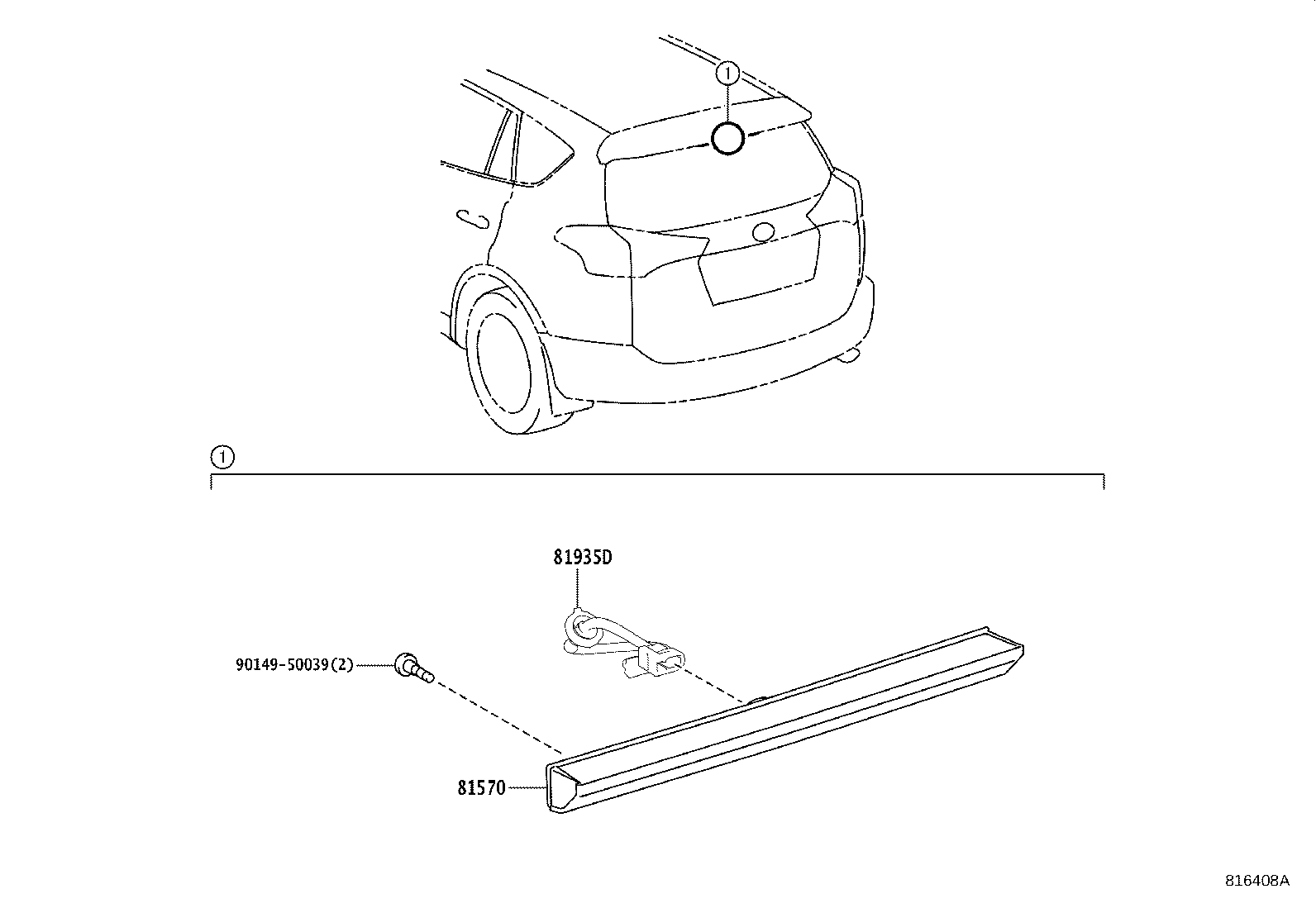

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-60110 |
Lamp Assy, Center Stop
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 81570-60110 |
Lamp Assy, Center Stop
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81935D — Cord Assy, Center Stop Lamp | ||||
| 81935-42030 |
Cord Assy, Center Stop Lamp
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 81935-42030 |
Cord Assy, Center Stop Lamp
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
