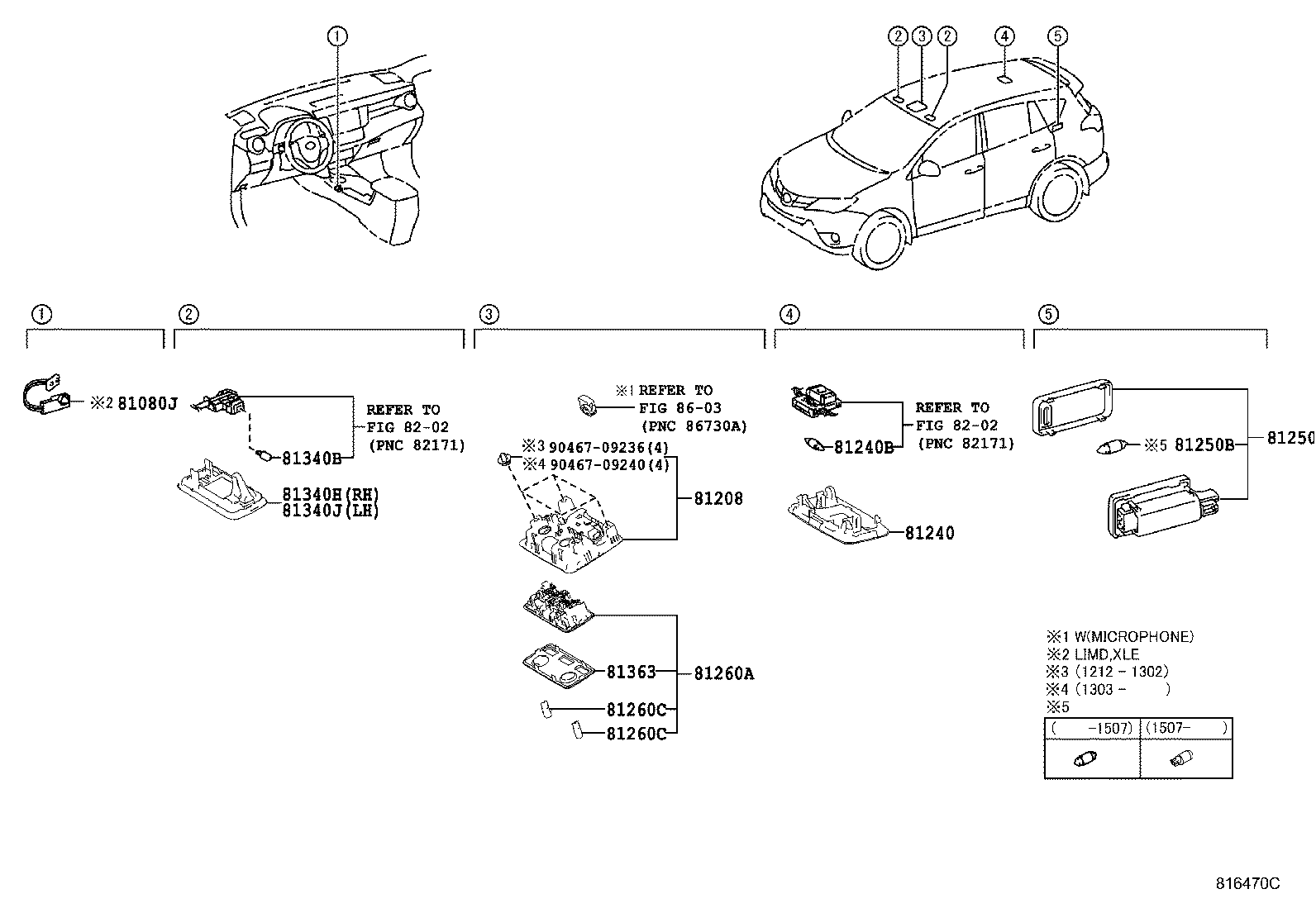

Exploded illustration 816470C 81340H — LAMP ASSY, VANITY, RH (2 parts) 81340J — LAMP ASSY, VANITY, LH (2 parts) 81240B — BULB, ROOM LAMP, NO.1 (2 parts) 81240 — LAMP ASSY, ROOM, NO.1 (7 parts) 81080J — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 (1 parts) 81340B — BULB (FOR VANITY LAMP) (2 parts) 81260A — LAMP ASSY, MAP (2 parts) 81260C — BULB(FOR MAP LAMP) (2 parts) 81363 — LENS, ROOM LAMP, OUTER (1 parts) 81260C — BULB(FOR MAP LAMP) (2 parts) 81208 — LAMP SUB-ASSY, MAP (10 parts) 9046709236 — not listed in this catalogue 9046709240 — not listed in this catalogue 81250 — LAMP ASSY, ROOM, NO.2 (3 parts) 81250B — BULB, ROOM LAMP, NO.2 (3 parts) 8202 — not listed in this catalogue 8603 — not listed in this catalogue 8202 — not listed in this catalogue
816470C · 13 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
81080J — Lamp Assy, Interior Illumination, NO.1
81080-42020 Lamp Assy, Interior Illumination, NO.1
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
81208 — Lamp Sub-assy, Map
81208-42020-B0 note Lamp Sub-assy, Map
2012-12 → 2015-10 ended
ASA4# LE —
81208-42020-B0 note Lamp Sub-assy, Map
2012-12 → 2015-10 ended
ASA42 LIMD —
81208-42050-B0 note Lamp Sub-assy, Map
2012-12 → 2015-10 ended
ASA4# LIMD —
81208-42050-B0 note Lamp Sub-assy, Map
2012-12 → 2015-10 ended
ASA4# XLE —
81208-42180-B0 note Lamp Sub-assy, Map
2016-08 → 2018-10 ended
AVA44 XLE —
81208-42180-B0 note Lamp Sub-assy, Map
2015-10 → 2018-10 ended
ASA42 LIMD —
81208-42180-B0 note Lamp Sub-assy, Map
2015-10 → 2018-10 ended
ASA4# LE —
81208-42210-B0 note Lamp Sub-assy, Map
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
81208-42210-B0 note Lamp Sub-assy, Map
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
81208-42210-C0 note Lamp Sub-assy, Map
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81240 — Lamp Assy, Room, NO.1
81240-35020-B0 note Lamp Assy, Room, NO.1
2012-12 → 2015-10 ended
ASA4# LIMD —
81240-35020-B0 note Lamp Assy, Room, NO.1
2012-12 → 2015-10 ended
ASA4# LE,XLE —
81240-35020-B0 note Lamp Assy, Room, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
81240-35020-B0 note Lamp Assy, Room, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
81240-35020-B0 note Lamp Assy, Room, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
81240-48020-C0 note Lamp Assy, Room, NO.1
2015-10 → 2017-10 ended
ASA4#,AVA44 SE —
81240-48020-C1 note Lamp Assy, Room, NO.1
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
81240B — Bulb, Room Lamp, NO.1
90981-14011 note Bulb, Room Lamp, NO.1
2012-12 → 2015-10 ended
ASA4# —
90981-14011 note Bulb, Room Lamp, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81250 — Lamp Assy, Room, NO.2
81250-48010 Lamp Assy, Room, NO.2
2012-12 → 2015-03 ended
ASA4# —
81330-58010 Lamp Assy, Room, NO.2
2015-04 → 2015-10 ended
ASA4# —
81330-58010 Lamp Assy, Room, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81250B — Bulb, Room Lamp, NO.2
99132-12050 note Bulb, Room Lamp, NO.2
2015-04 → 2015-10 ended
ASA4# —
99132-13050 note Bulb, Room Lamp, NO.2
2012-12 → 2015-04 ended
ASA4# —
99132-12050 note Bulb, Room Lamp, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81260A — Lamp Assy, Map
81260-52120-B0 note Lamp Assy, Map
2012-12 → 2015-10 ended
ASA4# LIMD —
81260-52120-B0 note Lamp Assy, Map
2012-12 → 2015-10 ended
ASA4# LE,XLE —
81260C — Bulb(FOR MAP LAMP)
99132-12050 note Bulb(FOR MAP LAMP)
2012-12 → 2015-10 ended
ASA4# —
99132-12050 note Bulb(FOR MAP LAMP)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81340B — Bulb (FOR VANITY LAMP)
90981-11062 note Bulb (FOR VANITY LAMP)
2012-12 → 2015-10 ended
ASA4# —
90981-11062 note Bulb (FOR VANITY LAMP)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81340H — Lamp Assy, Vanity, RH
81340-30110 Lamp Assy, Vanity, RH
2012-12 → 2015-10 ended
ASA4# —
81340-30110 Lamp Assy, Vanity, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81340J — Lamp Assy, Vanity, LH
81340-30110 Lamp Assy, Vanity, LH
2012-12 → 2015-10 ended
ASA4# —
81340-30110 Lamp Assy, Vanity, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81363 — Lens, Room Lamp, Outer
81363-52010 Lens, Room Lamp, Outer
2012-12 → 2015-10 ended
ASA4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
