Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

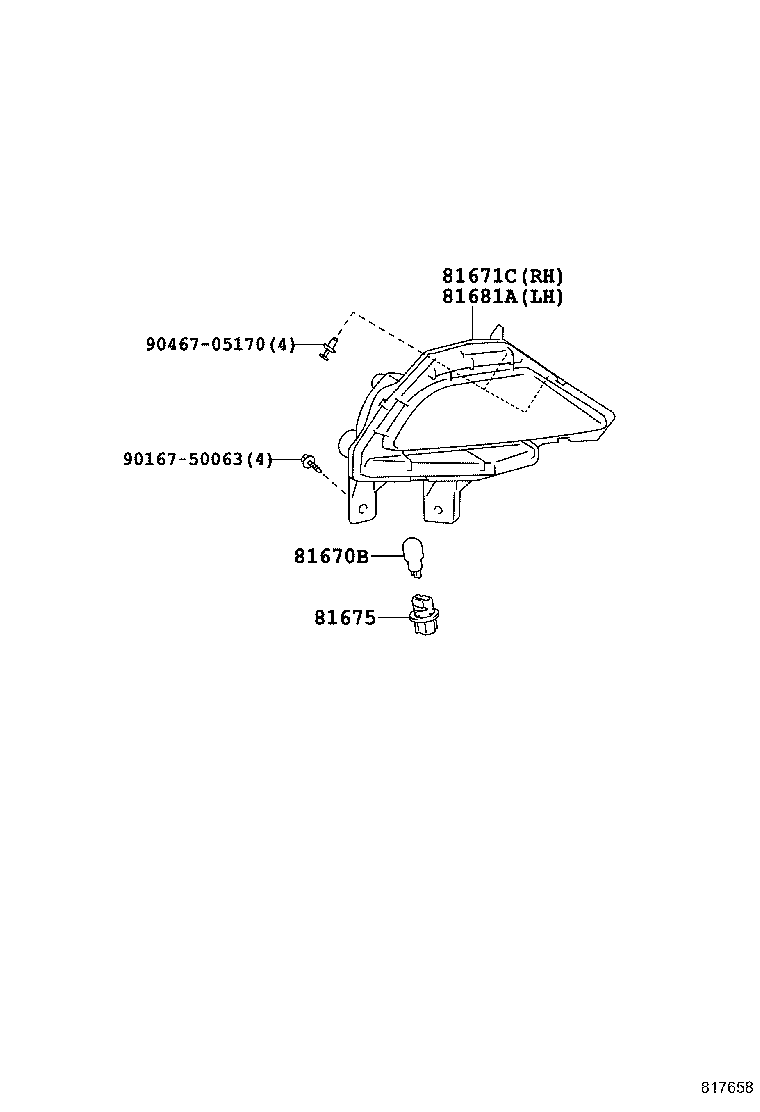

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81670B — Bulb(FOR BACK-UP LAMP) | ||||
| 90981-11059 note |
Bulb(FOR BACK-UP LAMP)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81671C — Lens & Body, Back-up Lamp, RH | ||||
| 81457-42070 |
Lens & Body, Back-up Lamp, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81675 — Socket & Wire, Back-up Lamp | ||||
| 81615-12590 |
Socket & Wire, Back-up Lamp
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81681A — Lens & Body, Back-up Lamp, LH | ||||
| 81456-42070 |
Lens & Body, Back-up Lamp, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
