Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

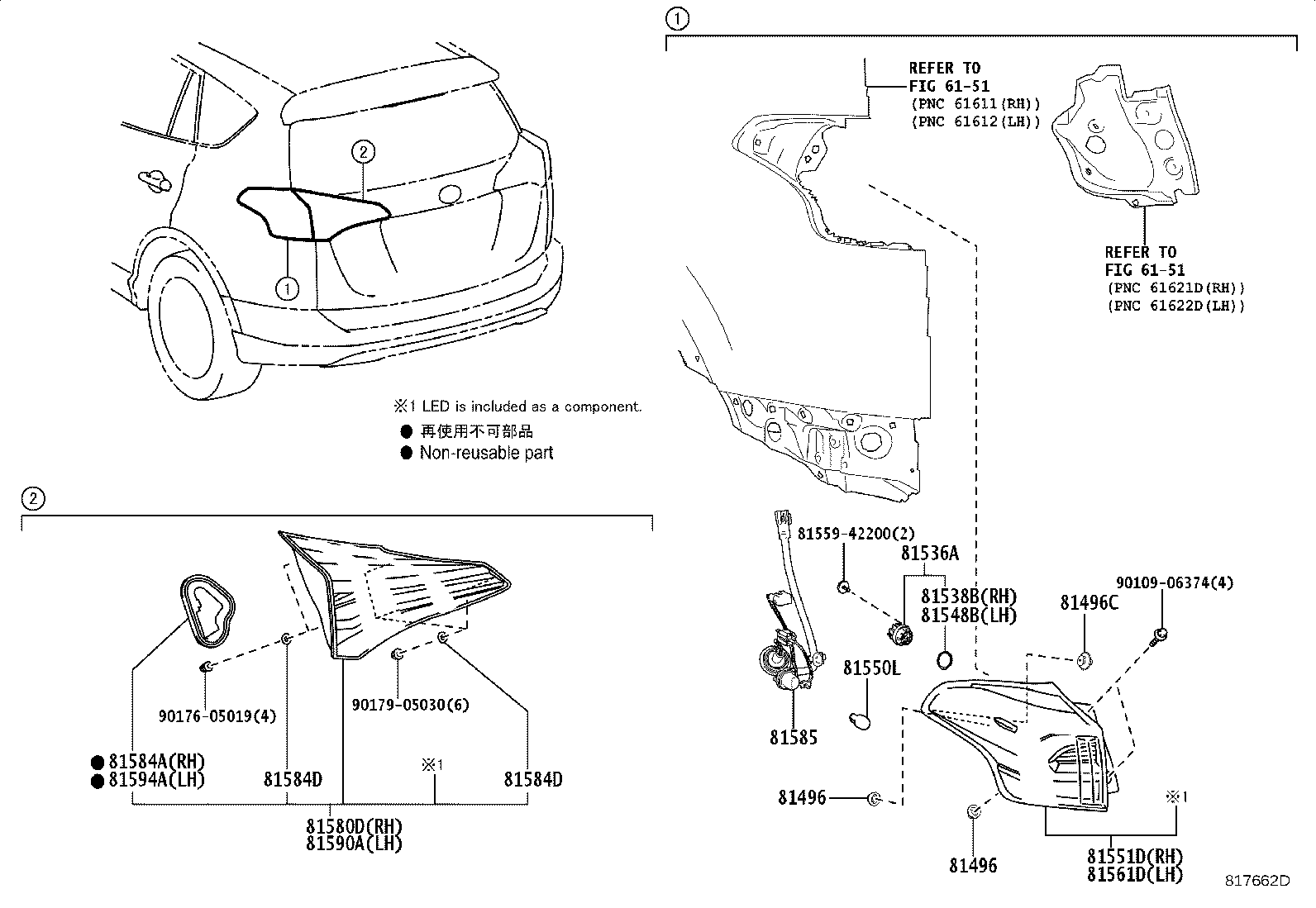

Exploded illustration 817662D 6151 — not listed in this catalogue 6151 — not listed in this catalogue 81584D — GASKET, REAR LAMP (2 parts) 81584D — GASKET, REAR LAMP (2 parts) 9017605019 — not listed in this catalogue 9017905030 — not listed in this catalogue 81580D — LAMP ASSY, REAR, RH (9 parts) 81590A — LAMP ASSY, REAR, LH (9 parts) 81584A — GASKET, REAR LAMP RH (2 parts) 81594A — GASKET, REAR LAMP LH (2 parts) 8155942200 — not listed in this catalogue 81536A — LED, REAR COMBINATION LAMP (1 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (2 parts) 81496 — GUIDE, REAR COMBINATION LAMP (2 parts) 81496 — GUIDE, REAR COMBINATION LAMP (2 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (2 parts) 9010906374 — not listed in this catalogue 81551D — LENS & BODY, REAR COMBINATION LAMP, RH (17 parts) 81561D — LENS & BODY, REAR COMBINATION LAMP, LH (17 parts) 81585 — SOCKET & WIRE, REAR LAMP (5 parts) 81538B — GASKET, REAR COMBINATION LAMP, NO.3 RH (1 parts) 81548B — GASKET, REAR COMBINATION LAMP, NO.3 LH (1 parts)
817662D · 16 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
81496 — Guide, Rear Combination Lamp
81496-52020 Guide, Rear Combination Lamp
2012-12 → 2015-10 ended
ASA4# —
81496-52020 Guide, Rear Combination Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81496C — Guide, Rear Combination Lamp, NO.2
81496-60010 Guide, Rear Combination Lamp, NO.2
2012-12 → 2015-10 ended
ASA4# —
81496-60010 Guide, Rear Combination Lamp, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81536A — Led, Rear Combination Lamp
81536-42200 note Led, Rear Combination Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81538B — Gasket, Rear Combination Lamp, NO.3 RH
81538-42200 note Gasket, Rear Combination Lamp, NO.3 RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81548B — Gasket, Rear Combination Lamp, NO.3 LH
81538-42200 note Gasket, Rear Combination Lamp, NO.3 LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81550L — Bulb, Rear Turn Signal Lamp
90981-13043 Bulb, Rear Turn Signal Lamp
2012-12 → 2015-10 ended
ASA4# —
90981-15011 note Bulb, Rear Turn Signal Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81551D — Lens & Body, Rear Combination Lamp, RH
81551-42160 Lens & Body, Rear Combination Lamp, RH
2012-12 → 2014-01 ended
ASA4# —
81551-42161 Lens & Body, Rear Combination Lamp, RH
2014-01 → 2015-10 ended
ASA4# —
81551-42190 Lens & Body, Rear Combination Lamp, RH
2015-10 → 2016-09 ended
ASA4#,AVA44 SE —
81551-42190 note Lens & Body, Rear Combination Lamp, RH
2015-10 → 2016-09 ended
ASA4#,AVA44 LIMD —
81551-42190 note Lens & Body, Rear Combination Lamp, RH
2015-10 → 2016-09 ended
ASA4#,AVA44 LIMD —
81551-42191 Lens & Body, Rear Combination Lamp, RH
2016-09 → 2018-05 ended
ASA4#,AVA44 SE —
81551-42191 note Lens & Body, Rear Combination Lamp, RH
2016-09 → 2018-05 ended
ASA4#,AVA44 LIMD —
81551-42191 note Lens & Body, Rear Combination Lamp, RH
2016-09 → 2018-05 ended
ASA4#,AVA44 LIMD —
81551-42192 Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 SE —
81551-42192 note Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81551-42192 note Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81551-42200 note Lens & Body, Rear Combination Lamp, RH
2015-10 → 2016-05 ended
ASA4#,AVA44 LIMD USA —
81551-42201 note Lens & Body, Rear Combination Lamp, RH
2016-05 → 2018-05 ended
ASA4#,AVA44 LIMD USA —
81551-42202 note Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81551-42210 Lens & Body, Rear Combination Lamp, RH
2015-10 → 2016-09 ended
ASA4#,AVA44 LE,LIMD,XLE —
81551-42211 Lens & Body, Rear Combination Lamp, RH
2016-09 → 2018-05 ended
ASA4#,AVA44 LE,LIMD,XLE —
81551-42212 Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
81561D — Lens & Body, Rear Combination Lamp, LH
81561-42160 Lens & Body, Rear Combination Lamp, LH
2012-12 → 2014-01 ended
ASA4# —
81561-42161 Lens & Body, Rear Combination Lamp, LH
2014-01 → 2015-10 ended
ASA4# —
81561-42190 Lens & Body, Rear Combination Lamp, LH
2015-10 → 2016-09 ended
ASA4#,AVA44 SE —
81561-42190 note Lens & Body, Rear Combination Lamp, LH
2015-10 → 2016-09 ended
ASA4#,AVA44 LIMD —
81561-42190 note Lens & Body, Rear Combination Lamp, LH
2015-10 → 2016-09 ended
ASA4#,AVA44 LIMD —
81561-42191 note Lens & Body, Rear Combination Lamp, LH
2016-09 → 2018-05 ended
ASA4#,AVA44 LIMD —
81561-42191 note Lens & Body, Rear Combination Lamp, LH
2016-09 → 2018-05 ended
ASA4#,AVA44 LIMD —
81561-42191 Lens & Body, Rear Combination Lamp, LH
2016-09 → 2018-05 ended
ASA4#,AVA44 SE —
81561-42192 Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 SE —
81561-42192 note Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81561-42192 note Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81561-42200 note Lens & Body, Rear Combination Lamp, LH
2015-10 → 2016-05 ended
ASA4#,AVA44 LIMD USA —
81561-42201 note Lens & Body, Rear Combination Lamp, LH
2016-05 → 2018-05 ended
ASA4#,AVA44 LIMD USA —
81561-42202 note Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81561-42210 Lens & Body, Rear Combination Lamp, LH
2015-10 → 2016-09 ended
ASA4#,AVA44 LE,LIMD,XLE —
81561-42211 Lens & Body, Rear Combination Lamp, LH
2016-09 → 2018-05 ended
ASA4#,AVA44 LE,LIMD,XLE —
81561-42212 Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
81580D — Lamp Assy, Rear, RH
81580-42030 Lamp Assy, Rear, RH
2015-10 → 2016-04 ended
ASA4# SE —
81580-42030 note Lamp Assy, Rear, RH
2015-10 → 2016-04 ended
ASA4#,AVA44 LIMD —
81580-42030 note Lamp Assy, Rear, RH
2015-10 → 2016-04 ended
ASA4#,AVA44 LIMD —
81580-42031 Lamp Assy, Rear, RH
2016-05 → 2018-04 ended
ASA4#,AVA44 SE —
81580-42031 note Lamp Assy, Rear, RH
2016-05 → 2018-04 ended
ASA4#,AVA44 LIMD —
81580-42031 note Lamp Assy, Rear, RH
2016-05 → 2018-04 ended
ASA4#,AVA44 LIMD —
81580-42032 Lamp Assy, Rear, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 SE —
81580-42032 note Lamp Assy, Rear, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81580-42032 note Lamp Assy, Rear, RH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81584A — Gasket, Rear Lamp RH
81584-42050 Gasket, Rear Lamp RH
2012-12 → 2015-10 ended
ASA4# —
81584-42060 Gasket, Rear Lamp RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81584D — Gasket, Rear Lamp
81584-22040 Gasket, Rear Lamp
2012-12 → 2015-10 ended
ASA4# —
81584-22040 Gasket, Rear Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81585 — Socket & Wire, Rear Lamp
81555-42190 Socket & Wire, Rear Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81555-42190 note Socket & Wire, Rear Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
81555-42190 note Socket & Wire, Rear Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
81555-42200 note Socket & Wire, Rear Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81555-42210 Socket & Wire, Rear Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
81590A — Lamp Assy, Rear, LH
81590-42030 note Lamp Assy, Rear, LH
2015-10 → 2016-04 ended
ASA4#,AVA44 LIMD —
81590-42030 note Lamp Assy, Rear, LH
2015-10 → 2016-04 ended
ASA4#,AVA44 LIMD —
81590-42030 Lamp Assy, Rear, LH
2015-10 → 2016-04 ended
ASA4# SE —
81590-42031 Lamp Assy, Rear, LH
2016-05 → 2018-04 ended
ASA4#,AVA44 SE —
81590-42031 note Lamp Assy, Rear, LH
2016-05 → 2018-04 ended
ASA4#,AVA44 LIMD —
81590-42031 note Lamp Assy, Rear, LH
2016-05 → 2018-04 ended
ASA4#,AVA44 LIMD —
81590-42032 Lamp Assy, Rear, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 SE —
81590-42032 note Lamp Assy, Rear, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81590-42032 note Lamp Assy, Rear, LH
2018-05 → 2018-10 ended
ASA4#,AVA44 LIMD —
81594A — Gasket, Rear Lamp LH
81584-42050 Gasket, Rear Lamp LH
2012-12 → 2015-10 ended
ASA4# —
81594-42020 Gasket, Rear Lamp LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
