Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

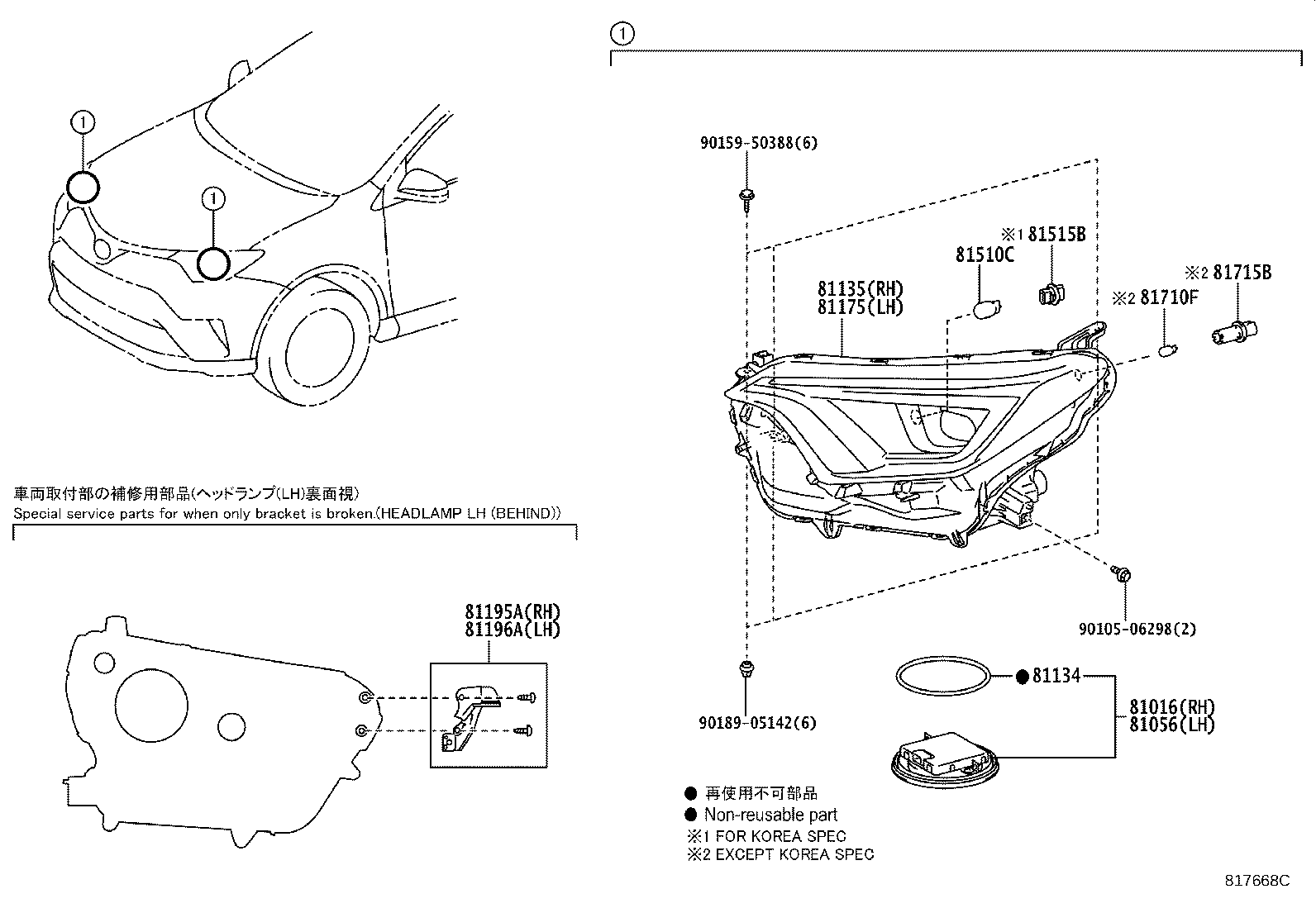

Exploded illustration 817668C 81510C — BULB (FOR FRONT TURN SIGNAL LAMP) (4 parts) 81135 — UNIT ASSY, HEADLAMP, RH (13 parts) 81175 — UNIT ASSY, HEADLAMP, LH (13 parts) 81195A — RETAINER, HEADLAMP PROTECTOR, LOWER RH (2 parts) 81196A — RETAINER, HEADLAMP PROTECTOR, LOWER LH (2 parts) 9010506298 — not listed in this catalogue 9015950388 — not listed in this catalogue 9018905142 — not listed in this catalogue 81515B — SOCKET, FRONT TURN SIGNAL LAMP (4 parts) 81016 — COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 (9 parts) 81134 — GASKET, HEADLAMP (9 parts) 81056 — COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 (9 parts) 81710F — BULB, FRONT SIDE MAKER LAMP (2 parts) 81715B — SOCKET & WIRE, FRONT SIDE MARKER LAMP (2 parts)
817668C · 11 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
81016 — Computer Sub-assy, Headlamp, RH NO.1
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2017-08 → 2018-10 ended
AVA44 LIMD CND —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2015-10 → 2018-10 ended
AVA44 LIMD CND —
81016-42010 Computer Sub-assy, Headlamp, RH NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2015-10 → 2017-08 ended
AVA44 LIMD CND —
81016-42010 note Computer Sub-assy, Headlamp, RH NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81056 — Computer Sub-assy, Headlamp, LH NO.1
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2017-08 → 2018-10 ended
AVA44 LIMD CND —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2015-10 → 2018-10 ended
AVA44 LIMD CND —
81016-42010 Computer Sub-assy, Headlamp, LH NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2015-10 → 2017-08 ended
AVA44 LIMD CND —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81016-42010 note Computer Sub-assy, Headlamp, LH NO.1
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81134 — Gasket, Headlamp
81134-42010 note Gasket, Headlamp
2015-10 → 2017-08 ended
AVA44 LIMD CND —
81134-42010 note Gasket, Headlamp
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81134-42010 note Gasket, Headlamp
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81134-42010 note Gasket, Headlamp
2017-08 → 2018-10 ended
AVA44 LIMD CND —
81134-42010 note Gasket, Headlamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81134-42010 note Gasket, Headlamp
2015-10 → 2018-10 ended
AVA44 LIMD CND —
81134-42010 Gasket, Headlamp
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81134-42010 note Gasket, Headlamp
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81134-42010 note Gasket, Headlamp
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81135 — Unit Assy, Headlamp, RH
81130-42590 Unit Assy, Headlamp, RH
2012-12 → 2013-05 ended
ASA4# —
81130-42591 Unit Assy, Headlamp, RH
2013-05 → 2013-08 ended
ASA4# —
81130-42592 Unit Assy, Headlamp, RH
2013-08 → 2015-10 ended
ASA4# —
81130-42640 Unit Assy, Headlamp, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
81145-42670 note Unit Assy, Headlamp, RH
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81145-42670 note Unit Assy, Headlamp, RH
2017-08 → 2018-10 ended
AVA44 LIMD CND —
81145-42670 note Unit Assy, Headlamp, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81145-42670 Unit Assy, Headlamp, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81145-42670 note Unit Assy, Headlamp, RH
2015-10 → 2017-08 ended
AVA44 LIMD CND —
81145-42670 note Unit Assy, Headlamp, RH
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81145-42670 note Unit Assy, Headlamp, RH
2015-10 → 2018-10 ended
AVA44 LIMD CND —
81145-42680 note Unit Assy, Headlamp, RH
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81145-42680 note Unit Assy, Headlamp, RH
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81175 — Unit Assy, Headlamp, LH
81170-42590 Unit Assy, Headlamp, LH
2012-12 → 2013-05 ended
ASA4# —
81170-42591 Unit Assy, Headlamp, LH
2013-05 → 2013-08 ended
ASA4# —
81170-42592 Unit Assy, Headlamp, LH
2013-08 → 2015-10 ended
ASA4# —
81170-42640 Unit Assy, Headlamp, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
81185-42670 note Unit Assy, Headlamp, LH
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81185-42670 note Unit Assy, Headlamp, LH
2017-08 → 2018-10 ended
AVA44 LIMD CND —
81185-42670 note Unit Assy, Headlamp, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81185-42670 note Unit Assy, Headlamp, LH
2015-10 → 2018-10 ended
AVA44 LIMD CND —
81185-42670 Unit Assy, Headlamp, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
81185-42670 note Unit Assy, Headlamp, LH
2015-10 → 2017-08 ended
AVA44 LIMD CND —
81185-42670 note Unit Assy, Headlamp, LH
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81185-42680 note Unit Assy, Headlamp, LH
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
81185-42680 note Unit Assy, Headlamp, LH
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
81195A — Retainer, Headlamp Protector, Lower RH
81195-42010 Retainer, Headlamp Protector, Lower RH
2012-12 → 2015-10 ended
ASA4# —
81195-42040 Retainer, Headlamp Protector, Lower RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81196A — Retainer, Headlamp Protector, Lower LH
81196-42010 Retainer, Headlamp Protector, Lower LH
2012-12 → 2015-10 ended
ASA4# —
81196-42040 Retainer, Headlamp Protector, Lower LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81510C — Bulb (FOR FRONT TURN SIGNAL LAMP)
90981-15025 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2012-12 → 2015-10 ended
ASA4# —
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
90981-15025 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81515B — Socket, Front Turn Signal Lamp
90075-60083 Socket, Front Turn Signal Lamp
2012-12 → 2015-10 ended
ASA4# —
90075-60028 note Socket, Front Turn Signal Lamp
2015-10 → 2017-08 ended
ASA4#,AVA44 LIMD USA —
90075-60028 note Socket, Front Turn Signal Lamp
2017-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
90075-60083 Socket, Front Turn Signal Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81710F — Bulb, Front Side Maker Lamp
90981-11064 Bulb, Front Side Maker Lamp
2012-12 → 2015-10 ended
ASA4# —
90981-11064 Bulb, Front Side Maker Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 —
81715B — Socket & Wire, Front Side Marker Lamp
81138-22680 Socket & Wire, Front Side Marker Lamp
2012-12 → 2015-10 ended
ASA4# —
81138-22680 Socket & Wire, Front Side Marker Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
