Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

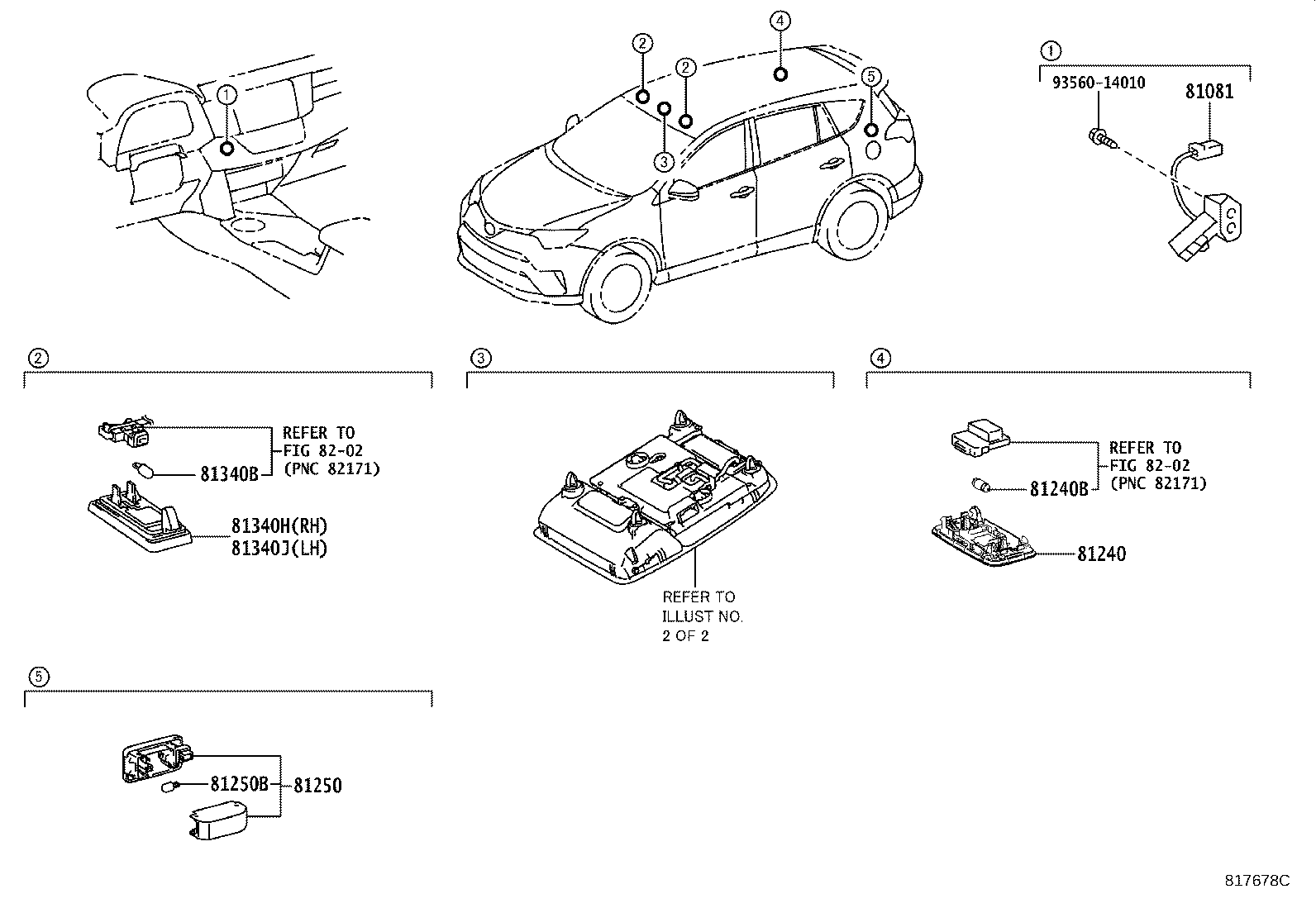

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81081 — Lamp Sub-assy, Interior Illumination | ||||
| 81081-42010 |
Lamp Sub-assy, Interior Illumination
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 81240 — Lamp Assy, Room, NO.1 | ||||
| 81240-35020-B0 note |
Lamp Assy, Room, NO.1
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 81240-35020-B0 note |
Lamp Assy, Room, NO.1
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 81240-35020-B0 note |
Lamp Assy, Room, NO.1
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 81240-35020-B0 note |
Lamp Assy, Room, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 81240-35020-B0 note |
Lamp Assy, Room, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 81240-48020-C0 note |
Lamp Assy, Room, NO.1
2015-10 → 2017-10
ended
|
ASA4#,AVA44 SE | — | |
| 81240-48020-C1 note |
Lamp Assy, Room, NO.1
2017-10 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 81240B — Bulb, Room Lamp, NO.1 | ||||
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81250 — Lamp Assy, Room, NO.2 | ||||
| 81250-48010 |
Lamp Assy, Room, NO.2
2012-12 → 2015-03
ended
|
ASA4# | — | |
| 81330-58010 |
Lamp Assy, Room, NO.2
2015-04 → 2015-10
ended
|
ASA4# | — | |
| 81330-58010 |
Lamp Assy, Room, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81250B — Bulb, Room Lamp, NO.2 | ||||
| 99132-12050 note |
Bulb, Room Lamp, NO.2
2015-04 → 2015-10
ended
|
ASA4# | — | |
| 99132-13050 note |
Bulb, Room Lamp, NO.2
2012-12 → 2015-04
ended
|
ASA4# | — | |
| 99132-12050 note |
Bulb, Room Lamp, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81340H — Lamp Assy, Vanity, RH | ||||
| 81340-30110 |
Lamp Assy, Vanity, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 81340-30110 |
Lamp Assy, Vanity, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 81340J — Lamp Assy, Vanity, LH | ||||
| 81340-30110 |
Lamp Assy, Vanity, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 81340-30110 |
Lamp Assy, Vanity, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
