Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

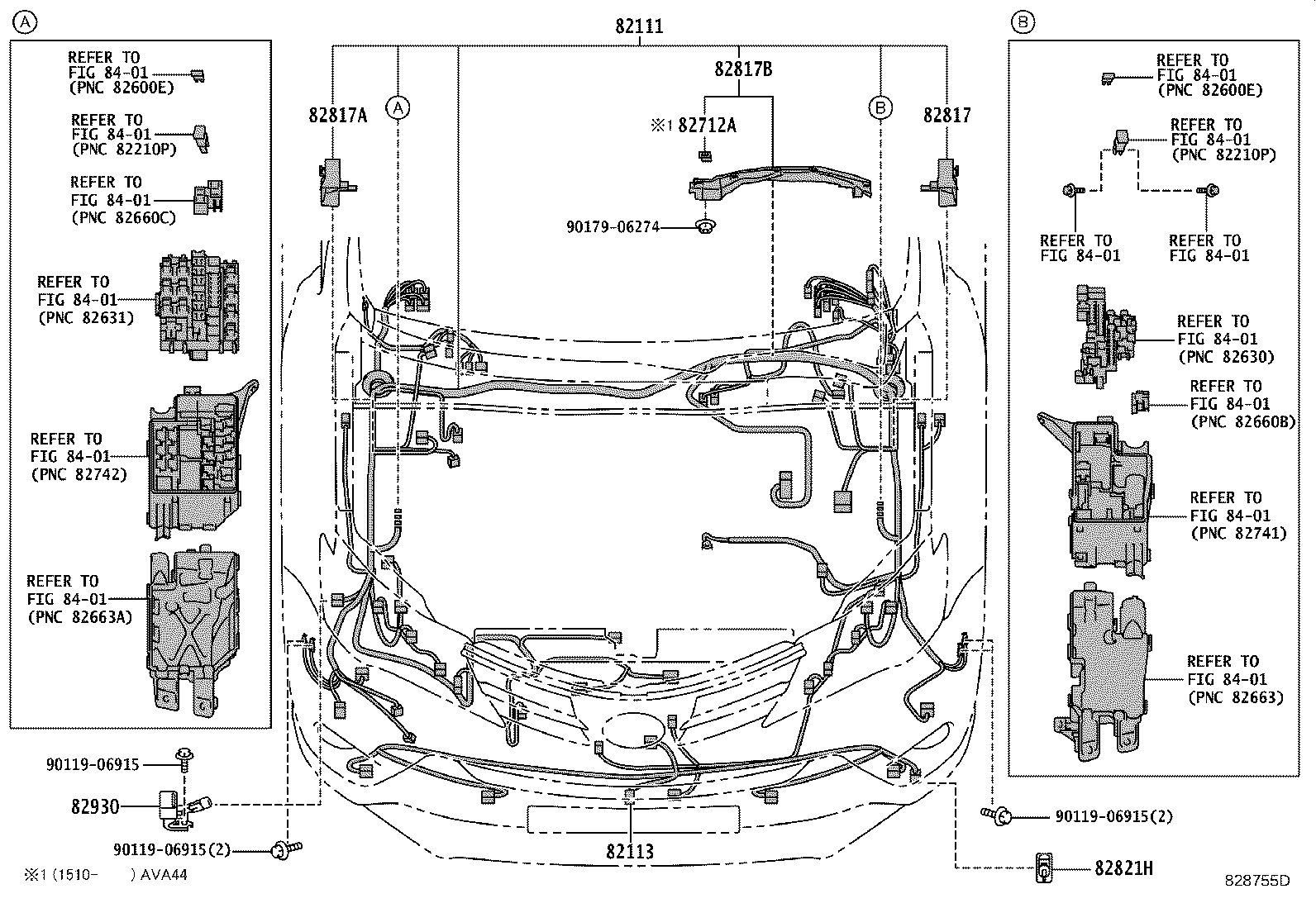

Exploded illustration 828755D 9017906274 — not listed in this catalogue 82817A — PROTECTOR, WIRING HARNESS, NO.2 (2 parts) 82817 — PROTECTOR, WIRING HARNESS, NO.1 (2 parts) 82111 — WIRE, ENGINE ROOM MAIN (36 parts) 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 82113 — WIRE, ENGINE ROOM, NO.3 (17 parts) 82712A — SUPPORT, WIRING HARNESS (1 parts) 82821H — COVER, CONNECTOR (5 parts) 82930 — CONDENSER ASSY, WIRING HARNESS, NO.1 (1 parts) 9011906915 — not listed in this catalogue 82817B — PROTECTOR, WIRING HARNESS, NO.3 (3 parts) 8401 — not listed in this catalogue
828755D · 8 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
82111 — Wire, Engine Room Main
82111-42M70 Wire, Engine Room Main
2012-12 → 2015-10 ended
ASA44 LE —
82111-42M80 note Wire, Engine Room Main
2012-12 → 2013-11 ended
ASA44 LE —
82111-42M80 Wire, Engine Room Main
2012-12 → 2015-10 ended
ASA42;ASA44 LIMD,XLE —
82111-42M80 note Wire, Engine Room Main
2012-12 → 2015-10 ended
ASA44 LE —
82111-42M80 note Wire, Engine Room Main
2013-11 → 2015-10 ended
ASA44 LE —
82111-42M80 note Wire, Engine Room Main
2013-11 → 2015-10 ended
ASA44 LE —
82111-42M80 note Wire, Engine Room Main
2012-12 → 2013-11 ended
ASA44 LE —
82111-42R40 Wire, Engine Room Main
2015-10 → 2016-08 ended
ASA4# LE,LIMD,XLE —
82111-42R41 Wire, Engine Room Main
2016-08 → 2017-08 ended
ASA4# LE,LIMD,XLE —
82111-42R42 Wire, Engine Room Main
2017-08 → 2018-10 ended
ASA4# LE,LIMD,XLE —
82111-42S10 note Wire, Engine Room Main
2015-10 → 2016-08 ended
ASA4# LIMD —
82111-42S11 note Wire, Engine Room Main
2016-08 → 2017-08 ended
ASA4# LIMD —
82111-42S12 note Wire, Engine Room Main
2017-08 → 2018-10 ended
ASA4# LIMD —
82111-42S60 note Wire, Engine Room Main
2015-10 → 2016-08 ended
ASA4# LIMD —
82111-42S60 note Wire, Engine Room Main
2015-10 → 2016-08 ended
ASA4# LIMD —
82111-42S60 Wire, Engine Room Main
2015-10 → 2016-08 ended
ASA4# SE —
82111-42S61 note Wire, Engine Room Main
2016-08 → 2017-08 ended
ASA4# LIMD —
82111-42S61 note Wire, Engine Room Main
2016-08 → 2017-08 ended
ASA4# LIMD —
82111-42S61 Wire, Engine Room Main
2016-08 → 2017-08 ended
ASA4# SE —
82111-42S62 Wire, Engine Room Main
2017-08 → 2018-10 ended
ASA4# SE —
82111-42S62 note Wire, Engine Room Main
2017-08 → 2018-10 ended
ASA4# LIMD —
82111-42S62 note Wire, Engine Room Main
2017-08 → 2018-10 ended
ASA4# LIMD —
82111-4AF30 Wire, Engine Room Main
2015-10 → 2016-08 ended
AVA44 —
82111-4AF31 Wire, Engine Room Main
2016-08 → 2017-08 ended
AVA44 LIMD,XLE —
82111-4AF32 Wire, Engine Room Main
2017-08 → 2018-10 ended
AVA44 LIMD,XLE —
82111-4AG60 note Wire, Engine Room Main
2015-10 → 2016-08 ended
AVA44 LIMD —
82111-4AG60 note Wire, Engine Room Main
2015-10 → 2016-08 ended
AVA44 LIMD —
82111-4AG61 Wire, Engine Room Main
2016-08 → 2017-08 ended
AVA44 SE —
82111-4AG61 note Wire, Engine Room Main
2016-08 → 2017-08 ended
AVA44 LIMD —
82111-4AG61 note Wire, Engine Room Main
2016-08 → 2017-08 ended
AVA44 LIMD —
82111-4AG62 note Wire, Engine Room Main
2017-08 → 2018-10 ended
AVA44 LIMD —
82111-4AG62 note Wire, Engine Room Main
2017-08 → 2018-10 ended
AVA44 LIMD —
82111-4AG62 Wire, Engine Room Main
2017-08 → 2018-10 ended
AVA44 SE —
82111-4AG80 note Wire, Engine Room Main
2015-10 → 2016-08 ended
AVA44 LIMD USA —
82111-4AG81 note Wire, Engine Room Main
2016-08 → 2017-08 ended
AVA44 LIMD USA —
82111-4AG82 note Wire, Engine Room Main
2017-08 → 2018-10 ended
AVA44 LIMD USA —
82113 — Wire, Engine Room, NO.3
82113-42010 note Wire, Engine Room, NO.3
2015-10 → 2016-08 ended
ASA4#,AVA44 (LIMD,SE,XLE) USA —
82113-42010 Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
AVA44 SE CND —
82113-42010 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
AVA44 SE USA;ASA4# LIMD,SE,XLE —
82113-42010 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
AVA44 LIMD USA —
82113-42040 note Wire, Engine Room, NO.3
2015-10 → 2016-08 ended
ASA4#,AVA44 USA —
82113-42040 note Wire, Engine Room, NO.3
2015-10 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
82113-42040 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
AVA44 SE CND —
82113-42040 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
ASA4# LIMD;AVA44 (LIMD,XLE) USA —
82113-42040 Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
ASA4#,AVA44 USA —
82113-42050 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
AVA44 SE CND —
82113-42050 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE,XLE) USA —
82113-42050 note Wire, Engine Room, NO.3
2015-10 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
82113-42050 note Wire, Engine Room, NO.3
2015-10 → 2016-08 ended
ASA4#,AVA44 (LIMD,SE,XLE) USA —
82113-42060 note Wire, Engine Room, NO.3
2015-10 → 2016-08 ended
ASA4#,AVA44 (LIMD,SE) USA —
82113-42060 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
AVA44 SE CND —
82113-42060 note Wire, Engine Room, NO.3
2016-08 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
82113-42060 note Wire, Engine Room, NO.3
2015-10 → 2018-10 ended
AVA44 LIMD CND —
82712A — Support, Wiring Harness
82712-33190 Support, Wiring Harness
2015-10 → 2018-10 ended
AVA44 —
82817 — Protector, Wiring Harness, NO.1
82817-42750 Protector, Wiring Harness, NO.1
2012-12 → 2015-10 ended
ASA4# —
82817-42750 Protector, Wiring Harness, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82817A — Protector, Wiring Harness, NO.2
82817-42760 Protector, Wiring Harness, NO.2
2012-12 → 2015-10 ended
ASA4# —
82817-42760 Protector, Wiring Harness, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82817B — Protector, Wiring Harness, NO.3
82817-42460 Protector, Wiring Harness, NO.3
2012-12 → 2015-10 ended
ASA4# —
82817-42460 Protector, Wiring Harness, NO.3
2015-10 → 2018-10 ended
ASA4# —
82817-78010 Protector, Wiring Harness, NO.3
2015-10 → 2018-10 ended
AVA44 —
82821H — Cover, Connector
82821-42090 Cover, Connector
2015-10 → 2016-08 ended
ASA4#,AVA44 USA —
82821-42090 note Cover, Connector
2015-10 → 2016-08 ended
AVA44 USA;ASA4# LIMD —
82821-42090 Cover, Connector
2015-10 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
82821-42090 note Cover, Connector
2015-10 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
82821-42090 note Cover, Connector
2016-08 → 2018-10 ended
ASA4#;AVA44 (LIMD,XLE) USA —
82930 — Condenser Assy, Wiring Harness, NO.1
82930-42010 Condenser Assy, Wiring Harness, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
