Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

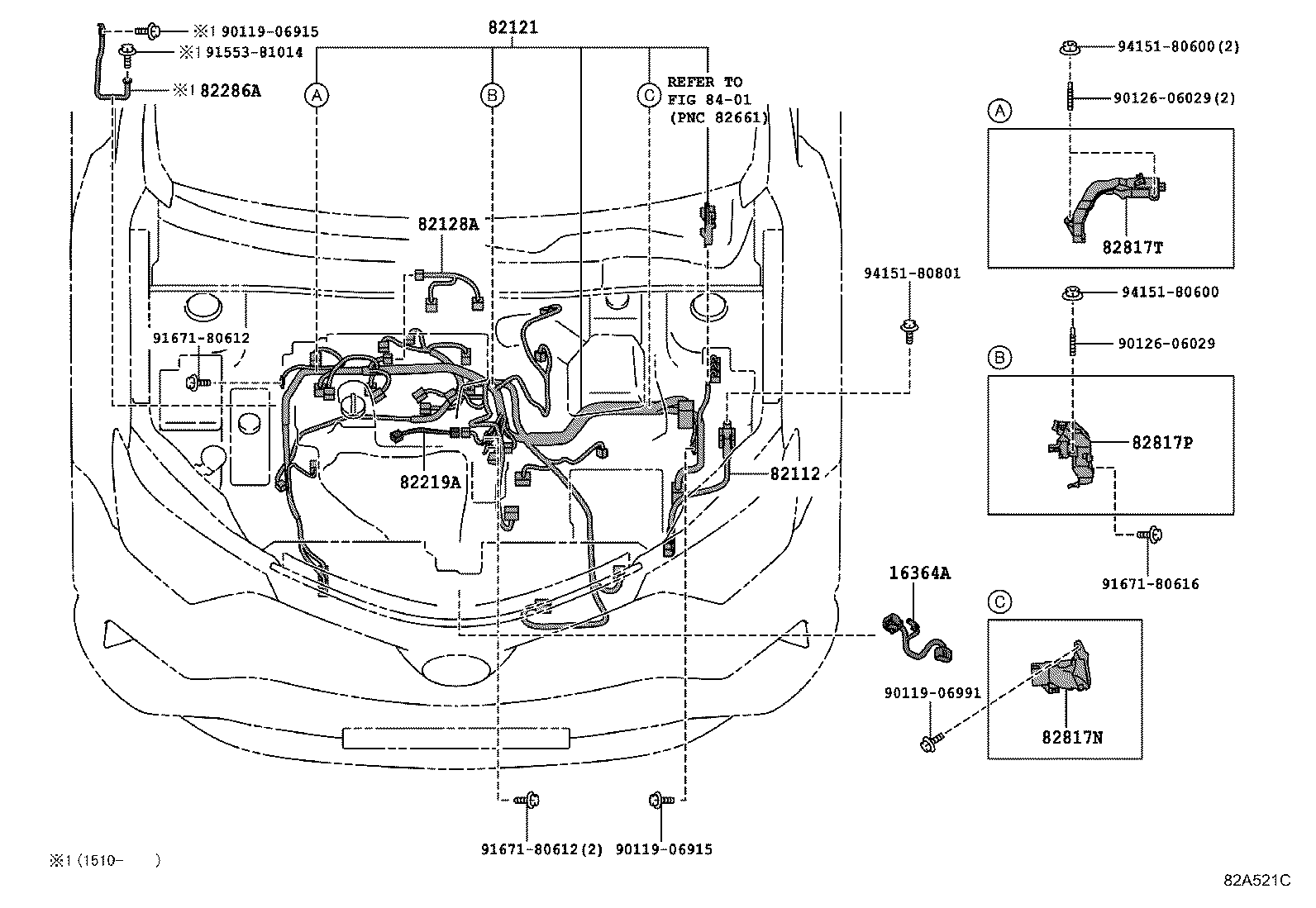

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16364A — Wire, Cooling Fan | ||||
| 16364-36010 |
Wire, Cooling Fan
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 82112 — Wire, Engine Room, NO.2 | ||||
| 82112-48060 |
Wire, Engine Room, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82121 — Wire, Engine | ||||
| 82121-42C20 |
Wire, Engine
2012-12 → 2014-10
ended
|
ASA44 | — | |
| 82121-42C20 note |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA44 LIMD | — | |
| 82121-42C30 |
Wire, Engine
2012-12 → 2014-10
ended
|
ASA42 | — | |
| 82121-42C30 note |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA42 LIMD | — | |
| 82121-42D80 |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA44 | — | |
| 82121-42D90 |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA42 | — | |
| 82121-42F40 |
Wire, Engine
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82121-42F80 |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA44 | — | |
| 82121-42F90 |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA42 | — | |
| 82121-42G00 note |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA44 LIMD | — | |
| 82121-42G10 note |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 82128A — Wire, Engine, NO.8 | ||||
| 82128-33010 |
Wire, Engine, NO.8
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82219A — Wire, Sensor | ||||
| 82219-06060 note |
Wire, Sensor
2015-05 → 2015-10
ended
|
ASA4# | — | |
| 82219-73010 |
Wire, Sensor
2012-12 → 2015-05
ended
|
ASA4# | — | |
| 82219-73010 note |
Wire, Sensor
2015-05 → 2015-10
ended
|
ASA4# | — | |
| 82219-06040 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82219-06060 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82219-33060 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82219-73010 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82817N — Protector, Wiring Harness, NO.13 | ||||
| 82817-48L10 |
Protector, Wiring Harness, NO.13
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82817P — Protector, Wiring Harness, NO.14 | ||||
| 82817-48L20 |
Protector, Wiring Harness, NO.14
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82817T — Protector, Wiring Harness, NO.15 | ||||
| 82817-48L30 |
Protector, Wiring Harness, NO.15
2015-10 → 2018-10
ended
|
AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
