Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

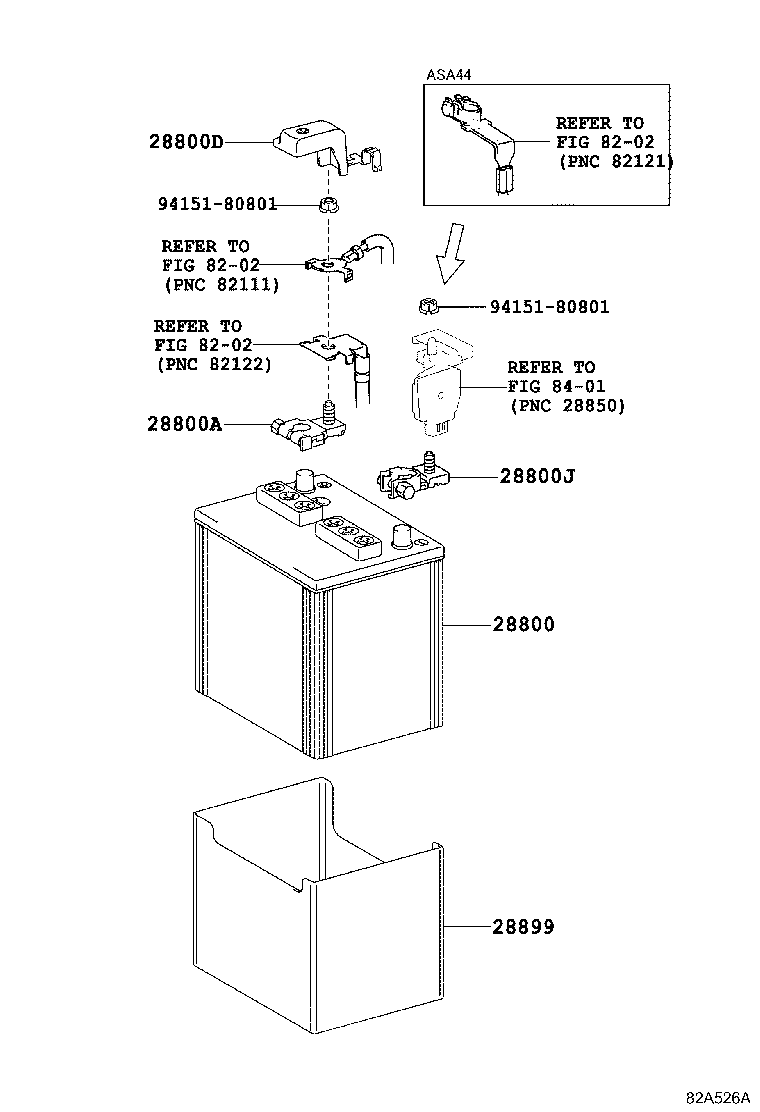

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-36070 note |
Battery
2012-12 → 2015-07
ended
|
2ARFE ASA4# | — | |
| 28800-36071 note |
Battery
2015-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28800-42041 note |
Battery
2012-12 → 2015-10
ended
|
2ARFE ASA4# LIMD | — | |
| 28800-42062 note |
Battery
2012-12 → 2015-10
ended
|
2ARFE ASA4# LIMD | — | |
| 28800-21171 note |
Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 28800-28100 note |
Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 28800-28100 note |
Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 LIMD,SE | — | |
| 28800-28100 note |
Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 USA | — | |
| 28800-28100 note |
Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 LIMD USA | — | |
| 28800-28100 note |
Battery
2017-07 → 2018-10
ended
|
2ARFXE AVA44 SE USA | — | |
| 28800-36071 note |
Battery
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28800-42062 note |
Battery
2015-10 → 2018-10
ended
|
2ARFE ASA4# LIMD | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05061 |
Terminal, Battery Positive
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90982-05061 note |
Terminal, Battery Positive
2015-10 → 2018-10
ended
|
2ARFXE AVA44 LIMD USA | — | |
| 90982-05061 note |
Terminal, Battery Positive
2017-08 → 2018-10
ended
|
2ARFXE AVA44 SE USA | — | |
| 90982-05061 note |
Terminal, Battery Positive
2015-10 → 2018-10
ended
|
2ARFXE AVA44 USA | — | |
| 90982-05061 note |
Terminal, Battery Positive
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 90982-05061 |
Terminal, Battery Positive
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 90982-05061 note |
Terminal, Battery Positive
2015-10 → 2018-10
ended
|
2ARFXE AVA44 LIMD,SE | — | |
| 90982-05063 |
Terminal, Battery Positive
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-48020 |
Cover, Connector(FOR BATTERY TERMINAL)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 82821-12490 |
Cover, Connector(FOR BATTERY TERMINAL)
2016-09 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 82821-48020 |
Cover, Connector(FOR BATTERY TERMINAL)
2015-10 → 2016-08
ended
|
2ARFE ASA4# | — | |
| 82821-53090 |
Cover, Connector(FOR BATTERY TERMINAL)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 28800J — Terminal, Battery Negative | ||||
| 82675-42120 |
Terminal, Battery Negative
2012-12 → 2015-10
ended
|
2ARFE ASA42 | — | |
| 82675-42120 |
Terminal, Battery Negative
2015-10 → 2018-10
ended
|
2ARFE ASA42 | — | |
| 28899 — Insulator, Battery | ||||
| 28899-36020 |
Insulator, Battery
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28899-36020 |
Insulator, Battery
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28899-36090 |
Insulator, Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 28899-36100 note |
Insulator, Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 28899-36100 note |
Insulator, Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 LIMD,SE | — | |
| 28899-36100 note |
Insulator, Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 USA | — | |
| 28899-36100 note |
Insulator, Battery
2015-10 → 2018-10
ended
|
2ARFXE AVA44 LIMD USA | — | |
| 28899-36100 note |
Insulator, Battery
2017-07 → 2018-10
ended
|
2ARFXE AVA44 SE USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
