Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

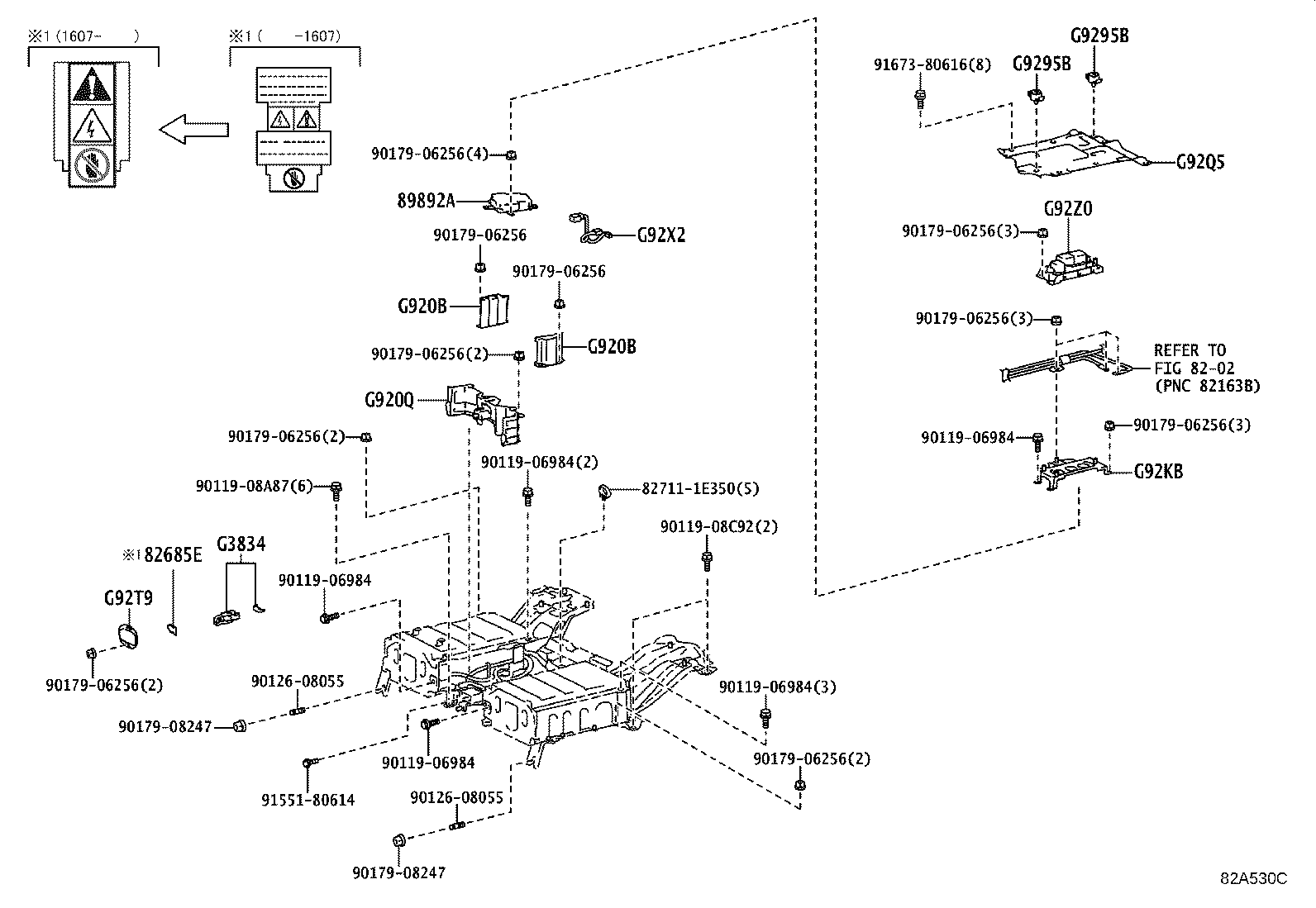

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685E — Plate, Service Plug Caution | ||||
| 82685-50050 |
Plate, Service Plug Caution
2015-10 → 2016-07
ended
|
AVA44 | — | |
| 82685-76020 |
Plate, Service Plug Caution
2016-07 → 2018-10
ended
|
AVA44 | — | |
| 89892A — Sensor, Battery Voltage | ||||
| 89892-48050 |
Sensor, Battery Voltage
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-48010 |
Grip, Service Plug
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G920B — Bracket Sub-assy, HV Battery Carrier, NO.1 | ||||
| G920B-48010 |
Bracket Sub-assy, HV Battery Carrier, NO.1
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G920Q — Shield Sub-assy, Hybrid Battery, NO.1 | ||||
| G920Q-48020 |
Shield Sub-assy, Hybrid Battery, NO.1
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G92KB — Patch, HV Battery Lwr Carrier, NO.2 | ||||
| G92KB-48010 |
Patch, HV Battery Lwr Carrier, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G92Q5 — Reinforcement, HV Battery Shield, NO.2 | ||||
| G92Q5-48010 |
Reinforcement, HV Battery Shield, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G92T9 — Cover, Hybrid Battery Service Plug | ||||
| G92T9-48010 |
Cover, Hybrid Battery Service Plug
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G92X2 — Wire, HV Battery Pack, NO.2 | ||||
| G92X2-48040 |
Wire, HV Battery Pack, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G92Z0 — Block Assy, HV Battery Junction | ||||
| G92Z0-53010 |
Block Assy, HV Battery Junction
2015-10 → 2018-10
ended
|
AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
