Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04

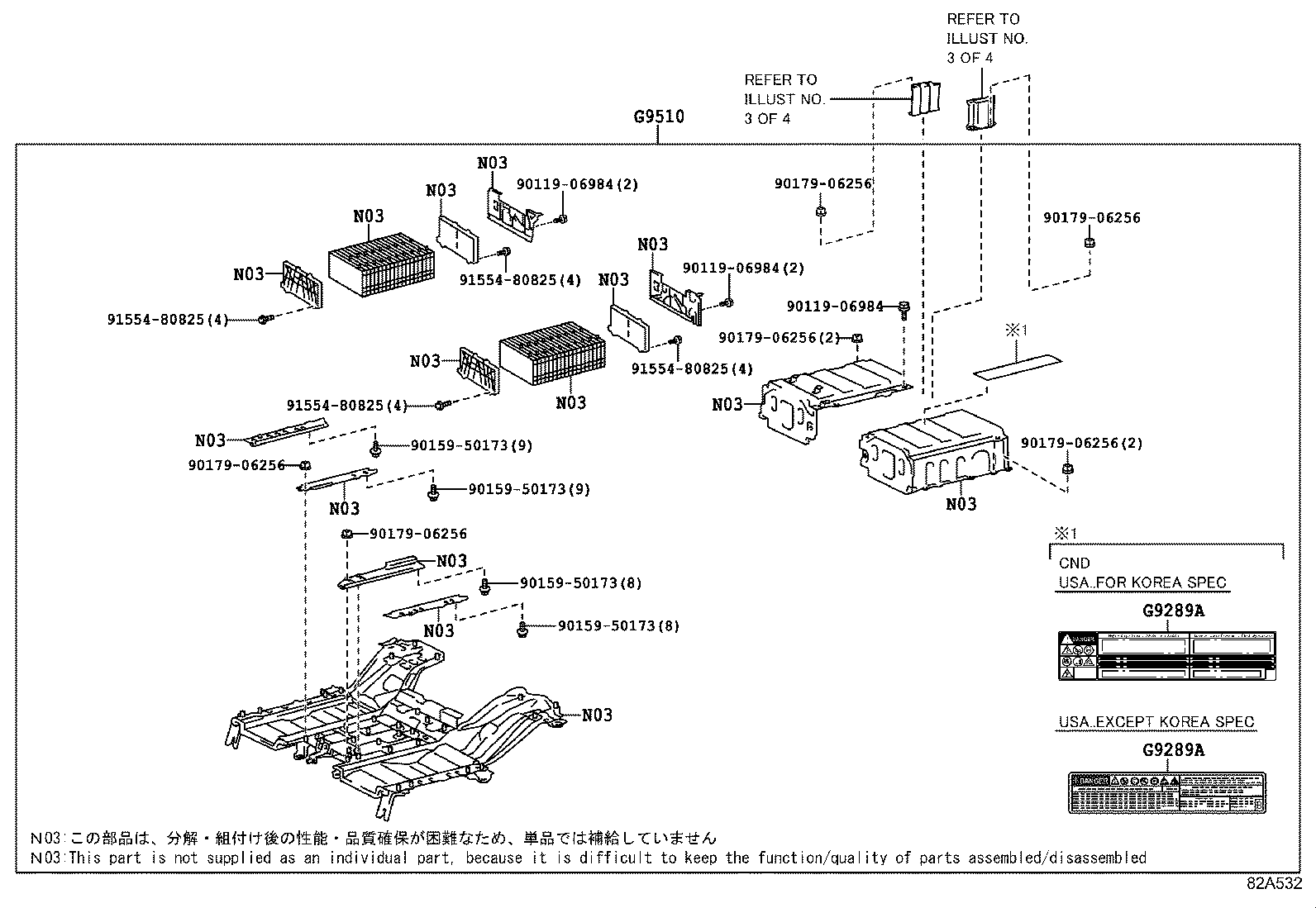

Exploded illustration 82A532 G9510 — BATTERY ASSY, HV SUPPLY (1 parts) G9289A — LABEL, BATTERY CAUTION (3 parts) G9289A — LABEL, BATTERY CAUTION (3 parts) 9017906256 — not listed in this catalogue 9011906984 — not listed in this catalogue 9017906256 — not listed in this catalogue 9017906256 — not listed in this catalogue 9017906256 — not listed in this catalogue 9155480825 — not listed in this catalogue 9155480825 — not listed in this catalogue 9155480825 — not listed in this catalogue 9155480825 — not listed in this catalogue 9011906984 — not listed in this catalogue 9011906984 — not listed in this catalogue 9015950173 — not listed in this catalogue 9015950173 — not listed in this catalogue 9015950173 — not listed in this catalogue 9015950173 — not listed in this catalogue 9017906256 — not listed in this catalogue 9017906256 — not listed in this catalogue
82A532 · 3 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
4 parts on this figure
Part number Description Fitment Price
G9289A — Label, Battery Caution
G9288-48030 Label, Battery Caution
2015-10 → 2018-10 ended
AVA44 CND —
G9288-48040 note Label, Battery Caution
2015-10 → 2018-10 ended
AVA44 LIMD USA —
G9288-50020 Label, Battery Caution
2015-10 → 2018-10 ended
AVA44 USA —
G9510 — Battery Assy, HV Supply
G9510-48080 Battery Assy, HV Supply
2015-10 → 2018-10 ended
AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
