Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

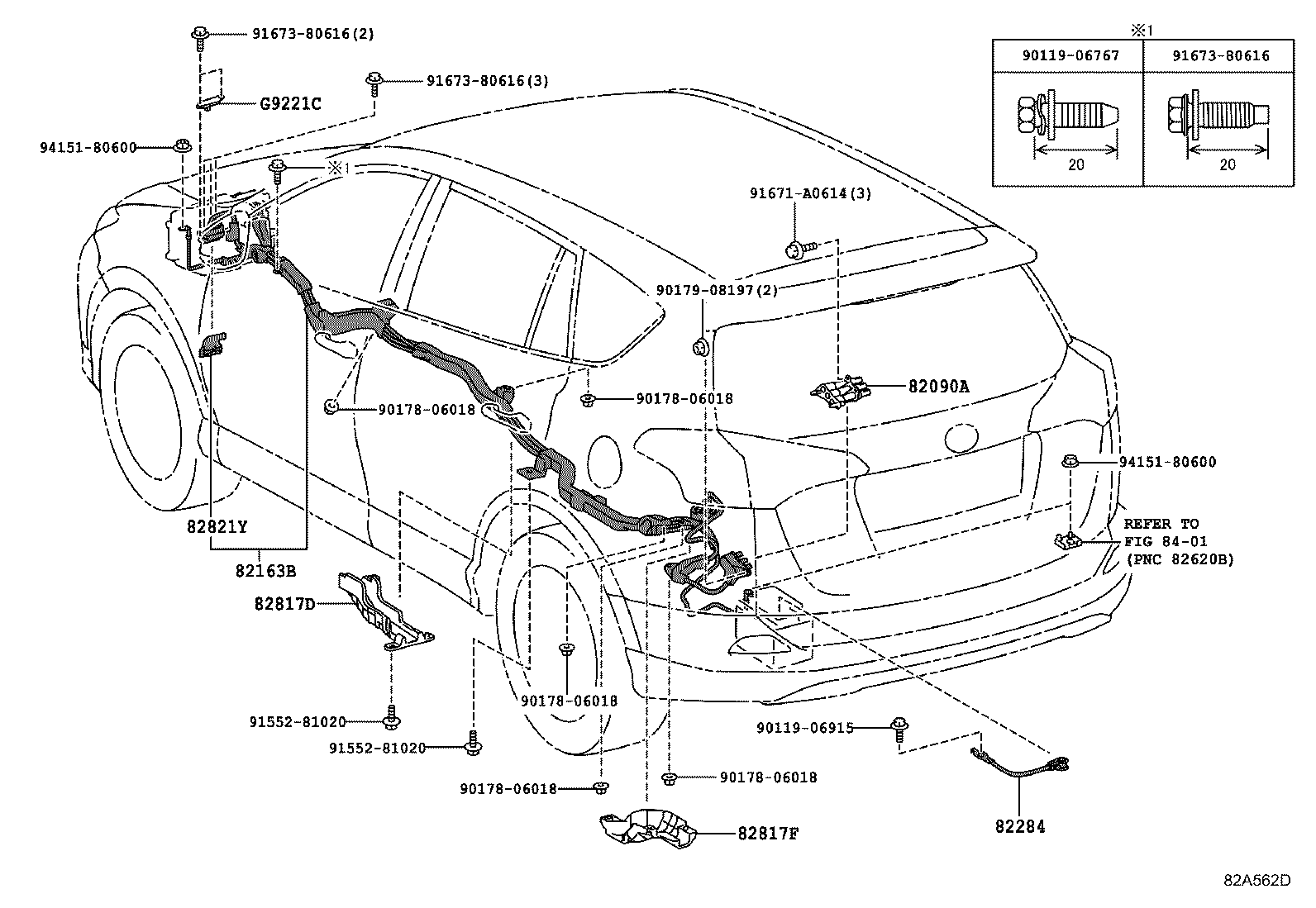

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82090A — Wire Assy, Extension | ||||
| 82090-48020 |
Wire Assy, Extension
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82163B — Wire, Floor NO.5 | ||||
| 82165-42080 |
Wire, Floor NO.5
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82284 — Wire, Earth | ||||
| 82284-42030 |
Wire, Earth
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82284-48040 note |
Wire, Earth
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82284-48040 note |
Wire, Earth
2015-10 → 2018-10
ended
|
AVA44 LIMD,SE | — | |
| 82284-48040 note |
Wire, Earth
2015-10 → 2018-10
ended
|
AVA44 USA | — | |
| 82284-48040 note |
Wire, Earth
2015-10 → 2018-10
ended
|
AVA44 LIMD USA | — | |
| 82284-48040 note |
Wire, Earth
2017-08 → 2018-10
ended
|
AVA44 SE USA | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-48M00 |
Protector, Wiring Harness, NO.5
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-48M30 |
Protector, Wiring Harness, NO.7
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82821Y — Cover, Connector | ||||
| 82814-42030 |
Cover, Connector
2015-10 → 2018-10
ended
|
AVA44 | — | |
| G9221C — Cover, Inverter, Upper | ||||
| G9221-33010 |
Cover, Inverter, Upper
2015-10 → 2018-10
ended
|
AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
