Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

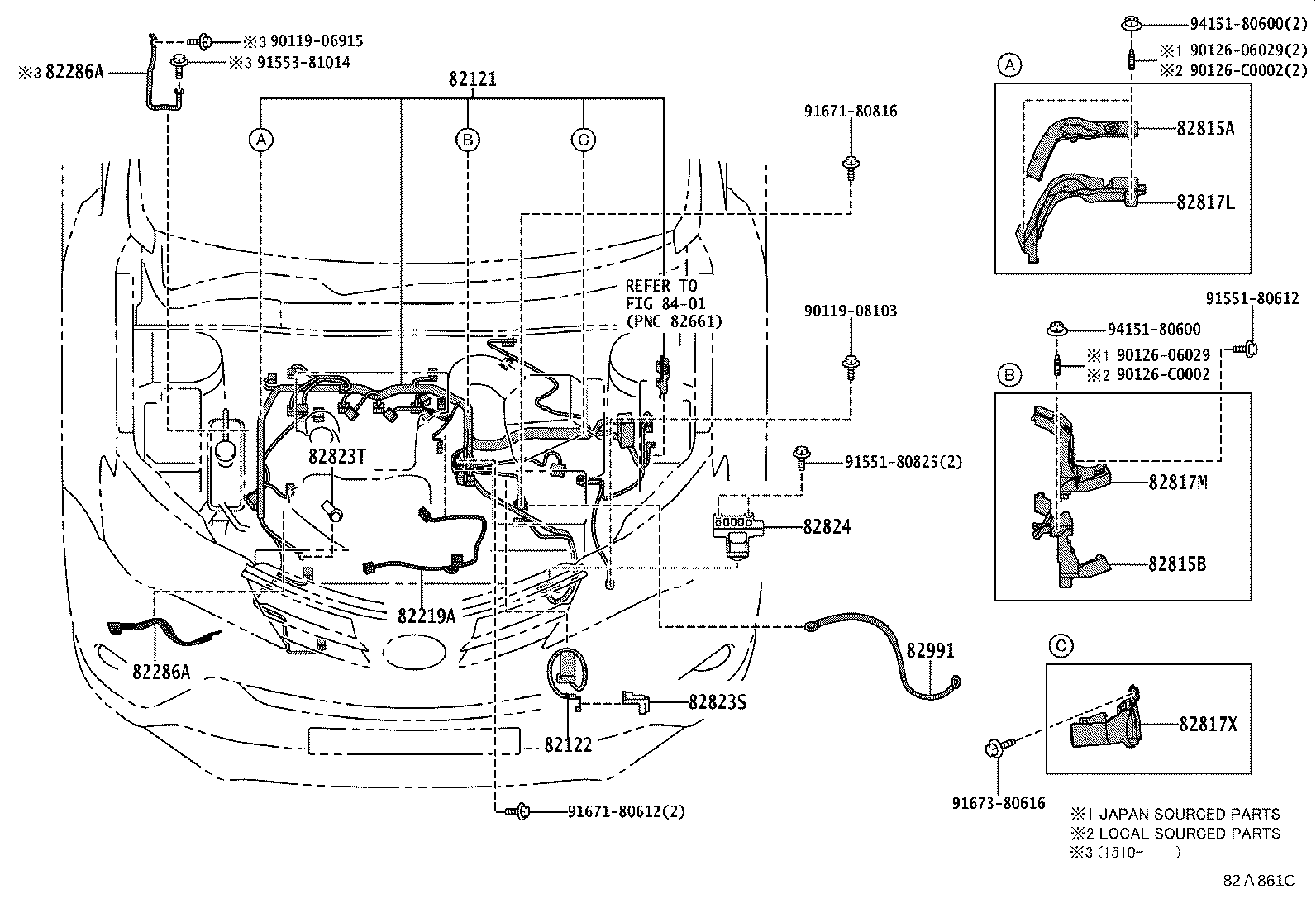

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-42C20 |
Wire, Engine
2012-12 → 2014-10
ended
|
ASA44 | — | |
| 82121-42C20 note |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA44 LIMD | — | |
| 82121-42C30 |
Wire, Engine
2012-12 → 2014-10
ended
|
ASA42 | — | |
| 82121-42C30 note |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA42 LIMD | — | |
| 82121-42D80 |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA44 | — | |
| 82121-42D90 |
Wire, Engine
2014-10 → 2015-10
ended
|
ASA42 | — | |
| 82121-42F40 |
Wire, Engine
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82121-42F80 |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA44 | — | |
| 82121-42F90 |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA42 | — | |
| 82121-42G00 note |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA44 LIMD | — | |
| 82121-42G10 note |
Wire, Engine
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-42090 |
Wire, Engine, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82122-42090 |
Wire, Engine, NO.2
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82219A — Wire, Sensor | ||||
| 82219-06060 note |
Wire, Sensor
2015-05 → 2015-10
ended
|
ASA4# | — | |
| 82219-73010 |
Wire, Sensor
2012-12 → 2015-05
ended
|
ASA4# | — | |
| 82219-73010 note |
Wire, Sensor
2015-05 → 2015-10
ended
|
ASA4# | — | |
| 82219-06040 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82219-06060 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82219-33060 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 82219-73010 note |
Wire, Sensor
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82286A — Wire, Earth, NO.2 | ||||
| 82286-42010 |
Wire, Earth, NO.2
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-42040 |
Cover, Wiring Harness Protector
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82815-42040 |
Cover, Wiring Harness Protector
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-42050 |
Cover, Wiring Harness Protector
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82815-42150 |
Cover, Wiring Harness Protector
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82817L — Protector, Wiring Harness, NO.11 | ||||
| 82817-42580 |
Protector, Wiring Harness, NO.11
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82817-42580 |
Protector, Wiring Harness, NO.11
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-42590 |
Protector, Wiring Harness, NO.12
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82817-42B00 |
Protector, Wiring Harness, NO.12
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82817X — Protector, Wiring Harness, NO.17 | ||||
| 82817-42520 |
Protector, Wiring Harness, NO.17
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82817-42520 |
Protector, Wiring Harness, NO.17
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-42020 |
Cap, Starter Terminal
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82823-42020 |
Cap, Starter Terminal
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82823-22050 note |
Cap, Alternator Terminal
2015-10 → 2018-10
ended
|
ASA44 LIMD | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-33360 |
Connector, Wiring Harness
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82824-33360 |
Connector, Wiring Harness
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-42040 |
Wire, Fusible Link Repair
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82991-42040 |
Wire, Fusible Link Repair
2015-10 → 2018-10
ended
|
ASA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
