Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

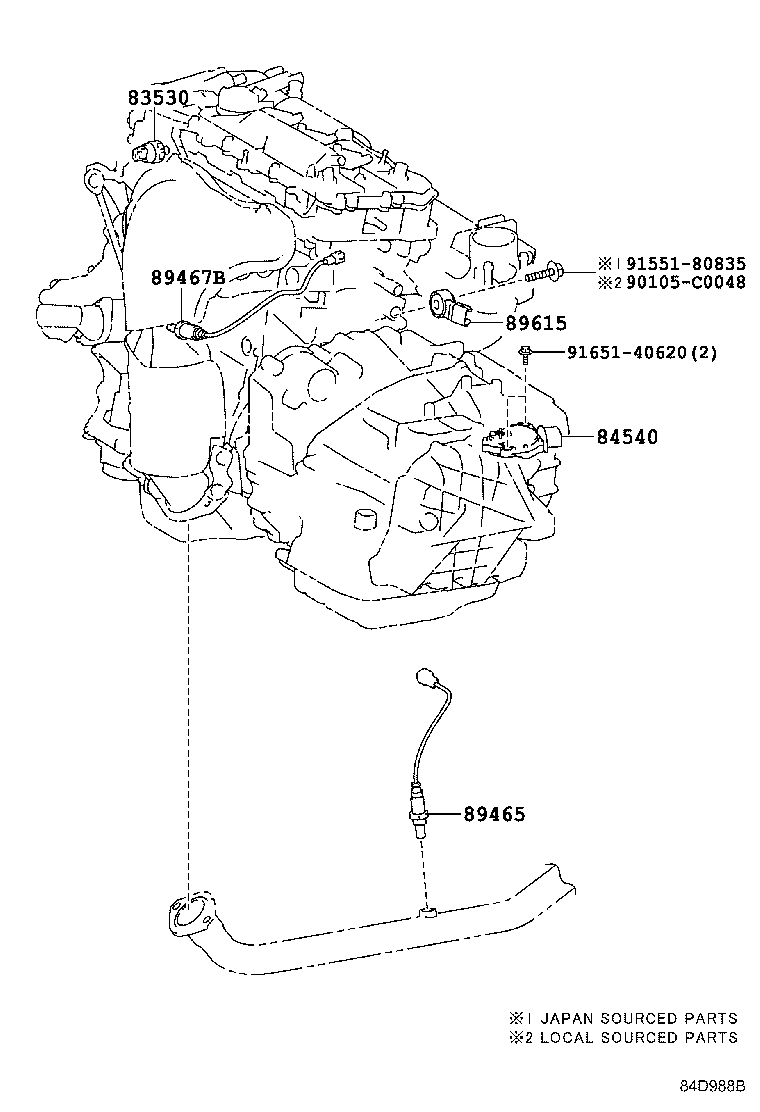

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-33010 |
Switch Assy, Neutral Start
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84540-33010 |
Switch Assy, Neutral Start
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-42230 |
Sensor, Oxygen
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89465-42230 |
Sensor, Oxygen
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-0R060 note |
Sensor, Air Fuel Ratio
2014-01 → 2015-10
ended
|
ASA4# | — | |
| 89467-21020 |
Sensor, Air Fuel Ratio
2012-12 → 2014-01
ended
|
ASA4# | — | |
| 89467-21020 note |
Sensor, Air Fuel Ratio
2014-01 → 2015-10
ended
|
ASA4# | — | |
| 89467-06200 note |
Sensor, Air Fuel Ratio
2017-12 → 2018-10
ended
|
AVA44 | — | |
| 89467-0R060 note |
Sensor, Air Fuel Ratio
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 89467-21020 note |
Sensor, Air Fuel Ratio
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 89467-48270 |
Sensor, Air Fuel Ratio
2015-10 → 2017-12
ended
|
AVA44 | — | |
| 89467-48270 note |
Sensor, Air Fuel Ratio
2017-12 → 2018-10
ended
|
AVA44 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89615-20090 |
Sensor, Knock Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
