Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

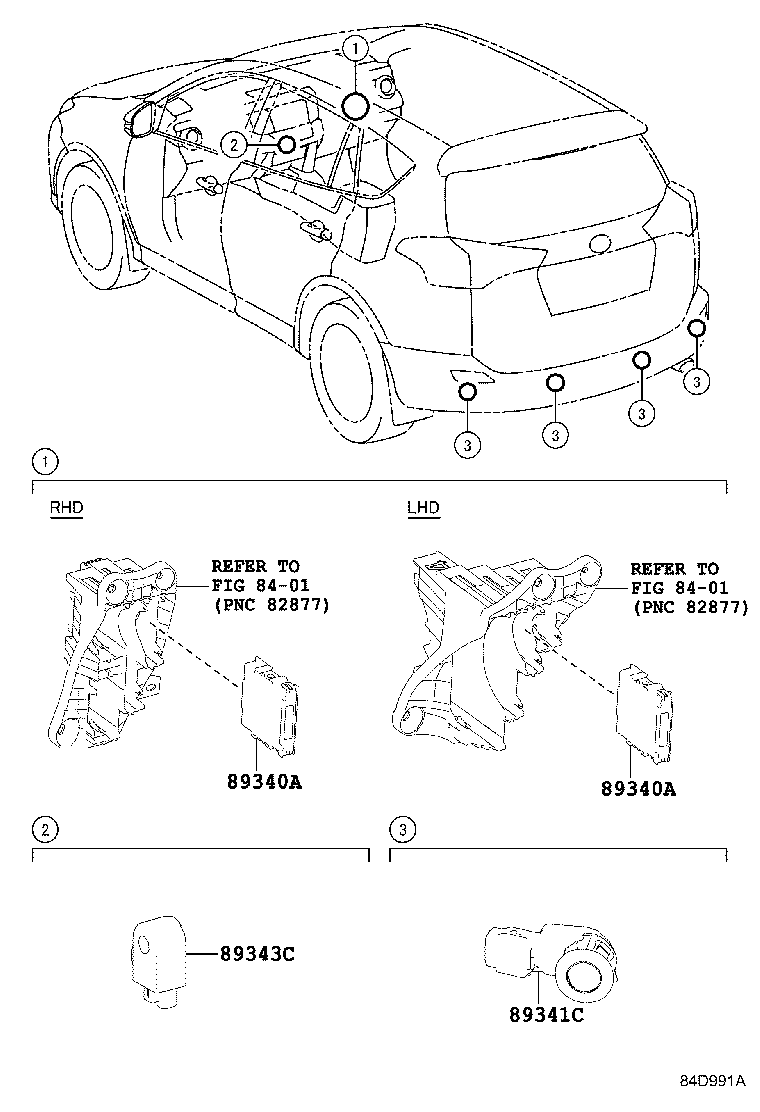

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89340A — Computer Assy, Clearance Warning | ||||
| 89340-42010 note |
Computer Assy, Clearance Warning
2012-12 → 2013-01
ended
|
ASA4# | — | |
| 89340-42011 note |
Computer Assy, Clearance Warning
2013-01 → 2013-11
ended
|
ASA4# | — | |
| 89340-42030 note |
Computer Assy, Clearance Warning
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 89340-42040 note |
Computer Assy, Clearance Warning
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 89340-42040 note |
Computer Assy, Clearance Warning
2015-10 → 2018-10
ended
|
AVA44 SE USA;AVA44 LIMD,XLE;ASA4# +1 | — | |
| 89340-42040 |
Computer Assy, Clearance Warning
2016-08 → 2018-10
ended
|
AVA44 SE CND | — | |
| 89340-42050 note |
Computer Assy, Clearance Warning
2015-10 → 2017-08
ended
|
ASA4# LE | — | |
| 89341C — Sensor, Ultrasonic, NO.3 | ||||
| 89341-42010 note |
Sensor, Ultrasonic, NO.3
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 89341-42030 note |
Sensor, Ultrasonic, NO.3
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 89343C — Buzzer, Clearance Warning, NO.1 | ||||
| 89343-72010 note |
Buzzer, Clearance Warning, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89343-48010 note |
Buzzer, Clearance Warning, NO.1
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 89343-48010 note |
Buzzer, Clearance Warning, NO.1
2015-10 → 2017-08
ended
|
ASA4# LE | — | |
| 89343-48010 note |
Buzzer, Clearance Warning, NO.1
2015-10 → 2018-10
ended
|
AVA44 SE USA;AVA44 LIMD,XLE;ASA4# +1 | — | |
| 89343-48010 |
Buzzer, Clearance Warning, NO.1
2016-08 → 2018-10
ended
|
AVA44 SE CND | — | |
| 89343-48010 note |
Buzzer, Clearance Warning, NO.1
2016-08 → 2018-10
ended
|
AVA44 SE CND | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
