Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

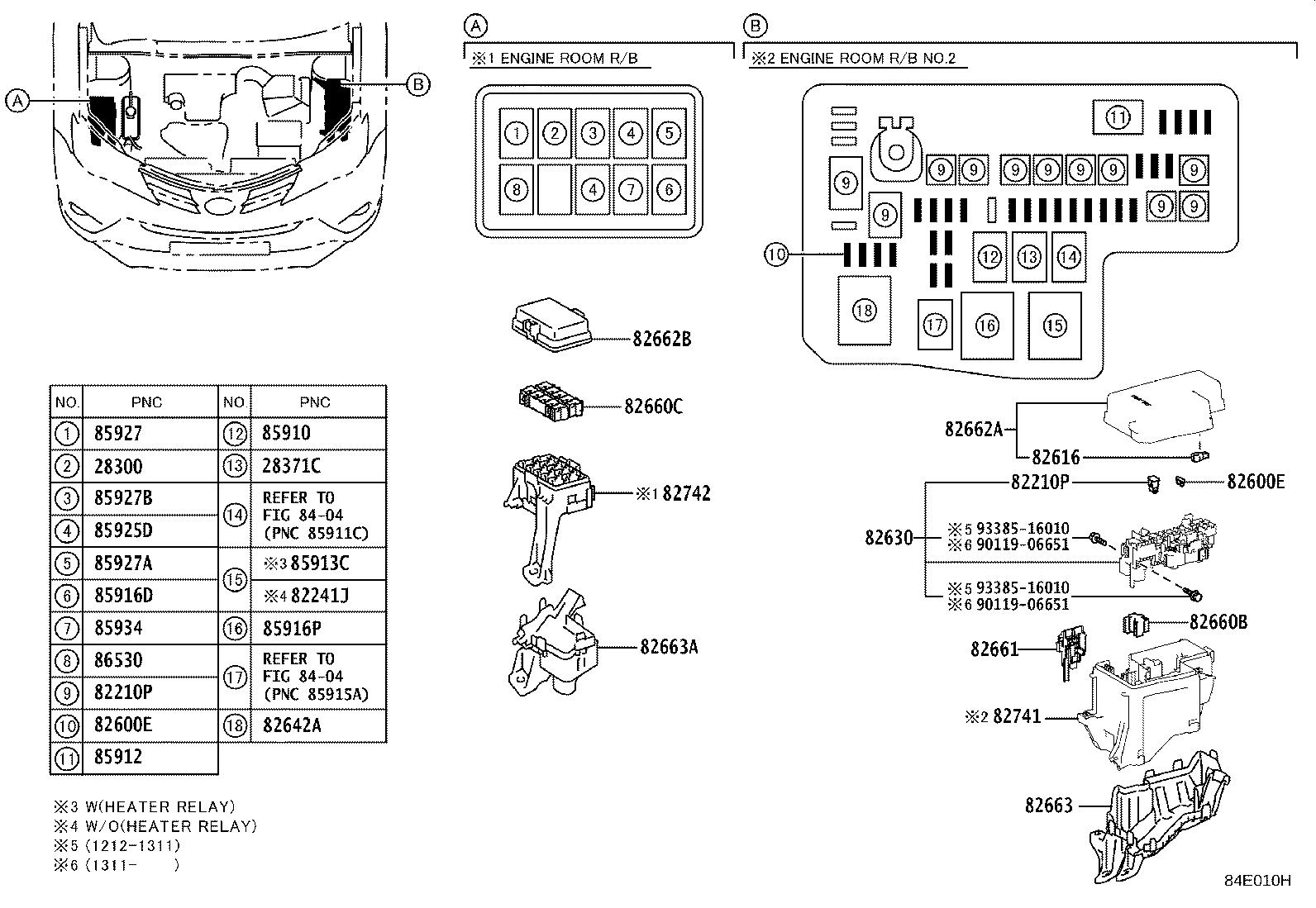

Exploded illustration 84E010H 85913C — RELAY, HEATER, NO.1 (3 parts) 28300 — RELAY ASSY, STARTER (3 parts) 85927B — RELAY, COOLING FAN, NO.3 (2 parts) 85927A — RELAY, COOLING FAN, NO.2 (2 parts) 85925D — RELAY, PTC HEATER (2 parts) 85916D — RELAY, FOG LAMP (3 parts) 86530 — RELAY ASSY, HORN (2 parts) 85912 — RELAY, DEFOGGER (2 parts) 85910 — RELAY ASSY, CIRCUIT OPENING (2 parts) 82600E — ENGINE ROOM FUSE (12 parts) 82210P — ENGINE ROOM FUSIBLE LINK (12 parts) 28371C — RELAY, IGNITION, NO.2 (2 parts) 85916P — RELAY, HEADLAMP (4 parts) 8404 — not listed in this catalogue 85934 — RELAY, MAGNET-CLUTCH (2 parts) 82241J — PIN, SHORT (2 parts) 82642A — RELAY, RUNNING LIGHT (5 parts) 8404 — not listed in this catalogue 82660C — BLOCK ASSY, RELAY (3 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (2 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (7 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (3 parts) 85927 — RELAY, COOLING FAN (3 parts) 82630 — HOLDER ASSY, FUSE (3 parts) 82660B — BLOCK ASSY, RELAY (6 parts) 82210P — ENGINE ROOM FUSIBLE LINK (12 parts) 82600E — ENGINE ROOM FUSE (12 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (4 parts) 82616 — PULLER, FUSE (2 parts) 82663 — COVER, RELAY BLOCK, LOWER (2 parts) 82741 — BLOCK, ENGINE ROOM RELAY (3 parts) 82661 — COVER, RELAY BLOCK, NO.1 (2 parts) 9338516010 — not listed in this catalogue 9011906651 — not listed in this catalogue 9338516010 — not listed in this catalogue 9011906651 — not listed in this catalogue
84E010H · 30 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-21020 Relay Assy, Starter
2014-07 → 2015-10 ended
2ARFE ASA4# —
28300-28010 Relay Assy, Starter
2012-12 → 2014-07 ended
2ARFE ASA4# —
28300-21020 Relay Assy, Starter
2015-10 → 2018-10 ended
2ARFE ASA4# —
28371C — Relay, Ignition, NO.2
90987-02027 Relay, Ignition, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
90987-02027 Relay, Ignition, NO.2
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
82210P — Engine Room Fusible Link
90982-08274 note Engine Room Fusible Link
2012-12 → 2015-10 ended
ASA4# —
90982-08295 note Engine Room Fusible Link
2012-12 → 2015-10 ended
ASA4# —
90982-08296 note Engine Room Fusible Link
2012-12 → 2015-10 ended
ASA4# —
90982-08305 note Engine Room Fusible Link
2012-12 → 2015-10 ended
ASA4# —
90982-08274 note Engine Room Fusible Link
2015-10 → 2018-10 ended
AVA44 —
90982-08286 note Engine Room Fusible Link
2015-10 → 2018-10 ended
ASA4# —
90982-08294 note Engine Room Fusible Link
2015-10 → 2018-10 ended
ASA4# —
90982-08295 note Engine Room Fusible Link
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90982-08296 note Engine Room Fusible Link
2015-10 → 2018-10 ended
ASA4# —
90982-08302 note Engine Room Fusible Link
2015-10 → 2018-10 ended
AVA44 —
90982-08303 note Engine Room Fusible Link
2015-10 → 2018-10 ended
AVA44 —
90982-08305 note Engine Room Fusible Link
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82241J — Pin, Short
82241-42010 Pin, Short
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
82241-42010 Pin, Short
2015-10 → 2018-10 ended
ASA4# LIMD,SE,XLE —
82600E — Engine Room Fuse
90982-09020 note Engine Room Fuse
2012-12 → 2015-10 ended
ASA4# —
90982-09021 note Engine Room Fuse
2012-12 → 2015-10 ended
ASA4# —
90982-09022 note Engine Room Fuse
2012-12 → 2015-10 ended
ASA4# —
90982-09023 note Engine Room Fuse
2012-12 → 2015-10 ended
ASA4# —
90982-09025 note Engine Room Fuse
2012-12 → 2015-10 ended
ASA4# —
90982-09019 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90982-09020 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90982-09021 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90982-09022 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90982-09023 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
90982-09024 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4# —
90982-09025 note Engine Room Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2012-12 → 2015-10 ended
ASA4# —
82616-58010 Puller, Fuse
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82630 — Holder Assy, Fuse
82630-42030 Holder Assy, Fuse
2012-12 → 2015-10 ended
ASA4# —
82630-42020 Holder Assy, Fuse
2015-10 → 2018-10 ended
ASA4# —
82630-48010 Holder Assy, Fuse
2015-10 → 2018-10 ended
AVA44 —
82642A — Relay, Running Light
82642-60020 Relay, Running Light
2012-12 → 2015-10 ended
ASA4# —
82642-52030 Relay, Running Light
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
90987-02027 note Relay, Running Light
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
90987-02027 note Relay, Running Light
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
90987-02027 Relay, Running Light
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
82660B — Block Assy, Relay
82660-60170 Block Assy, Relay
2012-12 → 2015-10 ended
ASA4# —
82660-0H070 Block Assy, Relay
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
82660-0H070 note Block Assy, Relay
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
82660-0H070 note Block Assy, Relay
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
82660-0H070 note Block Assy, Relay
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
82660-52130 Block Assy, Relay
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
82660C — Block Assy, Relay
82660-42060 Block Assy, Relay
2012-12 → 2015-10 ended
ASA4# —
82660-52010 Block Assy, Relay
2015-10 → 2018-10 ended
ASA4# —
82660-52010 Block Assy, Relay
2015-10 → 2018-10 ended
AVA44 —
82661 — Cover, Relay Block, NO.1
82661-42040 Cover, Relay Block, NO.1
2012-12 → 2015-10 ended
ASA4# —
82661-42040 Cover, Relay Block, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82662A — Cover, Relay Block, Upper, NO.1
82662-42340 Cover, Relay Block, Upper, NO.1
2012-12 → 2015-10 ended
ASA4# —
82662-42410 Cover, Relay Block, Upper, NO.1
2015-10 → 2018-10 ended
ASA4# —
82662-42600 Cover, Relay Block, Upper, NO.1
2015-10 → 2016-08 ended
AVA44 —
82662-42601 Cover, Relay Block, Upper, NO.1
2016-08 → 2018-10 ended
AVA44 —
82662B — Cover, Relay Block, Upper, NO.2
82662-42370 Cover, Relay Block, Upper, NO.2
2012-12 → 2015-10 ended
ASA4# —
82662-42620 Cover, Relay Block, Upper, NO.2
2015-10 → 2015-10 ended
ASA4# LE,LIMD,XLE —
82662-42620 Cover, Relay Block, Upper, NO.2
2015-10 → —
ASA4# SE;AVA44 LIMD,XLE —
82662-42610 Cover, Relay Block, Upper, NO.2
2015-10 → 2016-08 ended
AVA44 —
82662-42611 Cover, Relay Block, Upper, NO.2
2016-08 → 2018-10 ended
AVA44 —
82662-42620 Cover, Relay Block, Upper, NO.2
2015-10 → 2016-08 ended
ASA4# —
82662-42621 Cover, Relay Block, Upper, NO.2
2016-08 → 2018-10 ended
ASA4# —
82663 — Cover, Relay Block, Lower
82663-42100 Cover, Relay Block, Lower
2012-12 → 2015-10 ended
ASA4# —
82663-42100 Cover, Relay Block, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82663A — Cover, Relay Block, Lower, NO.2
82663-42120 Cover, Relay Block, Lower, NO.2
2012-12 → 2015-10 ended
ASA4# —
82663-42110 Cover, Relay Block, Lower, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
82741 — Block, Engine Room Relay
82741-42020 Block, Engine Room Relay
2012-12 → 2015-10 ended
ASA4# —
82741-42020 Block, Engine Room Relay
2015-10 → 2018-10 ended
ASA4# —
82741-48080 Block, Engine Room Relay
2015-10 → 2018-10 ended
AVA44 —
82742 — Block, Engine Room Relay, NO.2
82741-42040 Block, Engine Room Relay, NO.2
2012-12 → 2015-10 ended
ASA4# —
82741-42031 Block, Engine Room Relay, NO.2
2015-10 → 2018-10 ended
ASA4# —
82741-48090 Block, Engine Room Relay, NO.2
2015-10 → 2018-10 ended
AVA44 —
85910 — Relay Assy, Circuit Opening
90987-02027 Relay Assy, Circuit Opening
2012-12 → 2015-10 ended
ASA44 —
90987-02027 Relay Assy, Circuit Opening
2015-10 → 2018-10 ended
ASA44 —
85912 — Relay, Defogger
90987-02027 Relay, Defogger
2012-12 → 2015-10 ended
ASA4# LE —
90987-02027 Relay, Defogger
2015-10 → 2018-10 ended
ASA4# LE —
85913C — Relay, Heater, NO.1
90987-04010 Relay, Heater, NO.1
2012-12 → 2015-10 ended
ASA4# LE —
90987-02028 Relay, Heater, NO.1
2015-10 → 2018-10 ended
AVA44 —
90987-04010 Relay, Heater, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
85916D — Relay, Fog Lamp
90987-02027 Relay, Fog Lamp
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
90987-02027 Relay, Fog Lamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
90987-02027 note Relay, Fog Lamp
2015-10 → 2018-10 ended
AVA44 XLE —
85916P — Relay, Headlamp
90987-02025 Relay, Headlamp
2012-12 → 2015-10 ended
ASA4# —
90987-02025 Relay, Headlamp
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
90987-02025 note Relay, Headlamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
90987-02025 note Relay, Headlamp
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
85925D — Relay, Ptc Heater
90987-02027 Relay, Ptc Heater
2012-12 → 2015-10 ended
ASA4# —
90987-02027 Relay, Ptc Heater
2015-10 → 2018-10 ended
ASA4#,AVA44 —
85927 — Relay, Cooling Fan
90987-02027 Relay, Cooling Fan
2012-12 → 2015-10 ended
ASA4# —
90987-02025 Relay, Cooling Fan
2015-10 → 2018-10 ended
AVA44 —
90987-02027 Relay, Cooling Fan
2015-10 → 2018-10 ended
ASA4# —
85927A — Relay, Cooling Fan, NO.2
90987-04004 Relay, Cooling Fan, NO.2
2012-12 → 2015-10 ended
ASA4# —
90987-04004 Relay, Cooling Fan, NO.2
2015-10 → 2018-10 ended
ASA4# —
85927B — Relay, Cooling Fan, NO.3
90987-02027 Relay, Cooling Fan, NO.3
2012-12 → 2015-10 ended
ASA4# —
90987-02027 Relay, Cooling Fan, NO.3
2015-10 → 2018-10 ended
ASA4# —
85934 — Relay, Magnet-clutch
90987-02027 Relay, Magnet-clutch
2012-12 → 2015-10 ended
ASA42 —
90987-02027 Relay, Magnet-clutch
2015-10 → 2018-10 ended
ASA42 —
86530 — Relay Assy, Horn
90987-02027 Relay Assy, Horn
2012-12 → 2015-10 ended
ASA4# —
90987-02027 Relay Assy, Horn
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
