Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

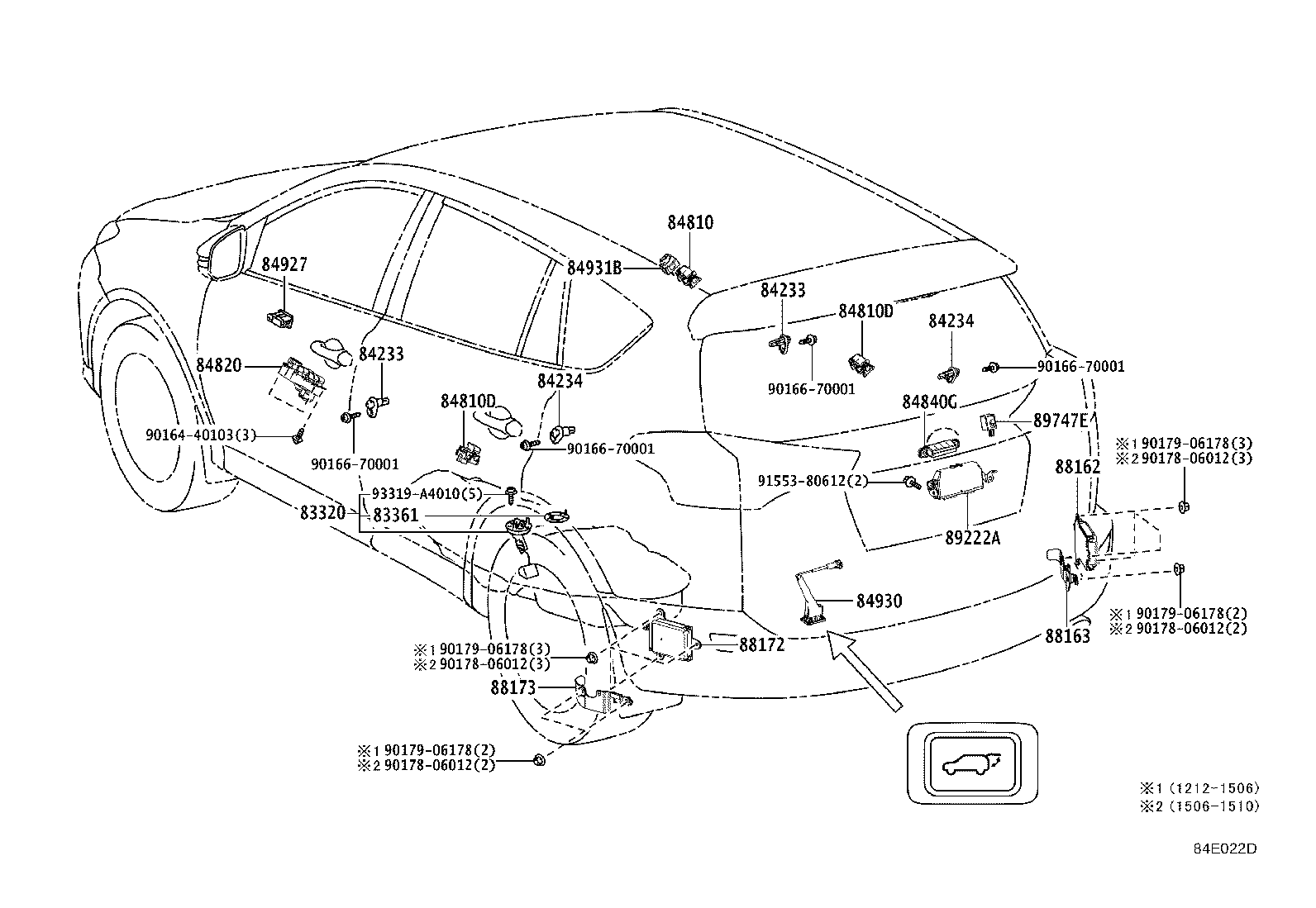

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-49205 |
Gage Assy, Fuel Sender
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 83320-49205 |
Gage Assy, Fuel Sender
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 83320-49255 |
Gage Assy, Fuel Sender
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 77169-14020 |
Gasket, Fuel Sender Gage
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 77169-14020 |
Gasket, Fuel Sender Gage
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 77169-14020 |
Gasket, Fuel Sender Gage
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-42200 |
Master Switch Assy, Power Window Regulator
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 84820-42210 |
Master Switch Assy, Power Window Regulator
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 84820-42200 |
Master Switch Assy, Power Window Regulator
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 84820-42210 |
Master Switch Assy, Power Window Regulator
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-28030 |
Switch Assy, Back Door Opener
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84840-28040 note |
Switch Assy, Back Door Opener
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84840-28040 note |
Switch Assy, Back Door Opener
2013-11 → 2015-10
ended
|
ASA42 LIMD | — | |
| 84840-48020 note |
Switch Assy, Back Door Opener
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
| 84840-48020 note |
Switch Assy, Back Door Opener
2015-10 → 2018-10
ended
|
ASA4# XLE | — | |
| 84840-48020 |
Switch Assy, Back Door Opener
2015-10 → 2018-10
ended
|
AVA44;ASA4# LIMD | — | |
| 84840-48020 note |
Switch Assy, Back Door Opener
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 84840-78010 |
Switch Assy, Back Door Opener
2015-10 → 2018-10
ended
|
ASA4# LE,SE,XLE | — | |
| 84927 — Switch, Seat Memory | ||||
| 84927-42010 |
Switch, Seat Memory
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84927-42010 note |
Switch, Seat Memory
2012-12 → 2015-10
ended
|
ASA42 LIMD | — | |
| 84927-42011 |
Switch, Seat Memory
2015-10 → 2016-07
ended
|
ASA4#,AVA44 LIMD | — | |
| 84927-42030 |
Switch, Seat Memory
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-42040 |
Switch Assy, Door Control
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84930-42040 note |
Switch Assy, Door Control
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 84930-42040 note |
Switch Assy, Door Control
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 84930-42040 note |
Switch Assy, Door Control
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 84930-42040 note |
Switch Assy, Door Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 84930-42040 |
Switch Assy, Door Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 84931B — Switch, Door Control | ||||
| 84930-12250 |
Switch, Door Control
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-0W070 note |
Sensor, Blind Spot Monitor, RH
2012-12 → 2013-11
ended
|
ASA4# LIMD | — | |
| 88162-0W190 note |
Sensor, Blind Spot Monitor, RH
2013-11 → 2015-10
ended
|
ASA4# LIMD | — | |
| 88162-0W380 note |
Sensor, Blind Spot Monitor, RH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88162-0W381 note |
Sensor, Blind Spot Monitor, RH
2016-08 → 2018-04
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88162-0W382 note |
Sensor, Blind Spot Monitor, RH
2018-05 → 2018-07
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88162-0W383 note |
Sensor, Blind Spot Monitor, RH
2018-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88163 — Cover, Blind Spot Monitor, RH | ||||
| 88163-42010 note |
Cover, Blind Spot Monitor, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 88163-42010 note |
Cover, Blind Spot Monitor, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-0W070 note |
Sensor, Blind Spot Monitor, LH
2012-12 → 2013-11
ended
|
ASA4# LIMD | — | |
| 88162-0W190 note |
Sensor, Blind Spot Monitor, LH
2013-11 → 2015-10
ended
|
ASA4# LIMD | — | |
| 88162-0W380 note |
Sensor, Blind Spot Monitor, LH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88162-0W381 note |
Sensor, Blind Spot Monitor, LH
2016-08 → 2018-04
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88162-0W382 note |
Sensor, Blind Spot Monitor, LH
2018-05 → 2018-07
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88162-0W383 note |
Sensor, Blind Spot Monitor, LH
2018-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 88173 — Cover, Blind Spot Monitor, LH | ||||
| 88173-42010 note |
Cover, Blind Spot Monitor, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 88173-42010 note |
Cover, Blind Spot Monitor, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 89222A — Computer, Multiplex Network Door | ||||
| 89222-42030 note |
Computer, Multiplex Network Door
2013-11 → 2014-04
ended
|
ASA4# LIMD | — | |
| 89222-42030 note |
Computer, Multiplex Network Door
2013-11 → 2014-04
ended
|
ASA42 LIMD | — | |
| 89222-42032 |
Computer, Multiplex Network Door
2014-08 → 2014-10
ended
|
ASA4# LIMD | — | |
| 89222-42032 note |
Computer, Multiplex Network Door
2014-08 → 2014-10
ended
|
ASA42 LIMD | — | |
| 89222-42032 note |
Computer, Multiplex Network Door
2014-08 → 2014-10
ended
|
ASA4# XLE | — | |
| 89222-42033 note |
Computer, Multiplex Network Door
2014-10 → 2015-10
ended
|
ASA4# LIMD | — | |
| 89222-42033 note |
Computer, Multiplex Network Door
2014-10 → 2015-10
ended
|
ASA42 LIMD | — | |
| 89222-42033 note |
Computer, Multiplex Network Door
2014-10 → 2015-10
ended
|
ASA4# XLE | — | |
| 89222-42050 note |
Computer, Multiplex Network Door
2012-12 → 2013-11
ended
|
ASA42 LIMD | — | |
| 89222-42050 note |
Computer, Multiplex Network Door
2012-12 → 2013-11
ended
|
ASA4# LIMD | — | |
| 89222-42060 note |
Computer, Multiplex Network Door
2014-05 → 2014-08
ended
|
ASA4# LIMD | — | |
| 89222-42060 note |
Computer, Multiplex Network Door
2014-05 → 2014-08
ended
|
ASA42 LIMD | — | |
| 89222-42040 |
Computer, Multiplex Network Door
2015-10 → 2016-03
ended
|
ASA4#,AVA44 LIMD | — | |
| 89222-42040 note |
Computer, Multiplex Network Door
2015-10 → 2016-03
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 89222-42040 note |
Computer, Multiplex Network Door
2015-10 → 2016-03
ended
|
ASA42 LIMD | — | |
| 89222-42040 note |
Computer, Multiplex Network Door
2015-10 → 2016-03
ended
|
ASA42 LIMD | — | |
| 89222-42041 |
Computer, Multiplex Network Door
2016-03 → 2016-08
ended
|
ASA4#,AVA44 LIMD | — | |
| 89222-42041 note |
Computer, Multiplex Network Door
2016-03 → 2016-08
ended
|
ASA42 LIMD | — | |
| 89222-42041 note |
Computer, Multiplex Network Door
2016-03 → 2016-08
ended
|
ASA42 LIMD | — | |
| 89222-42041 note |
Computer, Multiplex Network Door
2016-03 → 2016-08
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 89222-42090 note |
Computer, Multiplex Network Door
2016-08 → 2018-10
ended
|
AVA44 SE | — | |
| 89222-42090 note |
Computer, Multiplex Network Door
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
| 89222-42090 note |
Computer, Multiplex Network Door
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 89222-42090 note |
Computer, Multiplex Network Door
2016-08 → 2018-10
ended
|
ASA42 LIMD | — | |
| 89222-42090 note |
Computer, Multiplex Network Door
2016-08 → 2018-10
ended
|
ASA42 LIMD | — | |
| 89222-42090 |
Computer, Multiplex Network Door
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 89747E — Buzzer, Power Back Door Warning | ||||
| 89747-30040 |
Buzzer, Power Back Door Warning
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 89747-30040 note |
Buzzer, Power Back Door Warning
2014-08 → 2015-10
ended
|
ASA4# XLE | — | |
| 89747-30040 |
Buzzer, Power Back Door Warning
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 89747-30040 note |
Buzzer, Power Back Door Warning
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 89747-30040 note |
Buzzer, Power Back Door Warning
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 89747-30040 note |
Buzzer, Power Back Door Warning
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 89747-30040 note |
Buzzer, Power Back Door Warning
2016-08 → 2018-10
ended
|
AVA44 SE | — | |
| 89747-30040 note |
Buzzer, Power Back Door Warning
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
