Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

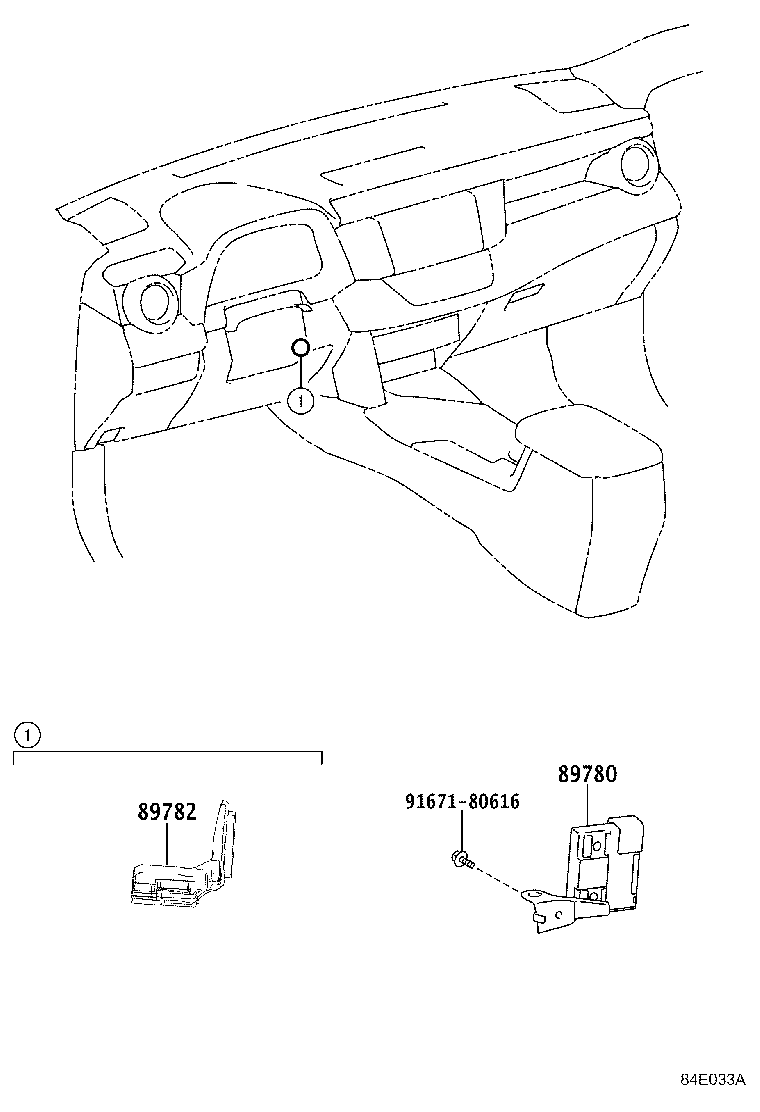

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89780 — Computer Assy, Transponder Key | ||||
| 89780-42180 |
Computer Assy, Transponder Key
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89780-42180 |
Computer Assy, Transponder Key
2015-10 → 2016-08
ended
|
ASA4# LE,SE,XLE | — | |
| 89780-42180 note |
Computer Assy, Transponder Key
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 89780-42180 note |
Computer Assy, Transponder Key
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 89780-42180 note |
Computer Assy, Transponder Key
2015-10 → 2016-08
ended
|
ASA4# XLE | — | |
| 89780-42181 |
Computer Assy, Transponder Key
2016-09 → 2018-10
ended
|
ASA4# LE,SE,XLE | — | |
| 89780-42181 note |
Computer Assy, Transponder Key
2016-09 → 2018-10
ended
|
ASA4# SE | — | |
| 89780-42181 note |
Computer Assy, Transponder Key
2016-09 → 2018-10
ended
|
ASA4# SE | — | |
| 89780-42181 note |
Computer Assy, Transponder Key
2016-09 → 2018-10
ended
|
ASA4# XLE | — | |
| 89782 — Coil, Transponder Key | ||||
| 89782-42020 |
Coil, Transponder Key
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89782-42020 |
Coil, Transponder Key
2015-10 → 2018-10
ended
|
ASA4# LE,SE,XLE | — | |
| 89782-42020 note |
Coil, Transponder Key
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 89782-42020 note |
Coil, Transponder Key
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 89782-42020 note |
Coil, Transponder Key
2015-10 → 2018-10
ended
|
ASA4# XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
