Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

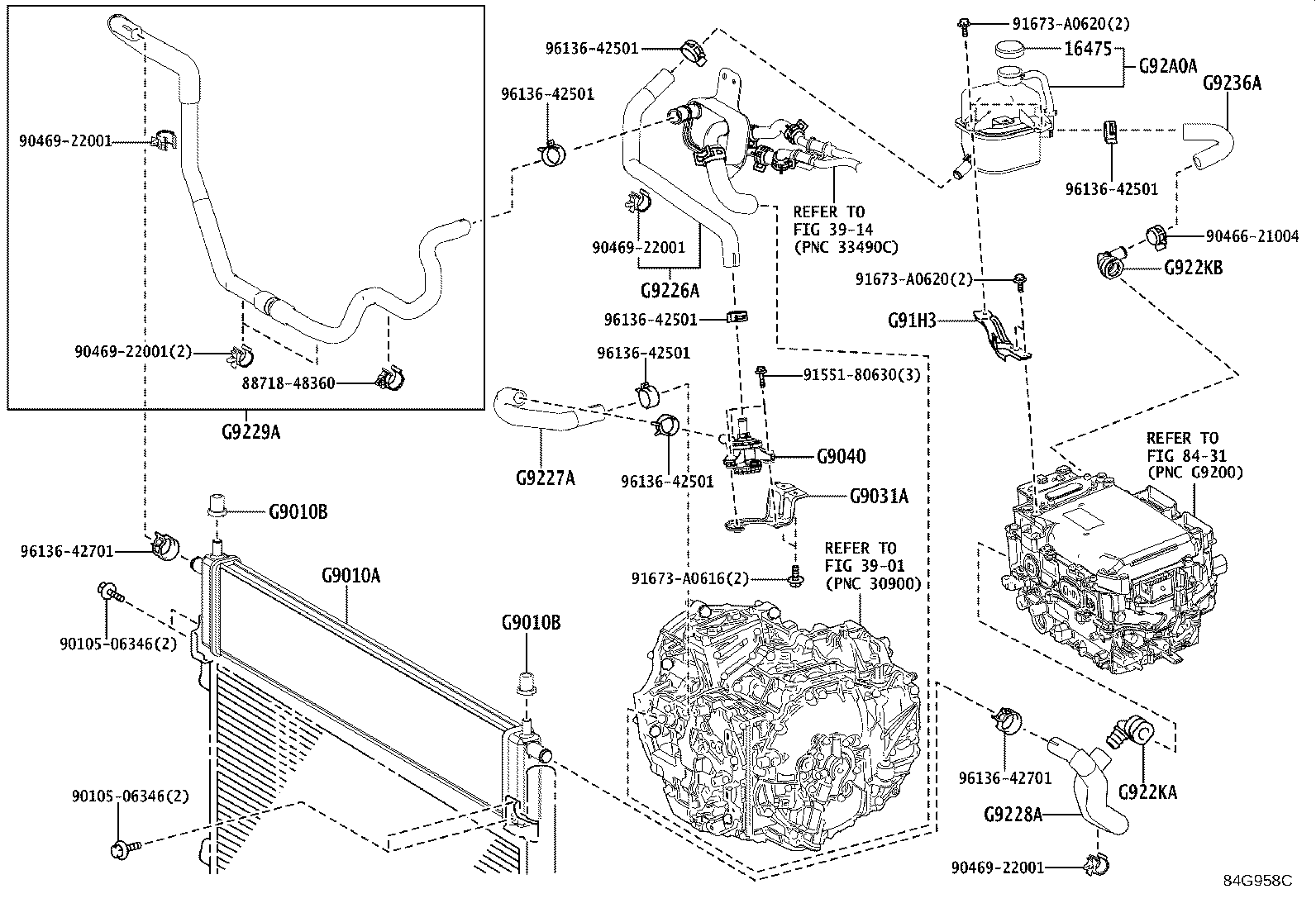

Exploded illustration 84G958C 8431 — not listed in this catalogue G9031A — BRACKET SUB-ASSY, HV WATER PUMP (1 parts) G91H3 — BRACKET, INVERTER RESERVE TANK, NO.2 (1 parts) G9040 — INVERTER WATER PUMP ASSY(W/MOTOR) (1 parts) G9226A — HOSE, INVERTER COOLING, NO.2 (1 parts) G9228A — HOSE, INVERTER COOLING, NO.4 (1 parts) G922KA — CONNECTOR, HYBRID WATER HOSE, NO.1 (1 parts) G92A0A — TANK ASSY, INVERTER RESERVE (2 parts) G9236A — HOSE, INVERTER COOLING, NO.6 (1 parts) G922KB — CONNECTOR, HYBRID WATER HOSE, NO.2 (1 parts) 16475 — CAP, RESERVE TANK (2 parts) G9227A — HOSE, INVERTER COOLING, NO.3 (1 parts) G9010B — CUSHION, INVERTER RADIATOR (1 parts) G9010B — CUSHION, INVERTER RADIATOR (1 parts) G9010A — RADIATOR ASSY (1 parts) 91673A0616 — not listed in this catalogue 9046922001 — not listed in this catalogue 9046922001 — not listed in this catalogue 9046922001 — not listed in this catalogue 9046922001 — not listed in this catalogue 8871848360 — not listed in this catalogue 9046621004 — not listed in this catalogue 9613642701 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642701 — not listed in this catalogue 9010506346 — not listed in this catalogue 9010506346 — not listed in this catalogue 91673A0620 — not listed in this catalogue 9155180630 — not listed in this catalogue G9229A — HOSE, INVERTER COOLING, NO.5 (1 parts) 3901 — not listed in this catalogue 3914 — not listed in this catalogue 91673A0620 — not listed in this catalogue
84G958C · 15 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
16475 — Cap, Reserve Tank
16475-28140 Cap, Reserve Tank
2016-08 → 2018-10 ended
2ARFXE AVA44 —
16475-37011 Cap, Reserve Tank
2015-10 → 2016-08 ended
2ARFXE AVA44 —
G9010A — Radiator Assy
G9010-42020 Radiator Assy
2015-10 → 2018-10 ended
AVA44 —
G9010B — Cushion, Inverter Radiator
16716-37010 Cushion, Inverter Radiator
2015-10 → 2018-10 ended
AVA44 —
G9031A — Bracket Sub-assy, HV Water Pump
G9141-48030 Bracket Sub-assy, HV Water Pump
2015-10 → 2018-10 ended
AVA44 —
G9040 — Inverter Water Pump Assy(W/MOTOR)
G9040-48010 Inverter Water Pump Assy(W/MOTOR)
2015-10 → 2018-10 ended
AVA44 —
G91H3 — Bracket, Inverter Reserve Tank, NO.2
G91H3-48010 Bracket, Inverter Reserve Tank, NO.2
2015-10 → 2018-10 ended
AVA44 —
G9226A — Hose, Inverter Cooling, NO.2
G9226-48060 Hose, Inverter Cooling, NO.2
2015-10 → 2018-10 ended
AVA44 —
G9227A — Hose, Inverter Cooling, NO.3
G9227-48060 Hose, Inverter Cooling, NO.3
2015-10 → 2018-10 ended
AVA44 —
G9228A — Hose, Inverter Cooling, NO.4
G9228-42010 Hose, Inverter Cooling, NO.4
2015-10 → 2018-10 ended
AVA44 —
G9229A — Hose, Inverter Cooling, NO.5
G9229-42010 Hose, Inverter Cooling, NO.5
2015-10 → 2018-10 ended
AVA44 —
G922KA — Connector, Hybrid Water Hose, NO.1
G922K-47011 Connector, Hybrid Water Hose, NO.1
2015-10 → 2018-10 ended
AVA44 —
G922KB — Connector, Hybrid Water Hose, NO.2
G922K-33020 Connector, Hybrid Water Hose, NO.2
2015-10 → 2018-10 ended
AVA44 —
G9236A — Hose, Inverter Cooling, NO.6
G9236-48010 Hose, Inverter Cooling, NO.6
2015-10 → 2018-10 ended
AVA44 —
G92A0A — Tank Assy, Inverter Reserve
G910F-48011 Tank Assy, Inverter Reserve
2015-10 → 2016-07 ended
AVA44 —
G910F-48012 Tank Assy, Inverter Reserve
2016-08 → 2018-10 ended
AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
