Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

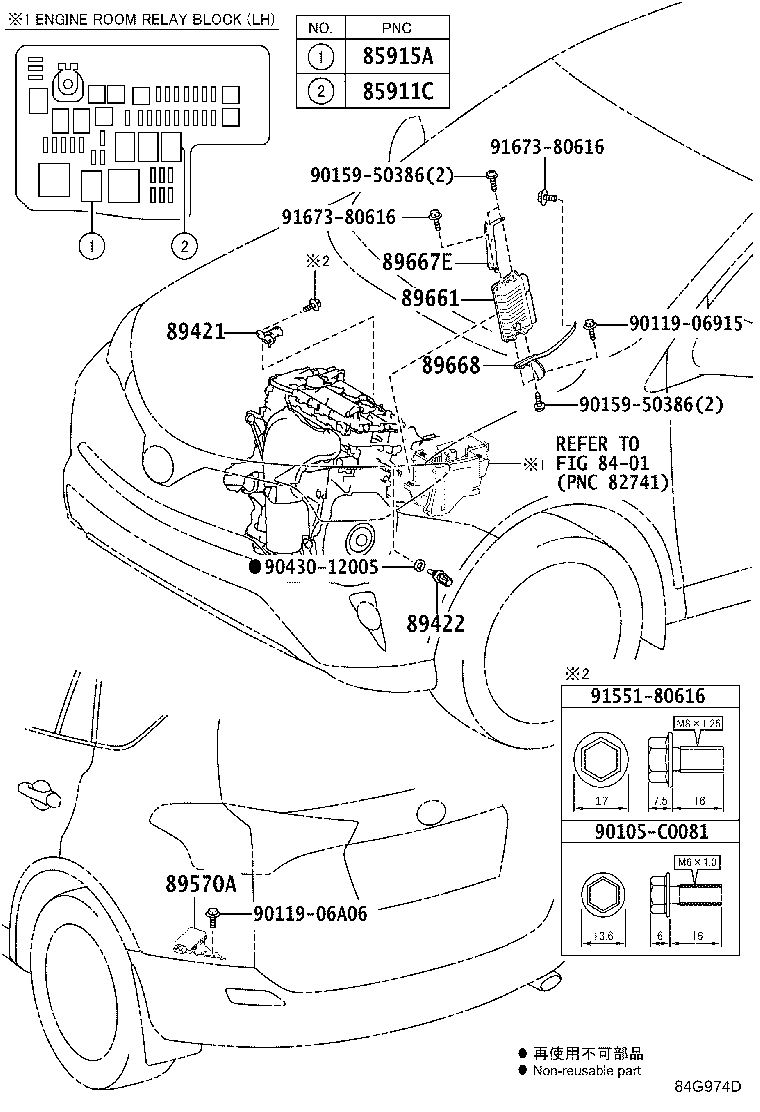

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85911C — Relay, Efi 2 | ||||
| 90987-02027 |
Relay, Efi 2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90987-02027 |
Relay, Efi 2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85915A — Relay, Main | ||||
| 90987-02027 |
Relay, Main
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90987-02027 |
Relay, Main
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 89421 — Sensor Assy, Vacuum (FOR E.F.I.) | ||||
| 89421-26030 |
Sensor Assy, Vacuum (FOR E.F.I.)
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 89570A — Computer Assy, Fuel Pump Control | ||||
| 89570-42010 |
Computer Assy, Fuel Pump Control
2012-12 → 2015-10
ended
|
ASA42 | — | |
| 89570-42030 |
Computer Assy, Fuel Pump Control
2015-10 → 2018-10
ended
|
ASA42,AVA44 | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-42K50 note |
Computer, Engine Control
2012-12 → 2013-11
ended
|
ASA42 | — | |
| 89661-42K60 note |
Computer, Engine Control
2012-12 → 2013-11
ended
|
ASA44 | — | |
| 89661-42U30 note |
Computer, Engine Control
2013-11 → 2014-10
ended
|
ASA42 | — | |
| 89661-42U40 note |
Computer, Engine Control
2013-11 → 2014-10
ended
|
ASA44 | — | |
| 89661-42U60 note |
Computer, Engine Control
2014-10 → 2015-05
ended
|
ASA42 | — | |
| 89661-42U61 |
Computer, Engine Control
2015-06 → 2015-10
ended
|
ASA42 | — | |
| 89661-42U70 note |
Computer, Engine Control
2014-10 → 2015-05
ended
|
ASA44 | — | |
| 89661-42U71 |
Computer, Engine Control
2015-06 → 2015-10
ended
|
ASA44 | — | |
| 89661-42K70 |
Computer, Engine Control
2015-10 → 2017-06
ended
|
AVA44 | — | |
| 89661-42K71 note |
Computer, Engine Control
2017-07 → 2018-10
ended
|
AVA44 | — | |
| 89661-42V90 |
Computer, Engine Control
2015-10 → 2016-11
ended
|
ASA42 | — | |
| 89661-42V91 |
Computer, Engine Control
2016-12 → 2017-07
ended
|
ASA42 | — | |
| 89661-42V92 note |
Computer, Engine Control
2017-08 → 2018-04
ended
|
ASA42 | — | |
| 89661-42V93 note |
Computer, Engine Control
2018-05 → 2018-10
ended
|
ASA42 | — | |
| 89661-42W00 |
Computer, Engine Control
2015-10 → 2016-12
ended
|
ASA44 | — | |
| 89661-42W01 |
Computer, Engine Control
2017-01 → 2018-04
ended
|
ASA44 | — | |
| 89661-42W02 note |
Computer, Engine Control
2018-05 → 2018-10
ended
|
ASA44 | — | |
| 89667E — Bracket, Engine Control Computer, NO.1 | ||||
| 89667-42060 |
Bracket, Engine Control Computer, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89667-42060 |
Bracket, Engine Control Computer, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-42060 |
Bracket, Engine Control Computer, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 89668-42060 |
Bracket, Engine Control Computer, NO.2
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 89668-78020 |
Bracket, Engine Control Computer, NO.2
2015-10 → 2018-10
ended
|
AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
