Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

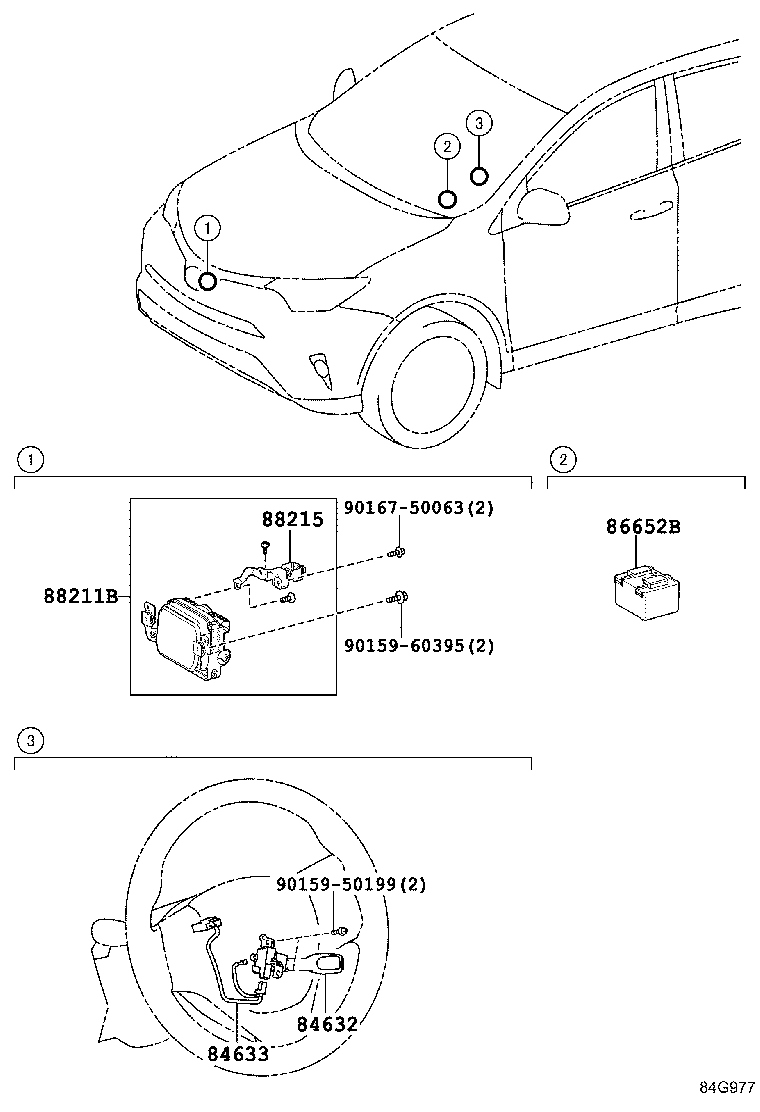

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84632 — Switch, Cruise Control Main | ||||
| 84632-0E020 |
Switch, Cruise Control Main
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 84632-34011 |
Switch, Cruise Control Main
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 84632-0R011 note |
Switch, Cruise Control Main
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 84632-0R011 note |
Switch, Cruise Control Main
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 84632-0R011 |
Switch, Cruise Control Main
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 84632-0R030 |
Switch, Cruise Control Main
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 84632-0R030 |
Switch, Cruise Control Main
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 84632-0R030 note |
Switch, Cruise Control Main
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 84633 — Wire, Cruise Control Switch | ||||
| 84633-0E040 |
Wire, Cruise Control Switch
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 84633-48020 |
Wire, Cruise Control Switch
2012-12 → 2013-11
ended
|
ASA4# | — | |
| 84633-0R021 |
Wire, Cruise Control Switch
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 84633-0R021 note |
Wire, Cruise Control Switch
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 84633-0R021 note |
Wire, Cruise Control Switch
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 84633-0R030 |
Wire, Cruise Control Switch
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 84633-0R030 |
Wire, Cruise Control Switch
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 84633-0R030 note |
Wire, Cruise Control Switch
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 86652B — Buzzer, Skid Control | ||||
| 86652-50010 note |
Buzzer, Skid Control
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 86652-50010 note |
Buzzer, Skid Control
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 86652-50010 |
Buzzer, Skid Control
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 86652-50010 note |
Buzzer, Skid Control
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 88211B — Sensor Assy, Millimeter Wave Radar | ||||
| 88210-47090 note |
Sensor Assy, Millimeter Wave Radar
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 88210-47090 note |
Sensor Assy, Millimeter Wave Radar
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 88210-47090 |
Sensor Assy, Millimeter Wave Radar
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 88210-47090 note |
Sensor Assy, Millimeter Wave Radar
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 88215 — Bracket, Millimeter Wave Radar Sensor, NO.1 | ||||
| 88201-60010 note |
Bracket, Millimeter Wave Radar Sensor, NO.1
2015-10 → 2016-08
ended
|
ASA4#,AVA44 USA | — | |
| 88201-60010 note |
Bracket, Millimeter Wave Radar Sensor, NO.1
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 88201-60010 |
Bracket, Millimeter Wave Radar Sensor, NO.1
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 88201-60010 note |
Bracket, Millimeter Wave Radar Sensor, NO.1
2016-08 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
