Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

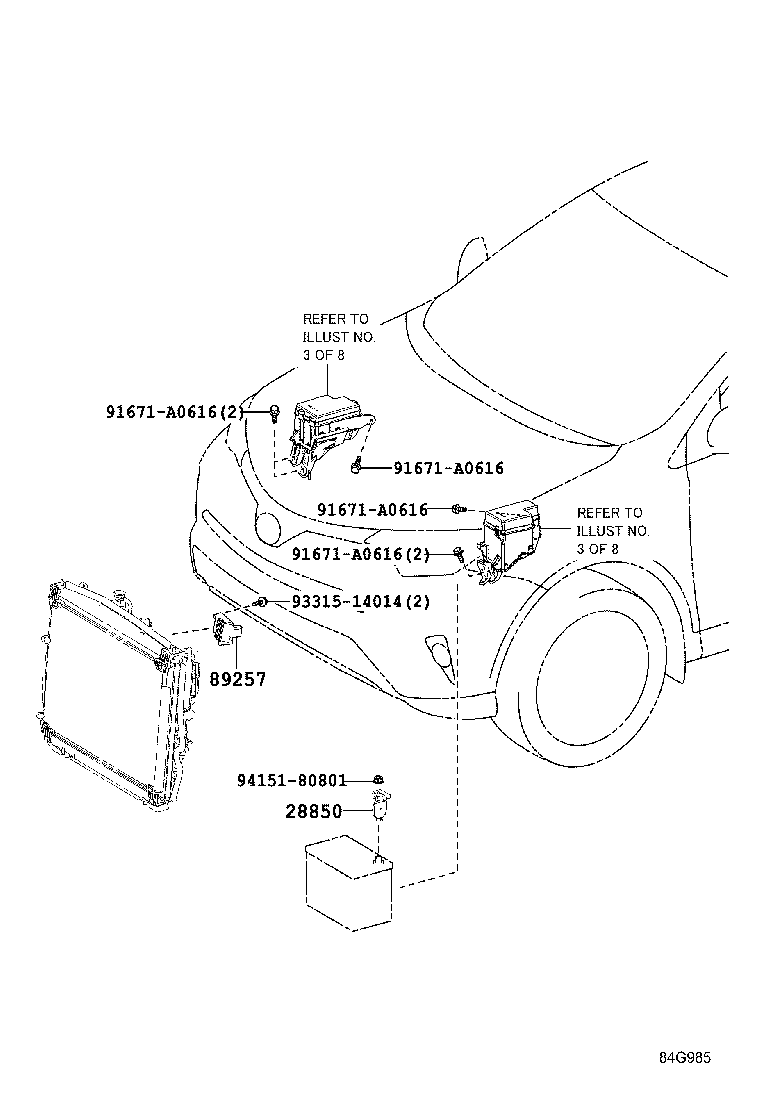

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850 — Sensor Assy, Battery Current | ||||
| 28850-36010 |
Sensor Assy, Battery Current
2012-12 → 2015-10
ended
|
2ARFE ASA42 | — | |
| 28850-36010 |
Sensor Assy, Battery Current
2015-10 → 2018-10
ended
|
2ARFE ASA42 | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-30110 |
Computer, Cooling Fan
2015-10 → 2018-10
ended
|
AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
