Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

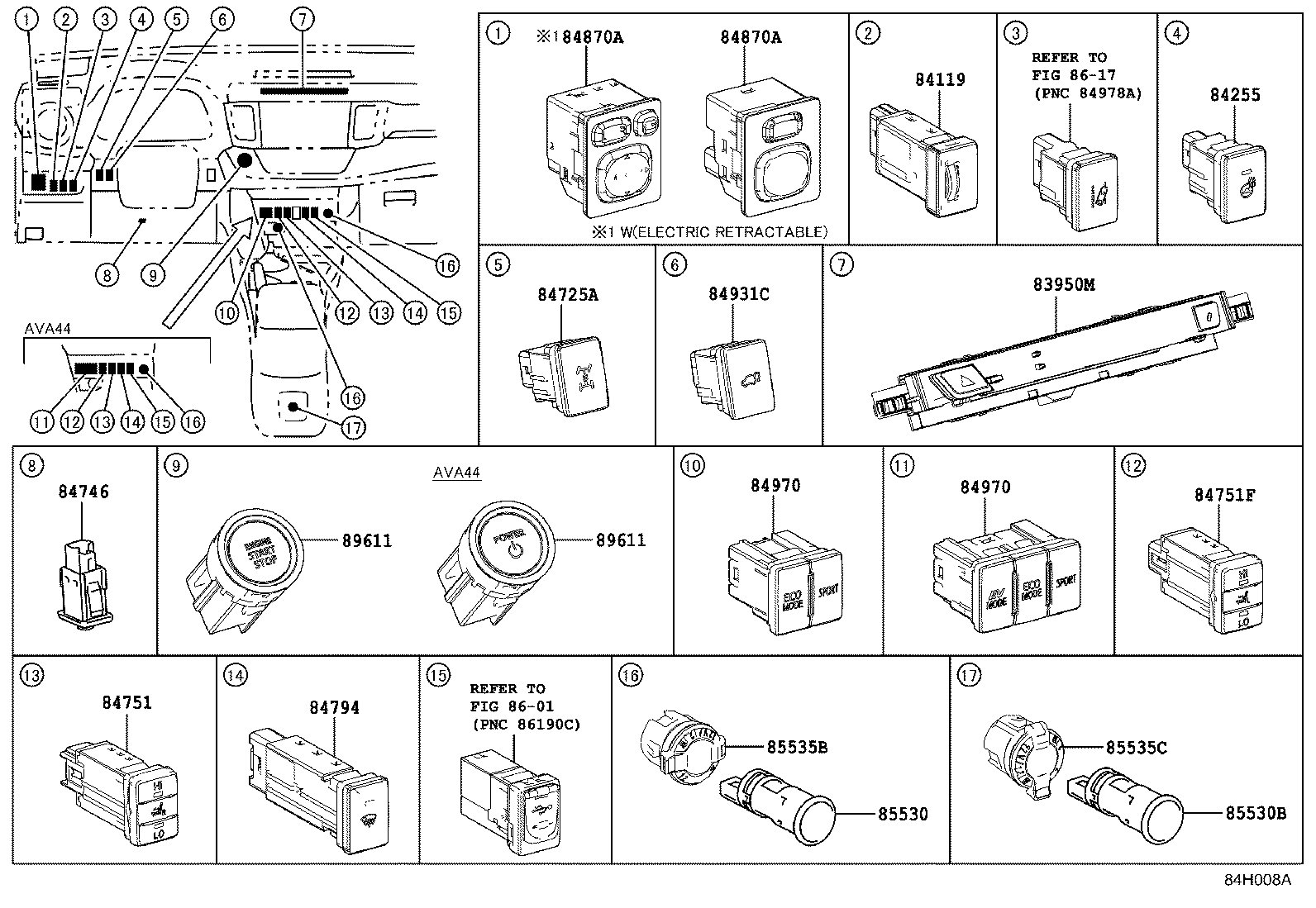

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83950M — Lamp Assy, Telltale | ||||
| 83950-42020 note |
Lamp Assy, Telltale
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 83950-42040 |
Lamp Assy, Telltale
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 83950-42190 |
Lamp Assy, Telltale
2015-10 → 2016-08
ended
|
ASA4#,AVA44 | — | |
| 83950-42200 note |
Lamp Assy, Telltale
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 83950-42210 note |
Lamp Assy, Telltale
2015-10 → 2016-08
ended
|
ASA4# LE | — | |
| 83950-42360 |
Lamp Assy, Telltale
2016-08 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 83950-42370 note |
Lamp Assy, Telltale
2016-08 → 2018-10
ended
|
AVA44 LIMD CND;ASA4#,AVA44 (LIMD,SE) +1 | — | |
| 83950-42370 note |
Lamp Assy, Telltale
2016-08 → 2018-10
ended
|
AVA44 SE CND | — | |
| 83950-42380 note |
Lamp Assy, Telltale
2016-08 → 2017-08
ended
|
ASA4# LE | — | |
| 84119 — Rheostat, Light Control | ||||
| 84119-47030 |
Rheostat, Light Control
2012-12 → 2015-01
ended
|
ASA4# | — | |
| 84119-47031 |
Rheostat, Light Control
2015-02 → 2015-10
ended
|
ASA4# | — | |
| 84119-42021 note |
Rheostat, Light Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 84119-42021 |
Rheostat, Light Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84255 — Switch, Steering Heater | ||||
| 84255-42010 |
Switch, Steering Heater
2015-10 → 2018-10
ended
|
AVA44 (LIMD,SE) CND | — | |
| 84255-42010 |
Switch, Steering Heater
2017-08 → 2018-10
ended
|
AVA44 XLE CND | — | |
| 84255-42010 note |
Switch, Steering Heater
2017-08 → 2018-10
ended
|
AVA44 XLE CND | — | |
| 84725A — Switch, Differential Lock | ||||
| 84725-42010 |
Switch, Differential Lock
2012-12 → 2014-11
ended
|
ASA44 | — | |
| 84725-42011 |
Switch, Differential Lock
2014-12 → 2015-10
ended
|
ASA44 | — | |
| 84725-42011 |
Switch, Differential Lock
2015-10 → 2018-10
ended
|
ASA44 | — | |
| 84746 — Switch, Tire Pressure Warning | ||||
| 84746-50010 |
Switch, Tire Pressure Warning
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84746-50010 |
Switch, Tire Pressure Warning
2015-10 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-42070 note |
Switch, Seat Heater
2012-12 → 2014-11
ended
|
ASA42 LIMD | — | |
| 84751-42070 |
Switch, Seat Heater
2012-12 → 2014-11
ended
|
ASA4# LIMD | — | |
| 84751-42071 |
Switch, Seat Heater
2014-12 → 2015-01
ended
|
ASA4# LIMD | — | |
| 84751-42071 note |
Switch, Seat Heater
2014-12 → 2015-01
ended
|
ASA42 LIMD | — | |
| 84751-42072 |
Switch, Seat Heater
2015-01 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84751-42072 note |
Switch, Seat Heater
2015-01 → 2015-10
ended
|
ASA42 LIMD | — | |
| 84751-42072 |
Switch, Seat Heater
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 84751-42072 note |
Switch, Seat Heater
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 84751F — Switch, Seat Heater | ||||
| 84751-42080 |
Switch, Seat Heater
2012-12 → 2014-11
ended
|
ASA4# LIMD | — | |
| 84751-42080 note |
Switch, Seat Heater
2012-12 → 2014-11
ended
|
ASA42 LIMD | — | |
| 84751-42081 |
Switch, Seat Heater
2014-12 → 2015-01
ended
|
ASA4# LIMD | — | |
| 84751-42081 note |
Switch, Seat Heater
2014-12 → 2015-01
ended
|
ASA42 LIMD | — | |
| 84751-42082 |
Switch, Seat Heater
2015-01 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84751-42082 note |
Switch, Seat Heater
2015-01 → 2015-10
ended
|
ASA42 LIMD | — | |
| 84751-42082 |
Switch, Seat Heater
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 84751-42082 note |
Switch, Seat Heater
2015-10 → 2018-10
ended
|
ASA4#,AVA44 XLE | — | |
| 84794 — Switch, FR Wiper Deicer | ||||
| 84794-48021 |
Switch, FR Wiper Deicer
2015-10 → 2018-10
ended
|
AVA44 CND | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-52050 note |
Switch Assy, Outer Mirror
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84870-74010 |
Switch Assy, Outer Mirror
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84870-52050 note |
Switch Assy, Outer Mirror
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 84870-74010 |
Switch Assy, Outer Mirror
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 84931C — Switch, Back Door Control | ||||
| 84930-42050 |
Switch, Back Door Control
2012-12 → 2014-12
ended
|
ASA4# LIMD | — | |
| 84930-42050 note |
Switch, Back Door Control
2012-12 → 2014-12
ended
|
ASA42 LIMD | — | |
| 84930-42050 note |
Switch, Back Door Control
2014-10 → 2014-12
ended
|
ASA4# XLE | — | |
| 84930-42051 |
Switch, Back Door Control
2015-01 → 2015-10
ended
|
ASA4# LIMD | — | |
| 84930-42051 note |
Switch, Back Door Control
2015-01 → 2015-10
ended
|
ASA42 LIMD | — | |
| 84930-42051 note |
Switch, Back Door Control
2015-01 → 2015-10
ended
|
ASA4# XLE | — | |
| 84930-42051 |
Switch, Back Door Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD | — | |
| 84930-42051 note |
Switch, Back Door Control
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 84930-42051 note |
Switch, Back Door Control
2015-10 → 2018-10
ended
|
ASA4#,AVA44 SE,XLE | — | |
| 84930-42051 note |
Switch, Back Door Control
2015-10 → 2018-10
ended
|
ASA42 LIMD | — | |
| 84970 — Switch Assy, Combination | ||||
| 84970-42010 |
Switch Assy, Combination
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 84970-42010 |
Switch Assy, Combination
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 84970-42090 |
Switch Assy, Combination
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85530B — Socket Assy, Power Outlet, Rear NO.1 | ||||
| 85530-42010 |
Socket Assy, Power Outlet, Rear NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-42060 |
Cover, Power Outlet Socket, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85535-42060 |
Cover, Power Outlet Socket, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85535C — Cover, Power Outlet Socket, Rear | ||||
| 85535-42070 |
Cover, Power Outlet Socket, Rear
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 89611 — Switch, Push Start | ||||
| 89611-42010 note |
Switch, Push Start
2012-12 → 2015-05
ended
|
ASA4# LIMD | — | |
| 89611-42010 note |
Switch, Push Start
2013-11 → 2015-05
ended
|
ASA42 LIMD | — | |
| 89611-42011 note |
Switch, Push Start
2015-06 → 2015-10
ended
|
ASA4# LIMD | — | |
| 89611-42011 note |
Switch, Push Start
2015-06 → 2015-10
ended
|
ASA42 LIMD | — | |
| 89611-30141 |
Switch, Push Start
2015-10 → 2016-03
ended
|
AVA44 | — | |
| 89611-30142 |
Switch, Push Start
2016-04 → 2018-10
ended
|
AVA44 | — | |
| 89611-42011 |
Switch, Push Start
2015-10 → 2016-02
ended
|
ASA4# LIMD | — | |
| 89611-42011 note |
Switch, Push Start
2015-10 → 2016-02
ended
|
ASA4# XLE | — | |
| 89611-42011 note |
Switch, Push Start
2015-10 → 2016-02
ended
|
ASA4# SE | — | |
| 89611-42012 |
Switch, Push Start
2016-03 → 2018-10
ended
|
ASA4# LIMD | — | |
| 89611-42012 note |
Switch, Push Start
2016-03 → 2018-10
ended
|
ASA4# SE | — | |
| 89611-42012 note |
Switch, Push Start
2016-03 → 2018-10
ended
|
ASA4# XLE | — | |
| 89611-42012 note |
Switch, Push Start
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
