Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

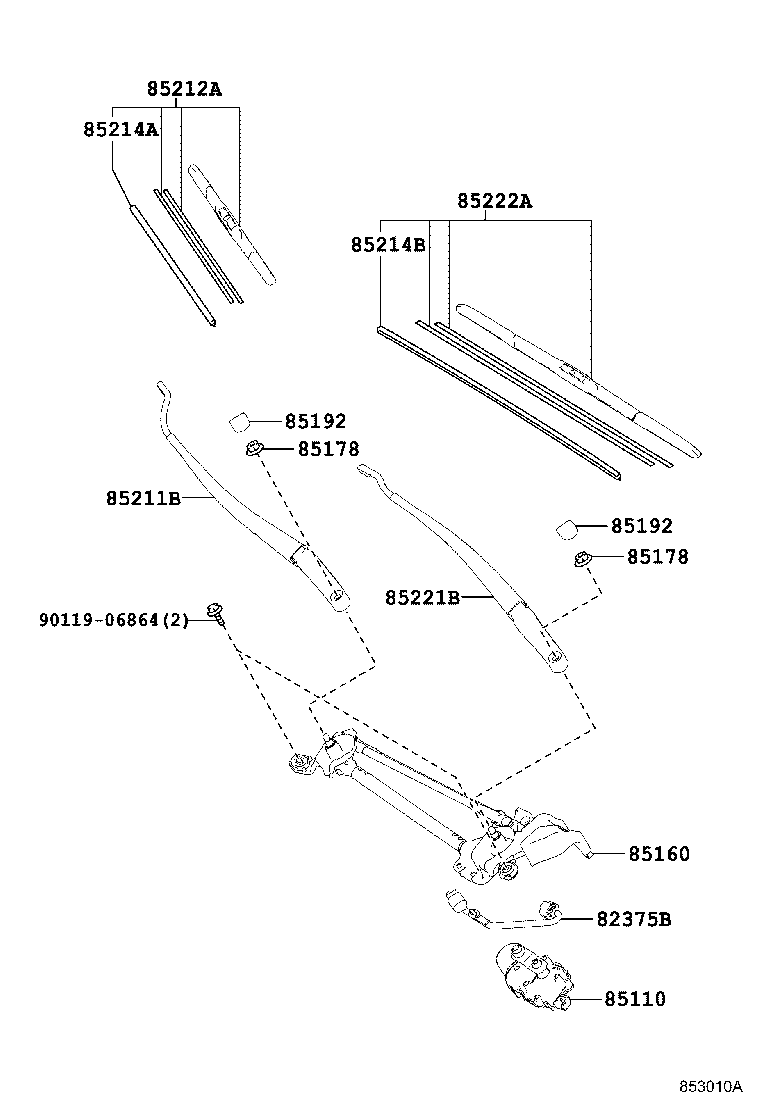

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82375B — Wire, Wiper Motor | ||||
| 82375-48020 |
Wire, Wiper Motor
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 82375-48020 |
Wire, Wiper Motor
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-42190 |
Motor Assy, Windshield Wiper
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85110-42190 |
Motor Assy, Windshield Wiper
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-42170 |
Link Assy, Windshield Wiper
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85150-42170 |
Link Assy, Windshield Wiper
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| 85292-13010 |
Cover, Windshield Wiper Arm
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85292-13010 |
Cover, Windshield Wiper Arm
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-42140 |
Arm, Front Wiper, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85211-42140 |
Arm, Front Wiper, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-42130 |
Blade, FR Wiper, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85212-42130 |
Blade, FR Wiper, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-28090 |
Rubber, Wiper, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85214-28090 |
Rubber, Wiper, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-52110 |
Rubber, Wiper, LH
2013-09 → 2015-10
ended
|
ASA4# | — | |
| 85214-68020 |
Rubber, Wiper, LH
2012-12 → 2013-08
ended
|
ASA4# | — | |
| 85214-52110 |
Rubber, Wiper, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-42140 |
Arm, Front Wiper, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85221-42140 |
Arm, Front Wiper, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-42120 |
Blade, FR Wiper, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 85222-42120 |
Blade, FR Wiper, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
