Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

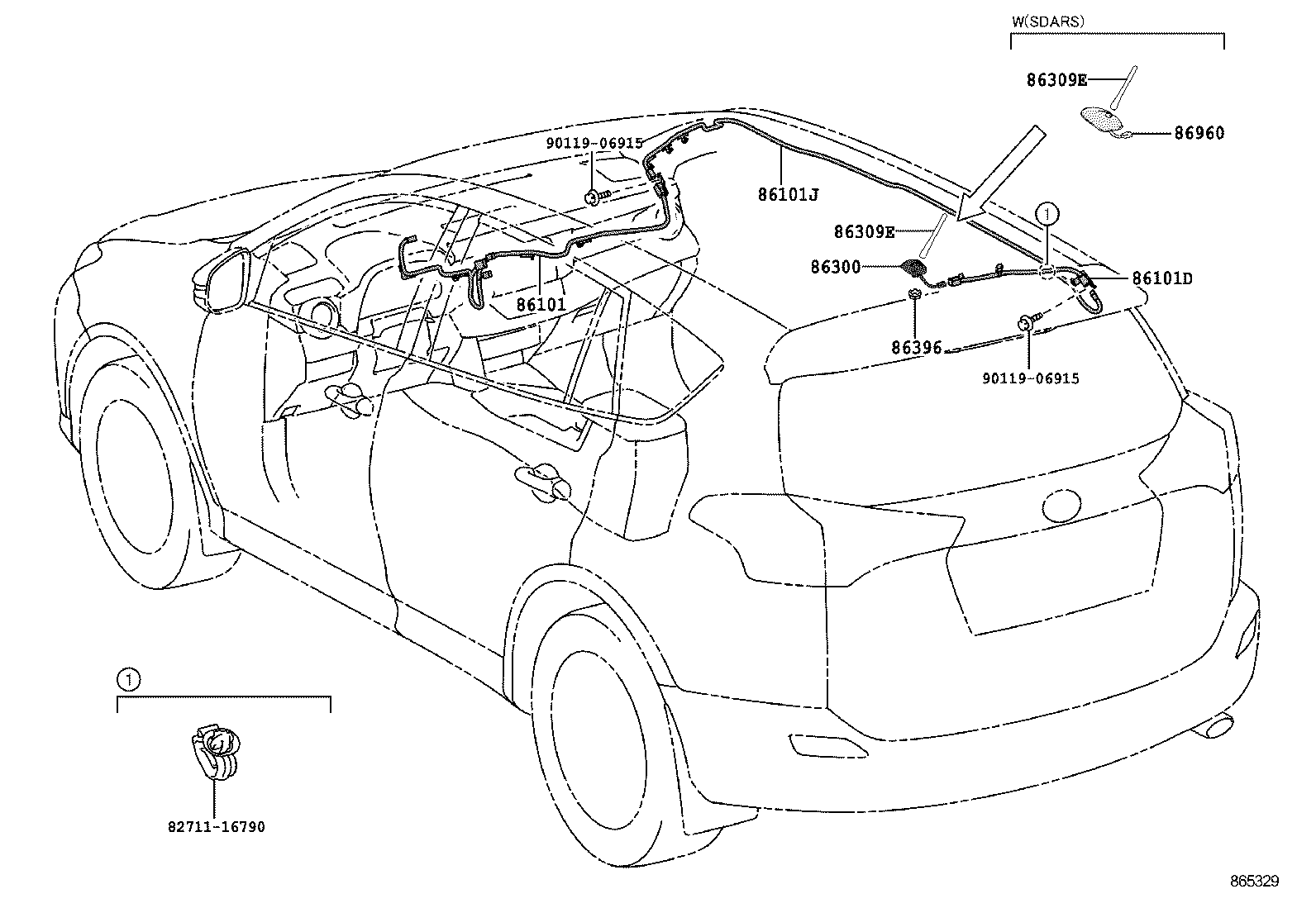

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-42500 |
Cord Sub-assy, Antenna
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 86101-42520 note |
Cord Sub-assy, Antenna
2012-12 → 2013-11
ended
|
ASA44 LIMD | — | |
| 86101-42520 note |
Cord Sub-assy, Antenna
2013-11 → 2014-10
ended
|
ASA44 LIMD | — | |
| 86101-42521 note |
Cord Sub-assy, Antenna
2013-11 → 2014-12
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42522 note |
Cord Sub-assy, Antenna
2014-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42530 note |
Cord Sub-assy, Antenna
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42531 note |
Cord Sub-assy, Antenna
2013-11 → 2014-12
ended
|
ASA44 LIMD | — | |
| 86101-42531 note |
Cord Sub-assy, Antenna
2013-11 → 2014-12
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42531 note |
Cord Sub-assy, Antenna
2013-11 → 2014-12
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42531 note |
Cord Sub-assy, Antenna
2013-11 → 2014-12
ended
|
ASA4# | — | |
| 86101-42532 note |
Cord Sub-assy, Antenna
2014-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42532 note |
Cord Sub-assy, Antenna
2014-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42532 note |
Cord Sub-assy, Antenna
2014-12 → 2015-10
ended
|
ASA4# | — | |
| 86101-42532 note |
Cord Sub-assy, Antenna
2014-12 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86101-42500 |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86101-42770 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 86101-42770 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86101-42770 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4# LIMD,SE;AVA44 LIMD USA | — | |
| 86101-42770 note |
Cord Sub-assy, Antenna
2017-08 → 2018-10
ended
|
AVA44 SE USA | — | |
| 86101-42780 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86101-42780 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86101-42780 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86101-42780 note |
Cord Sub-assy, Antenna
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86101D — Cord Sub-assy, Antenna, NO.3 | ||||
| 86101-42660 |
Cord Sub-assy, Antenna, NO.3
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 86101-42660 note |
Cord Sub-assy, Antenna, NO.3
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42670 note |
Cord Sub-assy, Antenna, NO.3
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42670 note |
Cord Sub-assy, Antenna, NO.3
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42670 note |
Cord Sub-assy, Antenna, NO.3
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42670 note |
Cord Sub-assy, Antenna, NO.3
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 86101-42670 note |
Cord Sub-assy, Antenna, NO.3
2013-11 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86101-42790 |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86101-42800 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86101-42800 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86101-42800 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-42580 |
Cord Sub-assy, Antenna, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 86101-42580 note |
Cord Sub-assy, Antenna, NO.2
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2013-11 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86101-42580 |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86101-42590 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86101-42750 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86300 — Antenna Assy, W/Holder | ||||
| 86300-42210 |
Antenna Assy, W/Holder
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 86300-42210 note |
Antenna Assy, W/Holder
2013-11 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86300-42221 note |
Antenna Assy, W/Holder
2013-11 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86309E — Pole Sub-assy, Roof Antenna | ||||
| 86309-13030 |
Pole Sub-assy, Roof Antenna
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 86309-13030 note |
Pole Sub-assy, Roof Antenna
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86309-42080 note |
Pole Sub-assy, Roof Antenna
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86309-42080 note |
Pole Sub-assy, Roof Antenna
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86309-42080 note |
Pole Sub-assy, Roof Antenna
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86309-42080 note |
Pole Sub-assy, Roof Antenna
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 86309-42090 note |
Pole Sub-assy, Roof Antenna
2013-11 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86396 — Nut, Antenna | ||||
| 86396-47010 |
Nut, Antenna
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 86960 — Antenna Assy, Satellite Radio | ||||
| 86960-42021 note |
Antenna Assy, Satellite Radio
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86960-42021 note |
Antenna Assy, Satellite Radio
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86960-42021 note |
Antenna Assy, Satellite Radio
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86960-42021 note |
Antenna Assy, Satellite Radio
2013-11 → 2015-10
ended
|
ASA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
