Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

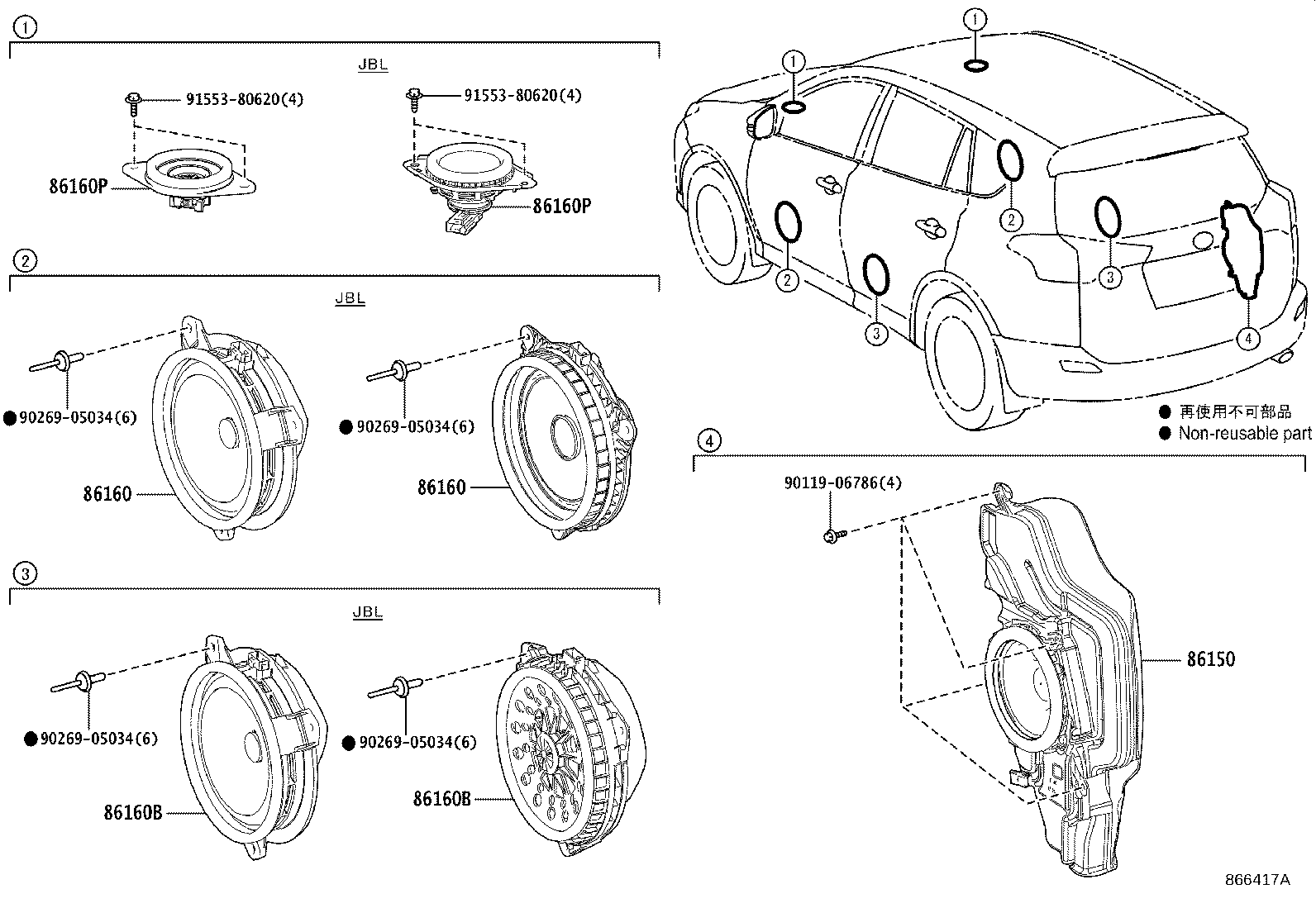

Exploded illustration 866417A 86160B — SPEAKER ASSY, REAR (8 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (8 parts) 86160B — SPEAKER ASSY, REAR (8 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (9 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (9 parts) 86150 — SPEAKER ASSY, W/BOX, NO.1 (5 parts) 9026905034 — not listed in this catalogue 9026905034 — not listed in this catalogue 86160 — SPEAKER ASSY, FRONT NO.1 (8 parts) 9155380620 — not listed in this catalogue 9155380620 — not listed in this catalogue 9026905034 — not listed in this catalogue 9026905034 — not listed in this catalogue 9011906786 — not listed in this catalogue
866417A · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
86150 — Speaker Assy, W/Box, NO.1
86150-0R030 note Speaker Assy, W/Box, NO.1
2015-10 → 2018-01 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86150-0R030 note Speaker Assy, W/Box, NO.1
2017-08 → 2018-01 ended
AVA44 SE USA —
86150-0R030 note Speaker Assy, W/Box, NO.1
2015-10 → 2018-01 ended
ASA4#,AVA44 LIMD,SE —
86150-42060 note Speaker Assy, W/Box, NO.1
2018-02 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86150-42060 note Speaker Assy, W/Box, NO.1
2018-02 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
86160 — Speaker Assy, Front NO.1
86160-52330 Speaker Assy, Front NO.1
2012-12 → 2015-06 ended
ASA4# —
86160-52331 Speaker Assy, Front NO.1
2015-07 → 2015-10 ended
ASA4# —
86150-47010 note Speaker Assy, Front NO.1
2018-02 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
86150-47010 note Speaker Assy, Front NO.1
2018-02 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86160-0WX80 note Speaker Assy, Front NO.1
2015-10 → 2018-01 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86160-0WX80 note Speaker Assy, Front NO.1
2017-08 → 2018-01 ended
AVA44 SE USA —
86160-0WX80 note Speaker Assy, Front NO.1
2015-10 → 2018-01 ended
ASA4#,AVA44 LIMD,SE —
86160-52331 Speaker Assy, Front NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
86160B — Speaker Assy, Rear
86160-52330 Speaker Assy, Rear
2012-12 → 2015-06 ended
ASA4# —
86160-52331 Speaker Assy, Rear
2015-07 → 2015-10 ended
ASA4# —
86160-0R140 note Speaker Assy, Rear
2015-10 → 2018-01 ended
ASA4#,AVA44 LIMD,SE —
86160-0R140 note Speaker Assy, Rear
2017-08 → 2018-01 ended
AVA44 SE USA —
86160-0R140 note Speaker Assy, Rear
2015-10 → 2018-01 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86160-47270 note Speaker Assy, Rear
2018-02 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86160-47270 note Speaker Assy, Rear
2018-02 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
86160-52331 Speaker Assy, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 —
86160P — Speaker Assy, Front NO.2
86150-42010 note Speaker Assy, Front NO.2
2012-12 → 2013-11 ended
ASA4# LE —
86150-42010 Speaker Assy, Front NO.2
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
86150-42010 Speaker Assy, Front NO.2
2013-11 → 2015-10 ended
ASA4# LE —
86150-42010 Speaker Assy, Front NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
86160-0WU50 note Speaker Assy, Front NO.2
2015-10 → 2018-01 ended
ASA4#,AVA44 LIMD,SE —
86160-0WU50 note Speaker Assy, Front NO.2
2015-10 → 2018-01 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86160-0WU50 note Speaker Assy, Front NO.2
2017-08 → 2018-01 ended
AVA44 SE USA —
86160-33840 note Speaker Assy, Front NO.2
2018-02 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86160-33840 note Speaker Assy, Front NO.2
2018-02 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
