Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04

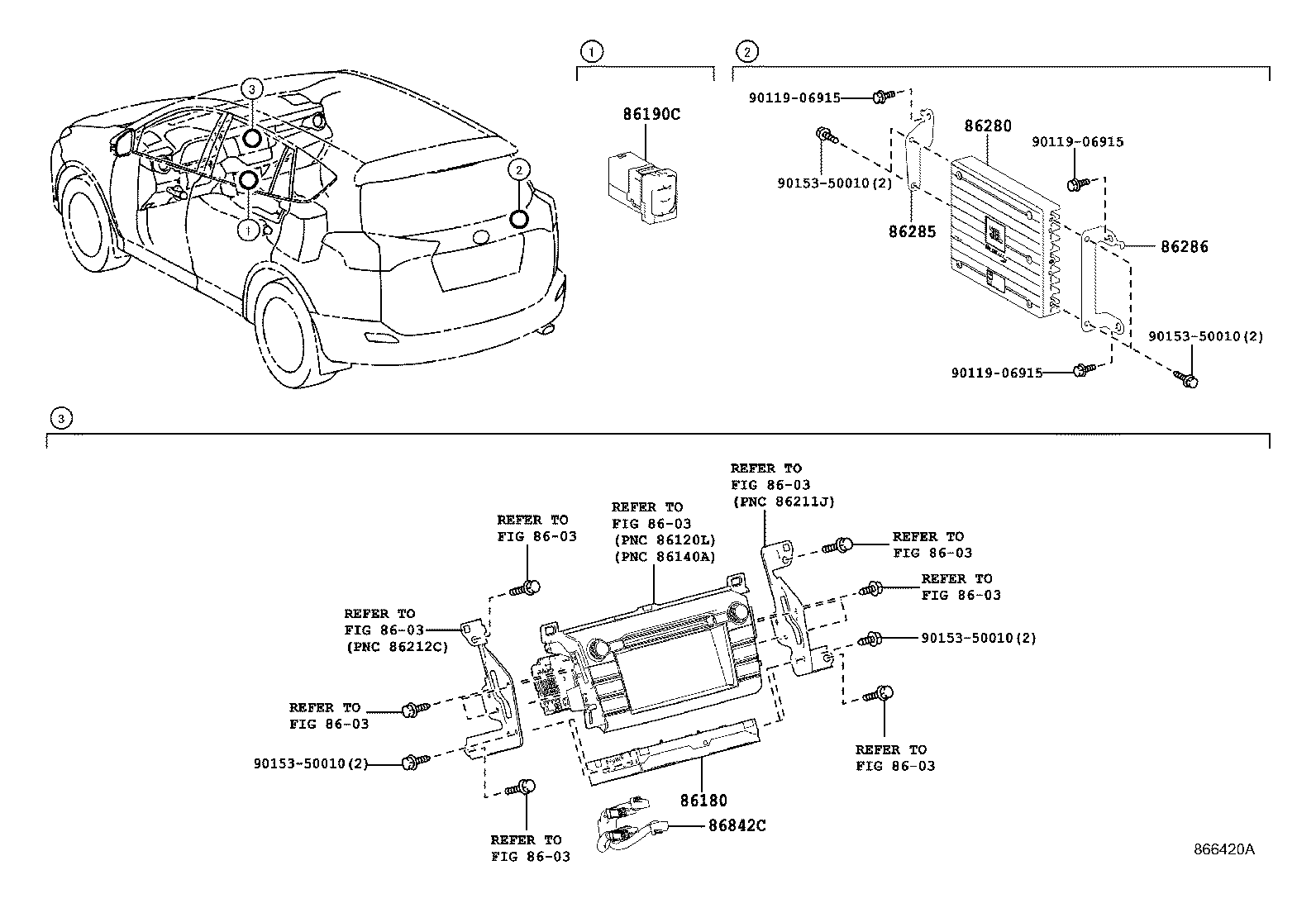

Exploded illustration 866420A 86190C — ADAPTER ASSY, STEREO JACK, NO.1 (2 parts) 86280 — AMPLIFIER ASSY, STEREO COMPONENT (3 parts) 86285 — BRACKET, AMPLIFIER, NO.1 (3 parts) 86286 — BRACKET, AMPLIFIER, NO.2 (3 parts) 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 86180 — TUNER ASSY, STEREO COMPONENT (9 parts) 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 86842C — WIRE, NAVIGATION (6 parts) 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue
866420A · 6 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
86180 — Tuner Assy, Stereo Component
86180-35050 note Tuner Assy, Stereo Component
2013-11 → 2015-10 ended
ASA4# LIMD,XLE —
86180-35050 note Tuner Assy, Stereo Component
2013-11 → 2015-10 ended
ASA4# —
86180-35050 note Tuner Assy, Stereo Component
2013-11 → 2015-10 ended
ASA4# LIMD,XLE —
86180-35050 note Tuner Assy, Stereo Component
2015-10 → 2018-10 ended
ASA4#,AVA44 USA —
86180-35050 note Tuner Assy, Stereo Component
2015-10 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE,XLE) USA —
86180-35050 note Tuner Assy, Stereo Component
2015-10 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
86180-35060 note Tuner Assy, Stereo Component
2015-10 → 2018-10 ended
AVA44 CND —
86180-35060 note Tuner Assy, Stereo Component
2015-10 → 2018-10 ended
AVA44 CND —
86180-35060 note Tuner Assy, Stereo Component
2015-10 → 2018-10 ended
AVA44 (LIMD,SE) CND —
86190C — Adapter Assy, Stereo Jack, NO.1
86190-42040 Adapter Assy, Stereo Jack, NO.1
2012-12 → 2015-10 ended
ASA4# —
86190-42040 Adapter Assy, Stereo Jack, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
86280 — Amplifier Assy, Stereo Component
86280-42050 note Amplifier Assy, Stereo Component
2017-08 → 2018-10 ended
AVA44 SE USA —
86280-42050 note Amplifier Assy, Stereo Component
2015-10 → 2018-10 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86280-42050 note Amplifier Assy, Stereo Component
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86285 — Bracket, Amplifier, NO.1
86285-42030 note Bracket, Amplifier, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86285-42030 note Bracket, Amplifier, NO.1
2015-10 → 2018-10 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86285-42030 note Bracket, Amplifier, NO.1
2017-08 → 2018-10 ended
AVA44 SE USA —
86286 — Bracket, Amplifier, NO.2
86286-0R010 note Bracket, Amplifier, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
86286-0R010 note Bracket, Amplifier, NO.2
2015-10 → 2018-10 ended
ASA4# LIMD,SE;AVA44 LIMD USA —
86286-0R010 note Bracket, Amplifier, NO.2
2017-08 → 2018-10 ended
AVA44 SE USA —
86842C — Wire, Navigation
86842-35010 note Wire, Navigation
2013-11 → 2015-10 ended
ASA4# LIMD,XLE —
86842-35010 note Wire, Navigation
2013-11 → 2015-10 ended
ASA4# LIMD,XLE —
86842-35010 note Wire, Navigation
2013-11 → 2015-10 ended
ASA4# —
86842-35010 note Wire, Navigation
2015-10 → 2018-10 ended
ASA4#,AVA44 —
86842-35010 note Wire, Navigation
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
86842-35010 note Wire, Navigation
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
