Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

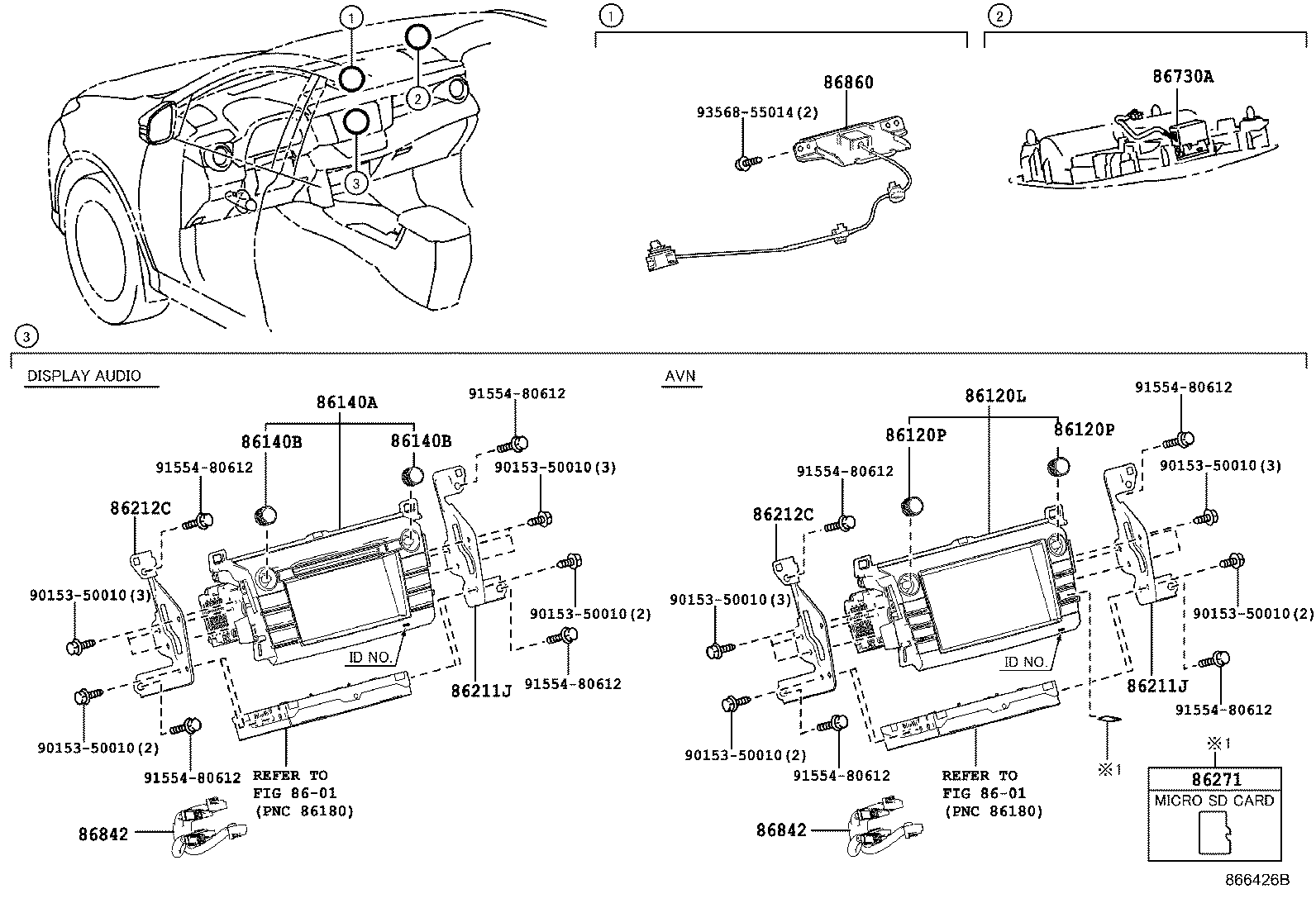

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120L — Receiver Assy, Navigation | ||||
| 86804-42040 note |
Receiver Assy, Navigation
2012-12 → 2014-10
ended
|
ASA44 LIMD | — | |
| 86804-42090 note |
Receiver Assy, Navigation
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86804-42100 note |
Receiver Assy, Navigation
2015-10 → 2018-09
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86804-42100 note |
Receiver Assy, Navigation
2015-10 → 2018-09
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86804-42101 note |
Receiver Assy, Navigation
2018-09 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86804-42101 note |
Receiver Assy, Navigation
2018-09 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86804-42110 note |
Receiver Assy, Navigation
2017-08 → 2018-09
ended
|
AVA44 SE USA | — | |
| 86804-42110 note |
Receiver Assy, Navigation
2015-10 → 2018-09
ended
|
ASA4# LIMD,SE;AVA44 LIMD USA | — | |
| 86804-42110 note |
Receiver Assy, Navigation
2015-10 → 2018-09
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86804-42111 note |
Receiver Assy, Navigation
2018-09 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86804-42111 note |
Receiver Assy, Navigation
2018-09 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 86120P — Knob, Navigation Receiver Switch | ||||
| 90010-23046 note |
Knob, Navigation Receiver Switch
2014-01 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 90010-24167 note |
Knob, Navigation Receiver Switch
2012-12 → 2014-10
ended
|
ASA44 LIMD | — | |
| 90011-23034 note |
Knob, Navigation Receiver Switch
2013-11 → 2014-01
ended
|
ASA4# LIMD,XLE | — | |
| 90010-23050 note |
Knob, Navigation Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 90010-23050 note |
Knob, Navigation Receiver Switch
2017-08 → 2018-10
ended
|
AVA44 SE USA | — | |
| 90010-23050 note |
Knob, Navigation Receiver Switch
2015-10 → 2018-10
ended
|
ASA4# LIMD,SE;AVA44 LIMD USA | — | |
| 90010-23050 note |
Knob, Navigation Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 90010-23050 note |
Knob, Navigation Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-42010 note |
Receiver Assy, Radio & Display
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86140-42010 note |
Receiver Assy, Radio & Display
2012-12 → 2013-11
ended
|
ASA4# LE | — | |
| 86140-42020 note |
Receiver Assy, Radio & Display
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86140-42190 note |
Receiver Assy, Radio & Display
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 86140-42200 note |
Receiver Assy, Radio & Display
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86140-42200 note |
Receiver Assy, Radio & Display
2013-11 → 2015-10
ended
|
ASA4# | — | |
| 86140-42200 note |
Receiver Assy, Radio & Display
2013-11 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86140-42290 note |
Receiver Assy, Radio & Display
2013-11 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
AVA44 LIMD CND | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4# LIMD,SE,XLE;AVA44 (LIMD,XLE) USA | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
AVA44 LIMD USA | — | |
| 86140-42110 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
AVA44 LIMD USA | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4# LIMD,SE,XLE;AVA44 (LIMD,XLE) USA | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86140-42111 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
AVA44 LIMD CND | — | |
| 86140-42300 note |
Receiver Assy, Radio & Display
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86140-42460 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 | — | |
| 86140-42460 note |
Receiver Assy, Radio & Display
2015-10 → 2018-09
ended
|
ASA4#,AVA44 USA | — | |
| 86140-42461 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86140-42461 note |
Receiver Assy, Radio & Display
2018-09 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90010-23037 note |
Knob, Radio & Display Receiver Switch
2012-12 → 2013-11
ended
|
ASA4# LE | — | |
| 90010-23037 |
Knob, Radio & Display Receiver Switch
2012-12 → 2014-01
ended
|
ASA4# LIMD,XLE | — | |
| 90010-23037 |
Knob, Radio & Display Receiver Switch
2013-11 → 2014-01
ended
|
ASA4# LE | — | |
| 90010-23046 note |
Knob, Radio & Display Receiver Switch
2013-11 → 2014-01
ended
|
ASA44 LIMD | — | |
| 90010-23046 |
Knob, Radio & Display Receiver Switch
2014-01 → 2015-10
ended
|
ASA4# | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4# LIMD,SE,XLE;AVA44 (LIMD,XLE) USA | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
AVA44 LIMD CND | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
AVA44 LIMD USA | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 90010-23050 |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 90010-23050 note |
Knob, Radio & Display Receiver Switch
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-42070 note |
Bracket, Radio Receiver, NO.1
2012-12 → 2014-10
ended
|
ASA44 LIMD | — | |
| 86211-42100 |
Bracket, Radio Receiver, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-42070 note |
Bracket, Radio Receiver, NO.2
2012-12 → 2014-10
ended
|
ASA44 LIMD | — | |
| 86212-42100 |
Bracket, Radio Receiver, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86271 — Disc, Disc Player | ||||
| 86271-35010 note |
Disc, Disc Player
2013-11 → 2014-03
ended
|
ASA4# LIMD,XLE | — | |
| 86271-35011 note |
Disc, Disc Player
2014-03 → 2014-06
ended
|
ASA4# LIMD,XLE | — | |
| 86271-35012 note |
Disc, Disc Player
2014-07 → 2015-06
ended
|
ASA4# LIMD,XLE | — | |
| 86271-35013 note |
Disc, Disc Player
2015-07 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86271-35013 note |
Disc, Disc Player
2015-10 → 2016-07
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86271-35013 note |
Disc, Disc Player
2015-10 → 2016-07
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 86271-35013 note |
Disc, Disc Player
2015-10 → 2016-07
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86271-35013 note |
Disc, Disc Player
2015-10 → 2016-07
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86271-35014 note |
Disc, Disc Player
2016-07 → 2017-08
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86271-35014 note |
Disc, Disc Player
2016-07 → 2017-08
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86271-35014 note |
Disc, Disc Player
2016-07 → 2017-08
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86271-35014 note |
Disc, Disc Player
2016-07 → 2017-08
ended
|
ASA4# LIMD,SE;AVA44 LIMD USA | — | |
| 86271-35015 note |
Disc, Disc Player
2017-08 → 2018-07
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86271-35015 note |
Disc, Disc Player
2017-08 → 2018-07
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86271-35015 note |
Disc, Disc Player
2017-08 → 2018-07
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86271-35015 note |
Disc, Disc Player
2017-08 → 2018-07
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 86271-35021 note |
Disc, Disc Player
2018-08 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE) USA | — | |
| 86271-35021 note |
Disc, Disc Player
2018-08 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86271-35021 note |
Disc, Disc Player
2018-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86271-35021 note |
Disc, Disc Player
2018-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-52070 |
Microphone Assy, Telephone
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86730-47040 |
Microphone Assy, Telephone
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86842 — Wire, Navigation, NO.1 | ||||
| 86842-42010 note |
Wire, Navigation, NO.1
2014-10 → 2015-02
ended
|
ASA44 LIMD | — | |
| 86842-42010 note |
Wire, Navigation, NO.1
2015-02 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86842-42010 note |
Wire, Navigation, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-42041 note |
Antenna Assy, Navigation
2013-11 → 2014-12
ended
|
ASA44 LIMD | — | |
| 86860-42041 note |
Antenna Assy, Navigation
2013-11 → 2014-12
ended
|
ASA4# | — | |
| 86860-42041 note |
Antenna Assy, Navigation
2013-11 → 2014-12
ended
|
ASA4# LIMD,XLE | — | |
| 86860-42041 note |
Antenna Assy, Navigation
2013-11 → 2014-12
ended
|
ASA4# LIMD,XLE | — | |
| 86860-42041 note |
Antenna Assy, Navigation
2013-11 → 2014-10
ended
|
ASA44 LIMD | — | |
| 86860-42041 note |
Antenna Assy, Navigation
2012-12 → 2013-11
ended
|
ASA44 LIMD | — | |
| 86860-42041 note |
Antenna Assy, Navigation
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2014-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2014-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2014-12 → 2015-10
ended
|
ASA4# | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2014-12 → 2015-10
ended
|
ASA44 LIMD | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4#,AVA44 USA | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4#,AVA44 (LIMD,SE,XLE) USA | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2015-10 → 2018-10
ended
|
ASA4# LIMD,SE;AVA44 LIMD USA | — | |
| 86860-42042 note |
Antenna Assy, Navigation
2017-08 → 2018-10
ended
|
AVA44 SE USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
