Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

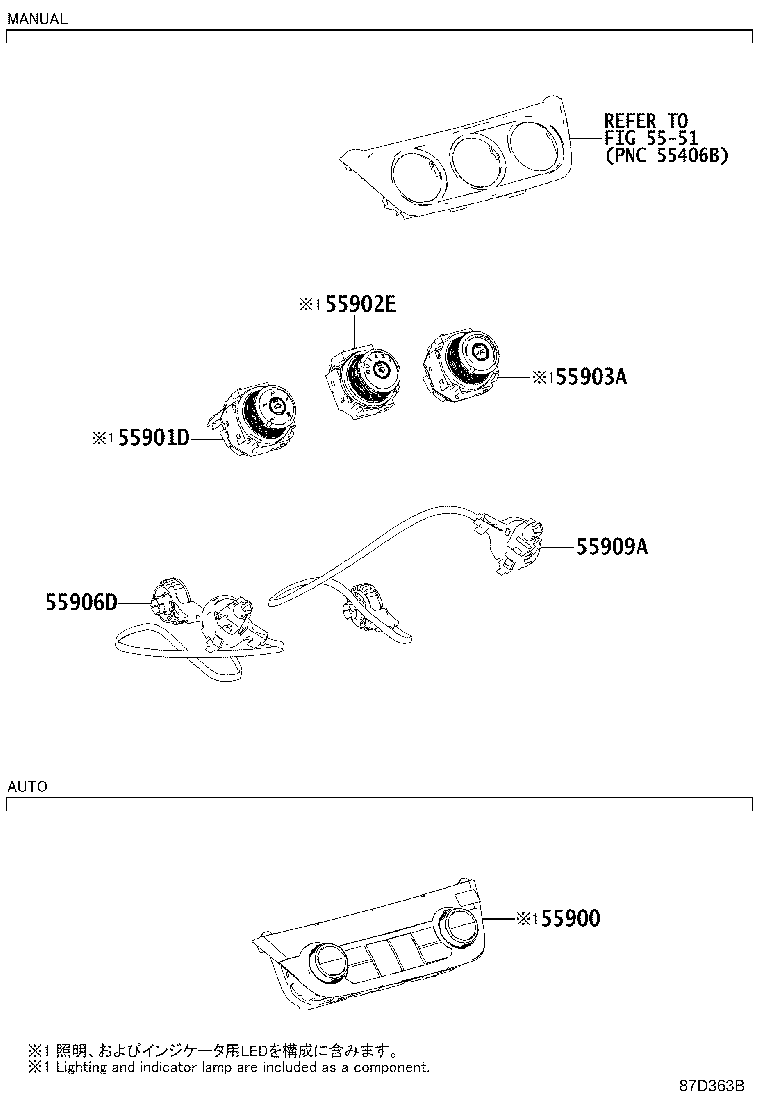

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55900 — Control Assy, Air Conditioner | ||||
| 55900-42370 |
Control Assy, Air Conditioner
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 55900-42420 |
Control Assy, Air Conditioner
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 55901D — Control Sub-assy, Heater, NO.1 | ||||
| 55901-42030 |
Control Sub-assy, Heater, NO.1
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 55901-42030 |
Control Sub-assy, Heater, NO.1
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 55902E — Control Sub-assy, Heater, NO.2 | ||||
| 55902-42150 |
Control Sub-assy, Heater, NO.2
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 55902-42150 |
Control Sub-assy, Heater, NO.2
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 55903A — Control Sub-assy, Heater, NO.3 | ||||
| 55903-42080 |
Control Sub-assy, Heater, NO.3
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 55903-42080 |
Control Sub-assy, Heater, NO.3
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 55906D — Cable Sub-assy, Heater Control, NO.2 | ||||
| 55906-26060 |
Cable Sub-assy, Heater Control, NO.2
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 55906-26060 |
Cable Sub-assy, Heater Control, NO.2
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 55909A — Cable Sub-assy, Airmix Damper Control | ||||
| 55909-26080 |
Cable Sub-assy, Airmix Damper Control
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 55909-26080 |
Cable Sub-assy, Airmix Damper Control
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
