Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

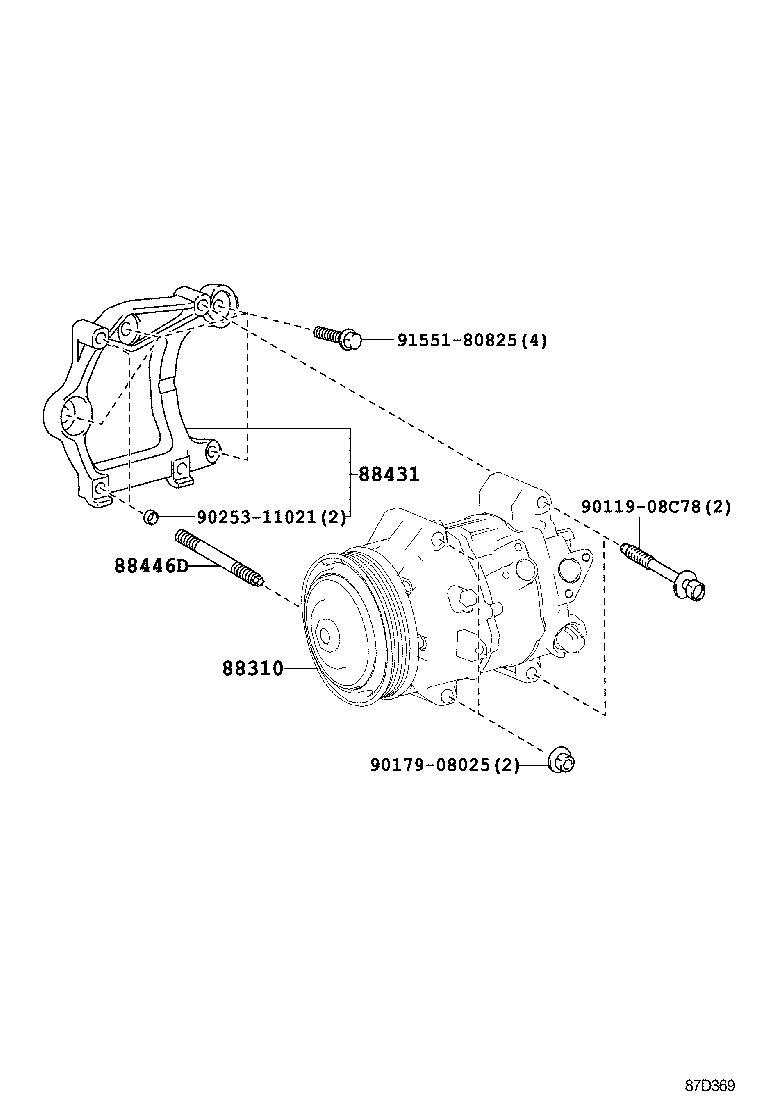

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-42380 |
Compressor Assy, W/Pulley
2012-12 → 2015-10
ended
|
ASA44 | — | |
| 88310-42530 |
Compressor Assy, W/Pulley
2015-10 → 2016-09
ended
|
ASA44 | — | |
| 88310-42531 |
Compressor Assy, W/Pulley
2016-10 → 2018-10
ended
|
ASA44 | — | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 12502-36010 |
Bracket, Compressor Mounting, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 12502-36010 |
Bracket, Compressor Mounting, NO.1
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88431-33050 |
Bracket, Compressor Mounting, NO.1
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88446D — Bolt, Cooler | ||||
| 88446-42030 |
Bolt, Cooler
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88446-42030 |
Bolt, Cooler
2015-10 → 2018-10
ended
|
ASA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
