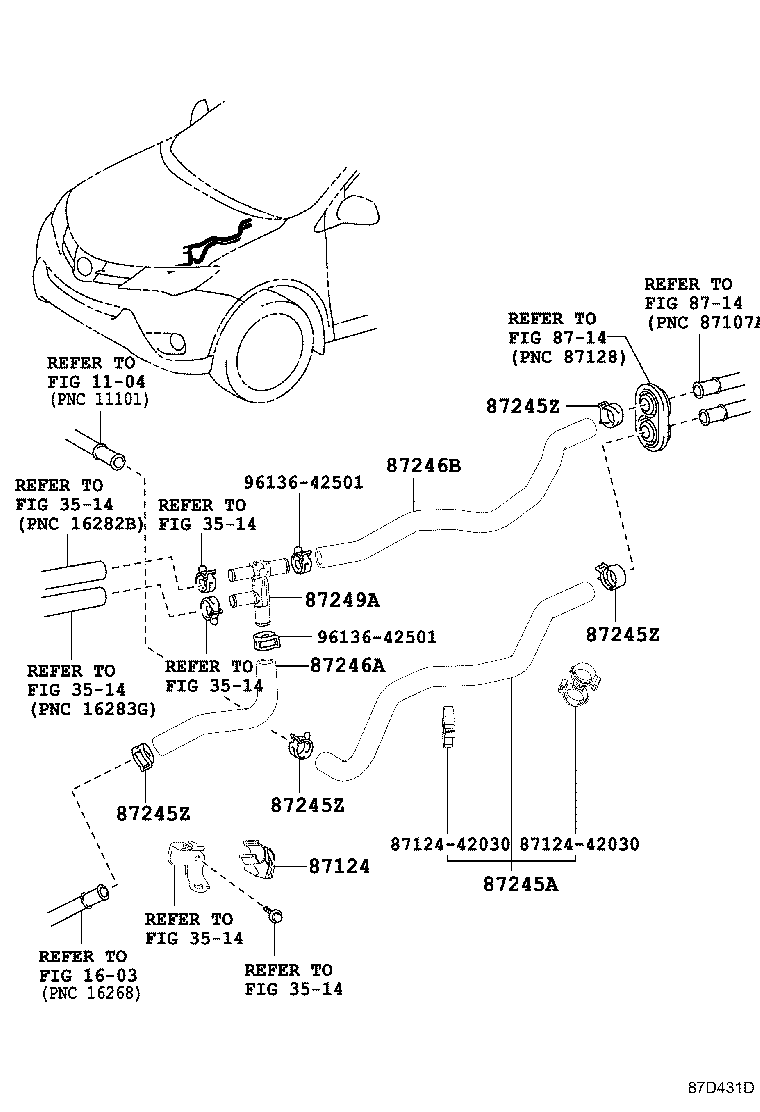

Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87124 — Clamp, Heater | ||||
| 87124-42050 |
Clamp, Heater
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87124-42050 |
Clamp, Heater
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87209-42170 |
Hose, Heater Water, Inlet A
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87209-42170 |
Hose, Heater Water, Inlet A
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 87245Z — Clip OR Clamp (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2015-10 → 2015-11
ended
|
ASA4# | — | |
| 96136-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2015-10 → 2015-11
ended
|
AVA44 | — | |
| 96138-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2015-11 → 2018-10
ended
|
ASA4# | — | |
| 96138-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2015-11 → 2018-10
ended
|
AVA44 | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-42540 |
Hose, Heater Water, Outlet A
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87245-42540 |
Hose, Heater Water, Outlet A
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 87246B — Hose, Heater Water, Outlet B | ||||
| 87245-42530 |
Hose, Heater Water, Outlet B
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87245-42530 |
Hose, Heater Water, Outlet B
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 87249A — Pipe, Heater Water Outlet, A | ||||
| 87248-33020 |
Pipe, Heater Water Outlet, A
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87248-33020 |
Pipe, Heater Water Outlet, A
2015-10 → 2018-10
ended
|
ASA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
